Ubiquiti AG-PRO-INS User manual

Model: AG-PRO-INS

Quick Start Guide

Hardware Overview

POE IN

Port

Micro-USB

Port

LED

Top View

POE OUT

Port

Removable

Rubber

Casing

LAN

Port

LED

Steady White Powered and initializing.

Steady Blue Working properly and

actively connected.

Alternating Blue/White Device is busy;

do not power off or unplug.

Ports

POE OUT Supports power and data.

Connect this port to the airMAX® device.

POE IN Supports power only. Connect

this port to the PoE adapter or switch.

LAN (Optional) Ethernet connection to

a host computer.

Micro-USB (Optional) Power input from

a mobile power pack.

Reset Buttons

Reset

Ext

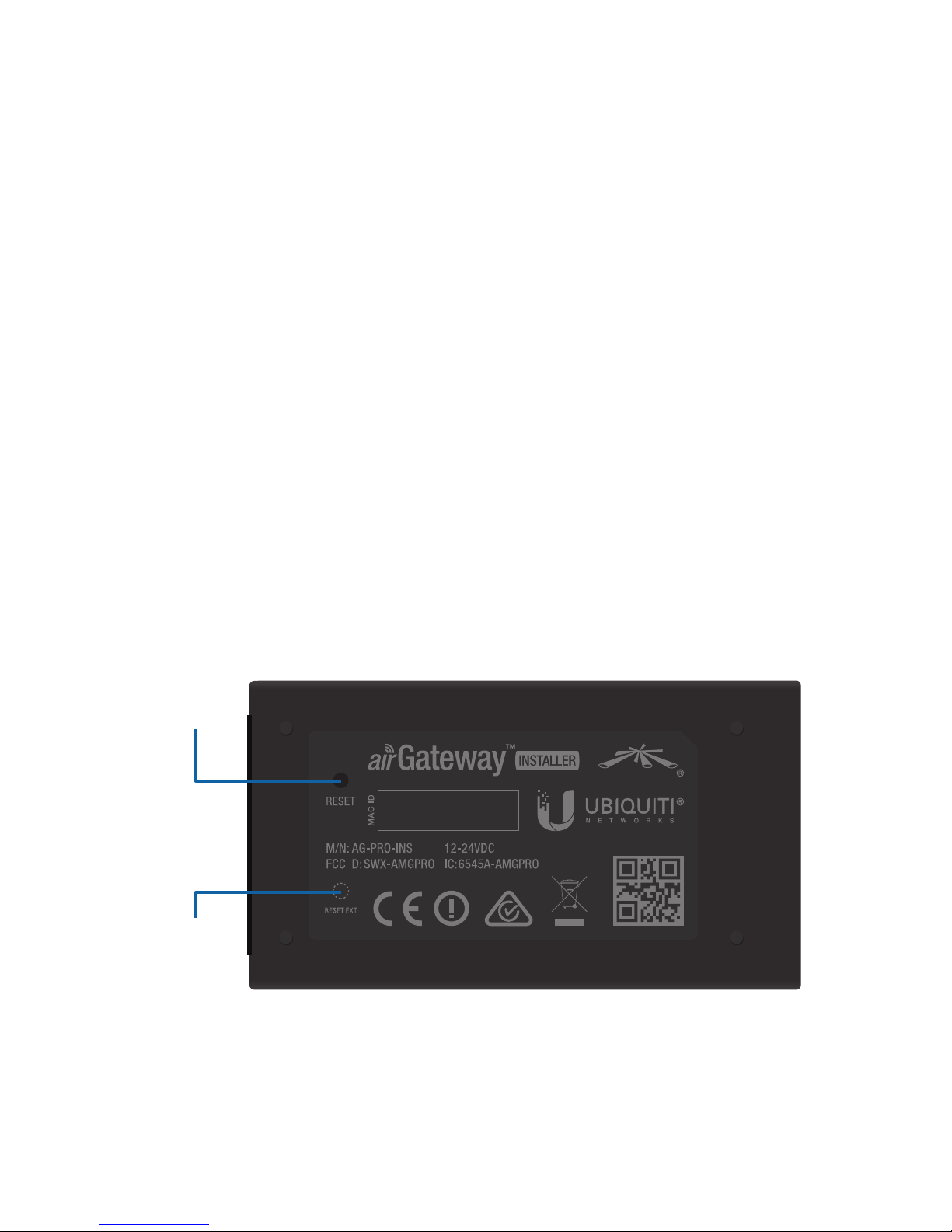

Bottom View with Casing Removed

Reset To reset the airGateway™to

factory defaults, press and hold the

Reset button while the airGateway is

powered on. Hold the button until the

LED alternates blue and white.

Reset Ext To reset the airMAX device

connected to the airGateway to factory

defaults, press the Reset Ext button while

the airMAX device is powered on. Hold

the button for more than 8 seconds until

the LEDs on the device flash.

Configure the airGateway

1. Connect an Ethernet cable to the port

labeled POE IN.

2. Connect the other end of the cable to

a 24V passive PoE adapter or switch.

3. From a mobile device or computer,

connect its Wi-Fi to the airGateway

access point (SSID) named:

airGateway:<MAC Address>

Note: Ensure that DHCP is

enabled on your Wi-Fi adapter.

4. Launch a web browser and go to:

https://192.168.1.1

5. The airOS® login screen will appear.

Enter ubnt in the Username and

Password fields.

Upon initial login you must select

your Country and Language, and

agree to the Terms of Use to use the

product. Click Login.

Note: U.S. product versions are

locked to the U.S. Country Code

to ensure compliance with FCC

regulations.

6. Go to the System page and under

System Accounts, click the key icon

to change the default administrator

username and password.

Click Change, and then click Apply to

save the changes.

Note: The airGateway LED will

turn white to indicate that your

changes are being saved.

7. After your changes have been

saved and the LED is steady blue,

disconnect the Ethernet cable from

the airGateway.

The airGateway is now configured and

ready for use.

Configure an airMAX Device

Use a mobile device or laptop to

configure the airMAX device at the point

of installation via the airGateway’s Wi-Fi:

1. Power the airGateway by using a

24V passive PoE adapter or a mobile

battery pack:

• PoE adapter Connect an Ethernet

cable from a 24V passive PoE

adapter to the port labeled POE IN

on the airGateway.

• Mobile battery pack Connect a

mobile power pack to the Micro-USB

port on the airGateway.

2. Connect an Ethernet cable to the port

labeled POE OUT on the airGateway.
