Ubiquiti LTU-Rocket User manual

LTU-Rocket GPS Antenna Mount External GPS Antenna

Metal Strap Zip Ties (Qty. 2) Universal Bracket

IP67 Upgrade Kit

(Vent and Gasket)

Gigabit PoE (24V, 1A) with

Mounting Bracket

Power Cord

Package Contents

Antenna Compatibility

The LTU-Rocket is designed for use with the following Ubiquiti® airMAX® Sector

antenna models* for Point-to-MultiPoint mode:

AM-5AC21-60

AM-5AC22-45

AM-V5G-Ti

AM-M-V5G-Ti

AM-5G16-120

AM-5G17-90

AM-5G19-120

AM-5G20-90

AP-5AC-90-HD

* Requires Universal Bracket (included).

Installation Requirements

Clear line of sight between LTU™ AP and stations

Clear view of the sky for proper GPS operation

Vertical mounting orientation

Mounting point:

At least 1 m below the highest point on the structure

For tower installations, at least 3 m below the top of the tower

Ground wires – min. 10 AWG (5 mm ) and max. length: 1 m. As a safety

precaution, ground the LTU radio to a grounded mast, pole, tower, or grounding

bar.

WARNING: Failure to properly ground your LTU radio will void your

warranty.

Outdoor, shielded Category 6 (or above) cabling and shielded RJ45 connectors

are required for all wired Ethernet connections.

Surge protection should be used for all outdoor installations. We recommend

that you use two Ethernet Surge Protectors, model ETH-SP-G2, one near the

device and the other at the entry point to the building. The ETH-SP-G2 will

absorb power surges and safely discharge them into the ground.

Note: For guidelines about grounding and lightning protection, follow

your local electrical regulatory codes.

* Shown without antenna.

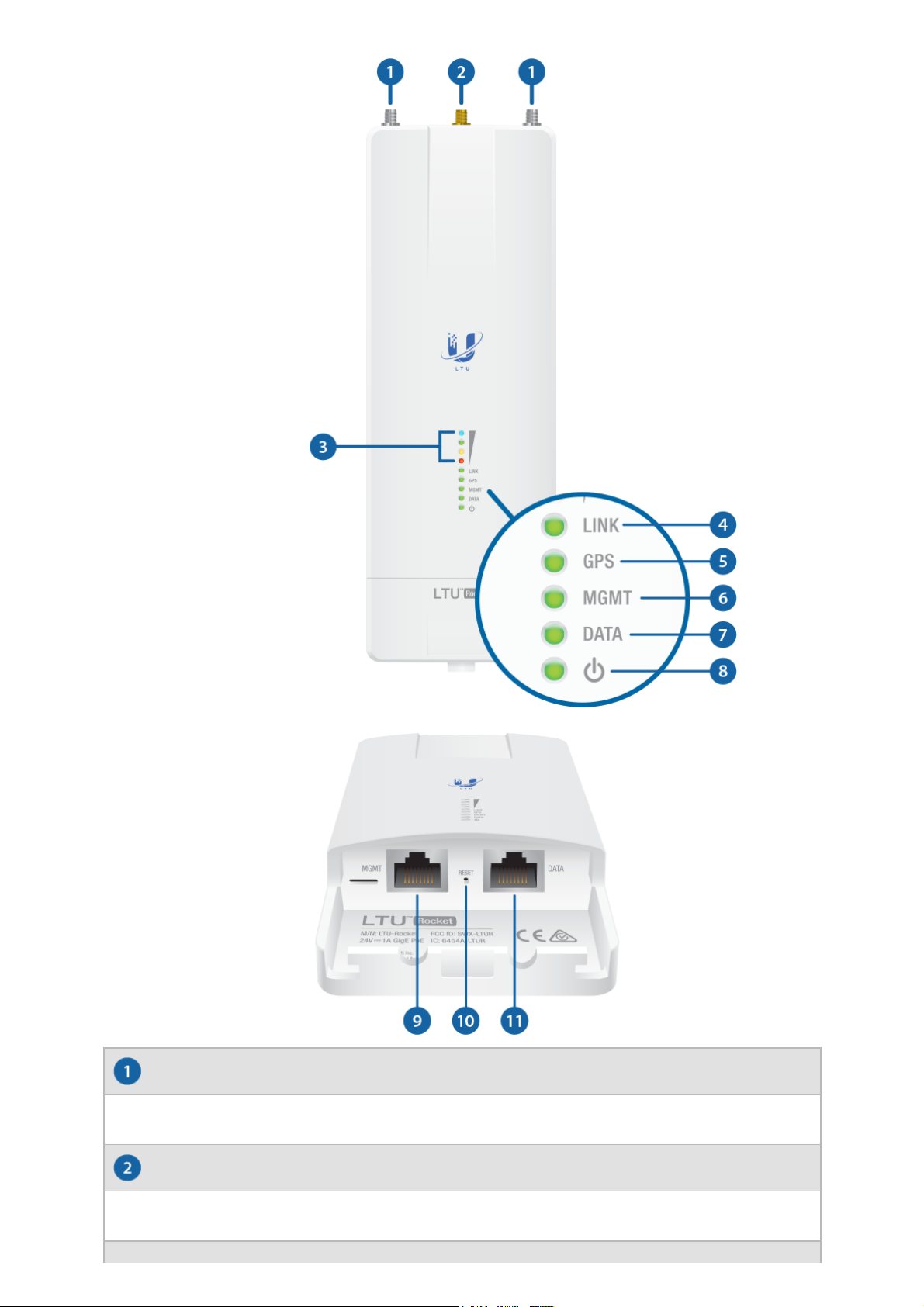

Hardware Overview

LTU Antenna Connectors

GPS Antenna Connector

Used to attach RF antenna cables (not included).

Used to attach the GPS Antenna.

Signal LEDs

Link LED

GPS LED

MGMT LED

Data LED

Each LED will light when the wireless signal strength is equal to or greater than

the LED’s threshold value for the current channel width setting. The default

threshold values for each channel width are shown below:

Off RF Off

Syncing

Beaconing

Registering

On Operational

Off No GPS Synchronization

Non-Operational (Weak Signal)

On Operational (Strong Signal)

LED not used.

Off No Ethernet Link

On Ethernet Link Established

Power LED

Management Port

Reset Button

Data Port

Random Flash Ethernet Activity

Off No Power

On Powered On

Port not used.

To reset to factory defaults, press and hold the Reset button for more than 10

seconds while the device is powered on.

Gigabit PoE port for handling all user traffic and powering the device. Default

IP address: 192.168.1.20

Installation Overview

We recommend that you configure your LTU-Rocket radio before site installation.

The following sections provide detailed installation instructions. Perform these

instructions in the sequence given.

Connecting Power over Ethernet

WARNING: Use only the included adapter, model POE-24V-5X-HD.

Failure to do so can damage the unit and void the product warranty.

LTU Configuration

Access the LTU Configuration Interface for configuration. By default, Access Point

mode is already enabled for the LTU-Rocket. You can choose to configure

settings such as Link Name, Duty Cycle, Channel Bandwidth, and Frequency.

The PTMP stations will scan and find the LTU-Rocket and do not need any

frequency set as long as they are set with the same Channel Bandwidth and Link

Name.

Configuration Using Browser-Based Interface

1. Configure the Ethernet adapter on your computer with a static IP address on

the 192.168.1.x subnet.

2. Launch your web browser. In the address field, type: http://192.168.1.20

Then press enter (PC) or return (Mac).

3. Select your Country and Language. You must agree to the Terms of Use,

EULA, and Privacy Policy to use the product. Click Continue.

4. Click the icon.

5. Configure the following settings:

a. If needed, change the Channel Bandwidth, Frequency, Output Power

(EIRP), Antenna Gain, and Max TX Modulation settings. The Channel

Bandwidth should be the same on all devices in the PtMP link.

b. In the Security Key field, enter a combination of alphanumeric characters (0-

9, A-Z, or a-z).

Note: The key is an alphanumeric password between 8 and 63

characters long.

6. Click Save Changes.

7. Configure a unique IP address for the Data port:

a. Click the icon.

b. For the Data IP Address option:

DHCP Have your router use DHCP reservation to assign a unique IP

Address.

Static Change the IP Address, Netmask, and other settings to make them

compatible with your network.

c. Click Save Changes.

Upgrade for IP67 Compliance

To protect the LTU-Rocket from intrusion by water, dust, and insects, we

recommend installing the IP67 Upgrade Kit (included):

Note: Do not damage or remove the post on the Port Cover.
