Ubiquiti LTU-Lite User manual

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

LTU-Lite Wall Mount Bracket Screws (Qty. 2)

Screw Anchors (Qty. 2) Zip Tie Gigabit PoE (24V, 0.5A) with

Mounting Bracket

Power Cord

Package Contents

Installation Requirements

LTU PtMP AP, such as model LTU-Rocket

Phillips screwdriver for wall-mounting

Outdoor, shielded Category 6 (or above) cabling and shielded RJ45 connectors are

required for all wired Ethernet connections.

Surge protection should be used for all outdoor installations. We recommend that you use

two Ethernet Surge Protectors, model ETH-SP-G2, one near the device and the other at the

entry point to the building. The ETH-SP-G2 will absorb power surges and safely discharge

LTU-Lite Quick Start Guide

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

System LED

them into the ground.

Hardware Overview

Blue Initial power-up.

Flashing White Bootup in progress.

Note: For guidelines about grounding and lightning protection, follow your local

electrical regulatory codes.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

Ethernet Port

Reset Button

White Ready for use.

Alternating

Blue/White Firmware upgrade in progress.

This 10/100/1000 Ethernet port is used to connect the power and should be connected to

the LAN and DHCP server.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is powered on.

Hardware Installation

1.

2.

3.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

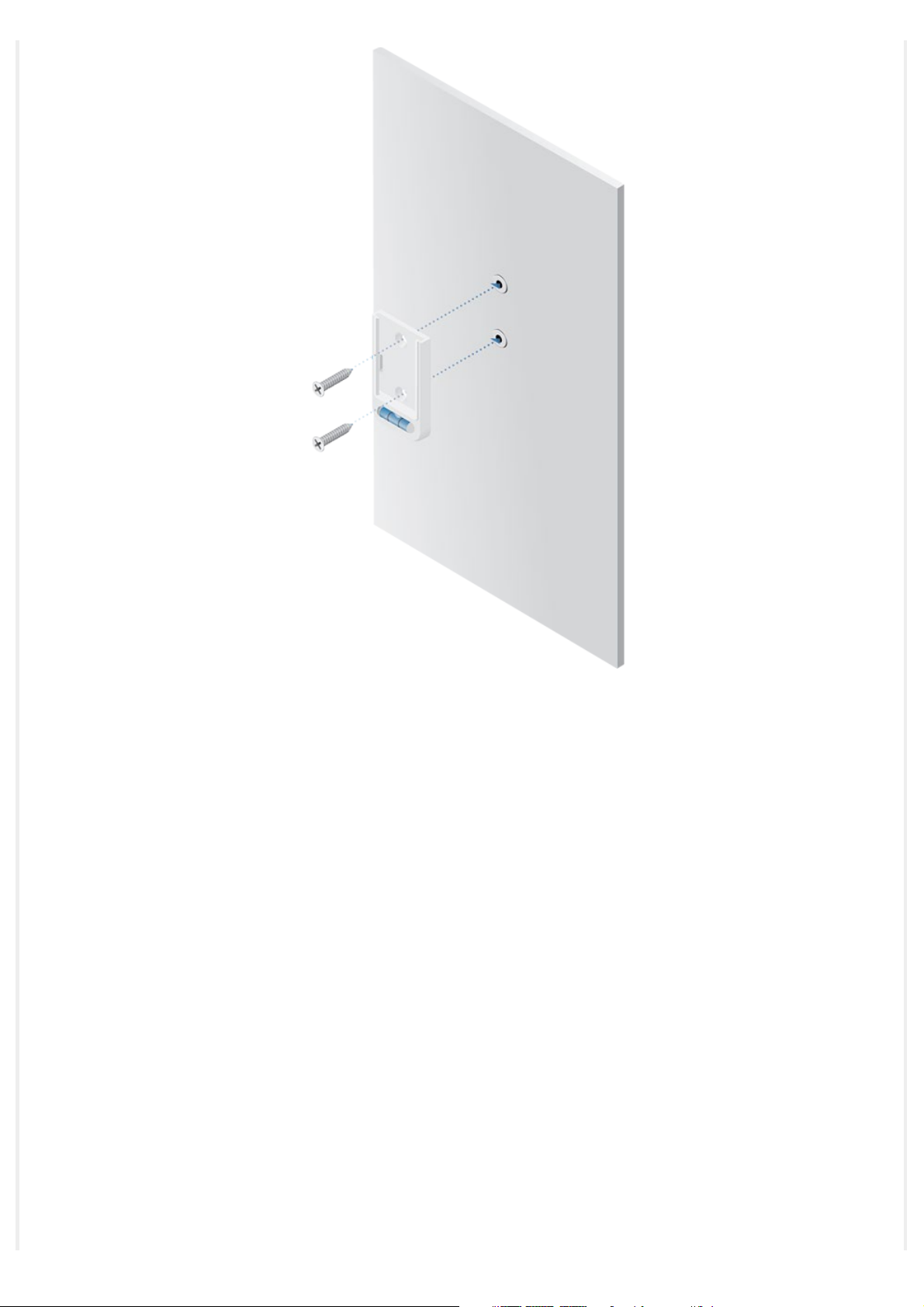

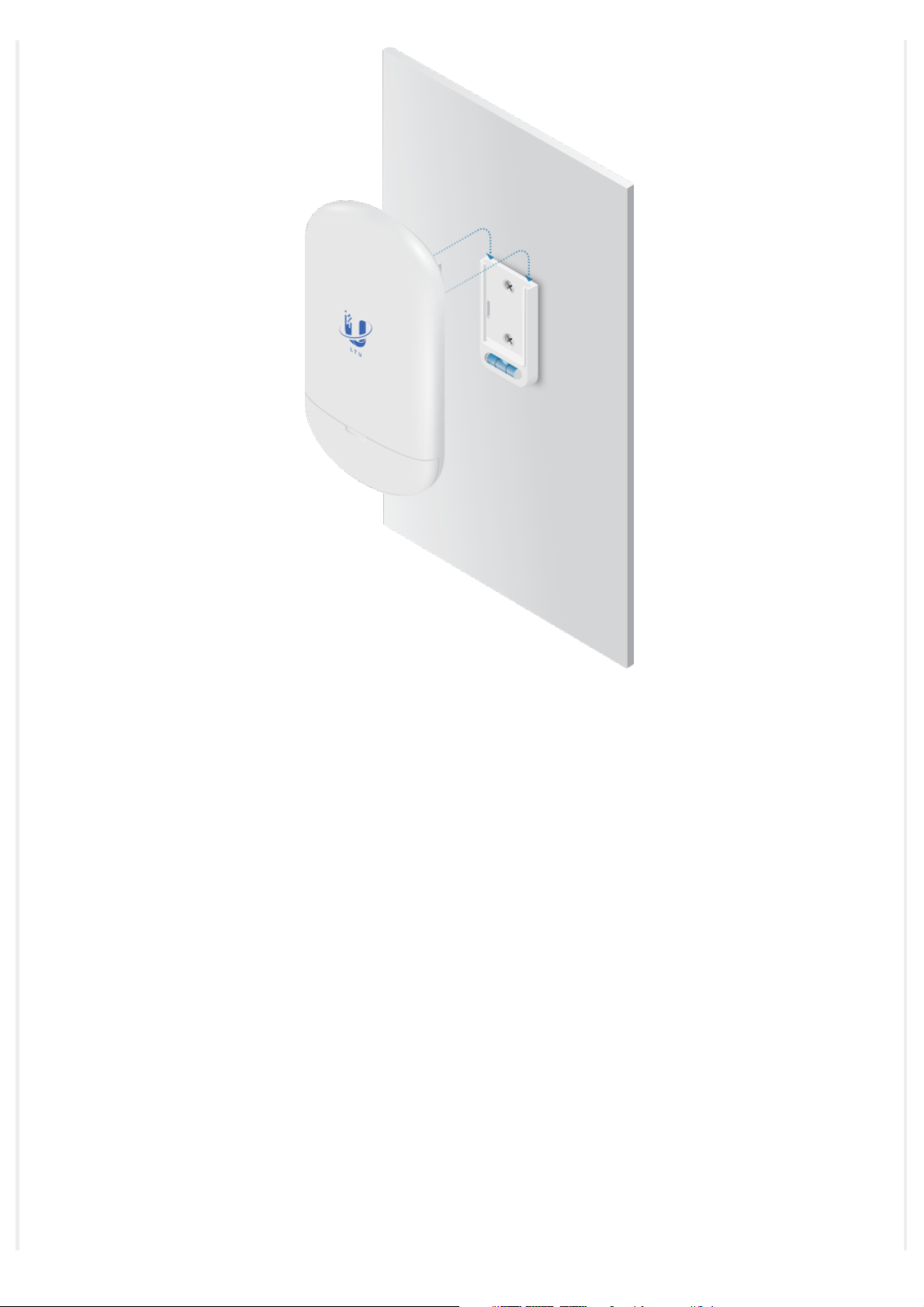

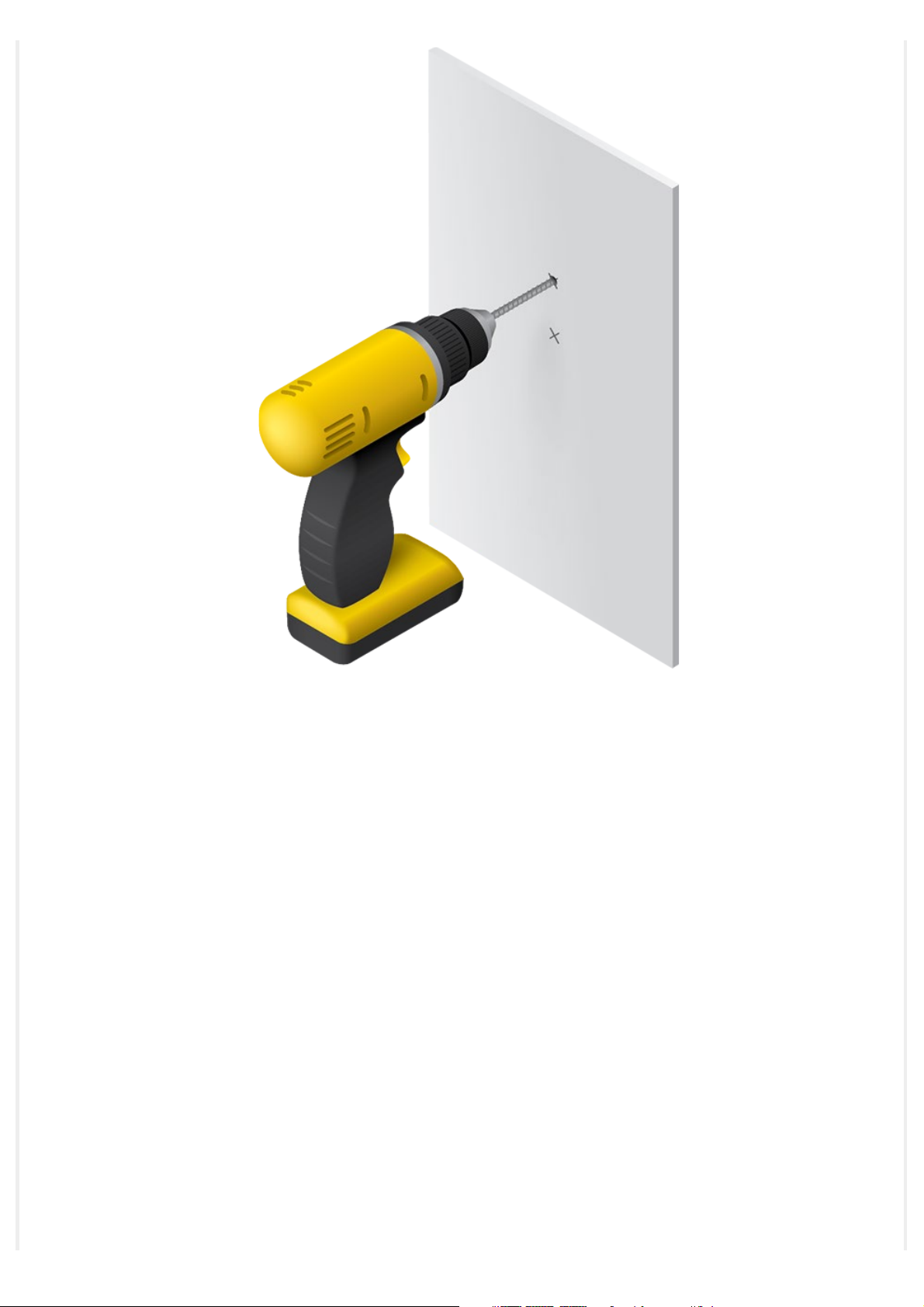

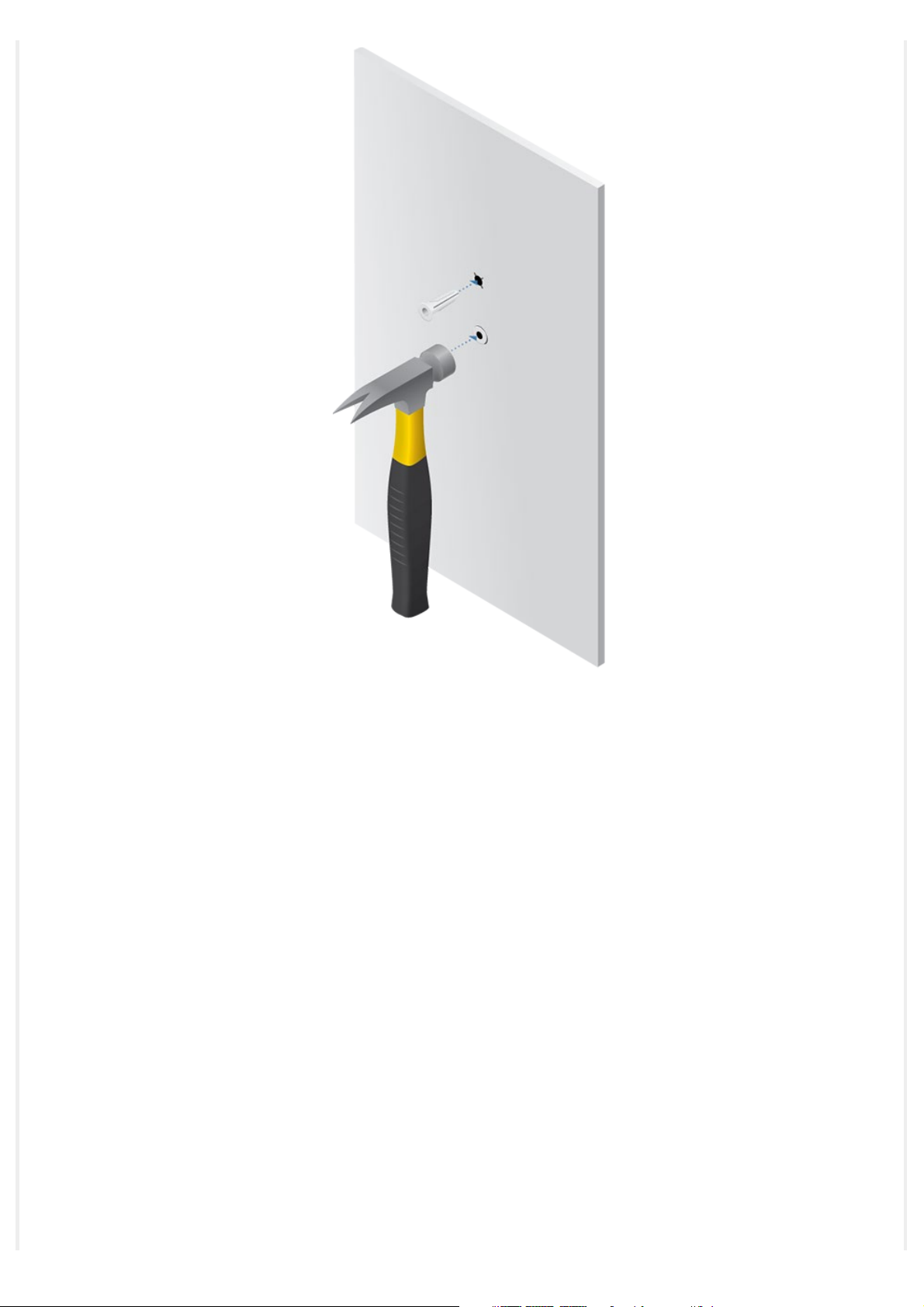

Wall Mount

1.

2.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

3.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

4.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

5.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

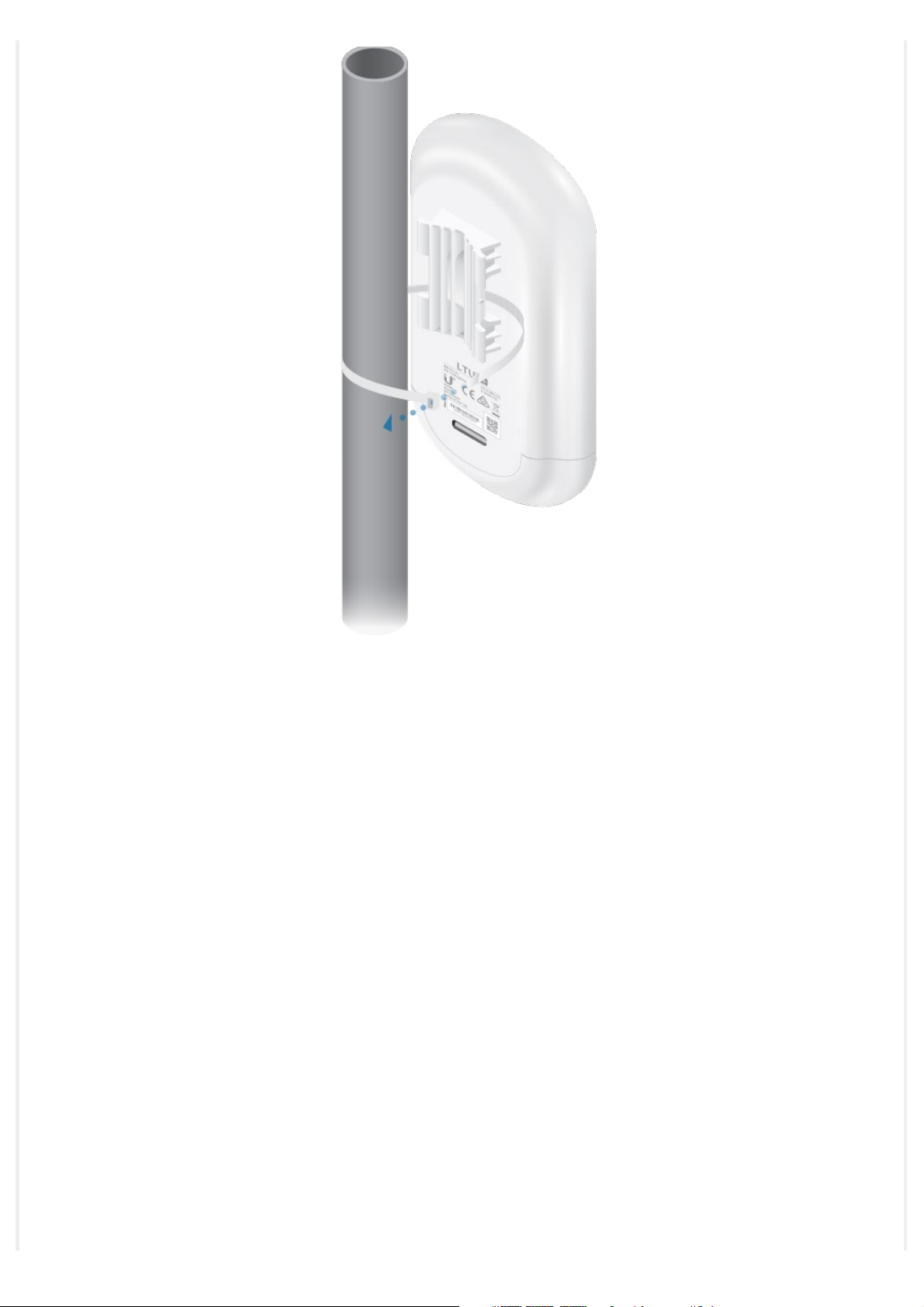

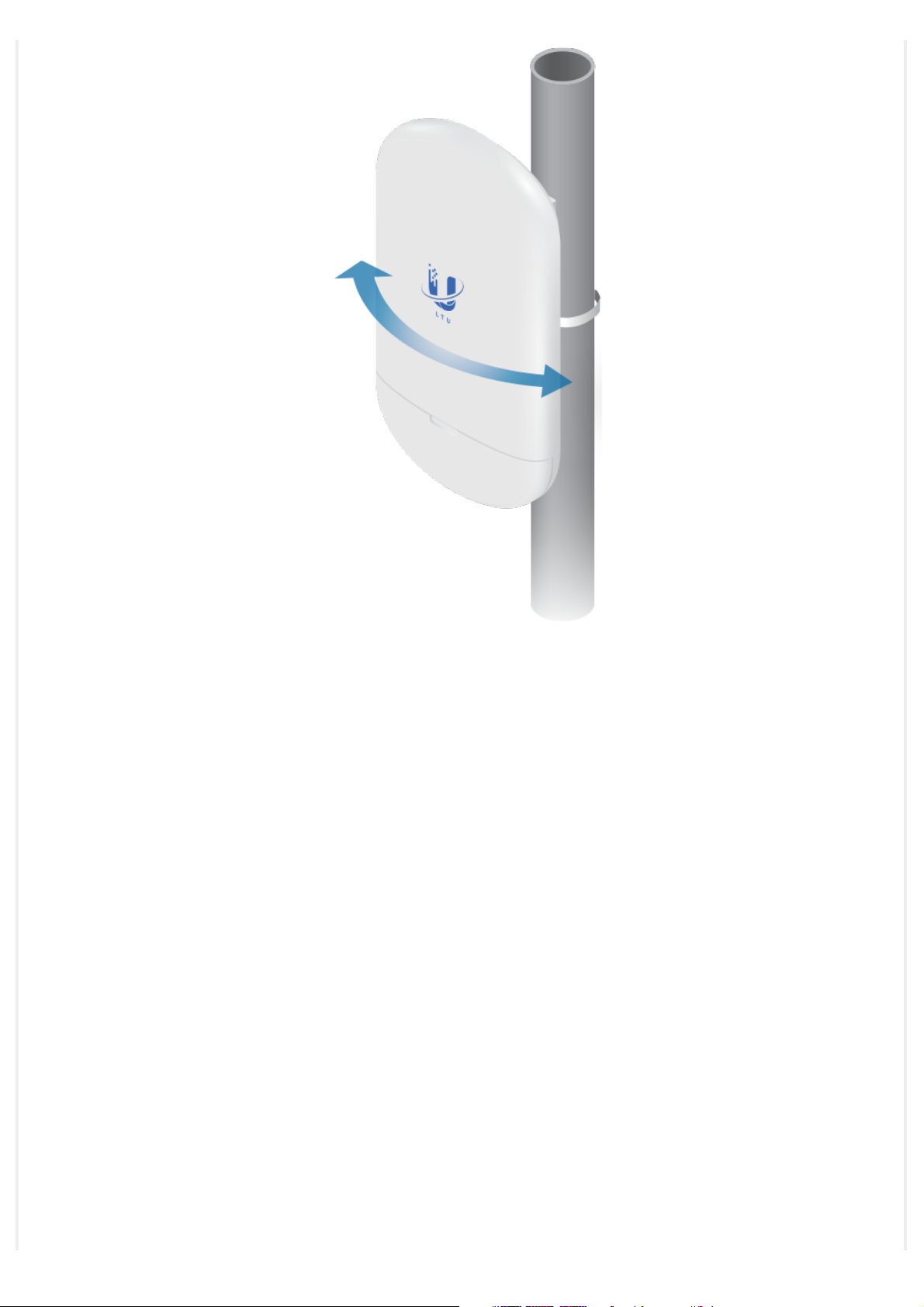

Pole Mount

1.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

2.

LTU-Lite Quick Start Guide

http://dl-origin.ubnt.com/qsg/LTU-Lite/LTU-Lite_EN.html[05.02.2020 14:06:04]

3.
