QUICK START GUIDE

WELCOME TO U-LINE



making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility and



collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice Makers,

Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.



and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,



decades and is proud to have the opportunity to ship to you.

U-LINE — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE

PRODUCT INFORMATION

IMPORTANT - Before connecting your new Nugget Ice Machine, be sure to carefully follow all manufacturer

recomendations throughout this guide regarding water quality. Please see WATER HOOKUP section for

more information.

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation, and

Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been



GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

QUICK START GUIDE

This Quick Start Guide covers the basics of installation and general use of your product.

For more details, see the complete User Guide & Service Manual on u-line.com.

This product is eligible for an additional one-year warranty at no charge when you register your product on u-line.com.

See complete warranty for details.

CONTENTS

Safety and Warning 4

Environmental Requirements 5

Electrical 5

Water Hookup 6

Drain 12

Door Swing 13

Door Adjustments 14

General Installation 22

Control Operation 23

First Use 27

Ice 28

Cleaning 31

Warranty 36

1 year + 1 with registration*

QUICK START GUIDE

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

Your product may contain R600a (Isobutane)

which is a ammable hydrocarbon. To conrm,

check serial tag inside of unit. It is safe for

regular use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

DANGER

WARNING

CAUTION

WARNING

QUICK START GUIDE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce



ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

Electrical

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, re, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualied electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit



appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

CAUTION

QUICK START GUIDE

Water Hookup

Crescent Ice Makers

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)



water hook up kit – part # ULAWATERHOOKUP. The kit





Plumbing installation must observe all state

and local codes. All water and drain connections

MUST BE made by a licensed/qualied plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between a minimum of

20 and a maximum of 120 psi (138 and 827 kPa).

• 

supply line.

• The water line should be looped into 2 coils. This

will allow the unit to be removed for cleaning and

servicing. Make certain that the tubing is not pinched

or damaged during installation.

Connect to potable water supply only.

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided exible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

ooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

Turn o water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The edges

could be sharp.

1. 

to product prior to attempting installation.

2. Remove the back panel.

3. Locate water valve inlet.

CAUTION

WARNING

QUICK START GUIDE

1. 

screwdriver.

2. Thread water line through back panel hole (with

bushing).

3. Locate water valve inlet and connect to valve.

4. Turn on water supply and check for leaks.

5. Reinstall back panel.

6. Install retaining clip.

Remove

with ﬂat

screwdriver

QUICK START GUIDE

USER GUIDE

Water Hookup

u-line.com

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)

compression fitting.

U-Line recommends using accessory water hookup kit -

Part # 80-54674-00. The kit includes a 10’ (3 m) braided

flexible water supply line and a brass hose fitting.

WARNING

Prior to installation, determine if this product

contains a gravity style drain or factory installed

drain pump. Products without a drain pump may

only use a gravity style drain. Failure to connect

water supply or drain line connections properly

may result in water leakage, personal injury,

and/or property damage. Disconnect power and

turn off water to the unit before attempting to

alter these connections. These connections are

the responsibility of the owner and must be

connected per local plumbing code. If you are

uncertain of how to safely and properly install

this product, contact a licensed plumber.

Water Supply Connection

WARNING

Connect to potable water supply only.

CAUTION

Review, obey, and understand the local

plumbing codes before you install your unit.

Connect to the cold water supply. The water

pressure should be between 20 and 120 psi (138

and 827 kPa). The water line MUST have a shut-

off valve on the supply line.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the grille/access panel in the front and the

back panel.

Water Hookup

Clear Ice Machines

QUICK START GUIDE

USER GUIDE

Water Hookup

u-line.com

3. Locate water

valve in the front

of the unit and

thread water

supply line

through.

NOTICE

Route the water

supply line

through the unit so it does not come into contact

with any internal components other than the

solenoid valve. Normal operation creates some

vibration. A water supply line contacting an

internal component or cabinet wall can cause

excessive noise during operation or damage to

the line.

4. On the back panel,

break away filler feature

in bushing with flat

screwdriver.

5. Thread water line

through back panel hole

(with bushing) and

connect to cold water

supply line.

6. Turn on water supply and check for leaks.

7. Reinstall back panel and grille/front access panel.

8. Install retaining clip.

Remove

ZLWKɠDW

screwdriver

QUICK START GUIDE

USER GUIDE

Water Hookup

TO PREVENT DAMAGE TO Y0UR ICE MACHINE

AND/OR VOID YOUR WARRANTY, FOLLOW ALL

WATER SUPPLY GUIDELINES AS LISTED BELOW.

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)

compression tting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes

a 10’ (3 m) braided exible water supply line and a brass

hose tting.

Plumbing installation must observe all state

and local codes. All water and drain connections

MUST BE made by a licensed/qualied plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply

When connecting the water supply, please note the

following:

• Water Mineral Content must meet the following:

◦TDS: less than 200 ppm (mg/l)

◦Hardness: Less than 200 mg/l (12 gpg)

• Water supply MUST NOT be from a water

softener.

• A TDS meter is included with your unit

• Water Treatment Options

◦TDS level of 200 ppm or higher and/or a

hardness of 12-19 gpg can be treated by U-Line’s in-line

water filter accessories available at u-line.com or your

local dealer:

 ULALINEFILTER — Standard

 ULALINEFILTERL — Large

 ULALINEFILTERHEAD — 3/8” NPT, initial

setup requires head & filter

• Use bypass level 6

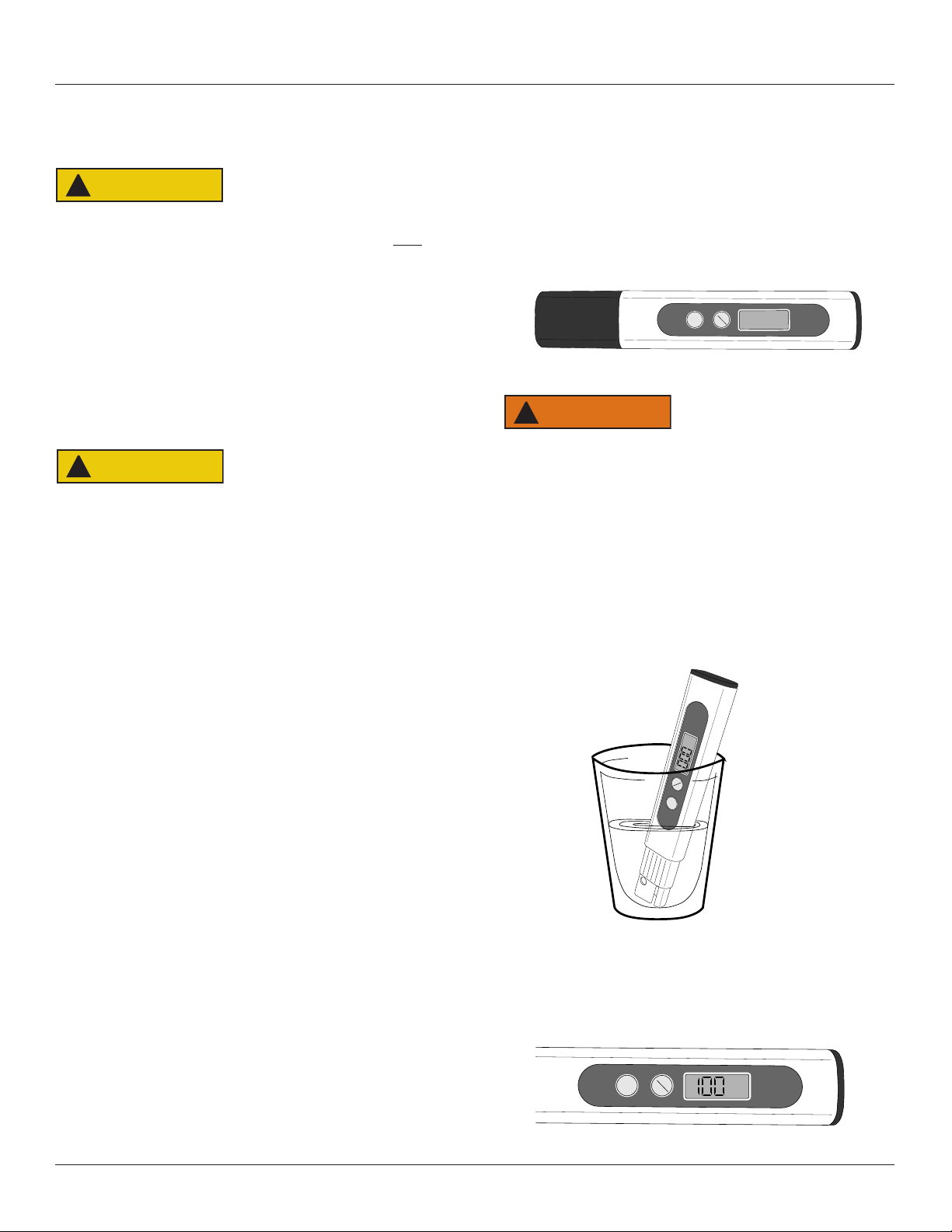

Measure Water TDS

Every Nugget Ice Machine comes with a TDS meter similar

to the one below. The TDS meter measures the Total

Dissolved Solids level that exists in the water supply; this

is measured in ppm (parts per million).

The TDS meter does not test the toxicity of

the water and is not to be used to determine

potability. A TDS METER CANNOT DETECT THE

TOXINS THAT MAKE WATER UNSAFE TO DRINK.

1. Turn on sink faucet and let run for 30 seconds.

2. Fill a clean glass (2 inches of water is sucient).

3. Remove cap from meter.

4. Turn on meter and immerse meter into the water.

5. Leave meter immersed for 30 seconds.

6. Remove meter and check the readout for the TDS

level in ppm - to save the reading, press the hold

button.

7. Turn o meter, dry o, and replace cap.

CAUTION

TDS

OFF

HOLD

PPM

OFF

HOLD

TDS

WARNING

OFF

HOLD

TDS

PPM

Water Hookup

Nugget Ice Machines

CAUTION

Other manuals for UONP115SS01B

This manual suits for next models

Table of contents

Other U-Line Ice Maker manuals

U-Line

U-Line Marine Combo Series Installation manual

U-Line

U-Line UHNP115 Installation manual

U-Line

U-Line Echelon BI-2115 User manual

U-Line

U-Line BI95FC User manual

U-Line

U-Line BI95FC User manual

U-Line

U-Line Echelon BI-2115 User manual

U-Line

U-Line U-BI1215B-00A User manual

U-Line

U-Line UONB115 Installation manual

U-Line

U-Line UHCP115 Installation manual

U-Line

U-Line Refrigerator/Ice-Maker Combos User manual

U-Line

U-Line BI95 ADA Height Compliant Series Installation manual

U-Line

U-Line Origins CO1175AS User manual

U-Line

U-Line BI1215 1000 Series User manual

U-Line

U-Line Acr115 Installation manual

U-Line

U-Line UMCR014-SD01A Installation manual

U-Line

U-Line UHNP315IS81A Installation manual

U-Line

U-Line BI-95BTP User manual

U-Line

U-Line ECHELON CLR2060 User manual

U-Line

U-Line UMCR015SS02A Installation manual

U-Line

U-Line CLR6O Building instructions

U-Line

U-Line CO1175 User manual

U-Line

U-Line 3018CLR SERIES User manual

U-Line

U-Line ECHELON CLR2060 User manual

U-Line

U-Line 3000 SERIES Installation manual

Popular Ice Maker manuals by other brands

Hoshizaki

Hoshizaki KMD-460MWJ instruction manual

Sub-Zero

Sub-Zero 315I Planning information

Unold

Unold 48945 Instructions for use

Kenmore

Kenmore 2217402A Use & care guide

Cornelius

Cornelius WM600 Installation & owner's manual

GE XPIO43SCSS owner's manual

Hoshizaki

Hoshizaki KMD-901MAH Specifications

Whynter

Whynter FIM-450HA instruction manual

Andrew James

Andrew James AJ000522 manual

Scotsman

Scotsman CME1356 user guide

Scotsman

Scotsman ACM 25 Service manual

Kärcher

Kärcher IP 120 manual

Maytag

Maytag MIM1554WRS - Ice Maker User instructions

Hoshizaki

Hoshizaki KM-630MAH instruction manual

Princess

Princess Yonanas user manual

Unold

Unold 48946 Instructions for use

Electrolux

Electrolux E15IM60GP Factory parts catalog

Cornelius

Cornelius UC150 ICE ONLY Operator's manual
