Twin Eagles TECG30-B Instructions for use

P/N: 18663A (05/13)

Models: TECG30-B

TWIN EAGLES CHARCOAL GRILL

INSTALLATION, USE & CARE MANUAL

A special message…

Congratulations on your purchase of TWIN EAGLES charcoal grill. In addition

to its Unique Style, Superb Performance and High Quality, this grill is built with pride

in the U.S.A. Twin Eagles is committed to making outdoor cooking products you will

be proud to own for years.

This manual gives you easy to follow instructions for installing, operating and

maintaining your TWIN EAGLES charcoal grill. We recommend reading this

manual carefully before your first use to ensure safety, proper care and operation.

Thank you and welcome!

TWIN EAGLES

_____________________________________________________________________

FOR YOUR RECORDS

Please record the following information and refer to them when contacting the

company or an authorized service agent. This information is found on the data

nameplate located under the right side of the control panel. Remove the ash pan to

visually access the nameplate from the front of the grill.

Model #:__________________________________

Serial #: __________________________________

Date of Purchase: __________________________

Place of Purchase: __________________________

IMPORTANT SAFETY INFORMATION – TWIN EAGLES CHARCOAL GRILL

WARNING! Read this manual carefully and completely before using your grill to ensure proper

operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other

injury.

FOR YOUR SAFETY

1. Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

2. An LP cylinder shall not be stored in

the vicinity of this appliance.

AVERTISSEMENT

1. Ne pas entreposer ni utiliser de l'essence

ni d'autres vapeurs ou liquides

inflammables dans le voisinage de

l'appareil, de ni tout autre appareil.

2. Une bouteille de propane qui n'est I

raccordée en vue de son utilisation, ne

doit I I I dans le voisinage de cet appareil

ou de tout autre appareil.

GENERAL SAFETY REQUIREMENTS:

1. This outdoor cooking appliance is not intended to be installed in or on recreational vehicles and /or

boats.

2. This outdoor cooking appliance is intended for use outdoors and shall not be used in a building,

garage or any other enclosed area.

3. Minimum clearance of 18 inches from the back and sides of the grill to adjacent combustible

construction must be maintained. This outdoor cooking appliance shall not be located under

overhead-unprotected combustible construction.

4. The utilization of an external electrical source requires that when installed, this outdoor cooking

appliance must be electrically grounded in accordance with the local codes or, in the absence of local

codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA

C22.1. Keep any electrical supply cord, rotisserie motor cord or fuel supply hoses away from any

heated surfaces.

5. Keep your grill in an area clear and free from combustible materials, gasoline and other flammable

vapors and liquids.

6. DO NOT obstruct the flow of combustion and ventilation air to this appliance.

7. Never use the grill in a windy area.

8. Never use the grill without the ash pan installed and pushed all the way to the back of the grill.

Without the ash pan, hot grease and debris could leak downward and produce a fire hazard.

9. CALIFORNIA PROPOSITION 65-WARNING: The burning of combustion products generates

some by-products which are on the list of substances known by the State of California to cause

cancer or reproductive harm. California law requires businesses to warn customers of potential

exposure to such substances. To minimize exposure to these substances always operate this unit

according to the use and care manual, ensuring you provide good ventilation when cooking with gas.

TABLE OF CONTENTS – TWIN EAGLES CHARCOAL GRILL

GETTING STARTED…………………………………………………………..…….……… 1

LOCATING THE GRILL…………………………………………………………..……….. 2

ASSEMBLY INSTRUCTIONS

oHAND CRANK……………………………………………………………….. 3

oWARMING RACK……………………………………..…………………….. 3

oROTISSERIE…………………………..…………………………………….... 3

OPERATING INSTRUCTIONS

oUSING THE CHARCOAL GRILL …………………………………………...… 4

oUSING THE ROTISSERIE KIT……………………..……………………..…… 4

CLEANING AND MAINTENANCE

oSTAINLESS STEEL……………………………………………………….…… 5

oHEX GRATES………………………………………………………….…….… 5

oASH PAN ………………….…………………………………………………… 5

oCHARCOAL BASKETS……………………………………………………….. 5

REPLACEMENT PARTS

oEXPLODED VIEW………………………………………….……………...….. 6

oREPLACEMENT PARTS LIST……..…………………..………….…………… 7

oLIMITED PRODUCT WARRANTY………………………………….…..…….. 8

oWARRANTY REGISTRATION CARD

GETTING STARTED – TWIN EAGLES CHARCOAL GRILL

1. Remove all packaging materials, labels and protective plastic film. DO NOT LEAVE UNIT

UNDER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME

AS IT WILL BECOME DIFFICULT TO REMOVE THE FILM.

2. Check to ensure that all charcoal grill accessories listed below are included.

*Optional Rotis Kit Only.

Grill Accessories TECG30-B

Hex Grate, Stainless Steel 2

Hand Crank 1

Charcoal Basket 2

Warming Rack, (s/s) 1

*Rotisserie Motor with bracket (s/s) 1

*Spit Rod, (s/s) 1

*Meat Holder Forks (pair) (s/s) 1

LOCATING THE GRILL – TWIN EAGLES CHARCOAL GRILL

This charcoal grill is designed for outdoor use only.

The charcoal grill must be installed in your choice of masonry or other non-combustible

material. Do not use any combustible materials for this construction.

Provide 18” minimum side and back clearance from unprotected combustible surface.

Do not locate this grill under overhead combustible surfaces.

Do not operate the grill inside a building, garage, recreation vehicle or any enclosed area.

When choosing an area, consider exposure to wind and proximity to traffic paths. Keep the grill

away from windy area but keep the grill in a well-ventilated area.

Do not obstruct the flow of combustion and ventilation air around the grill. The supporting

edges of the grill must be located level and flat. The counter should also be leveled.

Do not locate the grill near open windows or doors to prevent smoke from entering the house.

ASSEMBLY INSTRUCTIONS – TWIN EAGLES CHARCOAL GRILL

The TWIN EAGLES Charcoal Grill is produced fully assembled and tested in the factory and

requires no major assembly in the field. For the purpose of safe shipping and transit, some parts are

wrapped inside the grill and require minor assembly.

Check to ensure that all packaging material has been removed prior to grill operation.

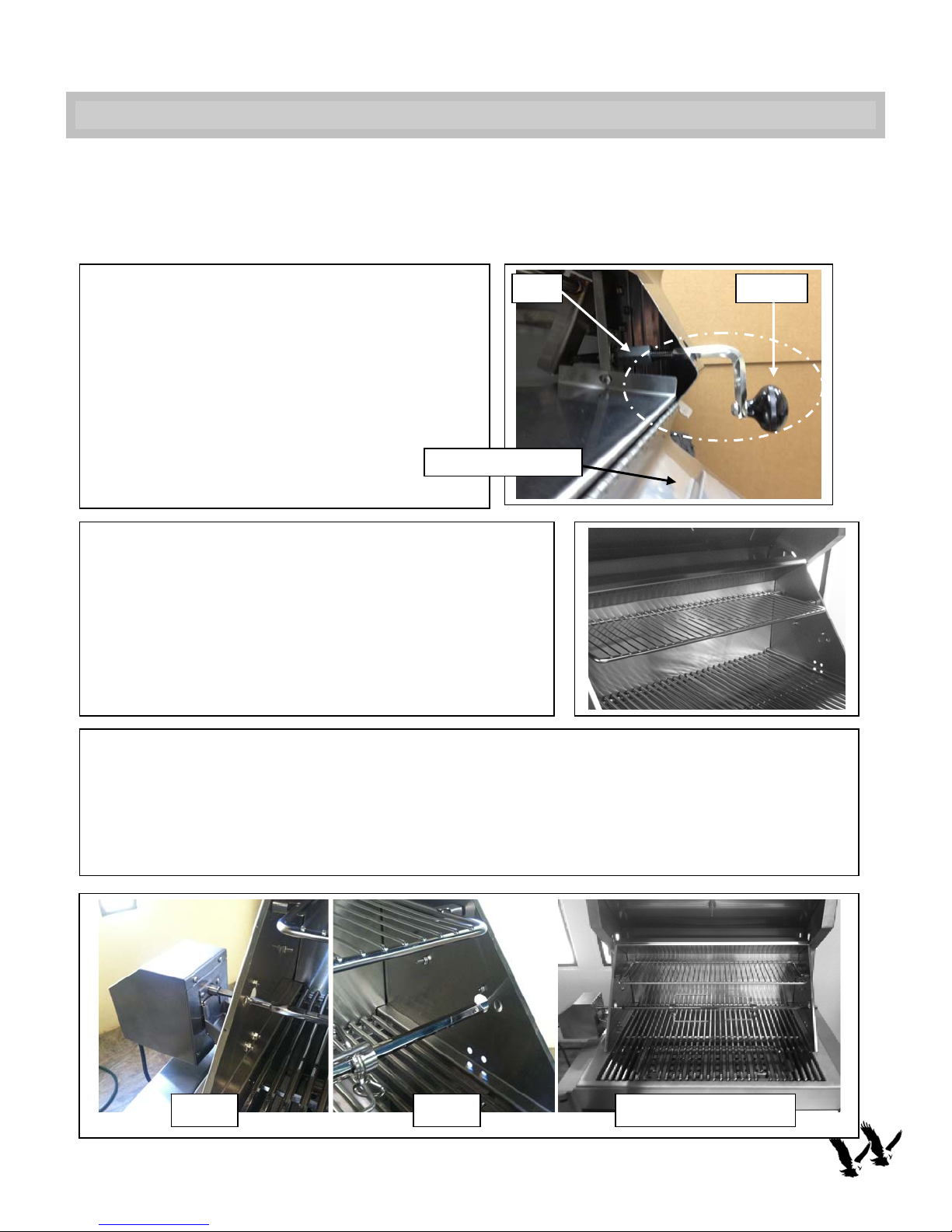

TO INSTALL THE CRANK HANDLE

1. Open the front access door and locate the nut

on the inside right hand behind the front panel.

2. Slide the threaded part of the crank handle

through the hole on the front panel and screw it

into the nut inside the firebox body.

Optional Rotisserie Kit (Note: can be installed on either left side or right side)

1. Install the rotisserie motor as shown. (See fig. 1) The motor socket hole will line up with the

hole on the side of the rear hood.

2. Insert the hex end of the rotisserie rod through hole on right hand side of the rear hood.

(See fig. 2)

3. Then insert the rotisserie rod into to the motor socket hole. (See fig. 1)

WARMING RACK

Install the warming rack as shown.

When the warming rack is not in use, it may be moved out

of the way by sliding it out forward towards the front of

grill.

Front Access Door

Crank

Fig. 1 Fig. 2 Installed Rotisserie Kit

OPERATING INSTRUCTIONS – TWIN EAGLES CHARCOAL GRILL

USING THE CHARCOAL GRILL

1. Check to be certain that the ash pan is in place and pushed all the way into the grill.

2. Remove the hex grates and pile the charcoal on the charcoal basket evenly. Note: Do not pile

more than 4 pounds of charcoal per charcoal basket. For indirect cooking leave one

basket empty.

3. To light charcoal, follow the recommended lighting procedure of the charcoal.

4. To raise and lower the charcoal basket, turn the crank either clockwise or counter-clockwise

until the desired height is achieved. (Crank will stop when at top of travel)

5. To add more charcoal, open the front access panel and pile the newly added charcoal evenly

across the charcoal baskets.

6. Allow grill to cool and clean the ash pan after each use.

USING THE OPTIONAL ROTISSERIE KIT

The Rotisserie system rotates the food on top of the charcoal for even cooking and juicier taste.

1. Install the rotisserie motor on the motor bracket and plug it in to proper voltage.

2. Insert the food on the middle of the spit rod and then secure it with the meat holders on both ends by

tightening the thumb screws on the meat forks. If multiple pieces of food will be cooked at the same

time, make sure the load is evenly balanced on the spit rod. Proper weight balancing will lead to

evenness of cooking and prolong the life of the rotisserie motor.

3. Insert the spit rod in the rotisserie motor. Reference assembly instructions for rotisserie assembly

instructions.

WARNING: When using the rotisserie always keep the front hood closed except when basting or

checking the meat for cooking completion. It is recommended to use a meat thermometer to check if

the food is completely cooked. NOTE: The rotisserie motor must be stored in an area secured from

the surrounding elements when not in use. Do not leave it mounted on the grill.

WARNING!

When the charcoal grill is in use, the surfaces of the grill will be HOT. Exercise caution

when using the unit especially when adding charcoal or cranking the charcoal basket.

USING THE AIR VENTS

Air vents control the rate of burn of the charcoal. There are three locations to adjust the

air flow of the charcoal grill. One vent on each side of the hood and one vent on the lower

portion of the front panel. A roasting effect can be obtained by closing the top vents on the side

of the hood. This will aid in maintaining a more constant temperature and will reduce the rate of

burn on the charcoal. This effect is increased by closing the front vents but depending on the

amount of charcoal used will take longer or shorter to create a change in burn rate. Conversely,

opening them will speed up the rate of burn but will reduce the roasting effect. The thermometer

on the hood can be used as a gauge of the burn rate but is more a measure of the ambient

temperature in the upper burn area of the grill. Adding more charcoal or raising the charcoal

baskets will increase this temperature. While using less charcoal or lowering the charcoal

baskets will decrease the overall temperature.

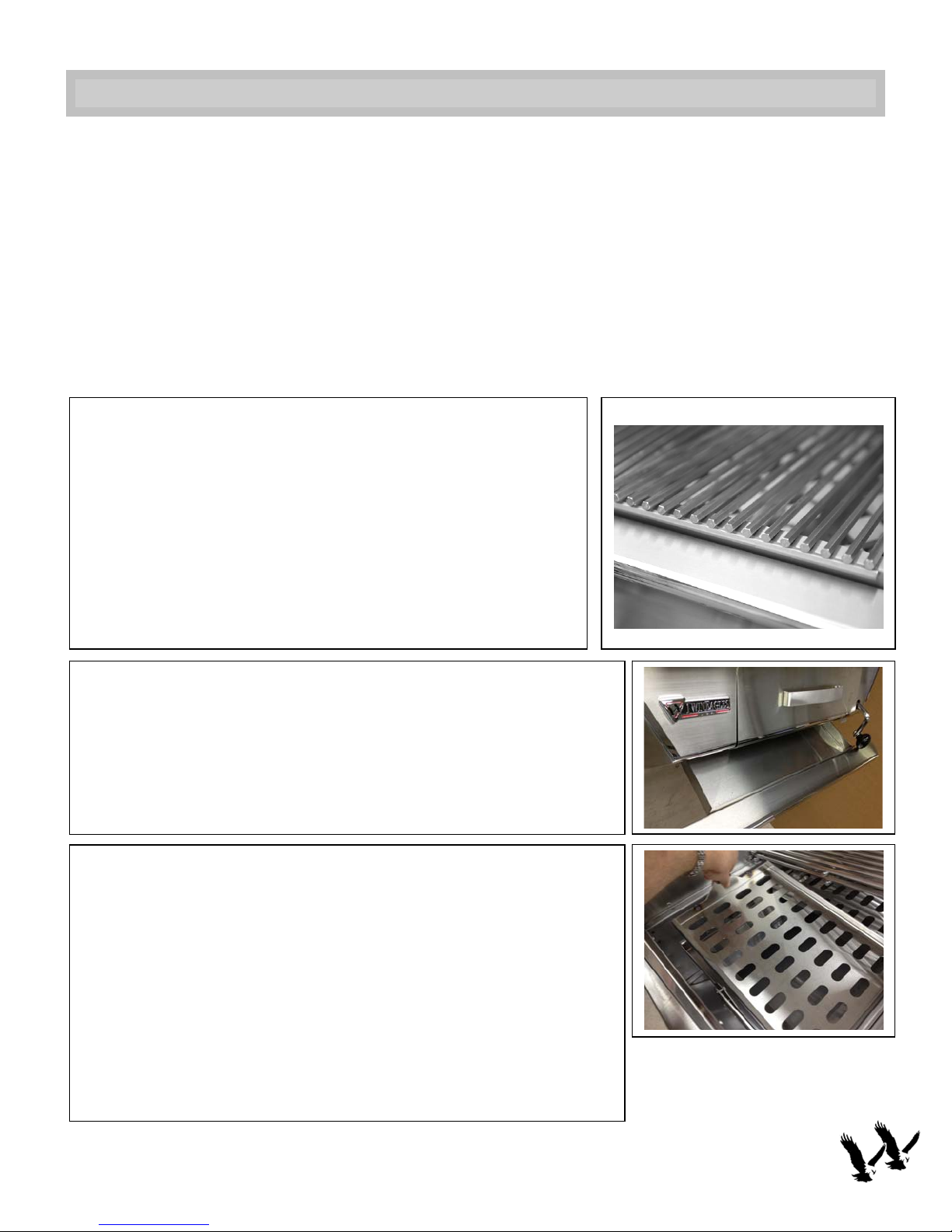

CLEANING & MAINTENANCE – TWIN EAGLES CHARCOAL GRILL

STAINLESS STEEL

The TWIN EAGLES charcoal grill is made of all welded stainless steel. It is non-rusting and non-

magnetic. Never clean the stainless steel when it is hot. After the initial grilling use, certain areas of the

grill may discolor. This is a normal discoloration caused by the intense heat given off by the charcoal.

Specks of grease can gather on the surface of the stainless steel and get baked-on. These can be removed

by using a mild abrasive pad (like Scotch Brite) with a stainless steel cleaner. Use the mildest cleaner

and always scrub in the direction of the grain.

Do not use steel wool to clean the grill. Do not use abrasives on the polished highlights. Be extra

careful when cleaning around the highlights. Metal polisher or mild chrome cleaner can be used to bring

back the luster on highlights. To touch-up minor scratches in the stainless steel, sand the affected

surface very lightly, with 100-dry grit emery sandpaper in the direction of the grain.

ASH PAN Allow the pan and its contents to cool before cleaning.

Slide the pan out and wipe it clean. Make sure the ash pan is fully

inserted back into the grill. It is highly recommended to clean the pan

after every use.

DO NOT use the grill without the ash pan pushed all the way to

the back of the grill unit.

HEX GRATES

The easiest way to clean the hex grates is to scrub them

with a barbeque brush immediately after cooking is completed.

Wear a barbeque mitt to protect your hands from the heat

and steam. Dip a brass bristle barbeque brush in tap water and

scrub the hot grill. Dip the brush frequently in tap water. Steam,

created as water comes in contact with the hot grill, helps loosen

food particles stuck in the grill. These food particles will either

get burned off or fall into the cleaning pan. Cleaning of the grill

would be longer and more difficult if the grill racks are allowed

to cool before cleanin

CHARCOAL BASKETS

The charcoal baskets can be removed for cleaning. To remove,

grab on the handle at the rear and pull towards the front while pulling

upward. The rear pins should dislodge making the basket free to

remove. Installation is the opposite of removal. Some warpage may

occur when removed but should spring back in shape when re-

installed. The charcoal baskets can be cleaned with soap and water but

avoid removing or spraying while hot.

WARNING: Trying to remove charcoal baskets while hot can

result in burns.

EXPLODED VIEW – TWIN EAGLES CHARCOAL GRILL

30 31

Item

No. TE Part Number Description TECG30-B

1 S26135-30Y 30” FRONT HOOD ASSEMBLY 1

2 S26121YW VENT WHEEL 2

3 S26179Y VENT WHEEL HARDWARE KIT 2

4 S26124-30 REAR HOOD CLOSURE ANGLE 1

5 S26105-30 REAR HOOD COVER 1

6 S26125-30 REAR HOOD LINER 1

7 S26132 SIDE HOOD CLOSURE ANGLE 2

8 S26180Y HOOD MOUNT HARDWARE KIT 1

9 S26146 ROTIS HOLE COVER 2

10 S26106-R REAR HOOD SIDE, RIGHT HAND 1

11 S26116-30 CHARCOAL CARRIAGE 1

12 S26101YW FIREBOX ASSEMBLY 1

13 S26115-30YW ASH PAN ASSEMBLY 1

14 S13901 CRANK HANDLE 1

15 S26181Y HARDWARE KIT, CRANK HANDLE 1

16 S13192 CRANK KNOB 1

17 S26134 DOOR HANDLE 1

18 S26122 CHARCOAL DOOR 1

19 S26109-30 FRONT AIRSHUTTER 1

20 S26137-30YW FRONT PANEL ASSEMBLY 1

21 S26150 CHARCOAL RAMP 1

22 S26129YW CRANK NUT ASSEMBLY 1

23 S26106-30YW CARRIAGE MECHANISM 1

24 S26118YW LOWER ARM 2

25 S26106-L REAR HOOD SIDE, LEFT HAND 1

26 S26128 CHARCOAL BASKET 2

27 S13801 HEXAGONAL GRATE 2

28 S12315 HOOD HANDLE (1.25D x 18GA x 24) 1

29 S13105 BRACKET, HANDLE CHROME 2

30 S26107 WARMING RACK BRACKET 2

31 S13898 WARMING RACK, 30 1

32 S15340A THERMOMETER 1

33 TECGR-KIT ROTISSERIE KIT (OPTIONAL) 1

ITEMS NOT SHOWN

S14278 10-24 X 1 1/4" SS TYPE F PH. PAN SCREW 41

S18466 DATA PLATE 1

S14143 10-32 THREADSERT 2

S14144 10-32 X ½” SS PHIL. PAN HD SCREW 2

S14101 6-32 THREADSERT 2

S13147 LOGO PLATE 1

S14160 LOGO CLIPS 2

S14114 ¼-20 X 5/8” SS PHIL. PAN HD SCREW 6

S14 ¼-20 X ½” SS HEX HD BOLT 12

Table of contents

Other Twin Eagles Grill manuals

Twin Eagles

Twin Eagles Salamangrill TESG-24L Instruction and safety manual

Twin Eagles

Twin Eagles TEPG36G Instructions for use

Twin Eagles

Twin Eagles TEBQ30G-C Instruction and safety manual

Twin Eagles

Twin Eagles TXBQ-26R-T Instructions for use

Twin Eagles

Twin Eagles TEBC30-B User manual

Twin Eagles

Twin Eagles TEBC30-B User manual

Twin Eagles

Twin Eagles TECG30-C Instruction and safety manual

Twin Eagles

Twin Eagles TXSC-1 User manual

Twin Eagles

Twin Eagles TE1BQ36RS Instruction and safety manual

Twin Eagles

Twin Eagles TEBQ36G-C Instruction and safety manual

Twin Eagles

Twin Eagles TEGB36-B User manual

Twin Eagles

Twin Eagles TPBQ-30G Instructions for use

Twin Eagles

Twin Eagles Salamangrill TESG-24L User manual

Twin Eagles

Twin Eagles TE1BQ42RS Instruction and safety manual

Twin Eagles

Twin Eagles TEBC30-B User manual

Twin Eagles

Twin Eagles TEBQ30G-B Instructions for use

Twin Eagles

Twin Eagles TEBQ30G-B Instructions for use

Twin Eagles

Twin Eagles TEBQ30R-C Instruction and safety manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Char-Broil

Char-Broil 463722714 Product guide

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide
