Turtle Beach Ear Force PX51 User manual
User Guide
WIRELESS
For: PS3™ I Xbox 360® I Mobile
Congratulations on your purchase of the Ear Force PX51 from Turtle Beach. You now have in your possession
a premium product that will bring your gaming experience to a whole new level, heightening your senses,
sharpening your refl exes and enhancing your communications. Welcome to excellence!
DOWNLOAD GAME OPTIMIZED PRESETS
Customize your own presets using tools available on our website.
HTTP://WWW.TURTLEBEACH.COM/PRESETS
Table of Contents
Package Contents 4
Feature/Function Map (Location of controls/inputs) 5
Setting Up (Connections etc.) 7
Pairing Instructions 8
Using your PX51 Headset on on PS3™ 9
Using your PX51 Headset on Xbox 360® 11
Surround Sound Settings 12
Bluetooth® Settings 13
Phone Settings 14
Recharging 15
Presets and Modes 16
Presets/Specifications 18
Mobile Device Cable 19
Regulatory Compliance 20
Declaration of Conformity 22
European Community Declaration of Conformity 23
Warranty 24
4
Package Contents
Quick Start Guide Turtle Beach Sticker
PX51 Headset
Headset Charging Cable
RF Transmitter Digital Optical Cable
USB Transmitter Power Cable Xbox Talkback Cable
USB Data Cable
Quick Start Guide
For the full user guide, please go to http://www.turtlebeach.com/products/PX51
Package Contents | Contenude la boîte
PX51Headsetand RFTransmitter
PX51 casque etl’émetteur RF
DigitalOptical Cable
Câbleoptique numérique
HeadsetCharging Cable
Câblecasque Charge
USBTransmitter Power Cable
Câbled’alimentationUSB
T
U
R
T
L
E
B
E
A
C
H
.
C
O
M
Turtle Beach Sticker
VignetteTurtle Beach
USBData Cable
USBCâble de programmation
XboxTalkback Cable
CâblecasqueCharge
PresetsReference
référencePresets
FOR/POUR
XBOX360
®
|PS3™
PresetsReference
DownloadnewpresetsorcustomizeyourownwiththeTangosoftwarefromTurtleBeach.com
MobileDevice Cable
CâblePériphénique Mobile
Presets Reference
FOR / POUR
XBOX 360
®
| PS3™
Presets Reference
Pre-loaded Presets
Featuring a re-engineered DSP (digital signal processing) architecture, the default pre-loaded presets below are
re-engineered for enhanced audio effects.
Download Black Ops II optimized presets or customize your own with the tools available from TurtleBeach.com.
Mobile Device Cable
5
Feature/Function Map (Location of controls/inputs)
Headset
1. Main
2. Power/Pair
3. Game Presets
4. Chat/Mic. Presets
5. Programmable Control (Mic.
Monitor by default)
6. Xbox Talkback Cable Jack
7. Game Volume Control
8. Bluetooth Volume Control +
9. Bluetooth Volume Control -
10. Bluetooth Multi Function
Button(MFB)/Pair
11. Mic. Mute
12. Charge Status LED
13. USB Port
1 5 6 72 3 4
Left Earcup
8 9 10 11 12 13
Right Earcup
6
Feature/Function Map (Location of controls/inputs)
RF Transmitter
1. Power/Pairing LED and Button
2. Digital Input LED
3. Dolby Digital LED
4. SURROUND ON/OFF Button
5. SURROUND ANGLES Button
6. DIGITAL IN/OUT Jacks
7. LINE IN (Left/Right) Jacks
8. LINE IN VOLUME Control
9. DC 5V Input
1
5
2
3
4
8
9
6
7
DIGITAL
IN
OUT
L
LINE IN
LINE IN
VOLUME
DC 5V
R
7
* Original Xbox 360 models require Xbox 360 HDMI
Audio Adapter Cable (sold separately).
USB Transmitter Power Cable
Optical Cable
Setting Up (Connections etc.)
RF Transmitter Set Up
1. Connect optical cable (DIGITAL IN)* and transmitter
power cable (included) to game console.
2. Insert Microphone Boom.
3. Power headset ON.
- Press and hold Power button until LED turns solid.
- Listen for voice prompt, “Powering on”.
23
DIGITAL OUT
DIGITAL
IN
OUT
L
LINE IN
LINE IN
VOLUME
DC 5V
R
1
Console
Console
UsB
8
Pairing Instructions
Headset and Transmitter
The headset and transmitter are pre-paired out of the box. The instructions below are only necessary if pre-pairing
appears to have been lost.*
1. Headset should be powered OFF.
2. Press and hold Power/Pairing button on the transmitter for 5 seconds until the Power/Pairing LED flashes rapidly.
(The headset will announce “Pairing headset.”) Release.
3. Press and hold Power button on the headset until the Power LED flashes rapidly. Release.
4. Once your Turtle Beach PX51 headset has been paired successfully, the headset’s Power LED will blink once per
second and the transmitter Power/Pairing LED will light solid. A voice prompt will announce, “Headset paired.”
dual band wireless
WiFi
5GHz
* If pairing is unsuccessful on first attempt, please try again. It may take as many as five attempts to pair successfully.
9
Using your PX51 Headset on PS3™

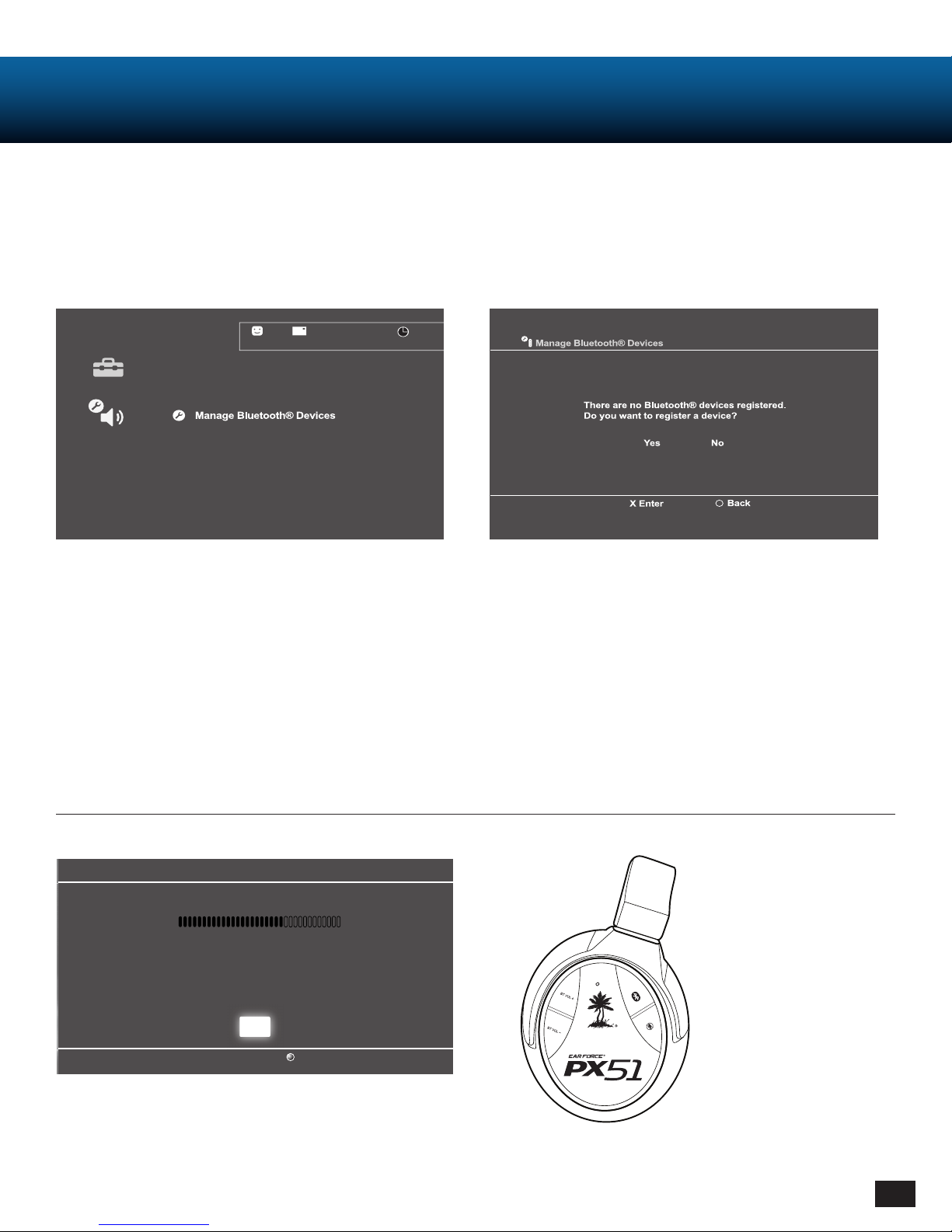

PS3 Bluetooth Confi guration
2. Go to PS3 Settings
- Choose “Accessory Settings”
- Choose “Manage Bluetooth Devices”
3. Scan for Bluetooth Devices by selecting “Yes”
4. Power PX51 ON:
- Press and Hold Bluetooth Button until Bluetooth
LED flashes blue and red. (Voice prompts will
announce “Bluetooth powering on”, then “Pairing
Bluetooth”.) Release
- Wait for the PS3 to detect the headset on screen.
- Select “Turtle Beach PX51”
- When prompted for a passcode, enter “0000.” LED will
fl ash blue once per second
- You are now paired with PS3 for chat
Your Turtle Beach PX51 headset is designed to work with PS3 game consoles. In order to get ideal functionality from your
headset, follow the directions below.
12/14 12:15 PM
0
Register to manage Bluetooth® devices such as
headsets, keyboards and mouse devices.
1. Adjust microphone volume level
- Adjust PSN chat volume using Bluetooth Volume
buttons on the right ear cup
PS3 Microphone Settings
1. Go to PS3 Settings
- Choose “Accessory Settings”
- Set “Input Device” to “Turtle Beach PX51”
- Set “Output Device” to “Turtle Beach PX51”
Note: You will not be able to set the
PX51 as your Input or Output Device
until you follow the steps under “PS3
Bluetooth Confi guration”.
2. Set Microphone Level to 3 or 4
Right Earcup
Audio Device Settings
Microphone Level 3
Input Device TURTLE BEACH PX51
Output Device TURTLE BEACH PX51
Back
X Enter
OK
10
Using your PX51 Headset on PS3™
PS3 Output Settings
1. Go to Settings
- Choose “Sound Settings”
- Choose “Audio Output Settings”
- Choose “Optical Digital”
- Choose “Dolby Digital 5.1 Ch.”
2. Go to Settings
- Choose “Sound Settings”
- Choose “Audio Multi-Output” and set to “On”
Audio Output Settings
Select the connector on the TV or AV amplifier (receiver).
Turn on the power of the connected device.
Cancel
Audio Output Settings
12/14 12:15 PM
0
On
Sets to output audio through multiple connectors
simultaneously. Audio output to connectors that are
not selected in [Audio Output Settings] is downscaled
to 2 Ch.
