Tsun TSOL-ESK400-U User manual

Quick Installation Guide

TSOL - ESK350/400 - U

Before the Installation

Check the products and accessories:

①Microinverter * 1 pcs ②AC End Cable * 1 pcs ③Protection Cap * 1 pcs

④Bracket A1 * 1 pcs

BracketA2 * 1 pcs ⑤Bracket B * 2 pcs ⑥Bracket C1 * 1 pcs

Bracket C2 * 2 pcs

⑦M8*12 Screw * 8 pcs

Spring Washer * 8 pcs ⑧M8*50 Screw * 6 pcs

⑨M8*60 Screw * 1 pcs

Washer * 1 pcs

Nut * 1 pcs

⑩Clevis * 2 pcs

(optional)

⑪

Wire Rope * 4 pcs

(optional)

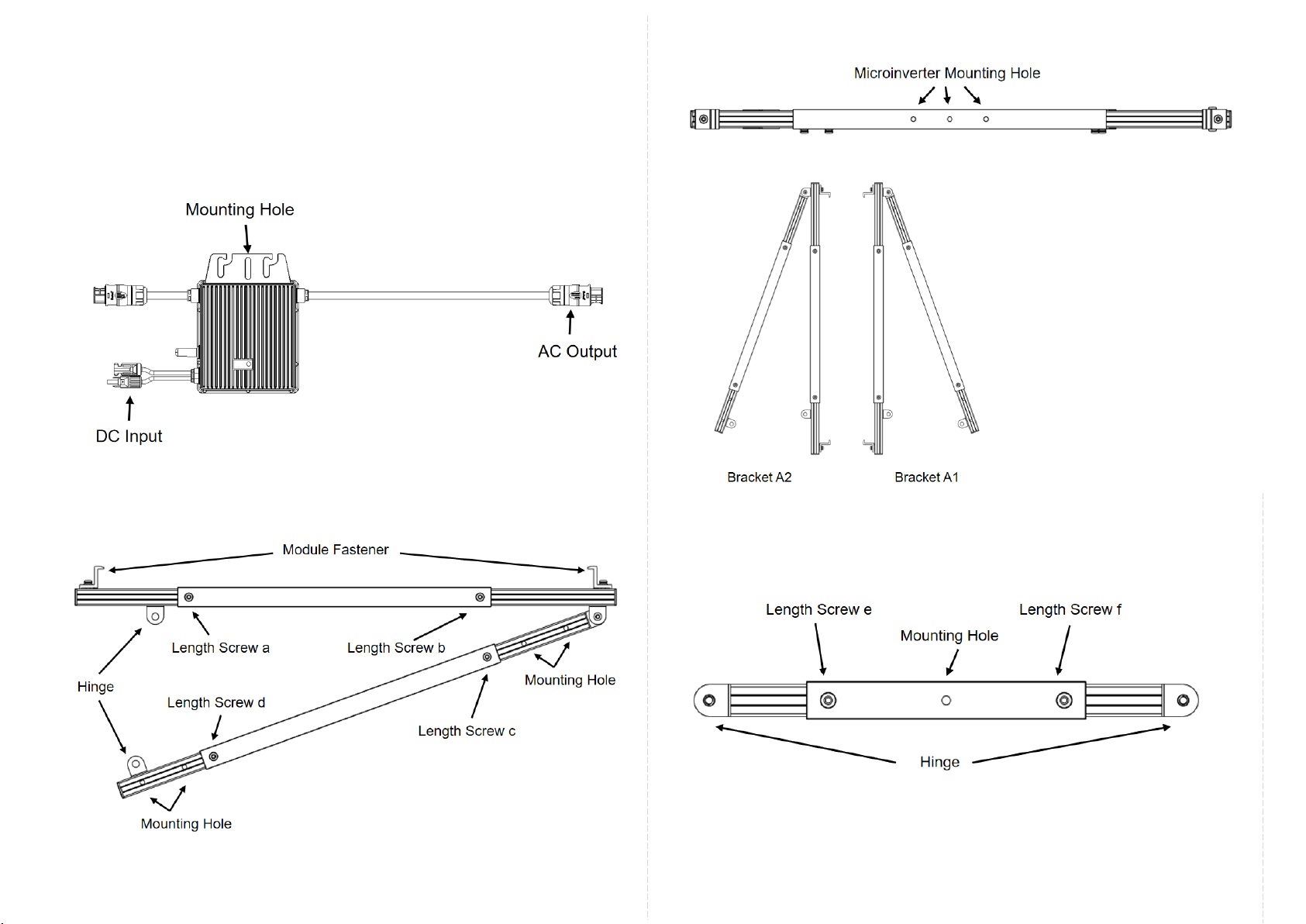

Instructions for each part:

①Microinverter

M350 / M400

④BracketA1 /A2

⑤Bracket B

Tips: The length screws

of bracket A1 are on

the different side than

the length screws of

bracket A2.

The numbers of the

length screws on the

bracket A1 are the

same as those on the

bracket A2.

⑥Bracket C1 / C2

Tip: There are four clevis holes on the bracket C2.

Instructions of installation

Step 1:Adjust the length of BracketA1 andA2

1) Take out the bracket A1 ④and put it beside the solar module. Unscrew the

length screw a and b. Adjust the length and make the distance of two module

fasteners longer than the solar module. Tighten the length screw a and b.

Tips: While unscrewing the length screw, DO NOT unscrew it excessively. This

may cause the drop out of length screw and affect the next installations.

2) Unscrew the lengthscrew c and dof bracketA1 ④.Adjust the length and make

it the same length between the two parts of bracket A1. Then tighten the length

screw c and d.

3) Take out the bracketA2 ④and put it beside the bracketA1. Unscrew the length

screw c and d.Adjust the length and make it the same as the bracketA1. Tighten

the length screw c and d.

4) Unscrew the length screw a and b ofbracketA2 ④.Adjust the length and make

it the same length between the two parts of bracket A2. Then tighten the length

screw a and b.

Step 2: Connect Bracket B to BracketA1/A2

1) Take out Bracket B ⑤and screw accessories ⑦, connect bracket B to bracket

A1.

Tips: Make sure the length screws of bracket B are on the same side as the length

screws of bracket A.

Tips: DO NOT adjust the length screw e and f in this step.

Use the M8*12 screws and spring washers to fix the hinges of bracket A1 and B.

2) Repeat the previous step with bracketA2 and B.

Step 3: Connect Bracket C1/C2 to Bracket A1/A2/B

Take out Bracket C1/C2 ⑥and screws ⑧. Connect bracket C2 to bracket A1/A2

and connect Bracket C1 to bracket B.

Tips: Make sure the length screws of bracketA1/A2 are facing the outside.

Tips: While connecting bracket C2 to bracket A1/A2, use the outside mounting

holes as recommended.

Tips: If this ESK-U is used on the flat ground or walls, make the mounting holes

of bracket C2 in a vertical direction. If this ESK-U is used on the fences, make the

mounting holes of bracket C2 in a horizontal direction.

Step 4: Fix the microinverter to the bracket

Take out Microinverter ①and screw accessories ⑨, fix the microinverter to

microinverter mounting hole of bracket A1.

Tips: Make the light of microinverter and the screw in the downside direction.

Tips: There are three microinverter mounting holes on the bracketA1. The middle

hole is used for M350 and M400.

Step 5: Fix bracket to the right location

1) While install ESK-U on the flat ground, use ground nails to fix the bracket C2

or put weights (Brick, Stone, Sand bag etc.) on the bracket C2.

2) While install ESK-U on the wall, use expansion screws to fix the bracket C2 on

the wall.

3) While install ESK-U on the fences, take out clevis ⑩and install these two

clevises on the bracket C2.

Hangthe bracketonthefences.Usingthe wire rope tofixthebracketto thefences

through the mounting holes.

Tips: If the ESK-U is hanged outside the balcony, solar module should be installed

and connected first before fix the bracket on the fences. The installation sequence

should be Step 6 → Step 7 → Step 8 → Step 5.

Step 6: Install the solar module

1) Unscrew two downside module fasteners on bracketA1 andA2.

Tips: While unscrewing the module fastener, DO NOTunscrew it excessively. This

may cause the drop out of module fastener and affect the next installations.

2) Put the solar module on the bracket.

3) Unscrew the upside module fasteners and adjust their positions. Tighten the

four module fasteners to fix the solar module on the bracket.

Step 7:Adjust the angle of the solar module

Unscrew the length screw e and f. Adjust the angle of solar module as needed.

Tighten the length screws.

Tips: DO NOT adjust length screw e and f at the same time.

Step 8: Connect the Microinverter

1) Connect the DC connector of the solar module to the microinverter.

2) Take out the protection cap ③and connect it to the short AC cable of

microinverter.

3) Take out theAC end cable and connect theAC connector to the long AC cable

of microinverter.

Step 9: Start the system

Insert the AC plug to socket and the system will start producing power a few

minutes later.
