Tronsmart BANG User manual
BANG
PORTABLE PARTY SPEAKER
USER MANUAL
Button Configuration
Volume -
Play/
Pause SoundPulse
EQ Button
Volume +
EQ
Indicator
NFC
Area TuneConn
Indicator
Charging
Indicators
TuneConn
Button
Mode
Button
Bluetooth
Indicator
Power
Button

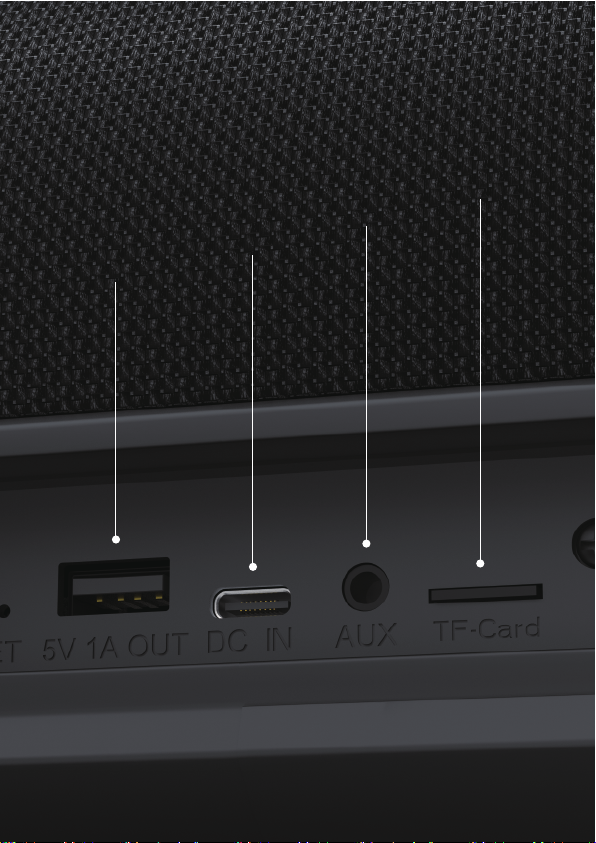

USB-A Port
Type-C Charging Port
Aux-in Port
TF/SD Card Slot
How to Use
2 s
Turn on/Turn off: Press for 2s.
Power
Button
x 1
TuneConn Broadcast Mode On: Press Once
TuneConn Broadcast Mode Off: Press for 2s
TuneConn
Button
Mode
Button
Forcedly Off： Press for 8s.
Switch LED Lighting Modes: Press once to switch among breathing
mode, beats mode & light off mode.
Switch Music Playing Modes: Press once to switch among Bluetooth,
TF/SD Card, Aux Mode & USB Flash Disk.
Activate/Exit Voice Assistant: Press for 2s
8 s
x 1
2 s
2 s
x 1
2 s
2 s
x 1
x 1
x 1
2 s
x 1
x 1
3 s
x 2
8 s
x 1
Play/Pause: Press Once
Disconnect Bluetooth: Press for 3s
Answer / Hang up a Call: Press Once
Reject a Call: Press for 2s
Redial: Double Press
Reset： Press for 8s
Play/Pause
Button
Volume+
Turn up Volume: Press Once
Next Song: Press for 2s
Turn down Volume: Press Once
Previous Song: Press for 2s
SoundPulse EQ Effect On: Press Once
SoundPulse EQ Effect Off: Press Once
Volume-
SoundPulse
EQ Button
1. Turn on one speaker as host speaker, search and click “Tronsmart
Bang” to connect with your device.
2. Press “TuneConn button” once to enter broadcast mode with the
orange indicator on.
3. Turn on other speakers and press “TuneConn button” once to enter
broadcast mode.
4. If paired successfully, the TuneConn indicator of speakers will stay on
orange.
How to Connect with up to
100 Speakers
Charging
Fully-charged
Charging
English
Thank you for purchasing the Tronsmart Bang Portable Party Speaker. Please read the user manual before use and keep it handy
for future reference. If you have any additional questions or comments, please contact us by email at: [email protected]
Package Contents
1 x Tronsmart Bang Portable Party Speaker 1 x 3.5mm Audio Cable
1 x Type-C Charging Cable 1 x Warranty Card 1 x User Manual
NFC Streaming
Confirm Bluetooth & NFC functions are enabled on your device, and then put the device on the NFC area of the speaker to pair
automatically.
USB-A Power Bank Function
This speaker carries a USB charge out function that will automatically detect your device and begin to charge it when the charging
cable is plugged into the USB-A port. The output power is up to DC 5V/1A. In order to maintain stable music playing performance,
it's not recommended to use the music and power bank function at the same time.
Aux-in Mode
After plugging in an audio cable, press M button once to switch to Aux-in mode.
TF Card Slot Mode
After plugging a TF/Micro SD card, press M button once to switch to your TF/Micro SD card. Note that Micro SD/TF Card shall not
exceed 128GB.
USB Flash Drive Mode
Press M button once to switch to your USB flash drive when plugging the USB into the USB-A port. Note that USB flash drive shall
not exceed 128 GB.
Auto Power Off
The speaker will power off automatically after 1 hour if it does not pair with any device through Bluetooth. When in low battery, the
speaker will power off automatically as well.
Care & Maintenance
- Do not use any form of detergents or cleaning material to clean the product as any type of chemical may make this device
unusable.
- Do not disassemble this product. It contains no user serviceable parts.
- Do not drop or jump on it and treat it with care for the best performance.
- Keep the product in a dry location. Dust, dirt & moisture from humidity can accumulate on the body of the product if kept at an
unfriendly place.
- Do not dispose this product in fire or batteries may explode or leak.
Warranty Information
Your ‘Tronsmart Bang Portable Party Speaker’, is warranted to the original owner for 12 months from the date of purchase against
defects in material and workmanship under normal use and service. Tronsmart is not responsible for the accidental use of this
product and its liability will not exceed the purchase price of the product. If you have any problems while using the product, please
Model
Color
Bluetooth Version
Audio Decoding
Bluetooth Compatibility
Transmission Distance
Frequency Range
Playtime
Battery Capacity
Power
Waterproof
Charging Time
Input
Dimension
Weight
Bang
Black
5.0
SBC
A2DP/AVRCP/HFP/HSP
18m/59ft
20Hz-20KHz
LED On: Up to 8 Hours(on a 50% Volume)
LED Off: Up to 15 Hours(on a 50% Volume)
10800mAh
60W
IPX6
4.5 Hours
5V/2A via Type-C Port
361*183.4*150.3 mm/ 14.2*7.2*5.9inch
3.08kg/108.6oz
Specifications
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause
harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
RF Warning Statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition
without restriction.
