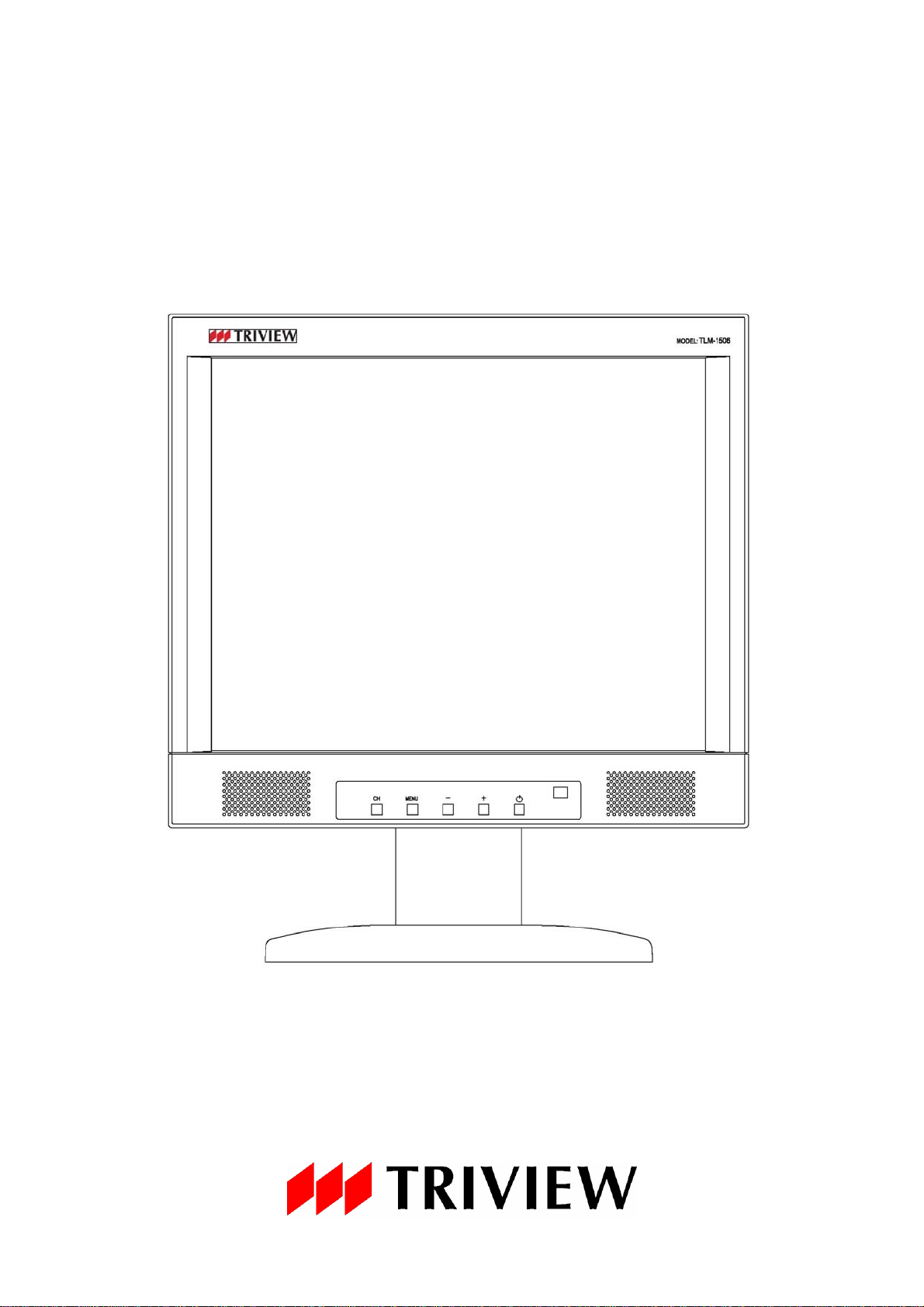

TRIVIEW TLM-1506 User manual
OPERATING INSTRUCTIONS
TLM-1506 / TLM-1706 / TLM-1906
2
TABLE OF CONTENTS
zFCC information ---------------------------------------------------------------------- 3
zCE information ------------------------------------------------------------------------ 3
zSafety Precautions ------------------------------------------------------------------- 3
1. Scope -------------------------------------------------------------------------------------- 5
2. Unpacking -------------------------------------------------------------------------------- 5
3. Functional specification ------------------------------------------------------------- 5
4. Controls and indicators -------------------------------------------------------------- 8
5. OSD Menu -------------------------------------------------------------------------------- 9
6. Regulatory Agency ------------------------------------------------------------------- 11
7. Mechanical ------------------------------------------------------------------------------ 11
8. Reliability -------------------------------------------------------------------------------- 11
9. Appendix -------------------------------------------------------------------------------- 12
10.LCD Video Monitor Specification ---------------------------------------------- 13
3
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables and A.C. power cord, if any, must be used in order to comply
with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE INFORMATION
The product must be installed according to the currently valid installation regulations for
EMC to guarantee the designed use and to prevent EMC problems.
The device supplied with this manual is according to the EC, EMC Directive,
89/336/EEC & LVD 73/23/EEC
Standard used for showing compliance with the essential requirements of the device:
EN 55022
EN 61000-3-2
EN 61000-3-3
EN 50130-4
EN 55024
LVD: EN60950-1
SAFETY PRECAUTIONS
1. Do not modify the three-prong grounding type monitor power plug in any way.
2. Operate this unit only from the type of power source indicated on the label.
3. Do not block or cover ventilation openings on the back or bottom of the monitor
cabinet.
4
4. Do not place this monitor near a radiator or heating vent.
5. Do not push objects of any kind through cabinet openings. This may result in fire or
electrical shock.
6. Before adding attachments always ask a service technician to perform routine safety
tests to determine that equipment is in safe operating condition. Ground potential tests
should be part of the routine safety check made by the service technician.
7. Do not place monitor on an unstable cart, stand, or shelf where it may fall and injure
personnel or damage equipment.
8. Route power cords so that they cannot be walked upon or tripped over. Do not allow
anything to rest on the power cord.
9. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not
spill liquid of any kind on the unit.
10.Unplug the power cord from the unit before cleaning the display. Use only a damp cloth.
Do not use alcohol, spirits, or ammonia to clean the display. DO NOT ATTEMPT TO
CLEAN THE INTERIOR OF THIS UNIT- THIS ACTION MUST BE PERFORMED BY
THE SERVICE TECHNICIAN AS REQUIRED DURING NORMAL MAINTENANCE.
11.Refer all servicing to qualified service personnel. REMOVAL OF BACK COVER BY
UNAUTHORIZED PERSONNEL MAY EXPOSE THE USER TO DANGEROUS
VOLTAGES OR OTHER HAZARDS.
12.Unplug the unit immediately and notify the service technician.
A. If liquid has been spilled into the display or the display has been exposed to rain or
water.
B. If the unit has been dropped or the cabinet damaged.
C. If fuses continue to blow.
D. If the power cord is damaged or frayed.
E. If a distinct change from normal operation is apparent.
When replacement parts are required, be sure that the service technician uses
components specified by the manufacturer which have the same characteristics as the
original parts. UNAUTHORIZED SUBSTITUTIONS MAY RESULT IN FIRE, ELECTRICAL
SHOCK OR OTHER HAZARDS.
Upon completion of any service or repairs, ask the technician to perform safety checks to
determine that the equipment is in safe operating condition.
WARNING: SERIOUS SHOCK HAZARDS EXIST WITHIN THE COVERS OF THIS
MONITOR. DO NOT OPEN THE COVERS UNDER ANY CIRCUMSTANCES,
THERE ARE NO USER SERVICEABLE COMPONENTS INSIDE
5
1. Scope
This specification is used to define the performance of TLM-1506 / TLM-1706 / TLM-1906
color TFT LCD monitor. This system supports both video input and PC VGA input. In video
input mode, the system can automatically detect the NTSC signal and PAL signal. In PC
mode, TLM-1506 can support up to 1024x768 VESAstandards. TLM-1706 and TLM-1906
can support up to 1280x1024 VESA standards.
2. Unpacking
After you unpack your LCD monitor, make sure the following items are included in the box
and in good condition:
z15”, 17” or 19” LCD monitor.
zMonitor to PC analog signal cable (15 pin).
zPower cord, US type, 6-ft long, black.
zOperating Instructions.
3. Functional Specifications
Power Supply
The power supply spec is listed below,
AC INPUT
*AC power input range: 100 – 240 VAC, 60/50Hz, 1.5Arms (Max)
* Power consumption: TLM-1506 and TLM-1706: 32W (Max)
TLM-1906: 40W (Max)
LCD Panel:
TLM-1506 TLM-1706 TLM-1906
Type 15” TFT LCD 17” TFT LCD 19” TFT LCD
Screen Size 304.1(H) x 228.1(V) mm2337.9(H) x 270.3(V) mm2396.0(H) x324.0(V) mm2
Viewable PictureArea 381mm (15 in) diagonal 431.8mm (17 in) diagonal 482.6mm (19 in) diagonal
Pixel Pitch 0.297(H) x 0.297(V)mm 0.264(H) x 0.264(V)mm 0.294(H) x 0.294(V)mm
Resolution 1024 x 768 pixels 1280 x 1024 pixels 1280 x 1024 pixels
Aspect Ratio 4:3 5:4 5:4
Display Colors 16.2M 16.7M 16.7M
Response Time 8ms 5ms 5ms
Back Light Life Time 50,000 50,000 50,000
6
Optical Characteristics:
TLM-1506 TLM-1706 TLM1906
Luminance 450 cd/m2300 cd/m2300 cd/m2
Contrast Ratio 500:1 1000:1 1000:1
Viewing Angle 140o Horizontal,125oVertical 160o Horizontal,160oVertical 160o Horizontal,160oVertical
Video Characteristics:
Composite Video (CVBS): 1.0 Vp-p (0.5 – 1.5Vpp), Automatic switching from 75 Ω
unbalanced termination to Hi-Z with loop-through operation.
Y/C (S-video): 1.0 Vp-p (0.5 – 1.5Vpp), Automatic switching from 75 Ωunbalanced
termination to Hi-Z with loop-through operation.
VGA Input:
Analog RGB: 0.707 Vrms.
VGATiming Modes
MODEL
RESOLUTION
TLM-1506
TLM-1706
TLM-1906
640 x 480 60/75Hz 60/75Hz 60/75Hz
800 x 600 60/75Hz 60/75Hz 60/75Hz
1024 x 768 60/75Hz 60/75Hz 60/75Hz
1280 x 1024 N/A 60/75Hz 60/75Hz
Audio Input:
Signal Level: 1.0 Vrms
Audio Output:
Speaker 2W x 2
Controls: Front panel push buttons
CH : Select Video, S-Video(Y/C), VGA
MENU : Enter On-Screen Display (OSD) menu
–: Decrease the volume
+ : Increase the volume
POWER : Power On/Off
7
Indicators:
LED: Power-on (Green), Power Off (Red)
Connectors:
Power inlet: AC power socket.
Video : Two (2) BNC, one in, one loop thru out.
S-Video (Y/C) : One (1) Mini-DIN, 4-pin, one in
VGA : One (1) 15-pin D-sub
Audio : Two (2) RCA, one in; one out
Environmental:
Temperature:
Operating: 0oC to +40oC
Storage: -20oC to +60oC
Humidity:
Operating: 10% to 85% (non-condensing)
Storage: 10% to + 95% (non-condensing)
8
4. Controls and Indicators
Press this button to turn ON / OFF the monitor
MENU 1. Press this button to enter OSD menu
2. Press this button to confirm and exit the selected parameter
1. Press the buttons to adjust volume
2. Under the main OSD menu, Press the buttons to move the cursor to
desired selection in OSD menu
3. Press the buttons to adjust the value of selected parameter in sub OSD
menu
CH Press this button to switch VIDEO, S-VIDEO and VGA channels
– +
9
5. OSD Menu
5.1 Video Mode
MainMenu

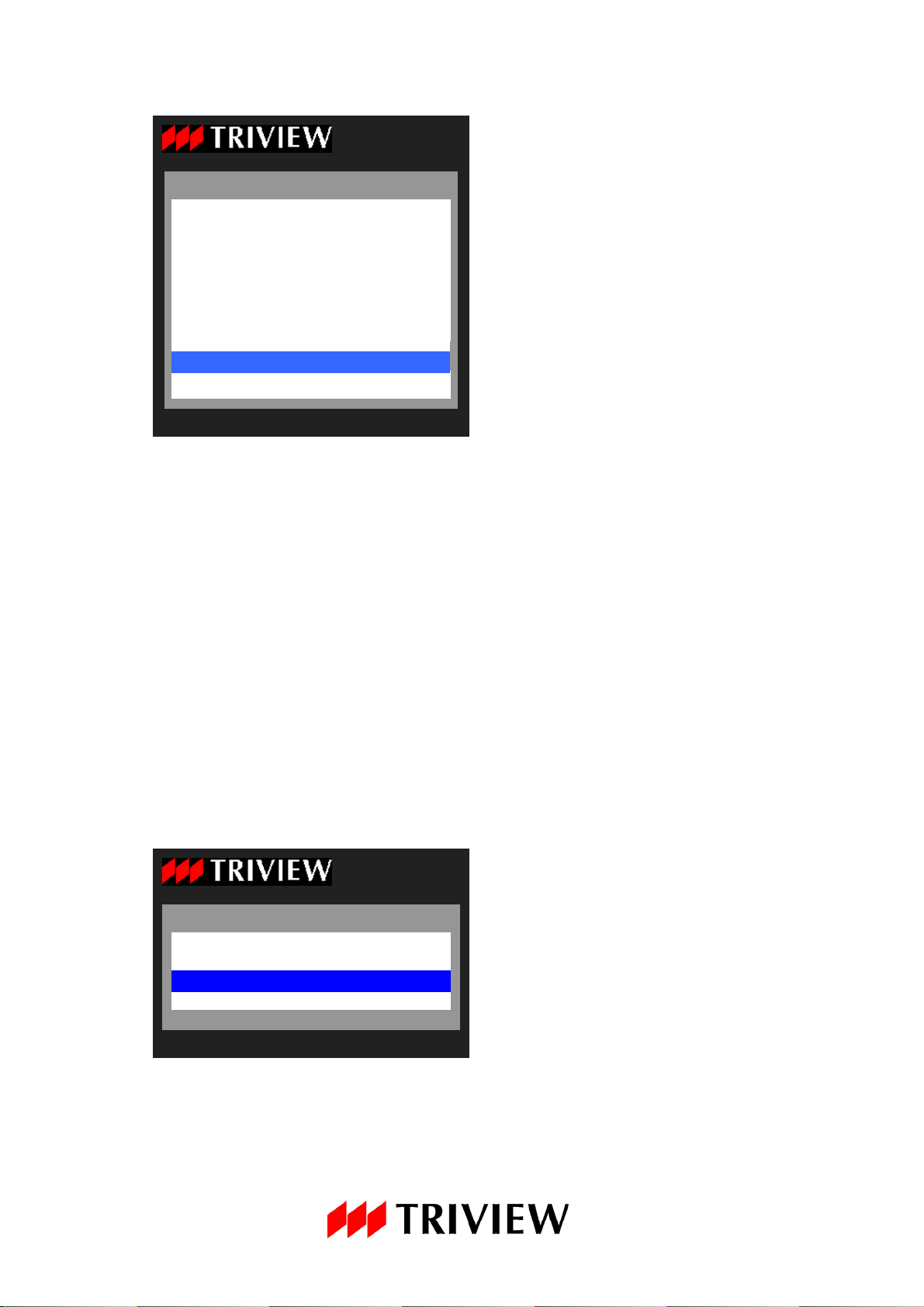

Press <+> or <–> key to move cursor to desired selection and push <MENU> key
toselectit.
To leave OSD, simply move cursor to Exit and hit <MENU> key.
5.1.1 Brightness/ Contrast/ Color/ TINT/ Sharpness
Press <+> or <–> key to adjust the value of Brightness (0~100), Contrast (0~100),
Color (0~100), TINT (0~100) or Sharpness (0~3). After that, hit <MENU> key to
confirm the selected parameter and return to main menu.
MAIN MENU
BRI
G
HT
N
E
SS
CON
TRA
S
T
LA
NGU
A
G
E
DI
S
PLAYAD
JUS
T
A
U
DI
O
CON
TR
O
L
OS
D AD
JUS
T
RE
S
ET
EXIT
I
N
P
U
T
S
ELE
C
T
VIDEO IN
MODEL : TLM-1906
S
HARP
N
E
SS
CO
L
OR
TI
N
T
VIDEO MODE : NTSC
H.SYNC : 31.5KHz
V.SYNC : 60.0Hz
COLOR TEMPERATURE
BRIGHTNESS 72
10
5.1.2 Display Adjust
Press <+> or <–> key to move cursor to desired selection and push <MENU> key
toselectit.
5.1.2.1 H-Position/ V-Position/ H-Size/ V-Size
After move the curser to desired parameter and hit <MENU> key, the curser
bar will turn into Light Blue, and then apply <+> or <–> key to adjust the value of
H-Position (0~100), V-Position (0~100), H-Size (0~100) or V-Size (0~100). After
that, hit <MENU> key to confirm the selected parameter and return to menu.
Note: H-Position allows user to adjust horizontal position of the image.
V-Positionallowsuserto adjust vertical position of the image.
H-Size allows user to adjust horizontal size of the image.
V-Sizeallowsusertoadjustverticalsizeoftheimage.
5.1.2.2 Aspect Ratio
Aspect Ratio allows user to change the scan type of the image.

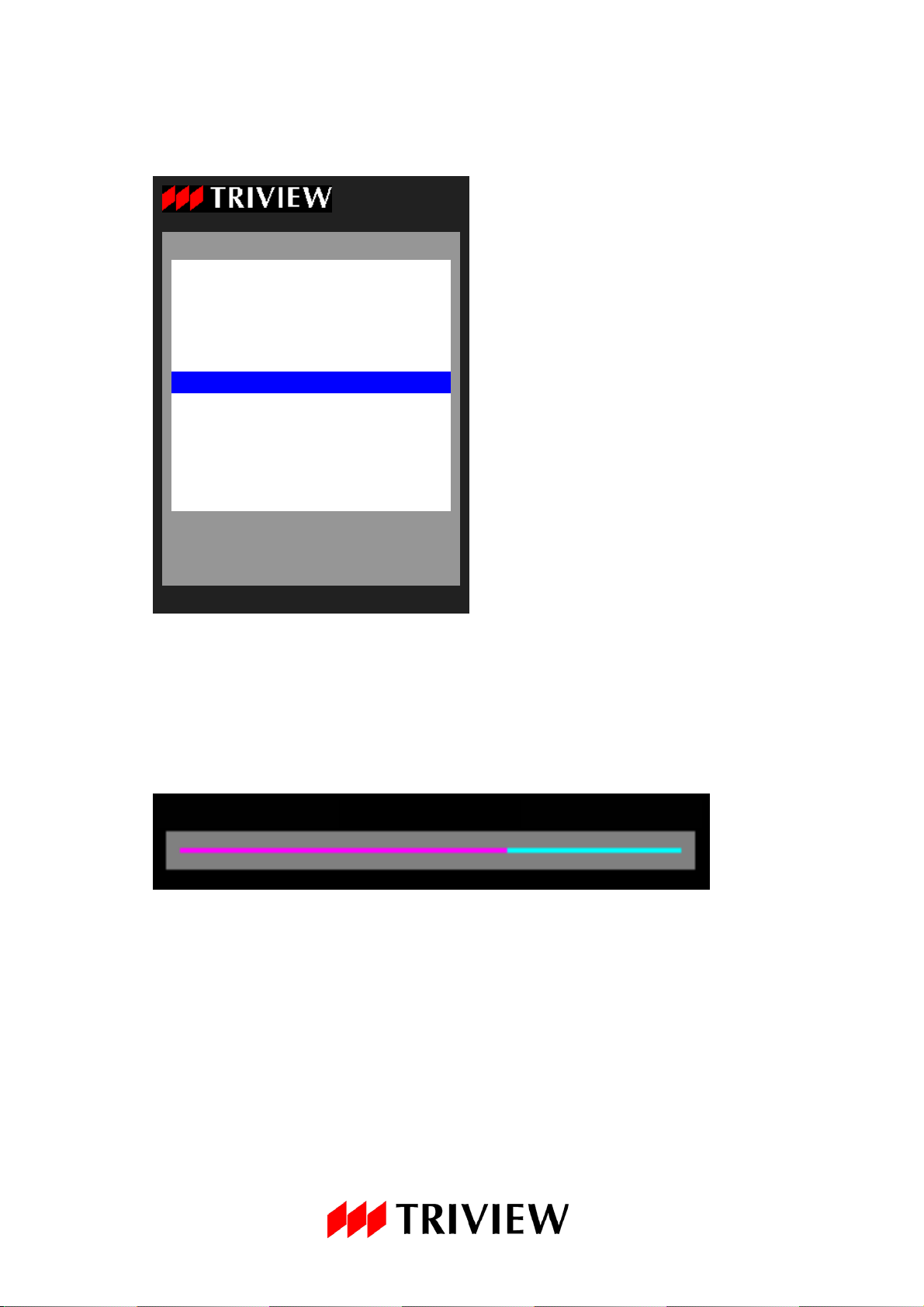

DISPLAYADJUST
PHASE
CLOCK
H-POSITION
VIDEO IN
V-POSITION
H-SIZE
V-SIZE
MODEL : TLM-1906
100
100
50
ASPECT RATIO
AUTO ADJUST
EXIT
50
50
50
RESET
MODEL : TLM-1906
ASPECT RATIO
NORMAL
UNDERSCAN
EXIT
VIDEO IN
OVERSCAN
