Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Español 21

Français 41

SmartPro®2U Rackmount

Intelligent, Line-Interactive UPS System

(with Lithium Iron Phosphate Battery)

120V Sine Wave Output • 1500VA - 2200VA Capacity

Models: SMART1500RM2UL, SMART2200RM2UL

(Series Numbers: AG-8897, AG-0163)

Not suitable for mobile applications.

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

18-01-271-933440.indb 1 1/25/2018 3:23:13 PM

EMI Filter

Surge Protecon

Inverter

Reinforced

Insulaon

Charger

Control

Transformer

Line CutoﬀRelay Boost2 Relay

Boost1 Relay

Cut Relay

ACin

ACout

USB Com port*

Serial Com port*

Interna l

Baery

EPO port*

Display & Switches

Master Load Relay

Switched Load Relay(s)

ACout Sw itched*

SNMP port*

*if equipped

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation,

operation and storage of this product. Failure to heed these warnings may affect the warranty.

UPS Location Warnings

• Use caution when lifting the UPS. Because of the considerable weight of all rackmount UPS

systems, at least two people should assist in lifting and installing them.

• Install the UPS indoors, in an area free from excess moisture, heat, dust, conductive

contaminants, and direct sunlight.

• The UPS operating temperature is 32° to 104°F (0° to 40°C). For optimum battery performance,

the ambient temperature should be maintained between 68° and 77°F (20° and 25°C).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its vents

or fan openings.

• When mounting the UPS system in tower orientation, make sure the LCD Screen panel is at the

top of the UPS, not at the bottom.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner

will seriously inhibit the unit’s internal cooling, eventually causing product damage not covered

under warranty.

• The UPS must be returned to Tripp Lite for battery replacement. Visit www.tripplite.com/support

and click the product returns link to request a Returned Material Authorization (RMA) number

(an RMA number is required for servce). Once the product request information is completed, an

assigned RMA number and shipping instructions will be sent to your email account. See Storage

and Service for more information.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even when

the UPS is not connected to an AC supply.

• Connect the UPS to a properly grounded AC power outlet. Do not modify the UPS system’s plug

in a way that would eliminate its connection to ground. Do not use adapters that eliminate the

UPS system’s connection to ground.

• This UPS is designed to be used on a power distribution system in accordance with the plug

configuration. The basic circuit operation is as follows:

18-01-271-933440.indb 2 1/25/2018 3:23:14 PM

UPS Connection Warnings continued

• Do not plug the UPS into itself; this will damage the UPS and void the warranty.

• If connecting the UPS to a motor-powered AC generator, the generator must provide filtered,

frequency-regulated computer-grade output. Connecting the UPS to a generator will void its

Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably

be expected to cause the failure of the life support equipment or to significantly affect its safety

or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of the UPS. This might damage

the UPS and may affect the surge protector and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe

proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or batteries.

Do not short or bridge the battery terminals with any object. There are no user-serviceable parts

inside the UPS. At the end of the UPS unit’s life, follow best practice by discharging the battery

prior to disposal. Refer to local codes for disposal requirements. Do not connect or disconnect

battery packs when the UPS is operating on battery power.

• Do not operate the UPS without batteries.

Fan Replacement Warning

• The cooling fan installed in the UPS can be replaced by qualified service personnel. Always

unplug and turn off the UPS before performing fan replacement. Use tools with insulated

handles. Refer to the Fan Replacement section for step-by-step instructions.

Important Safety Instructions

18-01-271-933440.indb 3 1/25/2018 3:23:14 PM

Connecting the Battery

14 x screws

1Remove Front Panel.

The UPS is shipped with the battery disconnected. The battery must be connected for the UPS to

operate; this should be done prior to connecting the UPS to AC mains or connecting any

equipment to the UPS. Follow the installation procedure below:

2Connect Batteries.

Attach both sets of connectors as shown:

black-to-black and red-to-red.

Always ensure that the battery

terminals are properly secured.

34 x screws

3Replace Front Panel.

18-01-271-933440.indb 4 1/25/2018 3:23:15 PM

UNSWITCHED

EPO COM 1 COM 2

LOAD 2

LOAD 1

ACC. SLOT

Model: SMART2200RM2U

Quick Installation

1Plug the UPS into an outlet on

a dedicated circuit.

NOTE! after plugging the UPS into a live

AC outlet, the UPS (in “Standby” mode)

will automatically charge its batteries,

but will not supply power to its outlets

until it is turned ON.

2Plug the equipment into the

UPS.*

* The UPS is designed to support only electronic

equipment. If the total VA rating for all

connected equipment exceeds the UPS output

capacity, the UPS will indicate an overload alert.

To find the equipment’s VA rating, look on its

nameplate. If the equipment is listed in amps,

multiply the number of amps by 120 to

determine VA. (Example: 1 amp × 120 =

120 VA). To confirm the UPS outlets are not

overloaded, see the LOAD icon description in

the LCD Interface section under Basic

Operation.

3Turn the UPS ON.

Press and hold the button Afor one

second. The alarm will beep once briefly.

The UPS batteries must be fully charged (minimum 24 hours) before plugging

equipment into the unit.

Mounting (Rack)

Mount the UPS in either a 2-post or 4-post rack or rack enclosure. The user must determine the

fitness of hardware and procedures before mounting. If hardware and procedures are not suitable

for the application, contact the manufacturer of the rack or rack enclosure. The procedures

described in this manual are for common rack and rack enclosure types and may not be

appropriate for all applications.

2-Post Mounting

2-post mounting requires a Tripp Lite 2-Post Rackmount Installation Kit (model: 2POSTRMKITWM,

sold separately).

18-01-271-933440.indb 5 1/25/2018 3:23:16 PM

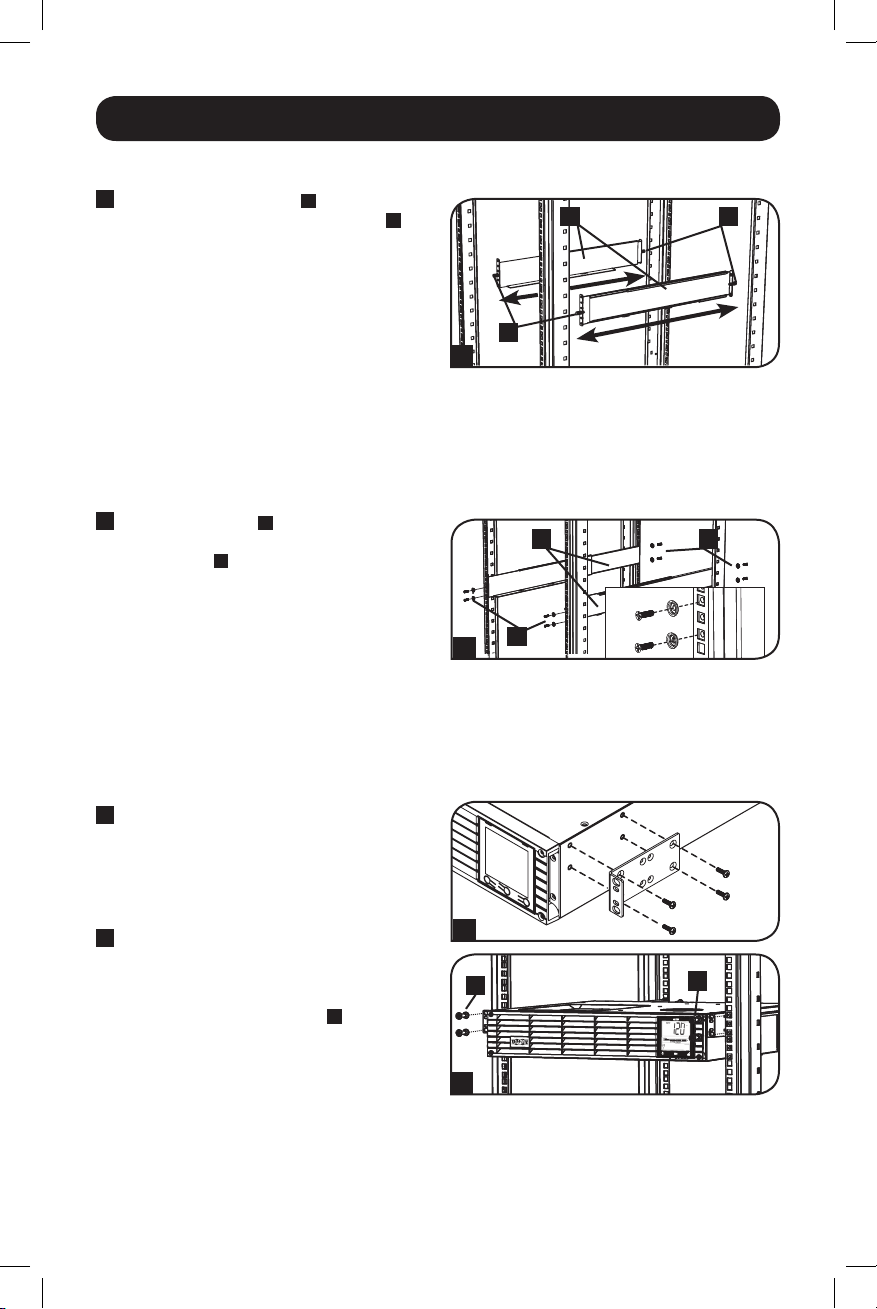

Mounting (Rack)

4-Post Mounting

1The included plastic pegs Awill temporarily

support the empty rackmount shelves B

while the permanent hardware is installed.

Insert a peg near the center of the front

and rear bracket of each shelf as shown.

(Each front bracket has 6 holes and each

rear bracket has 3 holes.) The pegs will

snap into place.

After installing the pegs, expand each shelf

to match the depth of the rack rails. The

pegs will fit through the square holes in the

rack rails to support the shelves. Refer to

the rack unit labels to confirm that the

shelves are level in all directions.

Note: The support ledge of each shelf must face

inward.

2Secure the shelves Bto the mounting rails

permanently using the included screws and

cup washers Cas shown. Place the cup

washer between the screw and the rack so

that the screw enters the wider opening of

the cup washer first.

Place 4 screws total at the front and

4 screws total at the back.

Tighten all screws before proceeding.

Warning: Do not attempt to install the

UPS until the required screws are

inserted and tightened. The plastic pegs

will not support the weight of the

equipment.

3Attach the UPS mounting brackets to the

forward mounting holes of the cabinet using

the hardware included with the UPS. The

mounting bracket “ears” should face

forward. (Some equipment may have pre-

installed or integrated mounting brackets.)

4With the aid of an assistant (if necessary),

lift the UPS and slide it into the shelves.

Attach the equipment mounting brackets to

the forward mounting rails with user-

supplied screws and washers D. Tighten all

screws securely.

18-01-271-933440.indb 6 1/25/2018 3:23:18 PM

4-5

Mounting (Tower)

Warning: When mounting the UPS system in a tower orientation, make sure the LCD

Screen panel is at the top of the UPS, not at the bottom.

Note: To mount the UPS in an upright (tower)

position, 2-9USTAND is required (sold separately).

Rotate the LCD Screen panel for easy viewing

while the UPS is tower mounted. Insert a small

screwdriver or other tool in the slots on either

side of the panel. Pop the panel out, rotate it

and pop the panel back in place.

Optional Installation

These connections are optional. The UPS will function properly without these connections.

1USB and RS-232 Serial

Communications

Use the included USB cable (see 1A) or

DB9 serial cable (see 1B) to connect the

communication port on the computer to the

communication port of the UPS. Install the

appropriate Tripp Lite PowerAlert®Software

to the computer’s operating system.

2EPO Port Connection

This optional feature is only for those

applications which require connection to a

facility’s Emergency Power Off (EPO) circuit.

When the UPS is connected to this circuit, it

enables emergency shutdown of the UPS

inverter.

Using the cable provided, connect the EPO

port of the UPS (see 2A) to a user-supplied

normally closed or normally open switch

according to the circuit diagram (see 2B).

The EPO port is not a phone line surge

protector; do not connect a phone line to

this port.

18-01-271-933440.indb 7 1/25/2018 3:23:21 PM

UPS Operating Modes

Standby Mode

(Charger: ON / AC Output: OFF / Battery Backup: NOT AVAILABLE)

When first connected to a live power source, the UPS will automatically energize into STANDBY

MODE. In this mode, the UPS charger will function as necessary to maintain full battery charge, but

there will be no AC output and no battery backup for connected equipment in the event of a power

failure. To turn the UPS on into LINE POWER MODE, press and hold the “ON/OFF” button for one

second until a beep is heard, and release.

Line Power Mode

(Charger: ON / AC Output: ON / Battery Backup: AVAILABLE)

The standard protected UPS operating mode for the UPS is LINE POWER MODE. In this mode, the

UPS provides voltage-regulated output sourced directly from the AC mains line power input. UPS

output power is conditioned with automatic voltage regulation in LINE POWER MODE to correct any

voltage fluctuations present on the mains line power input. When operating in LINE POWER MODE,

the UPS will automatically switch to BATTERY MODE during power failures or severe voltage

fluctuations to maintain connected equipment operation from battery reserves.

Battery Mode

(Charger: OFF / AC Output: ON / Battery Backup: ON)

BATTERY MODE is the automatic UPS response to mains AC power failures and severe voltage

fluctuations occurring when the UPS is operating in LINE POWER MODE. In BATTERY MODE, the

UPS is providing battery-derived AC output to connected equipment. When running in BATTERY

MODE, the UPS will automatically return to LINE POWER MODE when acceptable mains AC input is

restored to the UPS.

18-01-271-933440.indb 8 1/25/2018 3:23:21 PM

Note: This LCD image is shown

with all icons illuminated. Under

normal conditions, only select

icons will be lit.

Basic Operation

LCD Interface

3-Digit Display: This display is generally used to show values for a given

“Display” or “Control” screen.

“ON/OFF” Button

• To turn the UPS ON: After plugging the UPS into a live AC outlet, the UPS (in

”Standby” mode) will automatically charge its batteries, but will not supply

power to its outlets until it is turned ON. With the UPS plugged into a live AC

wall outlet, press and hold the “ON/OFF” button for one second.* The UPS

will beep once to indicate ON status. Release the button.

• To turn the UPS OFF: With the UPS ON and receiving utility power, press and

hold the “ON/OFF” button for 2.5 seconds.* The UPS will beep once to

indicate OFF status. Then unplug the UPS from the wall outlet. The UPS will

be completely OFF.

* If the user unintentionally presses the ON/OFF button, the OFF function can be

temporarily canceled by continuing to hold the ON/OFF button until the UPS beeps and

then momentarily pressing either the MODE button or the ENTER/MUTE button. Once

both buttons are released, the UPS will remain ON.

“MODE” Button

To enable viewing of power displays and control menu options, tap this button.

See “Display Power Conditions” & “Control Menu Options” for details.

• May be used in conjunction with the ON/OFF button to cancel the “OFF”

function. See “ON/OFF Button” instructions above.

• May be used in conjunction with the ENTER/MUTE button to restore the LCD

to Factory Mode. See “Control Menu Options”.

18-01-271-933440.indb 9 1/25/2018 3:23:21 PM

Basic Operation

“ENTER/MUTE” Button

To toggle settings options while viewing a control menu option, tap this button.

The UPS power failure alarm can also be temporarily silenced by tapping this

button. Once silenced, an alarm will automatically re-sound to indicate low

battery conditions and can no longer be silenced.

• May be used in conjunction with the ON/OFF button to cancel the “OFF”

function. See “ON/OFF Button” instructions.

• May be used in conjunction with the ENTER/MUTE button to restore the LCD

to Factory Mode. See “ON/OFF Button” instructions.

Note: Alarm-free silent operation is available by setting the alarm to disable (see

Control Menu Options / Alarm Enable-Disable section).

Battery Capacity: This will be active in all “Display” modes, and is not shown

in “Control” modes.

AC Input: This indicates the unit is running in Line Mode and supplying AC

power to equipment connected to the output.

Battery Input: This will flash to indicate the UPS is not receiving AC input and

is running in inverter mode. The Battery Input icon is also used in conjunction

with the EVENTS icon to indicate On Battery events.

Replace Battery Icon: In the event that UPS batteries expire and require

replacement, this icon and the warning icon will flash (see Battery Warnings

section for details).

Note: This icon will also flash after a failed UPS self-test (see the Basic Operation /

Control Menu Options / Self-Test section for more information).

Warning: This will flash to let the user know there’s a warning condition and

immediate action must be taken:

1. For Replace Battery: Replace Battery and Warning icons flash during any

normal “Display” mode.

2. For Overload: Load, Warning and Load Percentage icons will flash, the alarm

will sound repeatedly and the LCD screen will switch from the user-selected

display mode to Load Percentage. Overload indication is available in both AC

and battery modes. CAUTION! Any overload condition that is not

corrected by the user immediately may cause the UPS to shut down

and cease supplying power in the event of a blackout or brownout.

EVENTS Icon: Displayed in conjunction with the AVR icon and BATT icons to

indicate the number of On Battery or AVR events that have occurred.

Alarm Off: Indicates the alarm is disabled.

Alarm On: Indicates the alarm is enabled.

18-01-271-933440.indb 10 1/25/2018 3:23:22 PM

This manual suits for next models

Table of contents

Languages:

Other Tripp Lite UPS manuals

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1500XLRT2U User manual

Tripp Lite

Tripp Lite SmartPro SMART1500XL Configuration guide

Tripp Lite

Tripp Lite UPS System AVRX550U User manual

Tripp Lite

Tripp Lite TM500 User manual

Tripp Lite

Tripp Lite OmniSmart OMNIVSINT500 User manual

Tripp Lite

Tripp Lite SmartOnline 220/380 User manual

Tripp Lite

Tripp Lite SmartOnline SU750XL User manual

Tripp Lite

Tripp Lite SMART750 User manual

Tripp Lite

Tripp Lite INTERNET525 User manual

Tripp Lite

Tripp Lite SmartPro INT Rackmount Intelligent Network UPS... User manual

Tripp Lite

Tripp Lite SMART1500LCDXL User manual

Tripp Lite

Tripp Lite SmartOnline SU750RTXL2U User manual

Tripp Lite

Tripp Lite OmniSmart OMNISMART500 User manual

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD User manual

Tripp Lite

Tripp Lite SmartOnline SU3000RTXLCD2U User manual

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1000RT2U User manual

Tripp Lite

Tripp Lite SmartOnline SU80KTV Installation guide

Tripp Lite

Tripp Lite SMART2200NET User manual

Tripp Lite

Tripp Lite SMART1200LCD User manual

Tripp Lite

Tripp Lite OmniSmart INT 300 PNP Original operating instructions

Tripp Lite

Tripp Lite SMX1000LCD User manual

Tripp Lite

Tripp Lite AVRT450U User manual

Tripp Lite

Tripp Lite SmartPro SMARTINT2200VS User manual

Tripp Lite

Tripp Lite SmartOnline SU3000RTXR3U User manual

Popular UPS manuals by other brands

Pylontech

Pylontech Victron & Pylontech US5000 manual

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 user manual

Mecer

Mecer ME-1000-WTU user manual

Mustek

Mustek PowerMust 530(B) Plus Startup manual

Emerson

Emerson Liebert NXL series Operation and maintenance manual

MAKELSAN

MAKELSAN BOXER SERIES user manual

Block

Block PC-0524-400-0 manual

CyberPower

CyberPower CP585LCD user manual

Eaton

Eaton 3S Advanced user's guide

CyberPower

CyberPower Office Tower Series UPS 1000 user manual

CyberPower

CyberPower BM100 quick start guide

Best Power

Best Power 610 quick start guide

Best Power

Best Power Unity/I UT3K user manual

Mustek

Mustek PowerMust 400 Offline user manual

Xantrex

Xantrex Trace 512 UR-UPS owner's manual

Forza

Forza SL-1501UL user manual

LEGRAND

LEGRAND keor 310081 quick start guide

ABB

ABB Conceptpower DPA 500 operating manual
