Tripp Lite U336-U03-GB User manual

Quick Start Guide

USB 3.0 SuperSpeed

3-Port Hub with

Gigabit Ethernet

Model: U336-U03-GB

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

16-02-229-93359A-EN.indd 1 2/18/2016 10:23:40 AM

Product Features

• Combines a USB 3.0 SuperSpeed 3-port hub with

a Gigabit Ethernet adapter

• Supports USB 3.0 data transfer rates up to 5 Gbps

• Backward compatible with USB 2.0 and 1.1

devices (at USB 2.0 and 1.1 speeds)

• Gigabit Ethernet port supports true 10/100/1000

Mbps network speeds

• IEEE 802.3, 802.3u, 802.3ab, and 802.3az

(Energy Efﬁcient Ethernet) compliant

• Supports IPv4 and IPv6 pack Checksum Ofﬂoad

Engine (COE) to reduce CPU loading

• Supports both full-duplex operation with

IEEE 802.3x ﬂow control and half-duplex operation

with back-pressure ﬂow control

• Supports Wake-on-LAN, Jumbo Frames,

VLAN Tagging, and Auto-MDIX

• Plug and play; no external power supply required

16-02-229-93359A-EN.indd 2 2/18/2016 10:23:40 AM

Package Includes

Optional Accessories

System Requirements

• U336-U03-GB

• Quick Start Guide

• N001-Series Cat5e 350 MHz Snagless

Patch Cables

• N201-Series Cat6 Gigabit Snagless Patch Cables

• U322-Series USB 3.0 SuperSpeed A/B

Device Cables

• U326-Series USB 3.0 SuperSpeed A/Micro B

Device Cables

• An available USB port

• Windows®2000 and later

• Mac OS®9.X and later

• Linux®Kernel 2.6.14 and later

Installation

1. Insert the U336-U03-GB’s USB connector into

an available port on your computer. The LED on

the top of the unit will illuminate white when

connected.

16-02-229-93359A-EN.indd 3 2/18/2016 10:23:40 AM

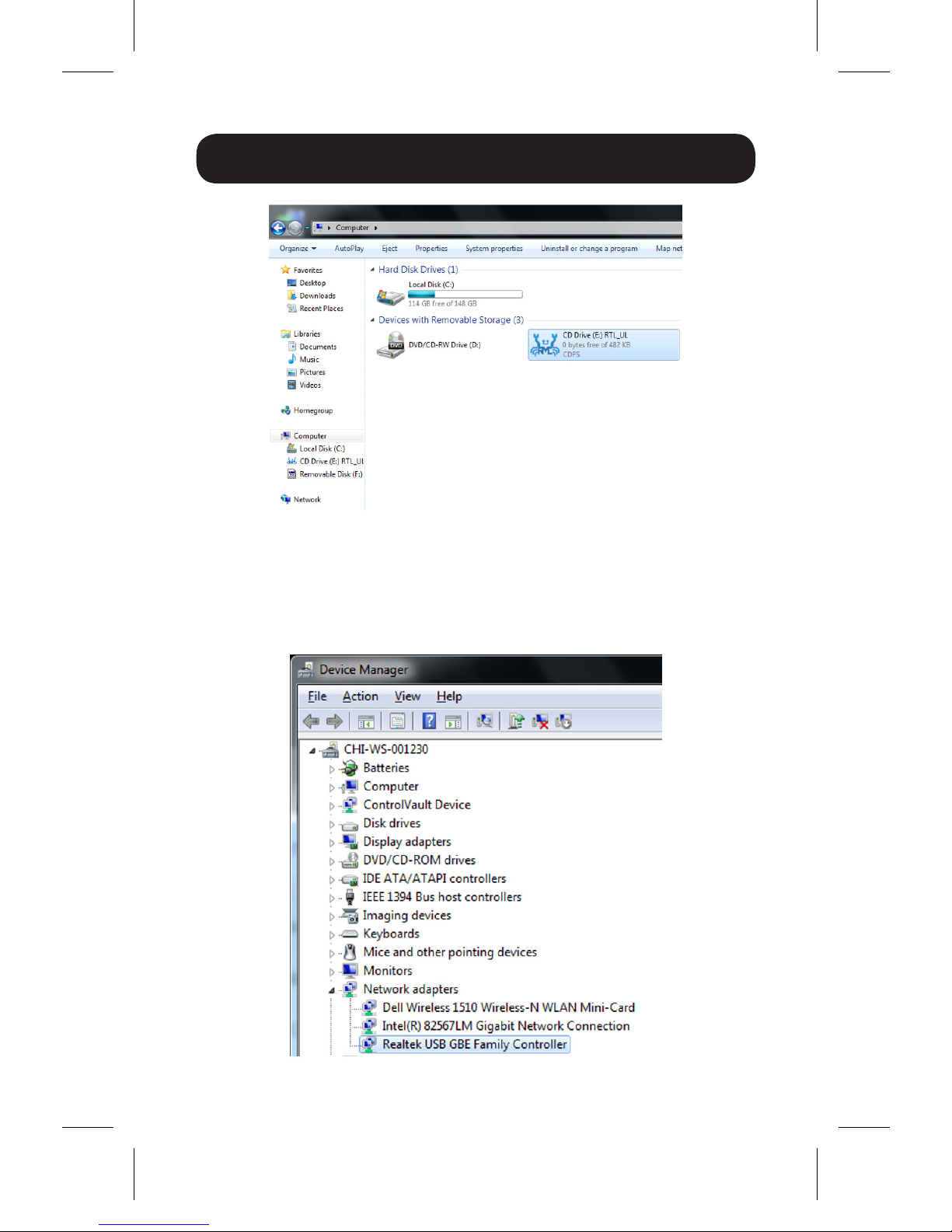

2. Once the computer detects the unit, an automatic

install of the USB drivers will occur. You may see

an initial prompt showing No driver found for USB

10/100/1000 LAN. This should be followed by an

AutoPlay prompt to install the driver. If you do not

see the AutoPlay prompt, you can navigate to your

My Computer screen and access it there, where it

will appear as a CD Drive.

Installation

16-02-229-93359A-EN.indd 4 2/18/2016 10:23:42 AM

Installation

3. To conﬁrm successful installation of the driver,

navigate to your computer’s Device Manager

screen and conﬁrm that Realtek USB GBE Family

Controller appears as a Network Adapter.

16-02-229-93359A-EN.indd 5 2/18/2016 10:23:43 AM

Installation

Warranty and Product Registration

4. Once installation is complete, you can connect the

RJ45 network port on the U336-U03-GB to your

network using Cat5e/6 patch cable. A green LED

next to the RJ45 port will illuminate to indicate an

Ethernet connection. An orange LED will ﬂash to

indicate network activity.

5. You can connect USB devices to the available ports

on the U336-U03-GB using USB cabling.

Note: A USB 3.0 cable and a USB 3.0 device are required

to achieve SuperSpeed data transfer rates up to 5 Gbps.

1-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials

and workmanship for a period of one (1) year from the date of initial

purchase. TRIPP LITE’s obligation under this warranty is limited

to repairing or replacing (at its sole option) any such defective

products. To obtain service under this warranty, you must obtain a

Returned Material Authorization (RMA) number from TRIPP LITE or

an authorized TRIPP LITE service center. Products must be returned

to TRIPP LITE or an authorized TRIPP LITE service center with

transportation charges prepaid and must be accompanied by a brief

description of the problem encountered and proof of date and place

of purchase. This warranty does not apply to equipment, which has

been damaged by accident, negligence or misapplication or has

been altered or modiﬁed in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

16-02-229-93359A-EN.indd 6 2/18/2016 10:23:43 AM

Warranty and Product Registration

Some states do not permit limitation or exclusion of implied

warranties; therefore, the aforesaid limitation(s) or exclusion(s) may

not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE

BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS

PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE. Speciﬁcally, TRIPP LITE is not liable for any costs, such as

lost proﬁts or revenue, loss of equipment, loss of use of equipment,

loss of software, loss of data, costs of substitutes, claims by third

parties, or otherwise.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new

Tripp Lite product. You’ll be automatically entered into a drawing for a

chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions

apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation.

16-02-229-93359A-EN.indd 7 2/18/2016 10:23:43 AM

Warranty and Product Registration

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modiﬁcations to this equipment not expressly

approved by Tripp Lite could void the user’s authority to operate this

equipment.

WEEE Compliance Information for Tripp Lite Customers and

Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment

(WEEE) Directive and implementing regulations, when

customers buy new electrical and electronic equipment

from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one,

like-for-like basis (this varies depending on the country)

• Send the new equipment back for recycling when this

ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Speciﬁcations are

subject to change without notice.

16-02-229 93359A_Rev A

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

16-02-229-93359A-EN.indd 8 2/18/2016 10:23:43 AM
