Tripp Lite DWM3270XOUT User manual
1
Owner’s Manual
Outdoor Full-Motion Wall Mount
Model: DWM3270XOUT
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
WARNING! Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
200x200/300x200
300x300/400x200
400x300/400x400
70"
MAX 110 lbs110 lbs
(50 kg)(50 kg)
RatedRated
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR®surge protector in our monthly drawing!
tripplite.com/warranty
Español 9 • Français 17 • Русский 25 • Deutsch 33
2

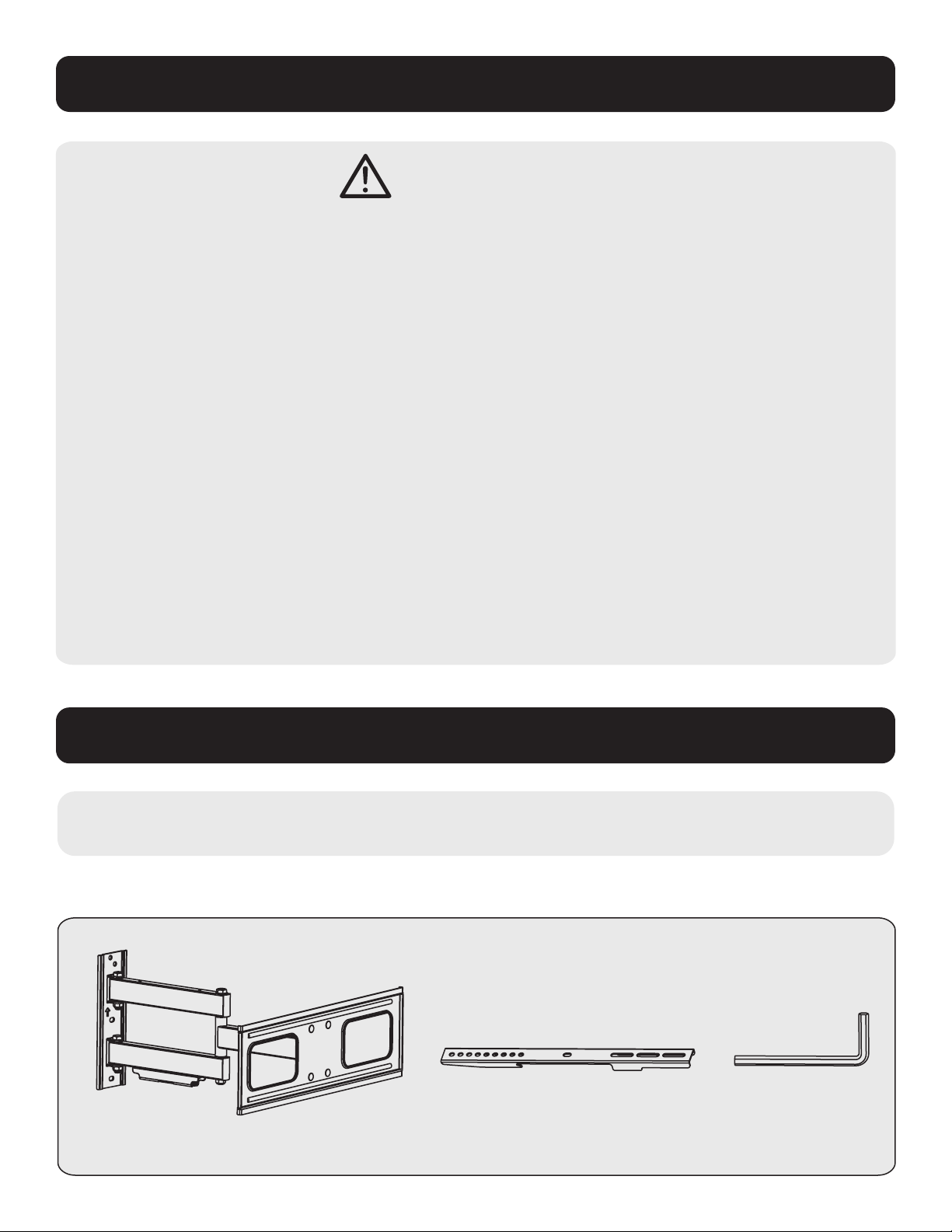

Parts List
Important Safety Instructions
CAUTION
• Read the entire instruction manual before you start assembly and installation. If you have questions about any of
the instructions or warnings, contact Tripp Lite Support.
• Use with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Mounts must be attached as specified in these instructions. Improper installation may result in damage or serious
personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• This product is designed to be installed on wood stud walls, solid concrete walls or brick walls.
• Ensure the supporting surface will safely support the combined weight of the equipment and all attached hardware
and components.
• Use the mounting screws provided and DO NOT OVERTIGHTEN the mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
IMPORTANT: Before beginning installation, be sure you have received all the parts listed below.
If any parts are missing or faulty, contact Tripp Lite for replacements.
A Mount (x1) B Adapter Bracket (x2) C Hex Wrench (x1)
Components
3
Parts List
Stud finder
(for installation
on wood stud wall)
Pencil Level Drill with
appropriate bits
(for installation type)
Screwdriver
W-B
Concrete Anchor (x4)
W-A
Tapping Screw (x4)
W-C
Washer (x4)
Package M
Package W
M-A
M5x14 (x4)
M-E
M8x50 (x4)
M-B
M6x14 (x4)
M-F
D6 Washer (x4)
M-C
M6x30 (x4)
M-H
Small Spacer (x8)
M-D
M8x30 (x4)
M-I
Large Spacer (x8)
M-G
D8 Washer (x4)
Required for Installation
4
1a. Mount on Wood Stud Wall
1
2
3
Find and mark the
exact location of
mounting holes
Screw mount
into wall
Drill pilot holes
WARNING
• Make sure that mounting screws are anchored into the center of the studs. Use of a stud finder is
highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
XX
W-A
W-C
Ensure holes are level
60mm
2.4”()
60 mm
(2.2")
Ø4.5 mm
(Ø3/16")
5
W-A
W-C
W-B
WARNING
• When installing wall mount onto a concrete masonry unit (also known as a CMU or cinder block), verify
the actual concrete thickness is at least 1-3/8” (35 mm) in order to hold the concrete anchors. DO NOT
DRILL INTO MORTAR JOINTS! Be sure to mount the assembled wall-mount plate with the included concrete
anchors, D6 washers and anchor bolts onto solid sections of the blocks. The solid sections can generally
be found 1” (25 mm) toward the middle of the block from either end. An electric drill on a slow setting is
recommended to drill the hole rather than a hammer drill to avoid breaking out the back of the hole when
entering a hollow section.
• The installer must verify the supporting surface will safely support the combined load of the equipment and
all attached hardware and components.
1b. Mount on Solid Brick or Concrete Block
1
2
Find and mark the
exact location of
mounting holes
Screw mount
into wall
Drill pilot holes
Ensure holes are level
Ensure holes are level
65mm
2.6"()
65 mm
(2.6")
Ø10 mm
(Ø3/8")
1
6
2. Install Adapter Brackets
M-F
M-A
M-B
M-G
M-H
M-C/M-D
M-G
M-I
M-C/M-D
M-E
M-G
M-H
M-I
M-G
M-I
M-H
M-C/M-D
M-G
M-E
M-I
M-G
M-H
M-I
M-E
TV TV
TV
TV TV
TV
Note: Choose appropriate screws, washers and spacers
(if necessary) according to the type of screen.
• Position the adapter brackets as close as possible to
the center of the display.
• Firmly secure the adapter brackets onto the display
using the screws and any other necessary hardware
components included with the unit.
DO NOT OVERTIGHTEN SCREWS!
2a
2b
7
3. Hanging Display
5. Route Cables
C
+10°
-20°
+3° -3°
±90°±90°
±90°±90°
±90°±90°
Hang Display onto
the Mounting Plate
Tighten Safety Bolts
to Secure Display
4. Tighten Safety Bolts
6. Make Adjustments
8
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-06-295 93-3CC4_RevA
Warranty and Product Registration
5-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material
and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or
workmanship within that period, Seller will repair or replace the product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE
OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF
MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS
WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations
on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you
may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for
the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or
warranty as to the suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a
chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Images may differ slightly from actual products.
9
Manual del Propietario
Soporte de Pared para TV de Movimiento
Completo para Exteriores
Modelo: DWM3270XOUT
1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support
Copyright © 2020 Tripp Lite. Todos los derechos reservados.
¡ADVERTENCIA! Utilice siempre un ayudante o equipo de elevación mecánico para levantar y colocar el
equipo con seguridad.
200x200/300x200
300x300/400x200
400x300 / 400x400
70"
MÁXIMO 50 kg [110 lb]50 kg [110 lb]
50 kg50 kg
ClasificadoClasificado
English 1 • Français 17 • Русский 25 • Deutsch 33
10
Lista de Partes
Instrucciones de Seguridad Importantes
PRECAUCIÓN
• Lea todo el manual de instrucciones antes de iniciar el ensamble y la instalación. Si tiene preguntas sobre cualquiera de
las instrucciones o advertencias, póngase en contacto con el Soporte de Tripp Lite.
• El uso con productos más pesados que los pesos nominales especificados puede resultar en inestabilidad y causar posibles
lesiones.
• Los soportes deben instalarse como se especifica en estas instrucciones. La instalación incorrecta puede causar daños o
lesiones personales graves.
• Se deben usar equipos de seguridad y herramientas adecuadas. Este producto debe ser instalado únicamente por
profesionales.
• Este producto está diseñado para ser instalado en paredes con travesaños de madera, paredes de concreto sólido o paredes
de ladrillo.
• Asegúrese de que la superficie de apoyo soporte con seguridad el peso combinado del equipo y de todos los accesorios
y componentes instalados.
• Use los tornillos de instalación suministrados y NO APRIETE EN EXCESO los tornillos de instalación.
• Este producto contiene pequeñas piezas que pueden ser un riesgo de asfixia si se ingieren. Mantenga estas piezas fuera del
alcance de los niños.
• Compruebe a intervalos regulares (al menos trimestralmente) que el soporte esté bien instalado y sea seguro para usarse.
IMPORTANTE: Antes de comenzar la instalación, asegúrese de haber recibido todas las partes que se
enumeran a continuación. Si faltara cualquier parte o estuviese dañada, póngase en contacto con Tripp Lite para
solicitar reemplazos.
A Soporte (x1) B Soporte Adaptador (x2) C Llave Hexagonal
(x1)
Componentes
