Tripp Lite SMARTONLINE SUPDU001 User manual

1111 W. 35th Street • Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Owner’s Manual

Connecting an SUPDU001 to the Output of a SmartOnline™

SU6K, SU10K, SU6000RT3U or SU10KRT3U

Important Safety Instructions! Save These Instructions!

WWAARRNNIINNGG!!Before connection, make sure that your entire SmartOnline system is OFF

(including transformer modules, where applicable), that all input and output breakers are

switched OFF and that the system is not connected to AC power. (See SmartOnline Owner’s

Manual.)

WWAARRNNIINNGG!!SUPDU001 installation and wiring should only be made by a qualified electrician

observing all applicable local, state and national electrical codes and requirements.

• Remove screws and open SUPDU001 case.

• Remove any one of the eight knockouts (either ½ or ¾ inch) around the edge of

SUPDU001 case. Attach a user-supplied conduit connector.

• Attach a second user-supplied conduit connector to the terminal box cover of the

SmartOnline UPS System.

• Connect user-supplied flexible, armored-cable conduit between the SUPDU001 and the

SmartOnline UPS System terminal box.

• Run user-supplied wire through the conduit and make appropriate connections inside the

SUPDU001 and inside the SmartOnline UPS System terminal box.

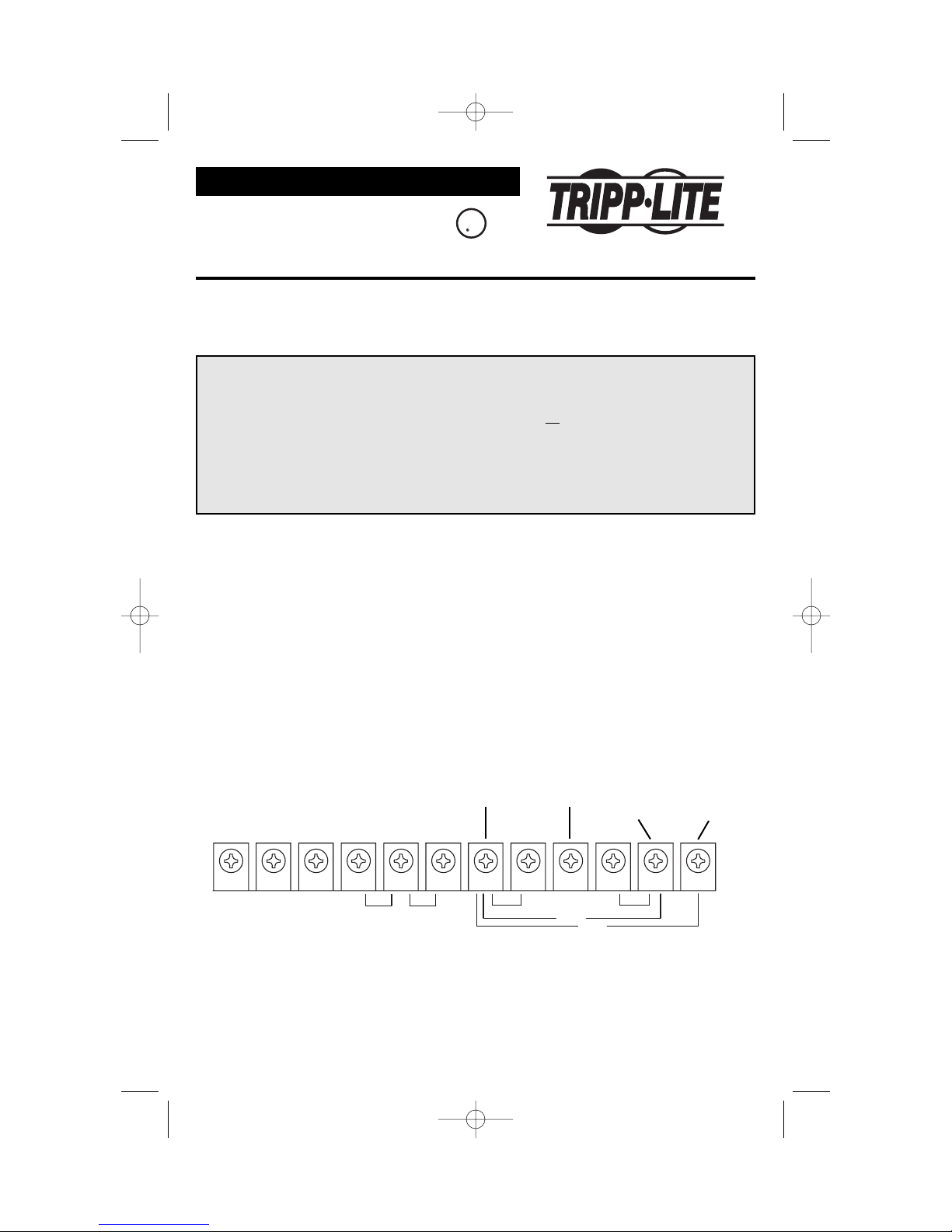

• Connect the colored wires to the SmartOnline’s terminal block as shown below. The brown

wire can be connected for either 240V output or 208V output. Note: the desired output

voltage MUST match the SmartOnline’s output voltage. (See SmartOnline Owner’s Manual.)

L2

L1 G

AC INPUT

208V 240V

INPUT

VOLTAGE SELECT

120V 120V

G

240V

208V

L3 NN

L2

L1

Copyright ©2003 Tripp Lite. All rights reserved. SmartOnline™ is a trademark of Tripp Lite.

200301143 93-2114

Blue Green Brown

(240V)

Brown

(208V)

or

SUPDU001

Wiring Instructions

CUS

UL

UL1788 Listed

UPS Accessory

200301143 93-2114 SUPDU001 Owner’s Manual Revision.qxd 3/19/2003 11:46 AM Page 1
