Tripp Lite B127A-1A1-BHBH User manual
1
HDMI over Cat6 Extender Kits
and Repeater, 4K/60 Hz
Extender Kit Models: B127A-1A1-BHBH,
B127A-1A1-BHPH, B127A-111-BHTH, B127A-110-BH
Repeater Model: B127A-010-H
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR®surge protector in our monthly drawing!
tripplite.com/warranty
Este manual está disponible en español en la página de Tripp Lite:
tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website
verfügbar: tripplite.com
20-12-086-933CC9-EN.indd 120-12-086-933CC9-EN.indd 1 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
2
B127A-1A1-BHBH
B127A-1A1-BHPH
B127A-111-BHTH
B127A-110-BH
B127A-010-H
Local and Remote Units (LR),
Remote Unit (R), Repeater Unit (RT) LR LR LR R RT
External Power Supplies (0 or 1) 1 1 1 1 0
Mounting Hardware Y Y Y Y N
Package Contents
Product Features
All
• Support video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• HDCP 2.2- and HDR-compatible
• USB 1.1 standard
• Plug and play—no software or drivers required
Note: USB 1.1 standard and bi-directional IR applies only to the extender
kits, not the repeater.
20-12-086-933CC9-EN.indd 220-12-086-933CC9-EN.indd 2 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
3
Product Features
B127A-1A1-BHBH
• HDMI over Cat6 Power over Cable (PoC) Extender Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified
in HDMI 2.0, up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment
• Supports up to 7.1-channel surround sound audio
• Receiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Support bi-directional IR and USB 1.1 function by dip switch
selection
• Includes mounting hardware that enables both the local
transmitter and remote receiver units to be wall-mounted,
rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged in at either transmitter or receiver side and
provide power to both units
20-12-086-933CC9-EN.indd 320-12-086-933CC9-EN.indd 3 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
4
Product Features
B127A-1A1-BHPH
• HDMI over Cat6 Power over Cable (PoC) Extender Kit with
Pigtail Receiver
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified
in HDMI 2.0, up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment with 1 ft. HDMI male cable
• Supports up to 7.1-channel surround sound audio
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables the local transmitter
to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged into transmitter and provide power to both units
20-12-086-933CC9-EN.indd 420-12-086-933CC9-EN.indd 4 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
5
Product Features
B127A-111-BHTH
• HDMI over Cat6 Power over Cable (PoC) daisy-chainable
Extender Kit
• Remote transceiver unit features built-in equalization (EQ)
control, auto EDID image adjustment and RJ45 expanding port
to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio extraction
function
• Extends and expands a 4K x 2K (3840 x 2160) @ 60 Hz
signal, as specified in HDMI 2.0, in an over Cat6 installation,
allowing multiple monitors to be located at different points in a
chain by adding up to four B127A-110-BH units
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to an
additional 230 ft. or a 1080p @ 60 Hz signal up to an
additional 230 ft. from each remote/repeater unit to the next
unit in the chain (in a full four-level daisy chain installation), a
4K (3840 x 216) @ 60 Hz signal up to 920 ft. or a 1080p @
60 Hz signal up to 920 ft. from the source to the last remote
unit in the chain
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
daisy-chain installation.
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
20-12-086-933CC9-EN.indd 520-12-086-933CC9-EN.indd 5 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
6
Product Features
• Supports up to 7.1-channel surround sound audio
• Transceiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that allows unit to be wall-
mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged into either transmitter or receiver side and
provide power to connected units
B127A-110-BH
• HDMI over Cat6 Power over Cable (PoC) transceiver unit
• Works with the B127A-111-BHTH to extend a 4K x 2K
(3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0,
up to 230 ft. (70 m)
• This transceiver unit features built-in equalization (EQ) control
and auto EDID image adjustment and one RJ-45 expanding
port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Add a B127A-010-H signal booster for increased maximum
transmission distance. See B127A-111-BHTH for details.
20-12-086-933CC9-EN.indd 620-12-086-933CC9-EN.indd 6 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
7
Product Features
B127A-010-H
• Repeater unit extends the transmission of a 4K x 2K
(3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0,
up to a total of 400 ft. (120 m)
• Power over Cable (PoC) technology means no external
power is required to power the unit
• HCDP 2.2- and HDR-compliant
• Supports up to 7.1-channel surround sound audio
• Compatible with all B127A-Series products, including HDMI,
DisplayPort and USB-C models
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
B127A-111-BHTH and B127A-110-BH daisy-chain installation.
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
Optional Accessories:
• N202-Series Cat6 24 AWG Solid Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed
HDMI 2.0 Cables
20-12-086-933CC9-EN.indd 720-12-086-933CC9-EN.indd 7 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
8
Disclaimer
Before installation, please check the following settings of your
source(s) and TV/monitor(s):
1. Set display to 60 Hz. Double-check factory settings, as
default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0.
Some displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some
displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on
your TV/monitor. Confirm with your TV/monitor manufacturer
which HDMI ports support UHD Deep Color.
5. Check USB/IR DIP switch, as the default setting is set to IR.
Note: To connect a local monitor to your installation, the UHD Deep
Color setting may need to be disabled on your local TV/monitor
(depending make/mode) to achieve 4K @ 60 Hz resolution.
20-12-086-933CC9-EN.indd 820-12-086-933CC9-EN.indd 8 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
9
Mounting Instructions (select models only)
The B127A-1A1-BHBH, B127A-1A1-BHPH, B127A-111-BHTH
and B127A-110-BH include mounting hardware that allows for a
variety of mounting methods.
The following images illustrate how the included mounting
brackets can be attached for different installations.
Notes:
• The model shown in the below images is for illustrative purposes only.
Your product may vary by model number, size or port orientation. The
mounting options for all over IP units are the same.
• Only the transmitter unit in the B127A-1A1-BHPH can be mounted.
The receiver is a pigtail-type unit that cannot be mounted.
Wall-Mount
19” Rack-Mount Pole-Mount
20-12-086-933CC9-EN.indd 920-12-086-933CC9-EN.indd 9 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
10

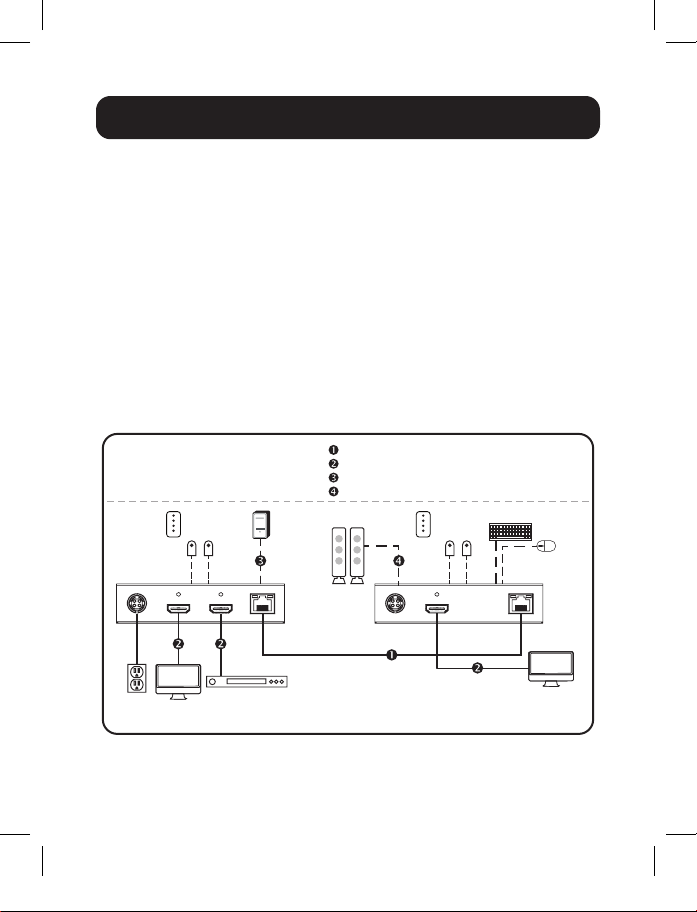

Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-1A1-BHBH unit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
B127A-1A1-BHBH
extender kit
IR Control
Pad IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV
USB Keyboard
USB Mouse
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Micro-USB cable
Toslink cable
IR Control
Pad IR
Sensor
20-12-086-933CC9-EN.indd 1020-12-086-933CC9-EN.indd 10 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM
