Tripp Lite B127A-1A1-BCBH User manual
1
USB-C™to 4K HDMI over
Cat6 and KVM Extender Kit
Model: B127A-1A1-BCBH
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 13
Français 25
Русский 37
Deutsch 49
20-08-367 93-3D19.indb 120-08-367 93-3D19.indb 1 3/3/2021 3:25:47 PM3/3/2021 3:25:47 PM
2
Package Contents
• Transmitter and Receiver Units
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;
Output: 24V/1A)
• Plug Adapters: NEMA 1-15P (North America), CEE 7/16
Schuko (Europe), BS 1363 (UK) and AS/NZS 3112 (Australia)
• Mounting Hardware
• Owner’s Manual
Optional Accessories
• N202-Series Cat6 24 AWG Solid-Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI
2.0 Cables
• U420-Series USB-C 3.1 Gen 1/2 Cables
20-08-367 93-3D19.indb 220-08-367 93-3D19.indb 2 3/3/2021 3:25:47 PM3/3/2021 3:25:47 PM
3
Product Features
• Extends 4K x 2K (3840 x 2160) @ 60 Hz video (as specified
in HDMI 2.0) up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports a 4K x 2K (3840 x 2160) @
60 Hz signal
• USB Type-C PD 3.0 port provides up to 90W of charging power
• Remote receiver unit includes built-in equalization (EQ) control
and auto EDID image adjustment
• Supports up to 7.1-channel surround sound audio
• Receiver includes a built-in Toslink port for audio extraction
• HDCP 2.2 compatible
• Plug and play—no software or drivers required
• Supports bi-directional IR and USB 1.1 via DIP switch selection
• Includes mounting hardware that enables both the local
transmitter and remote receiver units to be wall-mounted,
rack-mounted or pole-mounted
20-08-367 93-3D19.indb 320-08-367 93-3D19.indb 3 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
4
Disclaimer
Before installation, please check the following settings of your
source(s) and TVs/monitor(s):
1. Set display to 60 Hz. Double-check factory settings, as default
can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0.
Some displays may have default setting at HDMI 1.4.
3. Check if the Ultra HD (UHD) Deep Color setting is enabled on
your TV/monitor. Confirm with your TV/monitor manufacturer
which HDMI ports support UHD Deep Color.
4. Check the USB/IR switch. The default setting is “IR”.
Note: To connect a local monitor to your installation, the UHD Deep Color
setting may need to be disabled on your local TV/monitor (depending on
make/model) to achieve 4K / 60 Hz resolution.
20-08-367 93-3D19.indb 420-08-367 93-3D19.indb 4 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
5

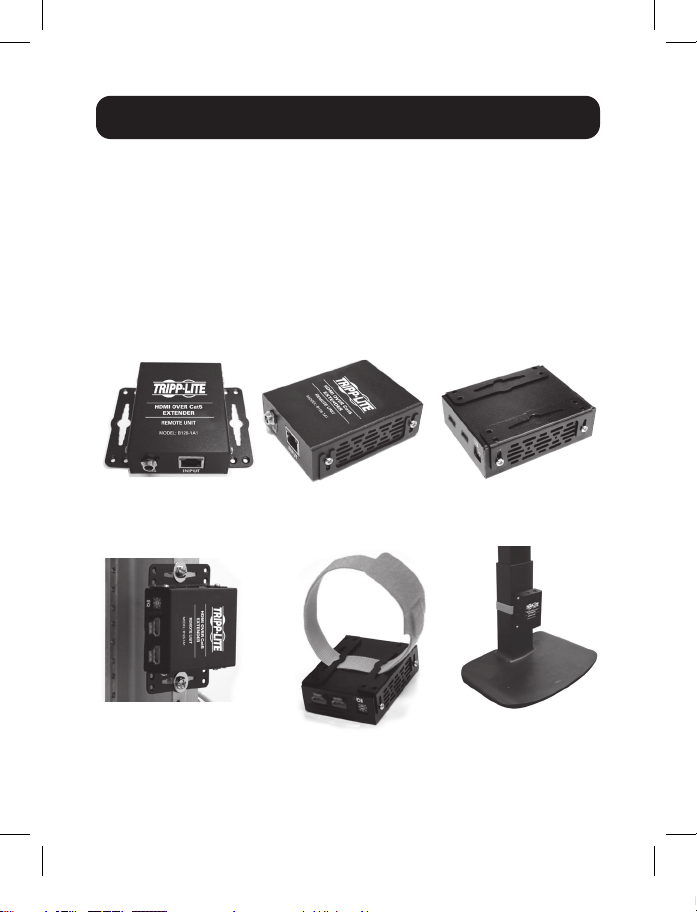

Mounting Instructions
The B127A-1A1-BCBH includes mounting hardware that allows
for a variety of mounting methods. The following images illustrate
how the included mounting brackets can be attached for different
installations.
Note: The model shown in the images below is for illustrative purposes
only. Your product may vary by model number, size or port orientation.
The mounting options for all over IP units are the same.
Pole-Mount
Wall-Mount
19" Rack-Mount
20-08-367 93-3D19.indb 520-08-367 93-3D19.indb 5 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
6
Installation
Notes:
• Make sure all equipment in the installation—such as TVs, a Type-C
notebook PC and the transmitter—is powered OFF.
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded-wire Cat6 cable, or cable with a
gauge (AWG) size higher than 24 AWG, will result in shorter extension
distance. Higher gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower gauge cabling. All Tripp Lite N202-
Series Cat6 cables are made with 24 AWG solid-wire cabling.
• External power is not required for remote receiver units due to Power-
over-Cable (PoC) technology incorporated in the transmitter units.
20-08-367 93-3D19.indb 620-08-367 93-3D19.indb 6 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
7
Installation
1. Using a USB 3.0 Type-C cable, connect the USB Type-C
source to the INPUT port on the local transmitter unit.
2. Optional: Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-
CERT or P568-XXX-2A Series cables), connect a local monitor to the
LOCALOUT port on the B127A-1A1-BCBH local transmitter unit.
3. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
4. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
5. Turn the power on to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port is
connected to a display.
6. Connect the external power supply to the local transmitter unit and
plug it into an available wall outlet or (optional) a Tripp Lite Surge
Protector, Power Distribution Unit (PDU) or Uninterruptible Power
Supply (UPS). The POWER (green) LED on the local transmitter
unit will illuminate to indicate the unit is receiving power from the
external power supply. The POWER (green) LED on the remote
receiver unit will illuminate to indicate the unit is receiving power
from the local transmitter unit through PoC technology.
7. Turn on the power to the USB Type-C source. The OUTPUT
(orange) LED on the local transmitter unit will illuminate to
indicate a signal is received from the source.
8. The (orange) RJ45 LED will illuminate on both the local
transmitter unit and remote receiver unit to indicate a signal is
received from source to display. The screen should now display
on the connected monitor.
20-08-367 93-3D19.indb 720-08-367 93-3D19.indb 7 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
8
The extender kit provides the following functional controls:
• USB 1.1 – One Micro-USB input at transmitter, dual USB-A
outputs at receiver
• Bi-Directional IR – Dual 3.5 mm jacks at both the transmitter
and receiver
• Toslink – Audio output at receiver
Note: All of the following USB/IR/Toslink steps are optional. For port
locations, refer to the diagram in the Extender Kit Installation section.
IR Control
1. Connect a user-supplied IR-OUT cable to the transmitter
unit’s IR-OUT port. Place the sensor on the IR-OUT cable in
an unobstructed area within clear view of the device being
controlled. Then connect a user-supplied IR-IN cable to the
receiver unit’s IR-IN port. The IR-IN cable will communicate
the desired command via the transmitter’s IR-OUT cable.
Note: The IR-OUT cable receives the signal from the remote control and
sends it to the device being controlled (e.g. Blu-ray™ player, etc.).
USB/IR/Toslink Controls
20-08-367 93-3D19.indb 820-08-367 93-3D19.indb 8 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
9
USB/IR/Toslink Controls
USB Control
1. With a user-supplied USB Micro-B cable (such as Tripp Lite
U050-XXX Series USB cable), connect to the transmitter’s
Micro-B port. Then connect a keyboard and mouse to the
available USB-A ports on the receiver unit.
Toslink Control
1. With a user-supplied Toslink cable (such as Tripp Lite A102-
XXM Series cables), connect an audio receiver, compatible
speaker(s) or other audio system equipped with a Toslink
digital input.
20-08-367 93-3D19.indb 920-08-367 93-3D19.indb 9 3/3/2021 3:25:48 PM3/3/2021 3:25:48 PM
10
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials
and workmanship for a period of one (1) year from the date of initial
purchase. TRIPP LITE’s obligation under this warranty is limited
to repairing or replacing (at its sole option) any such defective
products. To obtain service under this warranty, you must obtain a
Returned Material Authorization (RMA) number from TRIPP LITE or
an authorized TRIPP LITE service center. Products must be returned
to TRIPP LITE or an authorized TRIPP LITE service center with
transportation charges prepaid and must be accompanied by a brief
description of the problem encountered and proof of date and place
of purchase. This warranty does not apply to equipment which has
been damaged by accident, negligence or misapplication or has been
altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Some states do not permit limitation or exclusion
of implied warranties; therefore, the aforesaid limitation(s) or
exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE
BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, TRIPP LITE is not liable for any costs,
such as lost profits or revenue, loss of equipment, loss of use of
equipment, loss of software, loss of data, costs of substitutes,
claims by third parties, or otherwise.
Warranty and Product Registration
