Tripp Lite U442-DOCK8-BINT User manual
1
Triple-Display USB-C Docking
Station with International Power
Supply
Model: U442-DOCK8-BINT
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. All rights reserved. USB Type-C®and
USB-C®are registered trademarks of USB Implementers Forum.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 21 • Français 41 • Русский 61 • Deutsch 81
2
• HDMI and DisplayPort connectors each support single-
monitor 4K applications up to 3840 x 2160 @ 60 Hz*
• Extends 1080p desktop image across 3 external screens at
the same time at resolutions up to 1920 x 1080 @ 30 Hz*
• Extends 1080p desktop image across 2 external screens at
the same time at resolutions up to 1920 x 1080 @ 60 Hz*
• RJ45 port supports true 10/100/1000 Mbps (1 Gbps) network
speeds when Wi-Fi is weak or unavailable
• USB-C PD 3.0 port supports 85W power output for charging
host device
• USB-A hub ports support USB 3.2 Gen 2 speeds up to
10 Gbps; one dedicated port supports up to 5V 1.5A (7.5W)
for charging mobile devices, 2.4A for Apple®devices
• USB-C hub port supports USB 3.2 Gen 2 speeds up to
10 Gbps for reading, writing and transferring data
• 3.5 mm microphone/speaker combo port supports
2.1-channel audio
• Plug-and-play operation with no software required for easy,
immediate installation
*Maximum resolution is determined by what your connected device can
support. See Cable Matrix for resolution breakdown.
Product Features
3
• U442-DOCK8-BINT
• USB-C to USB-C Cable, 1m (3.3 ft)
• External Power Supply with BS 1363 UK and CEE 7/8 EU
Power Cords
• Owner’s Manual
• N201-Series Cat6 Gigabit Snagless Patch Cables
• P312-Series 3.5 mm Mini Stereo Audio Cables
• P569-Series High-Speed HDMI Cables
• P580-Series DisplayPort Cables with Latches
• U420-Series USB 3.2 Gen 2 C/C Cables
• U428-Series USB 3.2 Gen 1 A/C Cables
• M100-Series USB Sync/Charge A/Lightning Cables
Package Contents
Optional Accessories
4
1Power: Turns the unit o and on. Blue LED indicates when
power is turned on.
23.5 mm Mini Stereo Combo Port: Connects user-
supplied speaker or microphone.
3USB-C Data Port: Transmits data at USB 3.2 Gen 2
speeds up to 10 Gbps.
4USB-A Charging Port: Supports 5V 1.5A (7.5W) charging
for mobile devices, 2.4A for Apple devices.
5Anti-Theft Lock: Connects your computer/laptop security-
cable chain lock.
Product Overview
Front
1
2345
5
Product Overview
Rear

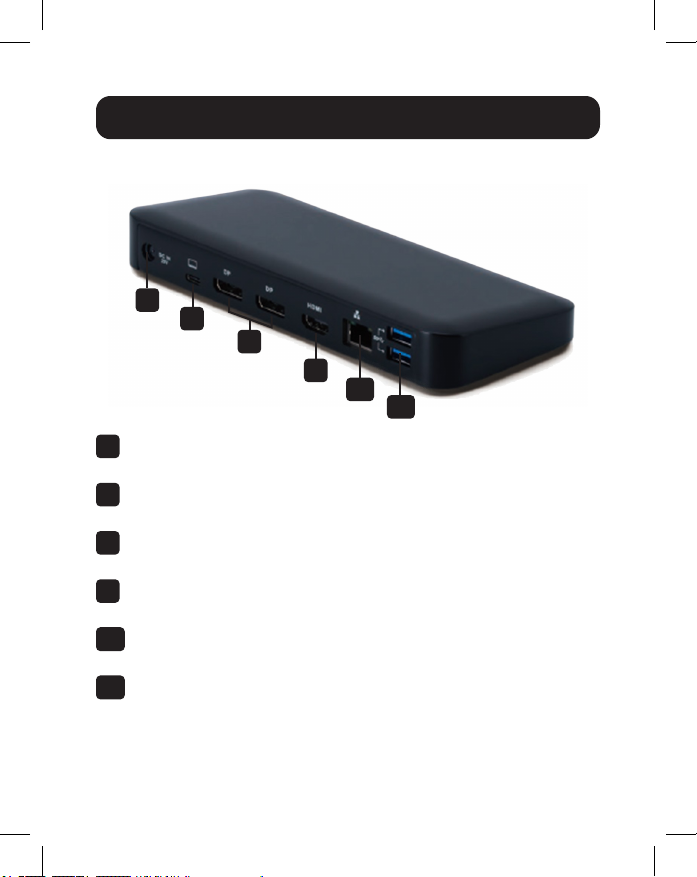

6DC Power Jack: Connect the included external power
supply to both this port and an AC outlet.
7USB-C PD Charging Port: Connects to the host device
with the included USB-C cable.
8(2x) DisplayPort Outputs: Connect to DisplayPort
monitors with user-supplied cables.
9HDMI Output: Connects to HDMI monitor with user-
supplied cable.
10 RJ45 Port: Connects to Gigabit Ethernet network with
user-supplied Cat6 cable.
11 (2x) USB-A Hub Ports: Connects USB peripherals or
devices at USB 3.2 Gen 2 speeds up to 10 Gbps.
67
8
9
11
10
6
Cable Matrix
DP1.2 HBR2 Platform
Ports HDMI DP1 DP2
1 External Display Connected 4K/30 Hz N/A N/A
N/A 4K/30 Hz N/A
N/A N/A 4K/30 Hz
2 External Displays Connected 1080p/60 Hz 1080p/60 Hz N/A
1080p/60 Hz N/A 1080p/60 Hz
N/A 1080p/60 Hz 1080p/60 Hz
3 External Displays Connected 1080p/30 Hz 1080p/30 Hz 1080p/30 Hz
DP1.4 HBR3 Platform
Ports HDMI DP1 DP2
1 External Display Connected 4K/60 Hz N/A N/A
N/A 4K/60 Hz N/A
N/A N/A 4K/60 Hz
2 External Displays Connected 1440p/60 Hz 1440p/60 Hz N/A
1440p/60 Hz N/A 1440p/60 Hz
N/A 1440p/60 Hz 1440p/60 Hz
3 External Displays Connected 1080p/60 Hz 1080p/60 Hz 1080p/60 Hz
DP1.4 HBR3 Platform with DSC Support
Ports HDMI DP1 DP2
1 External Display Connected 4K/60 Hz N/A N/A
N/A 4K/60 Hz N/A
N/A N/A 4K/60 Hz
2 External Displays Connected 4K/60 Hz 4K/60 Hz N/A
4K/60 Hz N/A 4K/60 Hz
N/A 4K/60 Hz 4K/60 Hz
3 External Displays Connected 4K/30 Hz 4K/30 Hz 4K/30 Hz
7
Installation
Installation Notes
• After all devices are connected to the unit, be sure the power
adapter is properly connected and the power button is turned
on.
•
Connect the host computer or laptop to the U442-DOCK8-BINT’s
USB-C PD Charging port using the included USB-C cable.
This cable will charge and power the host device.
• Screenshots may vary based on operating system.
• The computer or laptop will keep your previous display
settings every time you power on/o.
• Check your computer or laptop’s display settings and set up
in Extend Mode for normal installation.
• If you change monitors, you may need to reset the display
settings.
• Some 4K monitors will occupy the entire 4K bandwidth and
cause the third connected display to function incorrectly.
• If your system runs Mac OS, external monitors connected
will only support Mirror Mode (all displays will have the same
output).
• If your system is a Windows system and supports MST
Mode, refer to below MST installation notes.
8
Installation
Single External Display Installation
Connect an HDMI or DisplayPort cable (see Optional
Accessories) between the U442-DOCK8-BINT and a
compliant display.
Double-Extended External Display
Installation
A. Connect either both DisplayPort outputs or one DisplayPort
and one HDMI port to compliant displays.
B. In desktop mode, right-click the desktop and select
Graphics Properties.
1x External displays
+ 1x NB screen
Resolution (NB)
1080p @ 60 Hz
Resolution (Monitor)
HBR2 2160p @ 30 Hz
HBR3 2160p @ 60 Hz
Resolution (NB)
1080p @ 60 Hz
Resolution (Monitor)
1080p @ 60 Hz 1080p @ 60 Hz
9
Installation
C. Click Display Settings.
D. In Multiple Displays, click Identify Your Monitors.
10
Installation
E. In General Settings, adjust the extended monitor
resolution to
1920 x 1080 and the refresh rate to 60 Hz. Click
Apply to save settings.
Note: The primary display default is the laptop screen. Displays 2
and 3 should be extended monitor.
F. In Dual Extended mode, a 4K monitor will automatically
downgrade to 1080p @ 60 Hz to provide the best video
quality.
Resolution (NB)
1080p @ 60 Hz
Resolution (Monitor)
1080p @ 60 Hz 1080p @ 60 Hz
