Owner’s Manual

BP Series

External Battery Packs

Not suitable for mobile applications.

Introduction 2

Important Safety Instructions 2

Mounting 3

Connection 9

Maintenance 10

Warranty and Product Registration 11

Español 12

Français 23

 34

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

17-05-246-932487.indb 1 5/31/2017 4:32:23 PM

Introduction

Important Safety Instructions

Tripp Lite BP Series External Battery Packs are designed for use with various Tripp Lite

UPS systems equipped with external battery pack connectors.

SAVE THESE INSTRUCTIONS

WARNING! The mounting shelves are not intended to support more than

one battery pack. Do not stack multiple battery packs on a single set of

mounting shelves. Failure to follow this warning may lead to product

damage and/or risk of personal bodily harm.

• Use caution when lifting battery packs. Because of the considerable weight of

all battery packs, at least two people should assist in lifting and installing

them.

• Make certain the battery packs and UPS use the same DC voltage before

connecting them.

• Use of this equipment in life support applications where failure of this

equipment can reasonably be expected to cause the failure of the life support

equipment or to significantly affect its safety or effectiveness is not

recommended.

• Suggested mounting procedures are for common rack types and may not be

appropriate for all rack configurations. User must determine the fitness of rack and

wall-mount hardware and procedures before mounting.

• When connecting multiple battery packs to a single UPS, the battery packs should be

approximately the same age.

• It is normal for sparks to occur when connecting external batteries.

• Do not unplug external batteries from the UPS while the UPS is operating on battery

power, due to the possibility of dangerous arcing.

• Batteries can present a risk of electrical shock and burn from high short-circuit

current. Observe proper precautions. Do not dispose of the batteries in a fire. Do not

open the UPS or batteries. Do not short or bridge the battery terminals with any

object. Unplug and turn off the UPS before performing battery replacement. Use tools

with insulated handles. There are no user-serviceable parts inside the UPS. Battery

replacement should be performed only by authorized service personnel using the

same number and type of batteries (Sealed Lead-Acid). The batteries are

recyclable. Refer to your local codes for disposal requirements or visit

http://www.tripplite.com/support/recycling-program for recycling information. Tripp Lite

offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.).

Visit Tripp Lite on the Web at http://www.tripplite.com/products/battery-finder/ to locate

the specific replacement battery for your UPS.

17-05-246-932487.indb 2 5/31/2017 4:32:23 PM

Mounting (4-Post Rack)

Mount your battery pack in a 4-post or 2-post rack or rack enclosure, or in an upright

tower position. The user must determine the fitness of hardware and procedures before

mounting. If hardware and procedures are not suitable for your application, contact the

manufacturer of your rack or rack enclosure. The procedures described in this manual

are for common rack and rack enclosure types and may not be appropriate for all

applications.

4-Post Mounting

Most external battery packs include the hardware required for 4-post mounting. If this

hardware did not come with your unit, an Adjustable 4-Post Rack-mount Shelf Kit

(models: 4POSTRAILKIT or 4POSTRAILKITHD) may be ordered separately.

1The included plastic pegs Awill temporarily support the empty rack-mount shelves

Bwhile you install the permanent mounting hardware. Insert a peg near the center

of the front and rear bracket of each shelf as shown. (Each front bracket has

six holes and each rear bracket has three holes.) The pegs will snap into place.

After installing the pegs, expand each shelf to match the depth of your rack rails.

The pegs will fit through the square holes in the rack rails to support the shelves.

Refer to the rack unit labels to confirm the shelves are level in all directions.

Note: The support ledge of each shelf must face inward.

17-05-246-932487.indb 3 5/31/2017 4:32:24 PM

Mounting (4-Post Rack)

3U2U

2Secure the shelves Bto the mounting rails permanently using the included screws

and cup washers Cas shown.

• For 2U equipment mounting, place four screws total in the front and four screws

total in the back.

• For 3U equipment mounting, place six screws total in the front and four screws

total in the back.

Tighten all screws before proceeding.

Warning: Do not attempt to install equipment until you have inserted

and tightened the required screws. The plastic pegs will not support

the weight of your equipment.

3Using the included hardware, attach the mounting brackets to the forward mounting

holes of the cabinet. The mounting bracket "ears" should face forward. (Some

equipment may have pre-installed or integrated mounting brackets.)

17-05-246-932487.indb 4 5/31/2017 4:32:28 PM

Mounting (4-Post Rack)

4With the aid of an assistant (if necessary), lift your equipment and slide it into the

shelves. Attach the equipment mounting brackets to the forward mounting rails with

user-supplied screws and washers D. Tighten all screws securely.

1 2

BP24V15RT2U 4-Post Mounting

To install the BP24V15RT2U external battery pack in a 4-post rack, remove the

mounting hole covers from the top and bottom sides of the battery pack 1. To install

the battery pack in a 4-post rack, attach the mounting ears to each side of the UPS

using the included hardware 2. With the help of an assistant, lift the battery pack and

attach it to a standard rack with user-supplied hardware 3.

17-05-246-932487.indb 5 5/31/2017 4:32:32 PM

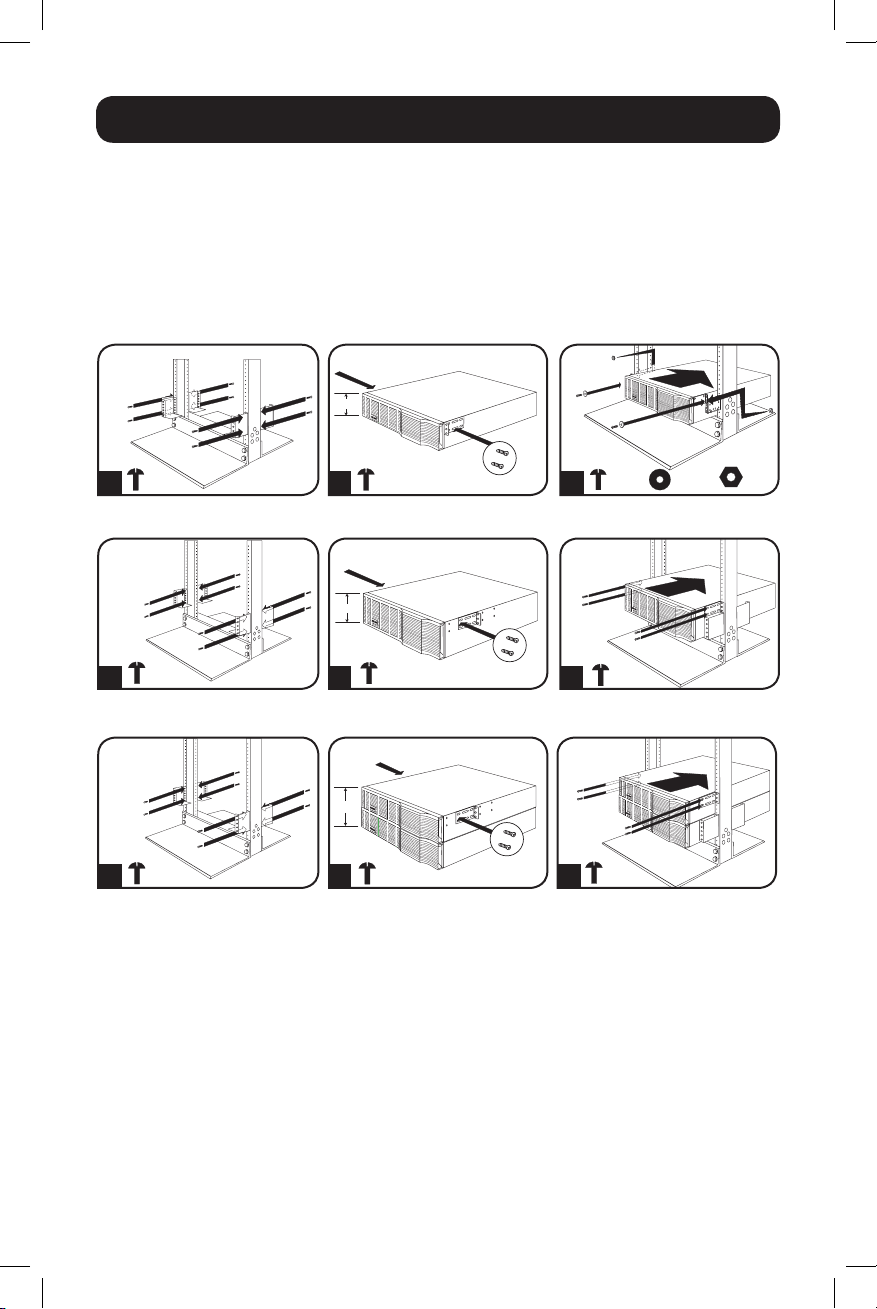

2-Post (Telecom) Mounting

Select external battery pack models include the hardware required for 2-post mounting.

If this hardware did not come with your unit, a 2-Post Rackmount Installation Kit (Model

2POSTRMKITWM or 2POSTRMKITHD) may be ordered separately. Refer to the

illustrations below for specific installation instructions covering 2U, 3U and 4U battery

packs.

1X 8

2X 4 3X 2 X 2 X 2

X 8 X 4 X 4

X 4

Mounting (2-Post Rack or Tower)

X 8 X 4

17-05-246-932487.indb 6 5/31/2017 4:32:37 PM

BP24V15RT2U 2-Post Mounting

To install the BP24V15RT2U external battery pack in a 2-post rack, remove the

mounting hole covers from the top and bottom sides of the pack 1. Attach the

mounting ears to each side of the UPS using the included hardware 2. With the help of

an assistant, lift the battery pack and attach it to a standard rack with user-supplied

hardware 3.

Important: Illustrations show the most common installation

configurations; your model may vary. Use only the pre-drilled screw

holes to attach mounting brackets to the sides of the battery pack.

When installing battery packs into the rack, ensure the weight of the

unit is evenly distributed.

Mounting (2-Post Rack or Tower)

1 2

17-05-246-932487.indb 7 5/31/2017 4:32:40 PM

WARNING

DO NOT INSTALL PRODUCT

WITH THIS LABEL

FACING UP

Mounting (2-Post Rack or Tower)

Tower Mounting

Select external battery pack models support tower

mounting. For increased stability, Tripp Lite

recommends the use of the 2-9USTAND (sold

separately). Ensure the Battery Orientation Warning

label 1is not facing upward when installing the

battery pack in tower orientation. Follow the

instructions included with the 2-9USTAND to

complete the installation.

BP24V15RT2U Tower Mounting

The BP24V15RT2U will stand in a tower position without the aid of the included

hardware. For increased stability, Tripp Lite recommends removing the screw covers

from each bottom side 1and attaching the included hardware 2. In either position, the

user must determine the fitness of hardware and procedures before installation.

1 2

NOTICE: If Battery Orientation Warning labels are affixed to both sides

of the battery pack, it can only support rack-mount installation.

17-05-246-932487.indb 8 5/31/2017 4:32:42 PM

1Select battery packs have a polarized plug A

on an output cord permanently connected to

the rear panel. Simply plug the output cord

directly into the UPS external battery

connector (refer to the UPS manual for

external battery connector description and

location).

Note: Only one of these battery packs is generally

connected to a UPS at one time. For longer

runtime, use one or more Tripp Lite Battery Packs

with daisy-chain capability.

2Select battery packs feature daisy-chain

capability for longer runtime B. To connect

multiple battery packs to a single UPS for

increased runtime, connect the cabled output

connector of the first battery pack to the UPS

system’s external battery connector, then

“daisy-chain” the others: Cconnect the

corded output connector on the second

battery pack to the daisy-chain input

connector on the second pack, and so on.

(Refer to your UPS Owner’s Manual for

external battery connection description and

location.)

Connection

Note: Multiple battery pack arrays will provide longer runtimes, but will also require longer

recharge times.

3Select battery packs contain an external battery detection port on the rear panel.

The battery packs should only be used with host UPS models that provide the same

functionality. The UPS will automatically detect the external battery upon connection

with the battery communication cable D. Check the UPS manual for compatible

external battery pack models, configuration requirements and potential limitations.

Battery packs are for use only with UPS systems supporting external battery pack

detection cabling (this connection is not required if the UPS does not support this

feature).

Battery

Pack

UPS

17-05-246-932487.indb 9 5/31/2017 4:32:43 PM

Maintenance

Battery packs require no maintenance but should be kept dry at all times. Avoid

installation in locations with high heat and/or humidity. The battery packs should be kept

fully charged by being connected to an active UPS system, not left in a depleted

condition. Batteries left in a discharged state will suffer a permanent loss of capacity.

Troubleshooting

There is a fuse array inside the battery packs. If a heavy overload or short circuit is

encountered, a fuse will open (blow). A battery pack with a blown fuse will deliver no

output voltage at any load. A qualified technician must replace the fuses. Contact Tripp

Lite Customer Support for additional information.

Storage

Disconnect your battery pack’s power cable before storing. If you plan to store your

battery pack for an extended period of time, fully recharge its batteries every three

months by connecting it to a UPS that is connected to AC input for at least 12 hours.

Service

Your Tripp Lite product is covered by the warranty described in this manual. A variety of

Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For

more information on service, visit www.tripplite.com/support. Before returning your

product for service, follow these steps:

1. Review the installation and operation procedures in this manual to insure that the

service problem does not originate from a misreading of the instructions.

2. If the problem continues, do not contact or return the product to the dealer. Instead,

visit www.tripplite.com/support.

3. If the problem requires service, visit www.tripplite.com/support and click the Product

Returns link. From here you can request a Returned Material Authorization (RMA)

number, which is required for service. This simple on-line form will ask for your unit’s

model and serial numbers, along with other general purchaser information. The RMA

number, along with shipping instructions will be emailed to you. Any damages

(direct, indirect, special or consequential) to the product incurred during shipment to

Tripp Lite or an authorized Tripp Lite service center are not covered under warranty.

Products shipped to Tripp Lite or an authorized Tripp Lite service center must have

transportation charges prepaid. Mark the RMA number on the outside of the

package. If the product is within its warranty period, enclose a copy of your sales

receipt. Return the product for service using an insured carrier to the address given

to you when you request the RMA.

17-05-246-932487.indb 10 5/31/2017 4:32:43 PM

Other manuals for BP24V15RT2U

This manual suits for next models

Table of contents

Languages:

Other Tripp Lite Batteries Pack manuals

Tripp Lite

Tripp Lite BP480V140 User manual

Tripp Lite

Tripp Lite BP240V10RT-3U User manual

Tripp Lite

Tripp Lite BP192V12-3U User manual

Tripp Lite

Tripp Lite BPE480VB Configuration guide

Tripp Lite

Tripp Lite External Battery Pack BP240V1507C User manual

Tripp Lite

Tripp Lite BP48V60-3UNAFTA User manual

Tripp Lite

Tripp Lite BP24V70-3U User manual

Tripp Lite

Tripp Lite BP24V15RT2U User manual

Tripp Lite

Tripp Lite BP240V120 User manual

Tripp Lite

Tripp Lite BP192V12-3U User manual

Tripp Lite

Tripp Lite BP192V557C-16K User manual

Tripp Lite

Tripp Lite BP192V557C-16K User manual

Tripp Lite

Tripp Lite SmartPro BP48V60RT3U User manual

Tripp Lite

Tripp Lite BP480V09 User manual

Tripp Lite

Tripp Lite Shallow-Depth External Battery Pack... User manual

Tripp Lite

Tripp Lite BP24V9T User manual

Tripp Lite

Tripp Lite BP240V1037C-1PH User manual

Tripp Lite

Tripp Lite BP192V12RT3US User manual

Tripp Lite

Tripp Lite BP36V14-2U User manual

Tripp Lite

Tripp Lite BP240V5RT2U User manual

Tripp Lite

Tripp Lite BP72V18 User manual

Tripp Lite

Tripp Lite BP240V370 User manual

Tripp Lite

Tripp Lite BP480V55 User manual

Tripp Lite

Tripp Lite BP72V15-2U User manual

Popular Batteries Pack manuals by other brands

Acumentrics

Acumentrics PACK-POWER SYSTEM Quick reference guide

ACDC Dynamics

ACDC Dynamics SPF12-50 user manual

Aegis

Aegis ABL-72020P user manual

Dyness

Dyness TowerESS user manual

Growatt

Growatt APX 5.0P-S0-US user manual

EGO

EGO BAX1300 Operator's manual

CyberPower

CyberPower BCA Series installation manual

Intermec

Intermec 700 Series quick start guide

Dometic

Dometic PLB40 operating manual

V-TAC

V-TAC VT-48280-W2 instruction manual

Valence

Valence RT user guide

Nikon

Nikon MB-D14 user manual

IOGear

IOGear GBP24V Series user manual

Inventus Power

Inventus Power PROTRXion S-12V100-TRX-HD user manual

Clas Ohlson

Clas Ohlson PW-290A quick start guide

EINHELL

EINHELL MULTI-Ah Power X-Change Plus Original operating instructions

Samsung

Samsung EB-U3300 quick start guide

ECTIVE

ECTIVE LC Series instruction manual
