TRIPLE ONDA EXP 210/2 User manual
TRIPLE ONDA S.A
C/ Bobinadora 95
08302 Mataró (Barcelona-SPAIN)
www.tripleonda.com
User guide EXP 210/2
EXP 210/2 2009
2
TRIPLE ONDA,
30 years designing, manufacturing and dealing
TRIPLE ONDA LAUNCHES A NEW PRODUCT
RANGE: EXP SERIES
Triple Onda launches a new product range,
called EXP Series, designed to cover little and
medium events.
New EXP Series cabinets are build-in amplified
and processed for professional performance. As
usual, all Triple Onda’s products follows the
same philosophy: high quality design, robust and
unusual products for all the professionals who
live on the live sound every day.
.
1. INTRODUCTION
1.1. General
TRIPLE ONDA S.L. would like to thank you for
your confidence in our EXP Series cabinets.
The EXP Series is the new product of TRIPLE
ONDA S.L., and it’s a new family of extra flat
sound projection systems. It contributes with
advantages and solutions where the weight limit
and not much space available coexist.
Main advantages:
The first extra flat sound system that
offers an exact vertical angle calibration
between units
Lower weight and size drivers in order
to obtain extra flat units
The top range models are equipped
with ribbon drivers in order to obtain a
higher definition at high frequencies
It’s needed only a pair of reduced
dimensions flight cases to transport a
big sound system due to it’s small
dimensions
We suggest you to carefully read the following
instructions in order to obtain the best results in
performance.
1.2. Safety Instructions
1. All the safety and operation instructions
should be read before this product is operated.
2. This product should not be exposed to rain or
moisture. Do not use it, for example, near a
swimming pool, water fountain or any liquid
sources.
3. Clean only with a dry cloth.
4. Do not install near heat sources such as
radiators or other devices which produce heat.
5. This equipment should be serviced only by
qualified service personnel when:
Objects have fallen, or liquid has spilled;
or
This product does not appear to operate
normally; or
This product has been exposed to rain; or
The chassis is damaged.
2. EXP 210/2 OPERATING
INSTRUCTIONS
2.1. Connections
1-INPUT: NL-4 connectors (speakon)
1 + = LF 1 - = LF 2 + = HF 2 - = HF
2-LINK: NL-4 connector used for paralleling
only two units (non-autoamplified models),
which will share the same input.
EXP 210/2 2009
3
Note:
- (*) 10 dB. Half space anechoic
- Specifications subjected to change without
previous notice.
2.2. Technical features
It’ strongly recommended to apply a crossover to
obtain a better sound quality. It’s recommended
the follows cuts frequencies:
Low frequency: pass band filter from 90
Hz to 2000 Hz
High frequency: pass band filter from
2000 Hz to 20100 Hz

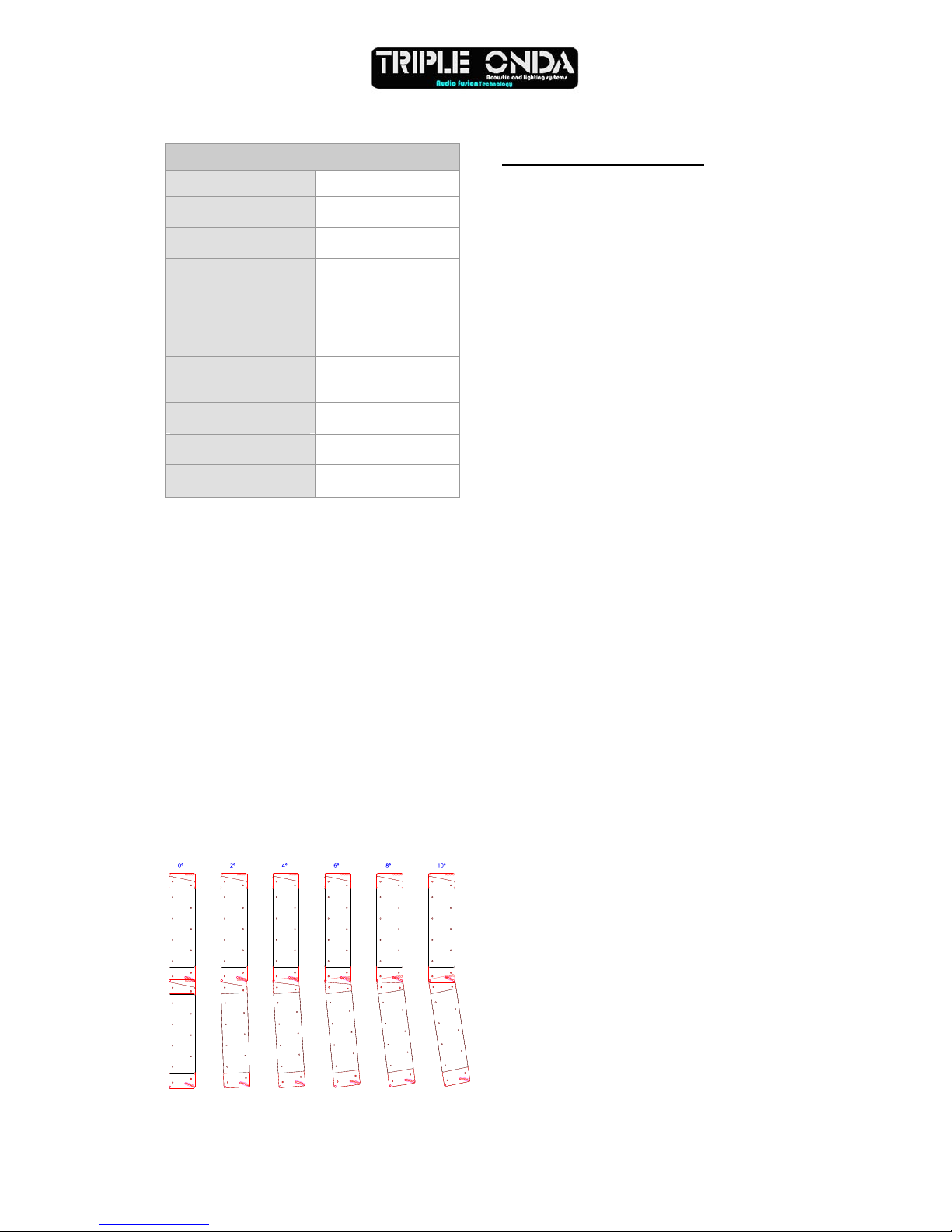

2.3 Mounting and rigging
The system incorporates its own rigging system
that allows a total angulation of 10º in 2º
intervals. It is showed in the next picture.
3. TROUBLESHOOTING
No sound
•Check that the mixer or sound source is
sending signal to the unit.
•Check that the cable from the sound source to
the units is connected correctly. Replace the
cable if defective.
•Make sure the output volume (gain) control on
the mixing console is turned up sufficiently to
drive the inputs of the speakers.
•Make sure the mixer does not have a Mute on.
Distorted sound
•The system is overloaded and has reached
maximum power. Turn down the mixer's output
or the channel's gain.
Poor bass performance
•Check the polarity of the connections between
the mixer and the cabinets. You may have the
positive and negative connections reversed at
one end of the cable, causing a loudspeaker to
be out-of-phase.
Noise and Hum
•Make sure all connections to the active unit are
in good conditions.
•Avoid the signal cables to be routed near AC
cables, power transformers, or EMI-inducing
devices.
•Check if there is any light dimmer on the same
AC circuit as the cabinet. Connect the sound
system to a different phase than the lights.
EXP 210/2
System Description
2 Way ARRAY system
Frequency Response
(+3dB -10dB )
100 Hz – 20000 Hz
Horizontal Coverage
(-6dB)
90º
MAX SPL (calculated
for 1 unit)
131 dB (cont.), 137 dB
(Peak)
Components
2 x 10” Neodymium +
2 Ribbon tweeter
Axial Sensitivity (dB
SPL, 1 Watt @ 1m)
102 dB
Power Handling
(Watts Continuous)
800 W
Dimensions (H x W x
D)
600 x 567 x 169 mm
Weight
19 kg
EXP 210/2 2009
4
TRIPLE ONDA S.A
C/ Bobinadora 95
08302 MATARÓ (Barcelona-Spain)
Tel:+34-93741 28 28 FAX:+34-93 757 60 34
Email: tripleonda@tripleonda.com
www. Tripleonda.com
