OWNER’S MANUAL
TRINITY 40” PET CRATE ACCENT TABLE
Model # TSKLBR-3401 / TSKLNA-3401
Important / Important / Importante
DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE| DESCARGUE LAAPLICACIÓN GRATUITA
Directives intelligentes
Instrucciones Inteligentes
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
© 2021 TRINITY - 800.985.5506
1
Your TRINITY 40” Pet Crate Accent Table should include the following parts. Please inspect box contents to
ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via
“Contact Us” section at www.trinityii.com.
For assembly you will need two people and a Phillips screwdriver. A drill with Phillips bit is recommended.
PARTS LIST
E
ABC
WOOD TOP (1) LEFT
SIDE FRAME (1)
w/o TRINITY logo
RIGHT
SIDE FRAME (1)
w/ TRINITY logo
D
FRONT FRAME (1)
FG
BACK FRAME (1) TRAY (1) DOWEL (4)
H
I
SHORT SCREW
(14) + (1) extra
LONG SCREW
(1)
WASHER
(15) + (1) extra
J
Note: To protect product from any scratches or possible damage, please make sure all wood parts are
laid on a clean and soft cloth lined surface during assembly process.
With two people, orient LEFT SIDE FRAME(B) with arrow label pointing toward
FRONT FRAME (D). Connect LEFT SIDE FRAME (B) with FRONT FRAME (D) by
inserting protruded part of LEFT SIDE FRAME (B) into groove on FRONT FRAME (D).
Note: LEFT SIDE FRAME (B) has no TRINITY logo on it.
© 2021 TRINITY - 800.985.5506 2
ASSEMBLY INSTRUCTIONS
STEP 1
STEP 2
B
A
D
A (1) D (1) G (2)
G
Foot
B (1)
Arrow Label
Protruded Part
Groove
Lay WOOD TOP (A) on a clean surface with
holes facing up.
With two people, orient FRONT FRAME (D)
with foot facing up and door latch facing
outward.
Insert DOWELS (G) into holes on FRONT
FRAME (D). Connect FRONT FRAME (D) with
WOOD TOP (A) via DOWELS (G) as shown.
© 2021 TRINITY - 800.985.5506
3
ASSEMBLY INSTRUCTIONS
With two people, repeat STEP 2 and STEP 3 for RIGHT SIDE FRAME (C).
Note: RIGHT SIDE FRAME (C) has TRINITY logo on it.
Insert SHORT SCREWS (H) through WASHER
(J) and LEFT SIDE FRAME (B) and hand
tighten into WOOD TOP (A) and FRONT
FRAME (D) .
Insert LONG SCREW (I) through WASHER (J)
and FRONT FRAME (D) and hand tighten
onto WOOD TOP (A).
STEP 3
STEP 4
H (4)
J (4)H (4)C (1)
J
H
J (5)
I (1)
I
J
H
C
J
© 2021 TRINITY - 800.985.5506 4
ASSEMBLY INSTRUCTIONS
STEP 5
STEP 6
Insert SHORT SCREWS (H) through WASHER (J) and LEFT SIDE
FRAME (B) and fully fasten with a Phillips screwdriver onto BACK
FRAME (E) and WOOD TOP (A). Repeat with RIGHT SIDE FRAME (C).
Tighten all SCREWS from previous steps fully with a Phillips
screwdriver.
E (1) G (2)
With two people, orient BACK FRAME
(E) with foot facing up and groove on
BACK FRAME (E) facing inward.
Insert DOWELS (G) into holes on BACK
FRAME (E). Connect BACK FRAME (E)
with WOOD TOP (A) via DOWELS (G)
as shown.
Make sure protruded parts of LEFT
SIDE FRAME (B) and RIGHT SIDE
FRAME (C) are inserted into grooves
on BACK FRAME (E).
Foot
Protruded Part
Groove
inside
view
J (6)
H (6)
J
H
E
© 2021 TRINITY - 800.985.5506
5
ASSEMBLY INSTRUCTIONS
With two people, carefully flip over completed
STEP 6 assembly and slide TRAY (F) under pet crate
as shown.
STEP 7
F
F (1)
DOOR USAGE INSTRUCTIONS
Slide open doors
Slide doors close
Turn door latch
clockwise to
unlock the door
Turn door latch
counter-clockwise
to lock the door
Door latch
© 2021 TRINITY - 800.985.5506 6

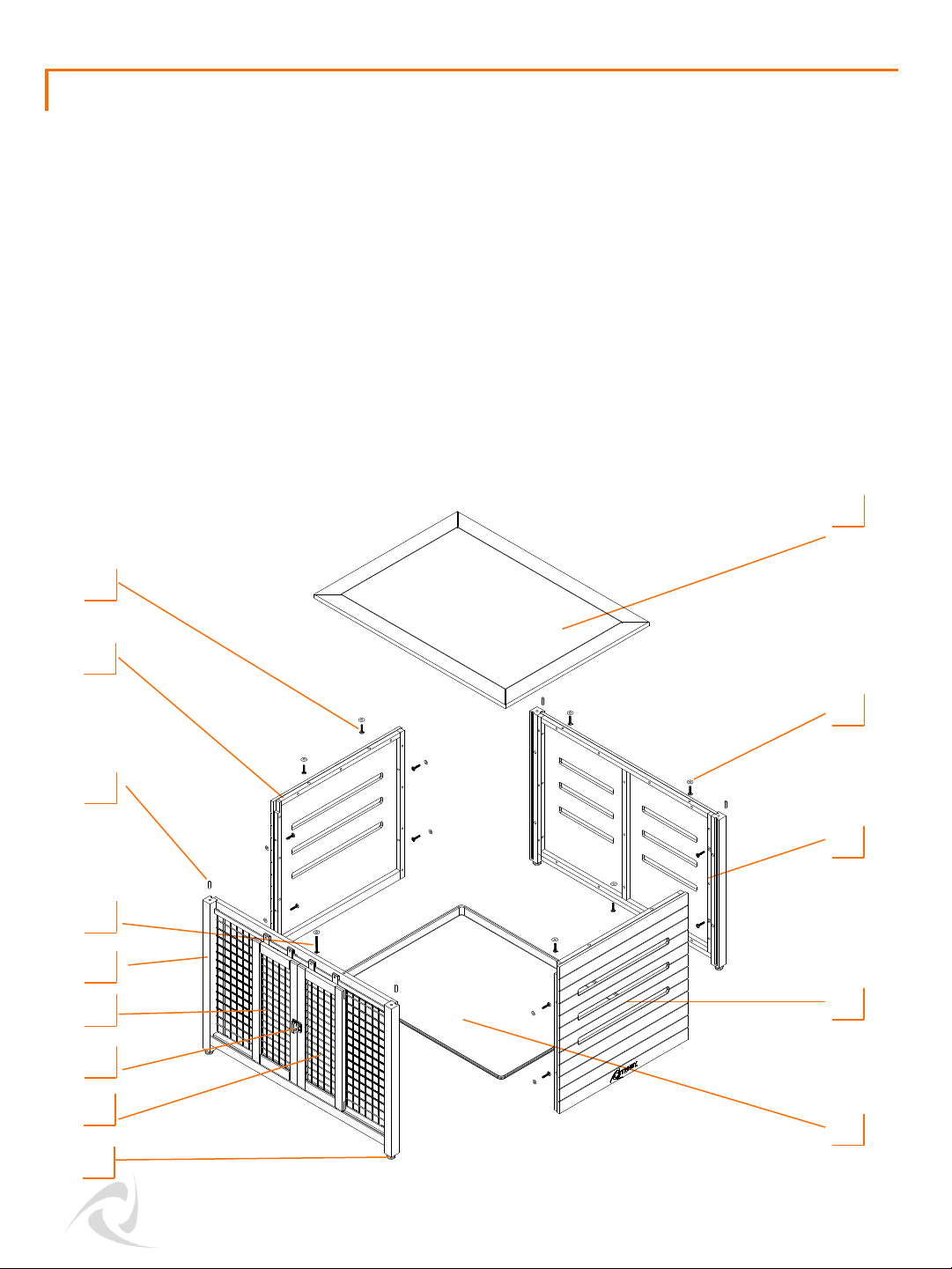

SERVICE PARTS LIST –TSKLBR-3401 (Espresso Brown)
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) LNA-06-019-4030 Wood Top 8) XSV-011-009-0001 Door Latch
2) ZSV-01-007-0616 Washer 9) XBR-08-022-1024 Left Door
3) LBR-15-020-4027 Back Frame 10) LBR-15-019-4027 Front Frame
4) LBR-14-044-2727 Right Side Frame 11) ZSV-01-004-0658 Long Screw
5) XBK-21-014-2836 Tray 12) XNA-01-006-0830 Dowel
6) XBK-98-017-3009 Foot Pad 13) LBR-14-045-2727 Left Side Frame
7) XBR-08-021-1024 Right Door 14) ZSV-01-004-0635 Short Screw
2
12
1
3
4
10
13
5
14
6
7
8
9
11
SERVICE PARTS LIST –TSKLNA-3401 (Natural)
TRINITY Customer Service provides the following replacement parts:
© 2021 TRINITY - 800.985.5506
7
Part Number Description Part Number Description
1) LNA-06-019-4030 Wood Top 8) XSV-011-009-0001 Door Latch
2) ZSV-01-007-0616 Washer 9) XNA-08-022-1024 Left Door
3) LNA-15-020-4027 Back Frame 10) LNA-15-019-4027 Front Frame
4) LNA-14-044-2727 Right Side Frame 11) ZSV-01-004-0658 Long Screw
5) XBK-21-014-2836 Tray 12) XNA-01-006-0830 Dowel
6) XBK-98-017-3009 Foot Pad 13) LNA-14-045-2727 Left Side Frame
7) XNA-08-021-1024 Right Door 14) ZSV-01-004-0635 Short Screw
2
12
1
3
4
10
13
5
14
6
7
8
9
11
© 2021 TRINITY - 800.985.5506 8
WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and/or damage.
2. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of their
environment and ensure that they use the product in a safe and responsible manner.
3. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product. Any
modifications will void warranty.
4. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a damaged
part.
5. Do NOT overload the product. Weight capacity for evenly distributed weight.
6. Do NOT put hot items directly on wood top or shelves to prevent damaging and
discoloring wood surface. Avoid placing any direct heat source on or near the product.
7. Do NOT put anxious pet inside the crate. Crate components may be damaged by pet. Pet
may chew and/or ingest crate parts including wood, metal, plastic and paint. Pet is
recommended to be kept in crate for no more than 8 hours at a time.
8. Avoid sharp objects piercing the tray to keep the tray waterproof.
9. Leaving heavy objects pressed over the tray for extended period may leave permanent
indentations on the tray.
CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•Wood product can be cleaned with damp cloth and wiped dry immediately with dry cloth.
If needed, wood furniture cleaner can be used.
•Keep dry but out of direct sunlight and avoid damp environments.
•Clean up any spills immediately to prevent stains from forming on wood surface.
•This product is designed for small to medium size pet and indoor use only.
Weight capacity on wood top 100 lb
© 2021 TRINITY - 800.985.5506
9
Thank you for purchasing a TRINITY 40” Pet Crate Accent Table. In order to register your product and
receive streamlined customer service, please fill out the following Product Registration Form and (1)
fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com
or (3) scan and email the form to customerservice@trinityii.com. Include a copy of your original receipt
with your submission.
First Name: Last Name:
Address:
City: State: Zip Code:
Email Address: Phone:
Product Model #: Purchase Date: / /
Location of Purchase:
Please rate the importance of each feature (1=least important; 10=most important)
Quality Price Size/Capacity Appearance Other
How did you hear about our product?
Magazine Ad Catalog Salesperson Word of Mouth
Internet Store Display Other
Marital Status: Single Married
Household Income: Below $50,000 $50,000-$150,000 $150,000+
Education: High School College Graduate School
Primary Residence: Own Rent
Comments/Suggestions:
PRODUCT REGISTRATION
