Thank you for purchasing the TEW-432BRP. This Wireless AP/Router will allow
you to securely share your Internet connection, files, and other resources with
multiple users.
This guide will help you set up and configure your AP/Router. Following the
installation instructions should be quick and easy. If you run into problems,
please refer to the Troubleshooting section or the more detailed installation
procedures on the User's Guide CD-ROM. If you need further technical
support, please visit www.TRENDNET.com or call technical support by phone.
Verify Equipment
Before installing the AP/Router, you should have:
1. An installed Cable/DSL Modem with an Ethernet Port
2. A Broadband Internet Account
3. A web browser such as Internet Explorer (5.0 or higher) or Netscape
Navigator (4.7 or higher)
4. A network cable for each computer
5. A computer with TCP/IP Protocol and Client for Microsoft Networks
Service installed
Verify Package Contents
Please make sure you have everything in the box:
AC Power Adapter (5V, 2.5A)
User’s Guide CD-ROM
1
Quick Installation Guide
TEW-432BRP
1. Prepare for Installation
English QIG
English
Copyright ©2005. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-432BRP
Version 07.15.05
54Mbps 802.11g Wireless Router Quick Installation Guide
Routeur sans file 802,11g 54Mbps
Guide d'installation rapide
Drahtloser 54 MBit/s 802.11g Router
Kurzanleitung zur Installation
Enrutador inalámbrico 802.11g a 54Mbps
Guía de instalación rápida
Маршрутизатор 54 Мбит/сек 802.11g Wireless
Руководство по быстрой установ
2
Collect Account Information from Internet
Service Provider (ISP)
During the installation of your AP/Router, the configuration utility will ask you to
specify your ISP connection type. Therefore, please verify your Cable or DSL
Internet broadband connection with your ISP and ensure you have all the
information for one of the following connection types:
Dynamic IP Cable Connection
Nothing is required. The IP address will be automatically assigned by your ISP.
Static or Fixed IP Cable Connection
Internet IP Address:____.____.____.____ (eg. 215.24.24.129)
Subnet Mask: ____. ____. ____. _____
Gateway IP Address:____.____.____._____
Primary DNS:____.____._____.______
Secondary DNS:_____._____._____.____
PPPoE DSL Connection
Login Name:______________
Password:________________
PPTP DSL Connection
Internet IP Address:____.____.____.____ (eg. 215.24.24.129)
Subnet Mask: ____.____.____._____
Gateway IP Address:____.____.____._____
PPTP Server IP:____.____._____._____
Login Name:_______________
Password:_________________
English
3
2. Install Hardware

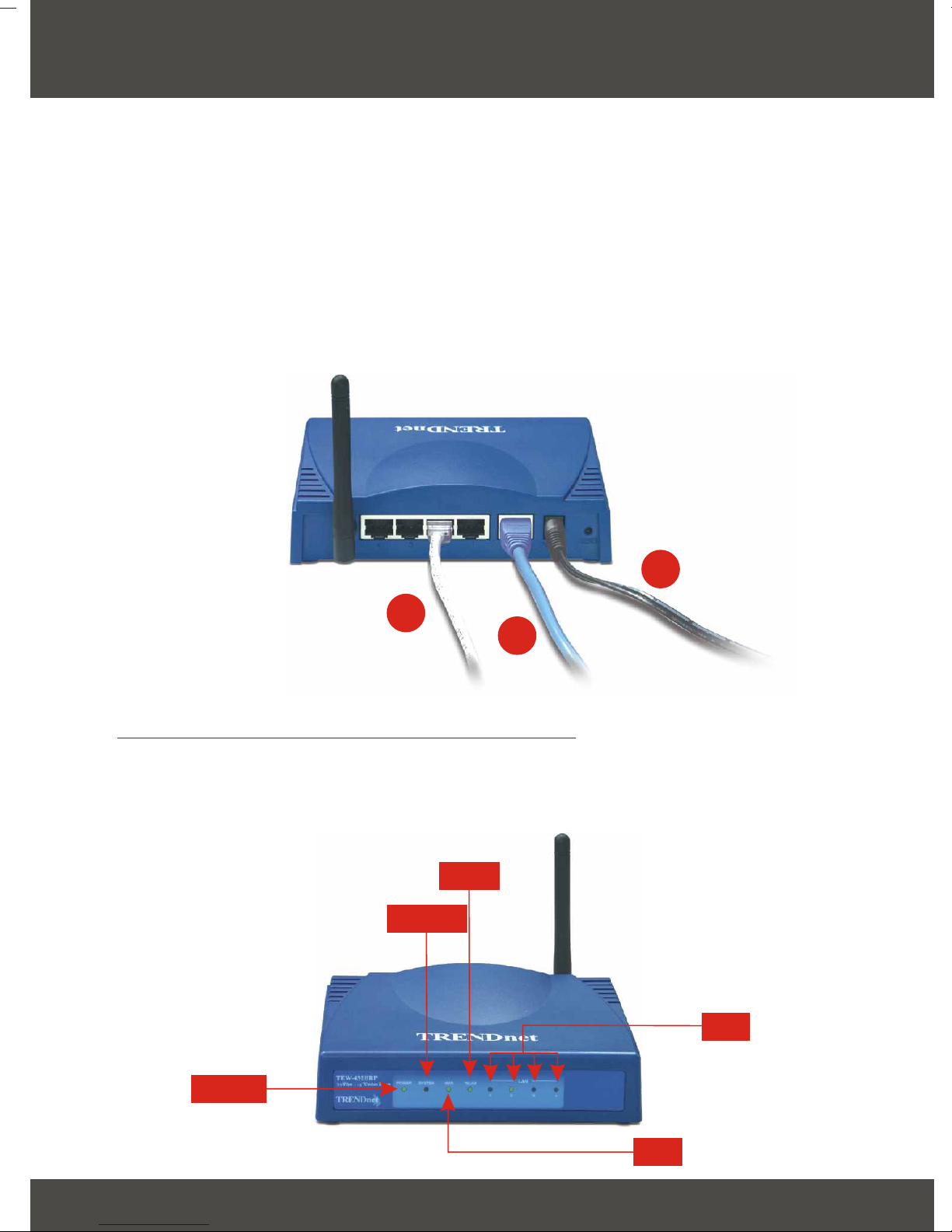

1. Connect one RJ-45 network cable from the Cable/DSL Modem's Ethernet
port to the WAN port on the AP/Router.
2. Connect a different RJ-45 network cable from one of the AP/Router's LAN
ports to your computer's network port.
3. Turn on your Cable/DSL modem.
4. Connect the included Power Adapter from your AP/Router to a power outlet;
your AP/Router should turn on.
5. Turn on your computer
3
21
Verify Hardware Installation
Verify that the following front panel lights are on: Power, WAN, WLAN, and one
LAN port LED for each wired computer connected to the AP/Router.
English
SYSTEM
POWER
WAN
WLAN
TEW-432BRP
LAN
4
3. Configure your AP/Router
English
The following section will help you configure your AP/Router to connect to the
Internet and your PCs. The setup differs and is dependent on the type of
Internet connection you have. If you are not sure what type of connection you
have, please contact your ISP to obtain the required information, which is listed
in the Prepare for Installation section at the beginning of this Quick
Installation Guide.

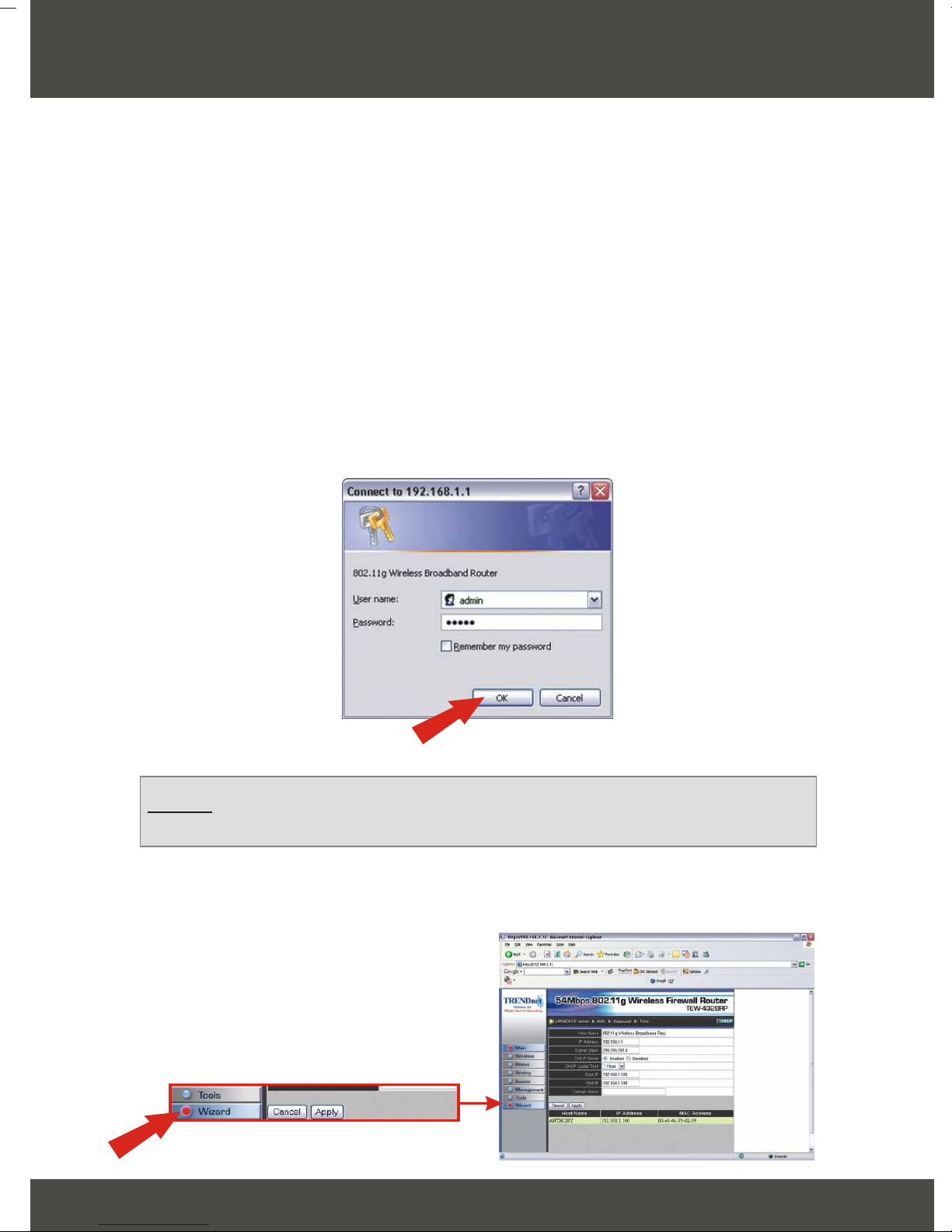

1. Open your web browser, type http://192.168.1.1 in the Address bar, and
press Enter.
2. An authentication window will appear. Enter the username and password,
and then click OK. By default, the username is “admin”, and the password is
“admin.”
NOTE: To reset the password on the AP/Router, refer to the User's
Guide CD-ROM.
3. The “LAN Setting” page will appear. Click Wizard.
5English

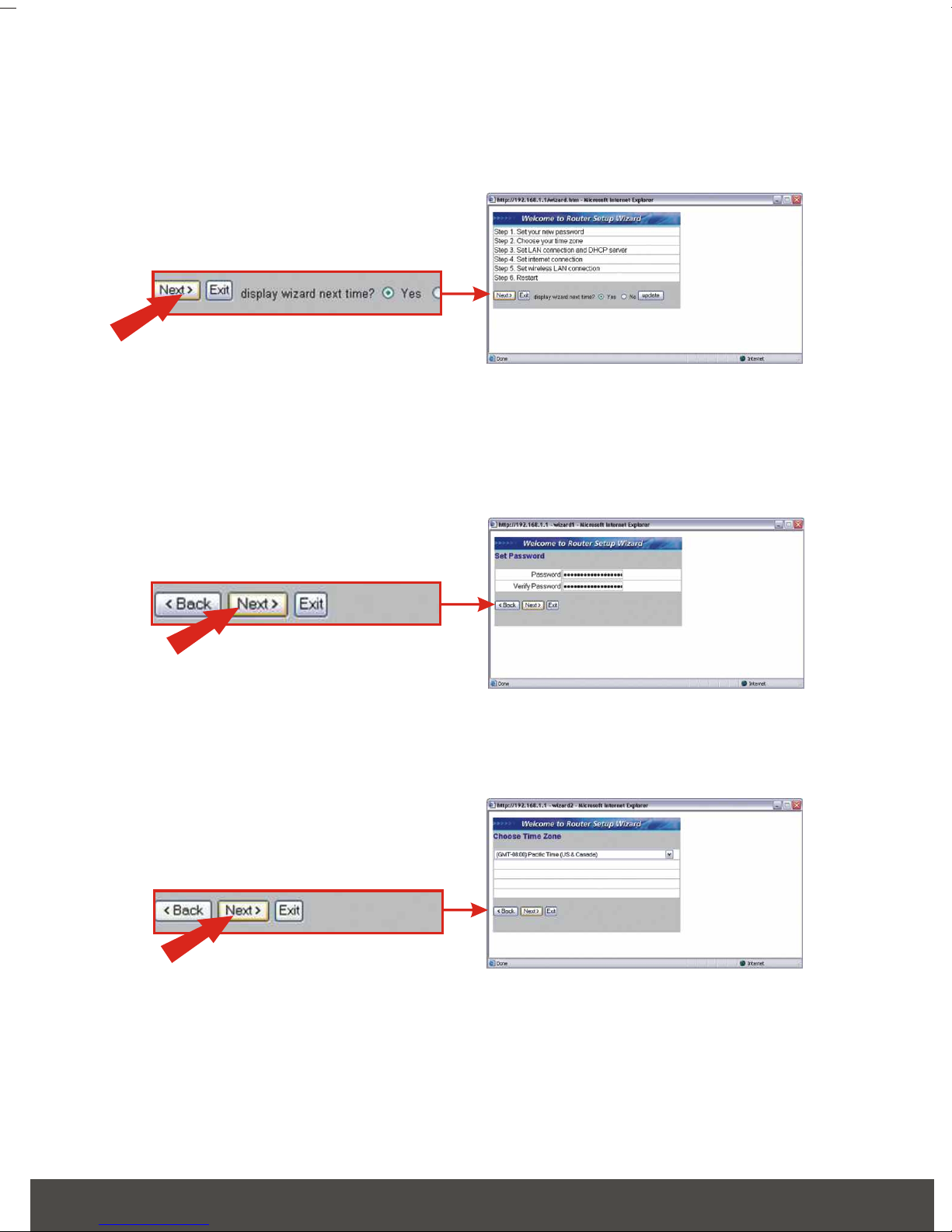

5. If you want to change your password for your router, then type the new
password in the Password and Verify Password fields. Click Next.
6. Choose the appropriate Time Zone from the pull down menu, and click Next.
4. The “Wireless Router Setup Wizard” will appear. Click Next.
English
6
7. If you want to assign your router to a different network segment, then change
the LAN IP Address and Subnet Mask. Make sure that the Range Start
and Range End IP addresses match your network segment. Otherwise,
click Next.

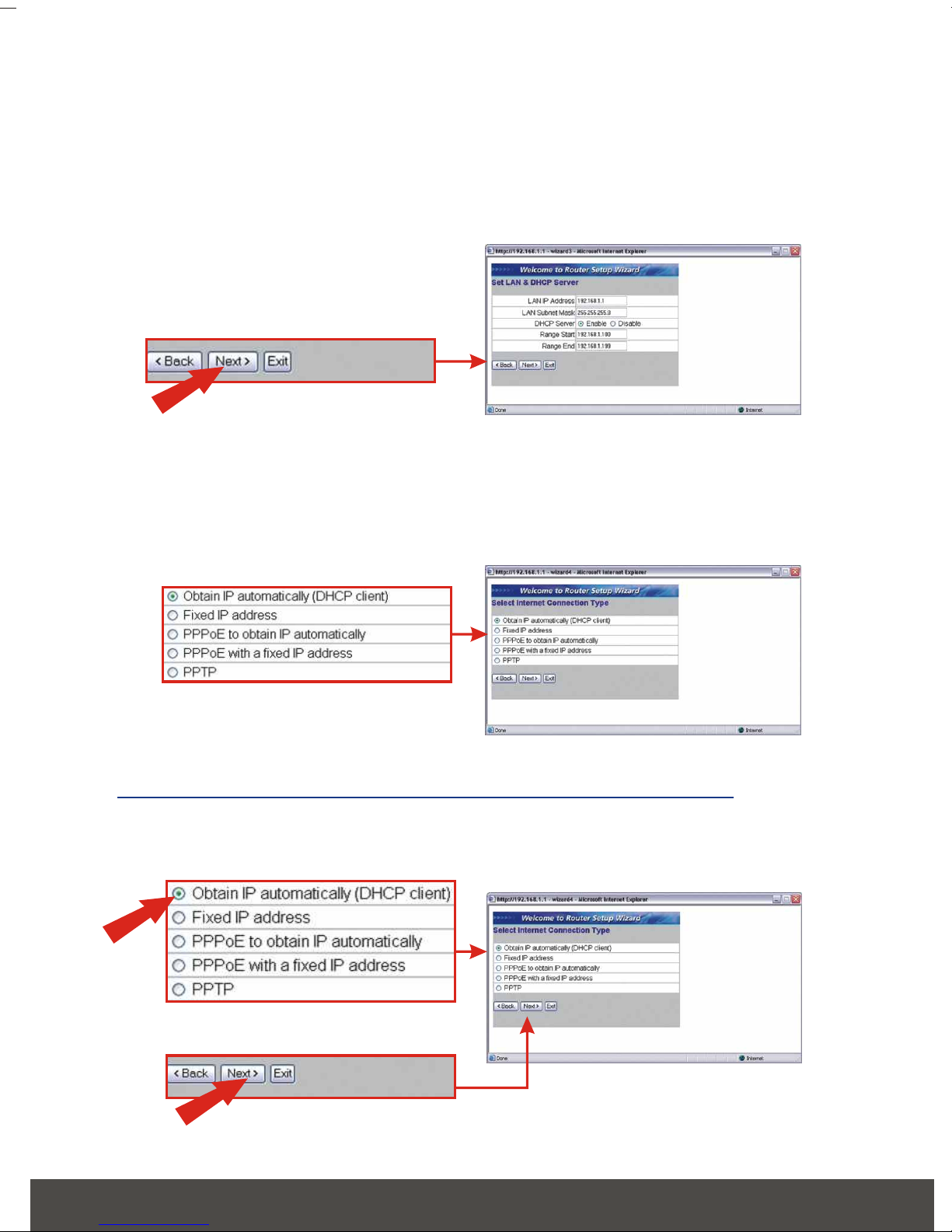

8. Select your Connection Type from the pull down menu, (Obtain IP
automatically, Fixed IP address, PPPoE, or PPTP) and proceed to the
appropriate subset of instructions below.
9. Select Obtain IP automatically (DHCP client) as the Connection Type and
click Next.
10. Go to step 19.
Obtain IP automatically (DHCP client)
7English

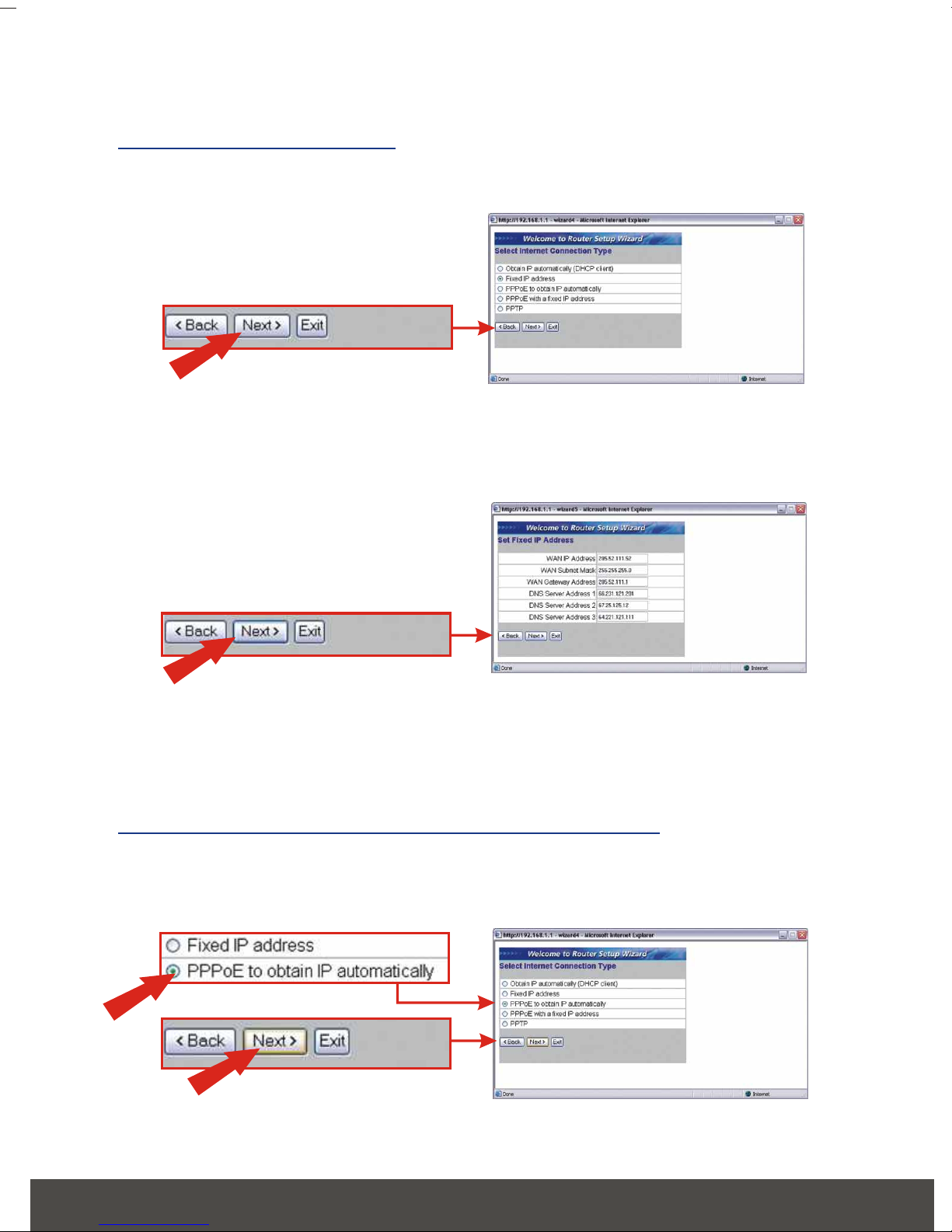

11. Select Fixed IP address and click Next.
12. Enter the WAN IP Address, WAN Subnet Mask, WAN Gateway Address
and DNS Server provided by your ISP and click Next.
Fixed IP Address
13. Go to step 19.
14. Select PPPoE to obtain IP automatically as the Connection Type and
click Next.
PPPoE to obtain IP automatically
15. Enter your username and password. Click Next.

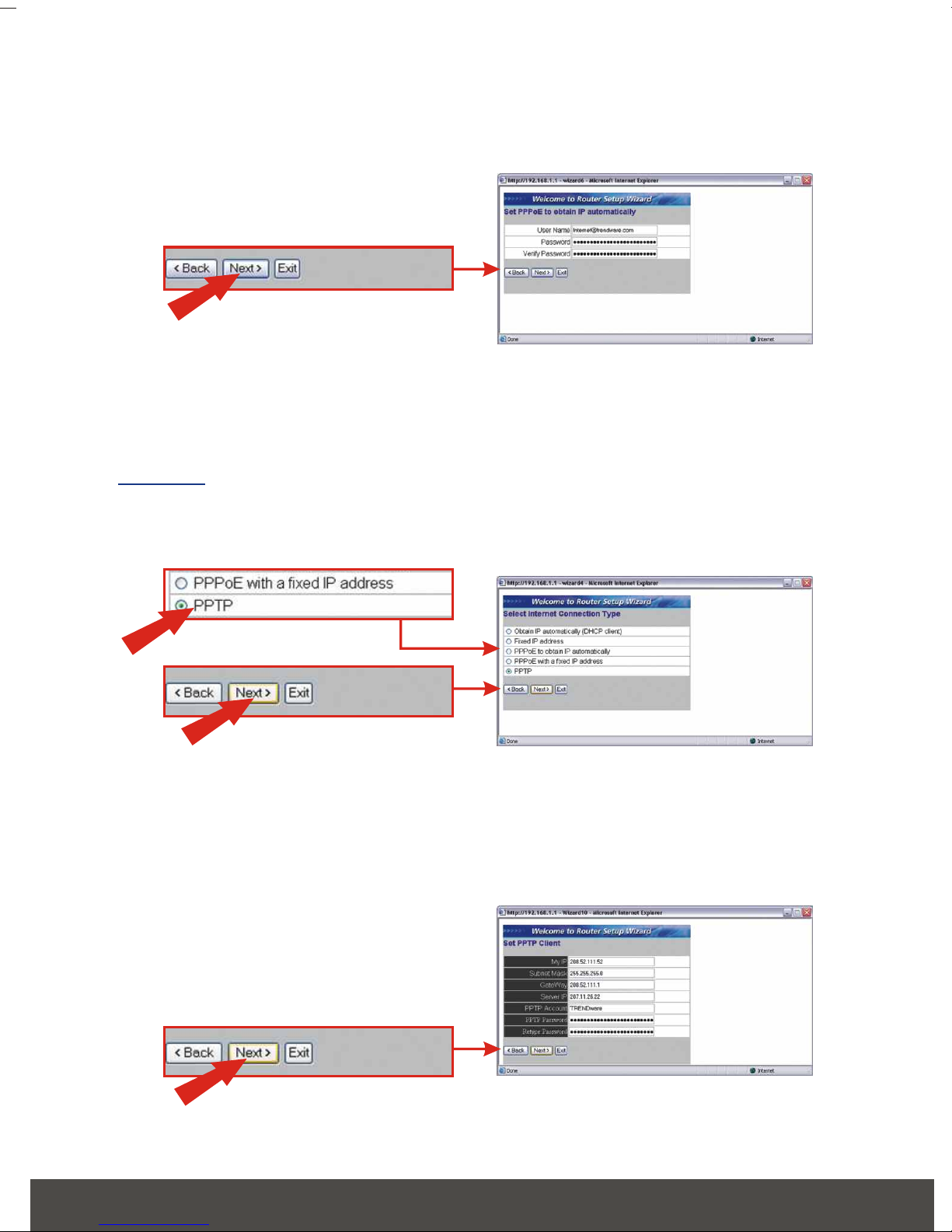

17. Select PPTP as the Connection Type and click Next.
18. Enter the IP Address, Subnet Mask, Gateway, Server IP, PPTP Account,
and PPTP Password. Click Next.
16. Go to step 19.
8English
PPTP
