TRENDnet TEW-413APBO User manual
Copyright ©2005. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-412APBO/TEW-413APBO
Version 03.02.2005
Wireless 11g Outdoor AP Bridge
Quick Installation Guide
Guide d'installation rapide du
Pont et point d'accès sans fil 11g pour extérieur
Anleitung zur Schnellinstallation des
Drahtloser 11g Außen-AP/Bridge
Guía de instalación rápida del
AP Inalámbrico para exteriores a 11g
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
2
4
5
8
10
1. Introduction ........................................................................................
2. Connect and power up the AP/Bridge ...............................................
3. Configuring a setup computer on the LAN ........................................
4. Configuring the AP/Bridge .................................................................
5. Quick test (Post test) .........................................................................
1
1. Introduction
English QIG
English
When setting up the TEW-412APBO/TEW-413APBO inter-building AP/Bridge,
you will need the following:
1. A computer connected to the same network as the AP/Bridge.
2. Straight-through CAT 5 Ethernet cable with RJ-45 connectors for connecting
the router to the network and an inline power source (maximum 100 meters).
3. The following information is needed from your network system administrator.
The wireless Service Set Identifier (SSID) for your radio network. This
parameter is case-sensitive.
A unique IP address for the router (for example: 192.168.2.123), if it will not
be connected to a network with a DHCP server.
A default gateway and subnet mask if the router is not on the same subnet
as your PC.
TEW-412APBO/TEW-413APBO
Outdoor AP/Bridge
Power Over Ethernet(POE)
Power Supply
5 Ft. RJ-45
Network Cable
User’s Guide CD-ROM
Quick Installation Guide
Mount kit
N-type to N-type
Male Cable (2meters)
(TEW-413APBO only)
Hardware requirement List
Additional Requirement
Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-412APBO/TEW-413APBO
Version 10.04.04
Wireless 11g Outdoor AP Bridge
Quick Installation Guide
Guide d'installation rapide du
Pont et point d'accès sans fil 11g pour extérieur
Anleitung zur Schnellinstallation des
Drahtloser 11g Außen-AP/Bridge
Guía de instalación rápida del
AP Inalámbrico para exteriores a 11g
2
2. Connect and power up the AP/Bridge
English
Step 1 Assemble the mount kit at the back of the case. Please refer to the
attached figure in the mount kit tool bag for more details.
Step 2 Mount the AP/Bridge on a stout pole.
Step 3 Adjust the orientation of the antenna to get the maximum range (See
Figure 3.1). (Note: In some units, the directional flat panel antenna is
embedded within the enclosure; the best reception will be directly
through the front panel).
Step 4 Secure the unit in the position.
Figure 3.1: Adjusting TEW-412APBO/TEW-413APBO for best reception
Mounting the AP/Bridge
3English
Step 1 Connect the Ethernet cable from the TEW-412APBO/TEW-413APBO
AP/Bridge to the port on the POE (Power over Ethernet) host (PH-
110 Power LAN 1 port hub) labeled P-LAN OUT.
Step 2 Connect a straight-through Ethernet cable from the LAN-IN port of
the POE host to a spare port on the hub or a switch within the local
network.
The steps described above are summarized in the Figure 3.2.
Connect to the power source and the local network
In the next section, we will discuss the procedure to setup a computer on the
local network, so we can use it to configure the AP/Bridge.
Figure 3.2: Connecting TEW-412APBO/TEW-413APBO
to the power source and to the network
4English
3. Configuring a setup computer on the LAN
To configure the TEW-412APBO/TEW-413APBO for the first time, you should
prepare one computer for the TEW-412APBO/TEW-413APBO setup. The
operating system of this computer can be Windows, Linux, or MAC with the
standard browsers (e.g., Netscape or Microsoft Internet Explorer versions 4.0
or later).
The usual factory settings for the TEW-412APBO/TEW-413APBO are:
IP address: 192.168.1.250
Netmask: 255.255.255.0
This computer must be connected to the same LAN as the TEW-
412APBO/TEW-413APBO, and the network of this computer should contain
the following parameters:
IP address: A free IP address in the 192.168.1.1 - 192.168.1.253
EXCEPT 192.168.1.250
Netmask: 255.255.255.0
Default Gateway: None
For example, under Microsoft Windows XP, the TCP/IP network settings page
would look like the following:
After setting these values on the LAN connected computer, the initial setup
process, as described in the next section can be started.
Sample MS Windows XP network settings
5English
4. Configuring the AP/Bridge
After the TEW-412APBO/TEW-413APBO AP/Bridge is connected to your
network, you can begin to manage the router through a standard web browser.
To use a browser to setup TEW-412APBO/TEW-413APBO, follow these steps:
1. Launch a web browser on a computer connected to the network.
2. Enter the AP/Bridge's IP address in the browser address line and press
Enter. The default IP address of TEW-412APBO/TEW-413APBO AP/Bridge
is 192.168.1.250, so type http://192.168.1.250 as the URL in your web
browser. It may look like the following:
3. Type in “admin” for the user name and type in “admin” for the password.
Click OK.
6English
4. Scroll down to the LAN section and type in the IP Address, the Subnet
Mask, and the Gateway that applies to your current networking settings.
5. Scroll down to the Wireless section and change the SSID to a name that will
help you identify the TEW-412APBO/TEW-413APBO. In this example, the
SSID will be changed to TEW-412APBO.
7English

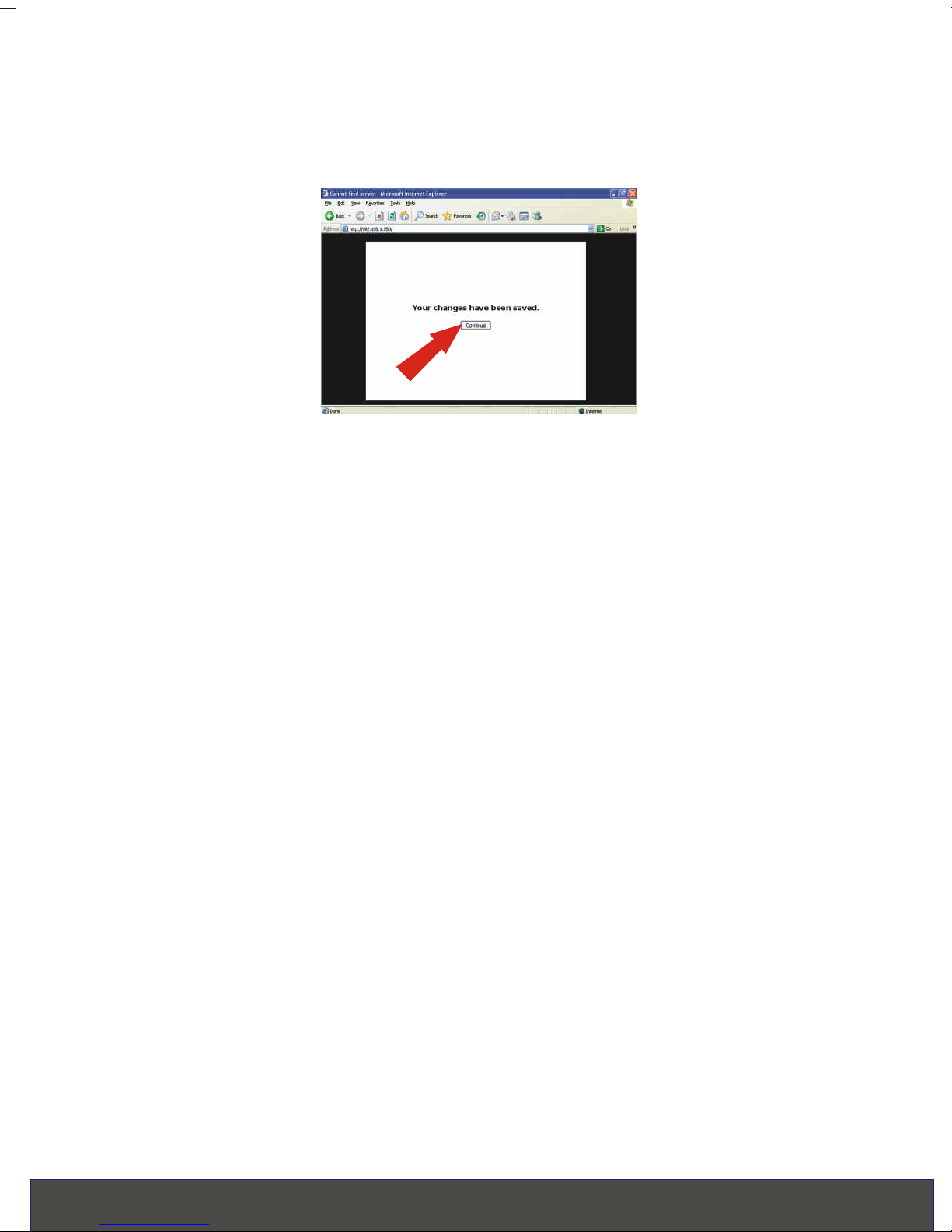

6. Click Continue.
Your AP should now be up and running. Consult the User's Guide on the CD
for a description of the AP/Bridge system management functions and the
instructions to access the Help Guide.
8English
5. Quick test (Post test)
(using TRENDnet's TEW-424UB as an example in this section)
The settings of the Access Point are:
SSID - TEW-412APBO
Channel - 6
1. Double-click the wireless computer icon in your system tray (next to the
clock in the bottom right corner of your screen).
2. Click the SSID that you assigned to the TEW-412APBO/TEW-413APBO and
click Connect.
From a Wireless Computer
Other manuals for TEW-413APBO
2
This manual suits for next models
1
