TRENDnet TK-CAT508 Quick start guide

TK-CAT508 Firmware Upgrade Procedure

Before you start

Disconnect all connections from TK-CAT508.

A laptop or a computer with keyboard and mouse connected directly.

Download and unzip the firmware file to to a laptop or a computer.

USB type A to type B cable (included in the TK-CAT508 packaging).

A paper clip.

Procedure

1. Using paper clip to press and hold the button.

2. Connected the power adapter to TK-CAT508.

3. The LEDs should be light up. Released paper clip from the button.

4. Connect one end of USB type B cable into TK-CAT508.

5. Connect the other end of USB type A cable into the computer. A removable disk, firmware,

should appear under My Computer. If you do not see the firmware disk appears, please refresh

My Computer or press F5.

6. Double click the firmware disk. It will show the current firmware info.

7. Drag the firmware the firmware file into firmware disk.

8. You are now finish the firmware upgrading. The KVM will restart itself automatically.

9. Verify the firmware by repeat the procedure from step 1 to 6. The firmware information should

change.

Table of contents

Other TRENDnet Switch manuals

TRENDnet

TRENDnet TEG-S4000i User manual

TRENDnet

TRENDnet TK-205K - PS/2 KVM Switch User manual

TRENDnet

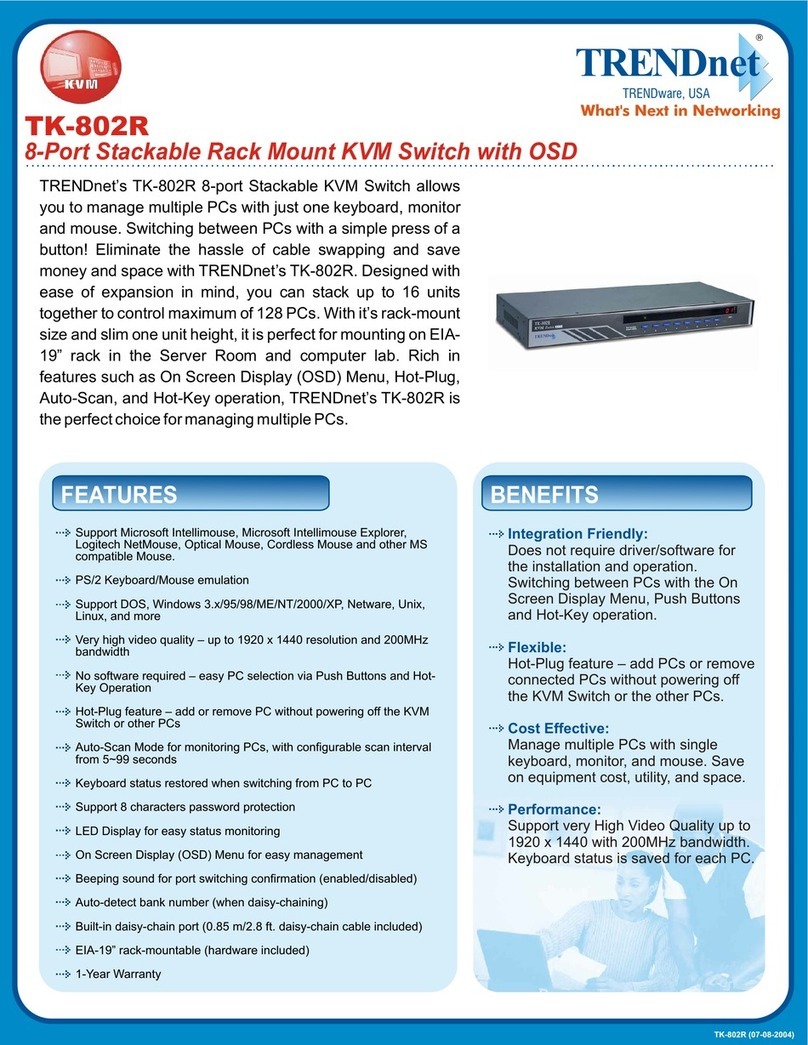

TRENDnet TK-802R User manual
