TRENDnet TEG-S811Fi User manual

H/W: v1.0R

TEG-S811Fi

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation ........................................................................

3. Configure the Switch .........................................................................

................................................................................

Table of Contents

Version 01.21.2008

System Requirements

Application

Package Contents

1. Before You Start

English

?User Guide CD-ROM

?Quick Installation Guide

?2 Mounting Brackets with Screws

?RS-232 cable

?AC Power Cord

TEG-S811Fi

?Computer with Serial port

?50/125 or 62.5/125 µm Multimode Fiber cable with SC-type connectors

for 100BaseFX ports

?Mini-GBIC module (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D3_D5, TEG-MGBS40D3_D5) for Mini-

GBIC slots (optional)

Web Browser: Internet Explorer (6.0 or above)

1000MbpsFiber 10/100Mbps

8-Port 10/100Mbps Layer 2 Managed Switch

with Gigabit Port and Mini-GBIC Slot

(TEG-S811Fi)

24-port Gigabit Web Smart Switch

with Mini-GBIC slots

(TEG-240WS)

Multi-Mode Fiber

Mini-GBIC Modules

(TEG-MGBSX)

RS-232

Laptop with PC Card

(TE100-PCBUSR)

Workstation with PCI Adapter

(TE100-PCIWA)

Workstation

8-Port 100Base-FX Layer 2

Managed Switch with Mini GBIC Slot

(TEG-S081FMi)

2. Hardware Installation

English

Note: After hardware installation is complete, use your browser to configure the

TEG-S811Fi. See Section 3 Configure your Switch for more information.

1. Connect the Power Cord to the

rear of the TEG-S811Fi and then

to a power outlet.

English

4. Slide a TRENDnet mini-

GBIC module into the mini-

GBIC slot (optional).

2. Connect a RJ-45 Ethernet cable

from one of the 8-ports on the

switch to an Ethernet connection

on your network.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

4. Slide a TRENDnet mini-

GBIC module into the mini-

GBIC slot (optional).

2. Connect a RJ-45 Ethernet cable

from one of the 8-ports on the

switch to an Ethernet connection

on your network.

3. Connect a RJ-45 Cat 5e

Ethernet cable to an

10/100/1000BaseT connection

on your network (optional)

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

English

Note: Before the Switch can be configured, a Static IP address must be

assigned on your computer's network adapter in the subnet of 192.168.16.x.

Since the Switch's default IP address is 192.168.16.1, make sure no other

network devices are assigned an IP address of 192.168.16.1. (Refer to

Troubleshooting section on how to configure TCP/IP settings on your PC.)

3. Configure the Switch

Browser Configuration

3. Click System > IP Configuration.

Then change the IP Address to be

in the same subnet as your

Network. Enter the Subnet Mask

and Gateway to match your

network. Then click Apply.

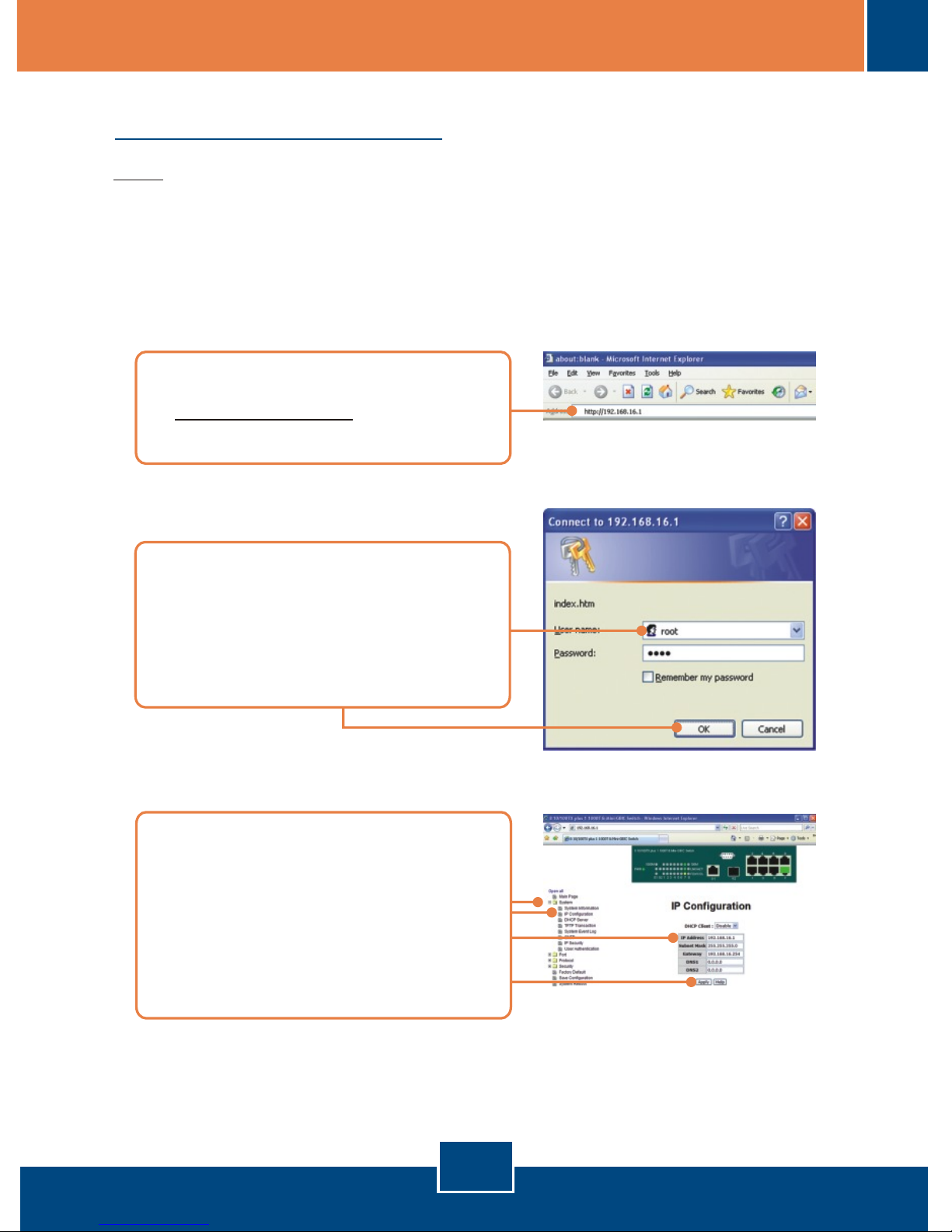

1. Open your web browser, type

http://192.168.16.1 in the Address

bar, and then press Enter.

2. Enter the User name and

Password, and then click OK.

By default:

User Name: root

Password: root

Troubleshooting

Q1:

A1:

After connecting the TEG-S811Fi to a power outlet, the LEDs do not turn on.

Check the connection of the power cord to the TEG-S811Fi and the power outlet. Also

check that the power outlet is receiving power.

Q3:

A3:

I connect the switch to my network via the mini-GBIC module, but I am unable to make a

connection.

First, verify that you are using the proper fiber cable. Second, verify that the TX and RX

cables have been reverse on the opposite Fiber connection. Third, when connecting to the

mini-GBIC modules, your Fiber connection must be Gigabit. Fourth, power down the switch.

Wait 15 seconds, then plug the switch back in.

Q4:

A4:

How do I login to the switch via the console port?

Follow the instructions below:

1) Connect the RS-232 cable from a serial port on your Windows PC to the console port on

your computer.

2) Go to Start -> Programs -> Accessories -> Communications -> Hyperterminal

3) Enter a name, select an icon and then click OK.

4) Select the correct COM port (e.g. COM1, COM2) and then click OK.

5) Enter the following, click Apply and then click OK:

Bits per second: 9600

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

6) Press Enter.

7) Enter the user name and password. By default, the user name and password is root.

Please refer to the User's Guide for a list of commands.

If you still encounter problems or have any questions regarding the TEG-S811Fi, please contact

TRENDnet’s Technical Support Department.
