TRENDnet TEG-PCITXM2 User manual
TEG-PCITXR
Quick Installation Guide
Table of Contents
Table of Contents
Version 01.26.2007
English ..................................................................................................... 1
1
2
1. Before You Start
2. How to Install .....................................................................................
................................................................................
Troubleshooting ........................................................................................ 5
System Requirements
Application
TEG-PCITXR
Quick Installation Guide
Driver CD-ROM
32-bit PCI 2.2 slot
CD-ROM Drive
CPU: Intel Pentium 300Mhz or above
Memory: 256MB RAM or above
Windows Vista/2003 Server/XP/2000/ME/98
A RJ-45 Ethernet cable
Package Contents
1. Before You Start
English
1
Cable/DSL
Modem
Cable/DSL 4-Port
Firewall Router)
(TW100-BRF114)
Workstations with 10/100/1000Mbps
Gigabit PCI Adapter
(TEG-PCITXR)
10/100Mbps
Multi-Port Print Server
(TE100-P21)
Printers
Internet
Gigabit
10/100Mbps
2. How to Install
English
2
1. Shutdown your computer and then
open your computer's case
3. The Found New Hardware
Wizard appears, select No, not
this time and then click Next.
Windows 2003 Server will automatically detect and install the appropriate
drivers. Skip to step 12.
Vista/
2. Insert the PCI Card firmly into an
available PCI slot, and then turn
ON the computer and wait until the
Windows desktop appears.
Windows Vista/2003 Server
Windows XP

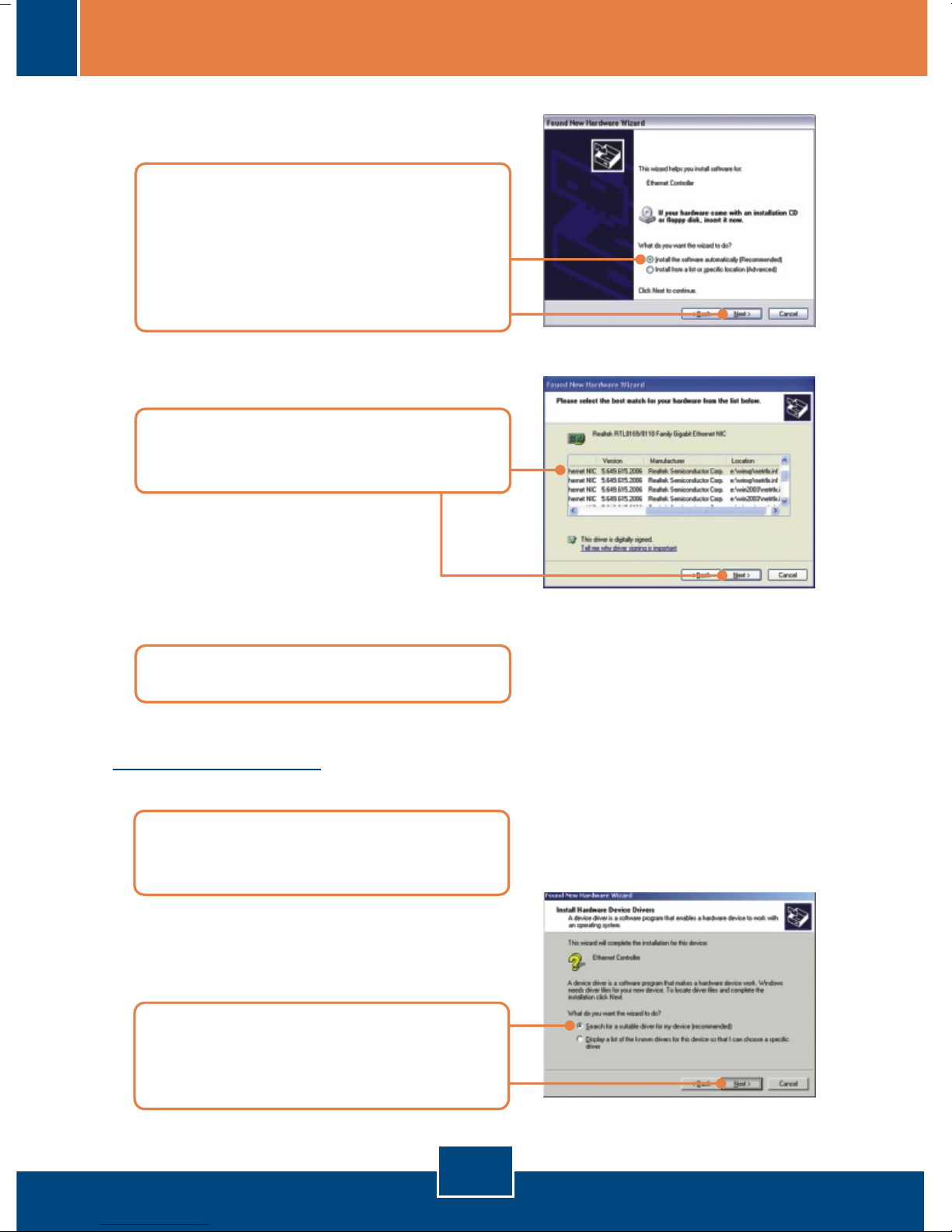

4. Insert the Driver CD-ROM into the
CD-ROM drive, select Install the
software automatically
(Recommended) and then click
Next.
6. Click Finish. Skip to Step 12.
5. Select the proper drivers and then
click Next.
English
3
7. The Found New Hardware
Wizard appears. Click Next.
Windows 2000
8. Select Search for a suitable
driver for my device and then
click Next.
10. Insert the Driver CD-ROM into
CD-ROM drive, type in
E:\WIN2000, and then click OK.
English
4
9. When Locate Driver Files
appears, click Specify a location
and then click Next.
Note: E represents the drive letter assigned to your CD-ROM drive.
11. Click Finish.
Your installation is now complete.
12. Connect a RJ-45 network cable
from the computer to an available
Ethernet port on your router or
switch.
Q1:
A1:
Q2:
A2:
Q3:
A3:
Windows is unable to recognize my hardware. What should I do?
First, verify that your computer meets the system requirements as specified in
Section 1. Second, go to Start -> Control Panel -> System -> Hardware > Device
Manager. In the list of device types, double-click on Network Adapters. If you see the
device with a yellow question mark or exclamation point next to it, double-click on it, click on
Drivers and click Update Drivers. Follow the Hardware Update Wizard instructions as
illustrated in Section 2. Third, if the device manager fails to recognize the presence of a
new network adapter, verify that the network adapter is firmly seated in the PCI Slot.
Windows recognizes my new hardware, but I'm unable to connect to my network. What
should I do?
First, verify that the RJ-45 Ethernet Cable is securely connected from your switch or
router to your network adapter. Second, verify that the LEDs on your network card are lit.
Third, verify that the TCP/IP settings are set to Obtain an IP address automatically.
Why am I only getting a network connection speed of 100Mbps instead of 1000Mbps?
First, check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6 Ethernet
Cables. Some CAT-5 cables are not rated to run in Gigabit. Second, check the switch to
make sure it is a 1000Mbps switch.
If you still encounter problems or have any questions regarding the TEG-PCITXR, please contact
Trendnet's Technical Support Department.
5
Troubleshooting
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
