What's Next in Networking

Version 04.18.2005

TW100-BRM504

ADSL Modem Firewall RouterQuick Installation GuideGuide d'installation rapide duRouteur & Modem ADSL Firewall Anleitung zur Schnellinstallation des5ADSL Modem Firewall RouterGuía de Instalación Rápida Modem ADSL Enrutador - Cortafuegos

Table of ContentsEnglish ......................................................................................................Troubleshooting ........................................................................................11349141. Prepare for Installation ......................................................................2. Install Hardware ................................................................................3. Configure the computer's TCP/IP Settings ........................................ 4. Configure the ADSL Modem Router ..................................................

Thank you for purchasing the TW100-BRM504. The ADSL Modem Firewall Router will allow you to connect to and share your DSL broadband Internet connection with several workstations.This guide will help you setup and configure your router. Following the installation instructions should be quick and easy. If you run into problems, please refer to the Troubleshooting section or to the more detailed installation procedures on the CD User's Guide. If you need further technical support, please visit www.TRENDNET.com or call by phone.Verify EquipmentBefore installing the ADSL Modem Router you should have:1. A working DSL Internet connection.2. A computer with a network card installed.3. An RJ-45 Network Cable for each computer connected to the router.4. TCP/IP protocol installed on each wired computer.5. A Web Browser such as Internet Explorer (5.0 or higher) or Netscape Navigator (4.7 or higher).Verify Package ContentsPlease make sure you have everything in the box:1

TW100-BRM504

CD-ROMQuick Installation GuideAC Power AdapterRJ-45 Ethernet (LAN) CableRJ-11 (ADSL) CableEnglish1. Prepare for InstallationEnglish QIGCopyright ©2005. All Rights Reserved. TRENDware International, Inc. TRENDnetTRENDware, USA

What's Next in Networking

Version 04.18.2005

TW100-BRM504

2Collect Internet Service Provider (ISP) InformationDuring the installation of your ADSL Modem Router, the Setup Wizard will automatically detect your ISP connection type. If the router cannot detect your ISP connection type, you can manually specify the connection type. Please verify your DSL Internet broadband connection with your ISP and ensure you have all the information for one of the following connection types:A. Dynamic IP connectionADSL Modem parameters (VPI or VCI), if it cannot be detected automatically. ISP may require you to use a particular Hostname or Domain name.B. Static or Fixed IP connectionInternet IP Address:_____. _____._____._____ (eg. 215.24.24.129)Subnet Mask: _____. _____._____._____Gateway IP Address: ____. _____._____._____Primary DNS:_____. _____._____._____Secondary DNS:_____. _____._____._____ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.C. PPPoE or PPPoA Dynamic IP connectionLogin User Name: _________Password: ________________ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.D. IPoA Static or Fixed (IP over ATM) connectionInternet IP Address:_____. _____._____._____ (eg. 215.24.24.129)Subnet Mask: _____. _____._____._____Gateway IP Address: ____. _____._____._____Primary DNS:_____. _____._____._____Secondary DNS:_____. _____._____._____.ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.English

32. Install HardwarecbaTW100-BRM5041. Connect a RJ-45 network cable from one of the Router’s LAN ports to your computer’s network port. 2. Connect the ADSL phone line cable from the WAN port on the TW100-BRM504 (the RJ11 phone connector) to the ADSL terminator.3. Power on your ADSL Modem Router.POWERWANLANVerify Hardware InstallationMake sure the following Router LEDs are on: Power, LAN, WAN.English

43. Configure the computer's TCP/IP Settings

Windows 95/98/98SE/ME

To verify that your computer can communicate with your ADSL Modem Router, you need to configure the TCP/IP settings in your Operating System (OS). Setup for Windows OS computers is shown below. If you are running any other OS please see your system documentation for configuration information.1. Find the Start Button located on the Desktop.2. Click Start, click Settings, then click on Control Panel.3. Double-Click the Network icon, and the Network Properties box will appear.4. Under the General Configuration Tab, locate and select TCP/IP with the corresponding network card (such as TRENDnet TE100-PCIWN 10/100Mbps Network Adapter), then click on the Properties button. The TCP/IP window will appear.NOTE: If you have a Fixed IP address connection, write down the existing IP addresses from the following sections before you modify them.5. Under the IP Address Tab, click on Obtain an IP address automatically.English

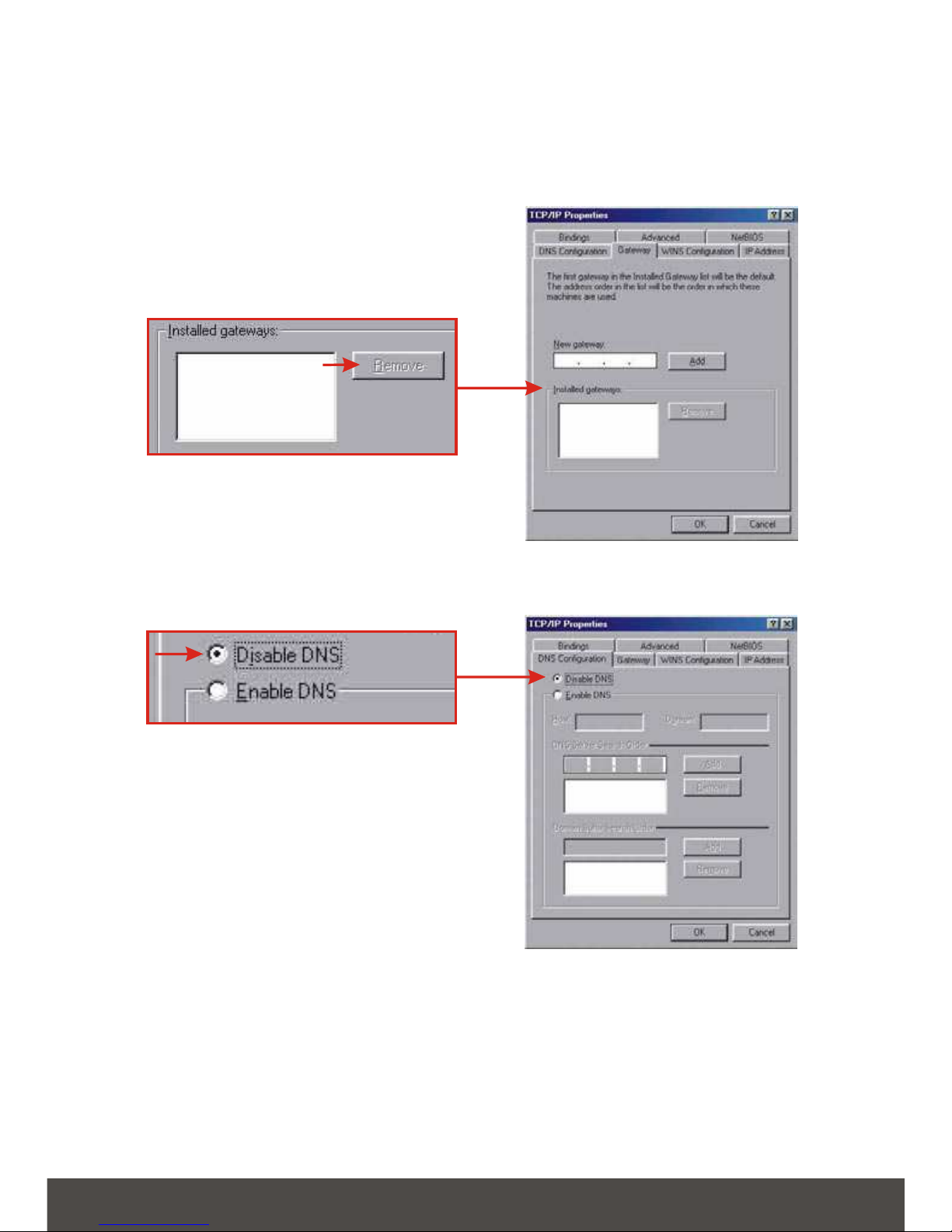

56. Now go to the Gateway tab and make sure no Gateways are listed in the Installed Gateway's section. If there is a Gateway installed, select it and click Remove to remove it.7. Now go to the DNS Configuration tab and click Disable DNS. Then click OK.8. Click OK on the TCP/IP Properties box.9. Click OK on the Network box to save the settings and close all properties windows.10. At this point, the installation may require files from your Windows CD-ROM. If this is the case, insert your Windows 98 CD-ROM into your CD-ROM drive and select CD-ROM drive to load the files. English

611. After the files load and the System Settings Change message appears, click Yes to reboot your system. This will update your computer with the new settings.12. After your system reboots, click Start and click on Run. Then, type winipcfg in the field and then click OK.13. The IP configuration box will appear. Choose your Network adapter from the dropdown box (such as TRENDnet TE100-PCIWN 10/100Mbps network adapter) and your computer's current IP address information will show in the box.14. If your IP Configuration reads as follows, your computer is successfully connected to the router: IP Address: 192.168.0.x Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1NOTE: If the message does not appear, you need to manually restart your computer.NOTE: If your IP Configuration does not match the values above, please reboot and try the steps again. English

Windows 2000/XP

1. Click Start, click Settings, and click on Control Panel.2. Double-Click the Network Connections icon.3. Right-Click on the Local Area Connection icon, and then click on Properties. The Local Area Connection Properties box will appear.4. Under the General Configuration Tab, locate and select TCP/IP, then click Properties. The Internet Protocol (TCP/IP) Properties box will appear. 6. Click OK.7. Click Close on the Local Area Connection Properties box.NOTE: If you have a Fixed IP address connection, write down the existing IP addresses from the following sections before you modify them.5. Click on Obtain an IP address automatically and Obtain DNS Server address automatically.English
