TRENDnet TE100-S16R User manual
TE100-S16R
TE100-S24R
Quick Installation Guide
Table of Contents
Table of Contents
Version 01.24.2007
Español .......................................................................................................
Technical Specifications .............................................................................
Troubleshooting ..........................................................................................
1
1
2
4
6
1. Antes de iniciar ...................................................................................
2. Instalación del Hardware ....................................................................
Español
1

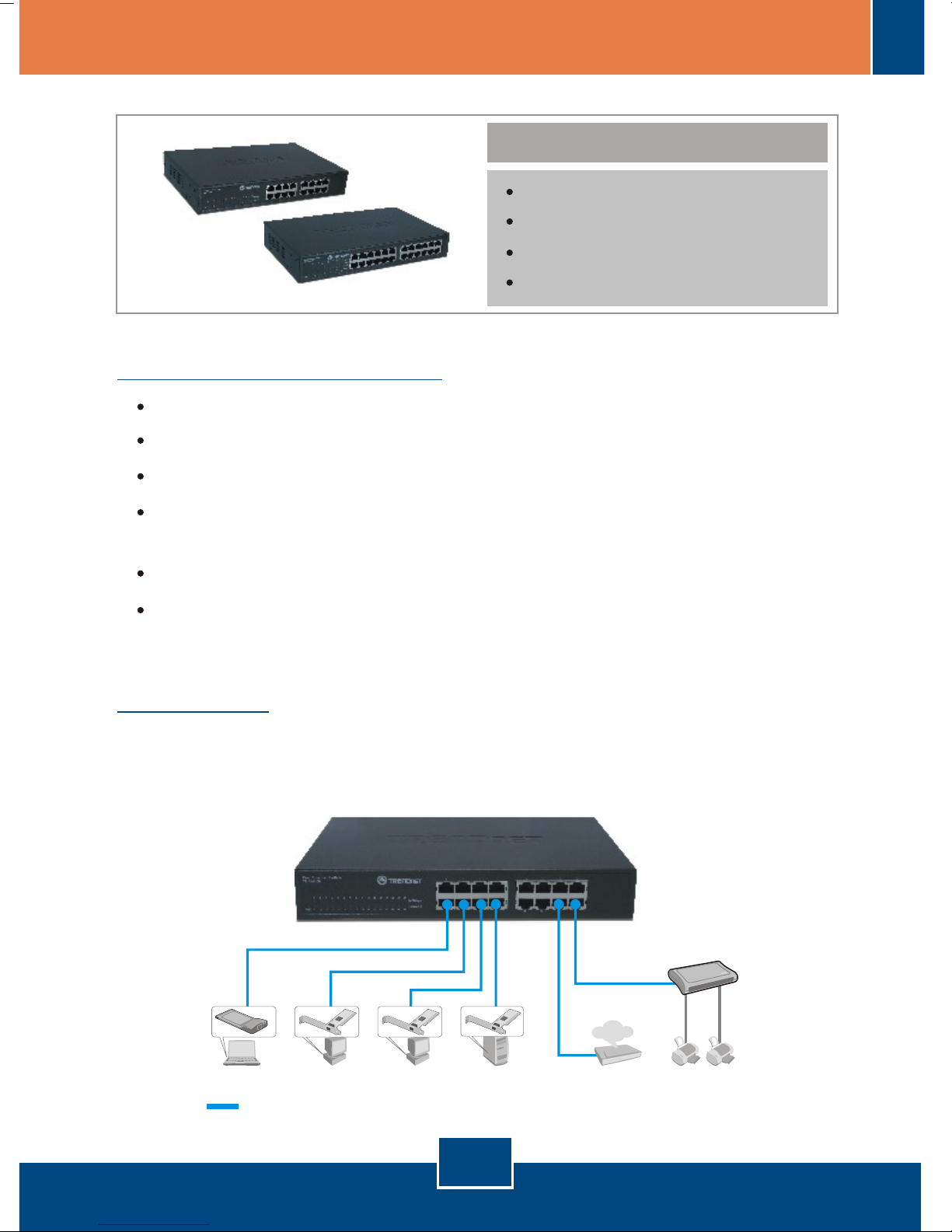

1. Antes de iniciar
Un cable de red RJ-45
Un PC con adaptador de red instalado correctamente.
La toma de corriente debe estar a 1.82 metros (6 pies) del conmutador
Contenidos del paquete
Guía de instalación rápida
Kit para montaje en estante
TE100-S16R/TE100-S24R
Cable de alimentación
Compruebe que existe una correcta regulación de la temperatura y una
ventilación adecuada alrededor del conmutador
No coloque objetos pesados encima del conmutador
Aplicación
Requisitos del sistema
Estructura de nivel y bastidor de 19 pulgadas estándar EIA o robusto
que pueda soportar el peso del chasis
16/24 Ports 10/100Mbps Fast Ethernet Switch
(TE100-S16R or TE100-S24R)
10/100Mbps Multi-Port
Print Server
(TE100-P21)
Printers
Workstations with PCI Adapter
(TE100-PCIWN)
Laptop with PC Card
(TE100-PCBUSR)
Server with PCI Adapter
(TE100-PCIWA)
Cable/DSL
Modem Router
Internet
10/100Mbps
Español
2
2. Instalación del Hardware
2. Conecte un cable de red RJ-45
CAT-5 del PC a un puerto Ethernet
disponible en el TE100-S16R/
TE100-S24R
1. Conecte el Power Cord (Cable de
alimentación) en la parte trasera
del TE100-S16R/ TE100-S24R y
después a la toma corriente.
Español
3
1. Fije las abrazaderas de sujeción a
ambos lados del chasis y
asegúrelas con los tornillos
suministrados.
2. Coloque el chasis con cuidado
encima del bastidor. Procure que
la abrazadera coincida con los
orificios de los tornillos del
bastidor, luego use los tornillos
suministrados junto con el bastidor
del equipo para montar el chasis.
Para montaje en bastidor
El chasis puede montarse sobre un bastidor de 19 pulgadas tamaño estándar
EIA, que puede colocarse en un armario de empalmes junto con otros equipos.
4
Standards IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
Protocol CSMA/CD
Data Transfer Rates
Ethernet:
10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
Fast Ethernet:
100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
Network Cables Ethernet: UTP/STP CAT-3, 4, 5
Fast Ethernet: UTP/STP CAT-5, 5e , 6
Number of Ports
TE100-S16R: 16 x 10/100Mbps
Auto-negotiation, Auto-MDIX ports
TE100-S24R: 24 x 10/100Mbps
Auto-negotiation, Auto-MDIX ports
General
Topology
LEDs
Star
Power, Link/Activity, 100Mbps
Technical Specifications
Transmission Method Store-and-forward
MAC Address Table
RAM Buffer
SSRAM
8Kbytes Entries Per Device
2Mbits
1.25Mbits
MAC Address Learning Automatic update
Performance
5
Power 100-240VAC. 50/60Hz. Internal Power Supply
Power Consumption TE100-S16R: 5.9Watts (Max)
TE100-S24R: 7.5Watts (Max)
Temperature Operating: 0 ~ 50 C, Storage: -20 ~ 70 C° ° ° °
Dimensions (L x W x H) 280 x 180 x 45 mm
Weight TE100-S16R: 1.45kg
TE100-S24R: 1.54kg
Physical and Environmental
Humidity
Certification
Operating: 10% ~ 90%, Storage:5% ~ 90%
CE, FCC
6
Troubleshooting
Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
After connecting the Switch to a power outlet, the LEDs do not turn
on.
Check the connection of the external power adapter to the
TE100-S16R/TE100-S24R and the power outlet. Also check that the power
outlet is receiving power.
When I connect a computer to the Switch's port, the LNK/ACT LED
turns on, but the 100Mbps LED remains off.
When the 100Mbps LED remains off, the computer's connection speed
is 10Mbps.
After I connect my PCs to the Switch, I am unable to share files.
First, check the LEDs on the Switch. Make sure the LINK/ACT LED is
on. Second, check the network cable. The minimum length of the cable is
1.5 meters and the maximum length of the cable is 100 meters. Third,
disable any software firewall program. Fourth, verify that you have file
sharing enabled. Please contact your Operating System support for more
information.
After I connect my PCs to the Switch, I can only get onto the Internet
from one computer.
The Switch was not designed to share Internet between multiple
computers. You need to get an Internet router such as the
TW100-S4W1CA.
If you still encounter problems or have any questions regarding the
TE100-S16R/TE100-S24R please contact TRENDnet's Technical Support
Department.
Limited Warranty
- 5-Year Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
TE100-S16R/TE100-S24R
If a product does not operate as warranted above during the applicable warranty period,
TRENDnet shall, at its option and expense, repair the defective product or deliver to
customer an equivalent product to replace the defective item. All products that are
replaced will become the property of TRENDnet. Replacement products may be new or
reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product through any unauthorized service center. This warranty is voided if
(i) the product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a
copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-
authorized by TRENDnet with RMA number marked on the outside of the package, and
sent prepaid, insured and packaged appropriately for safe shipment.
7
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S
MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED
ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER
HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,
OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a 1-Year
Warranty
