TRENDnet TFC-1000MSC User manual

TRENDnet's TFC-1000 series Fiber Media Converter transforms

1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber

Gigabit) media and vice versa. The 1000Base-T port supports full-

duplex Gigabit connection at wire speed with RJ45 connector.

The fiber Gigabit connection supports shortwave (SX) or

longwave (LX) laser optic with multi-mode or single-mode SC type

connector. <Please see detail under “Specifications”>This

converter will give your Copper Gigabit connection the ability to

interface with fiber connection over a distance up to 550 meters.

With the optional 16-slot EIA-19" rack-mount chassis, the TFC

series converters are the perfect solutions for various fiber media.

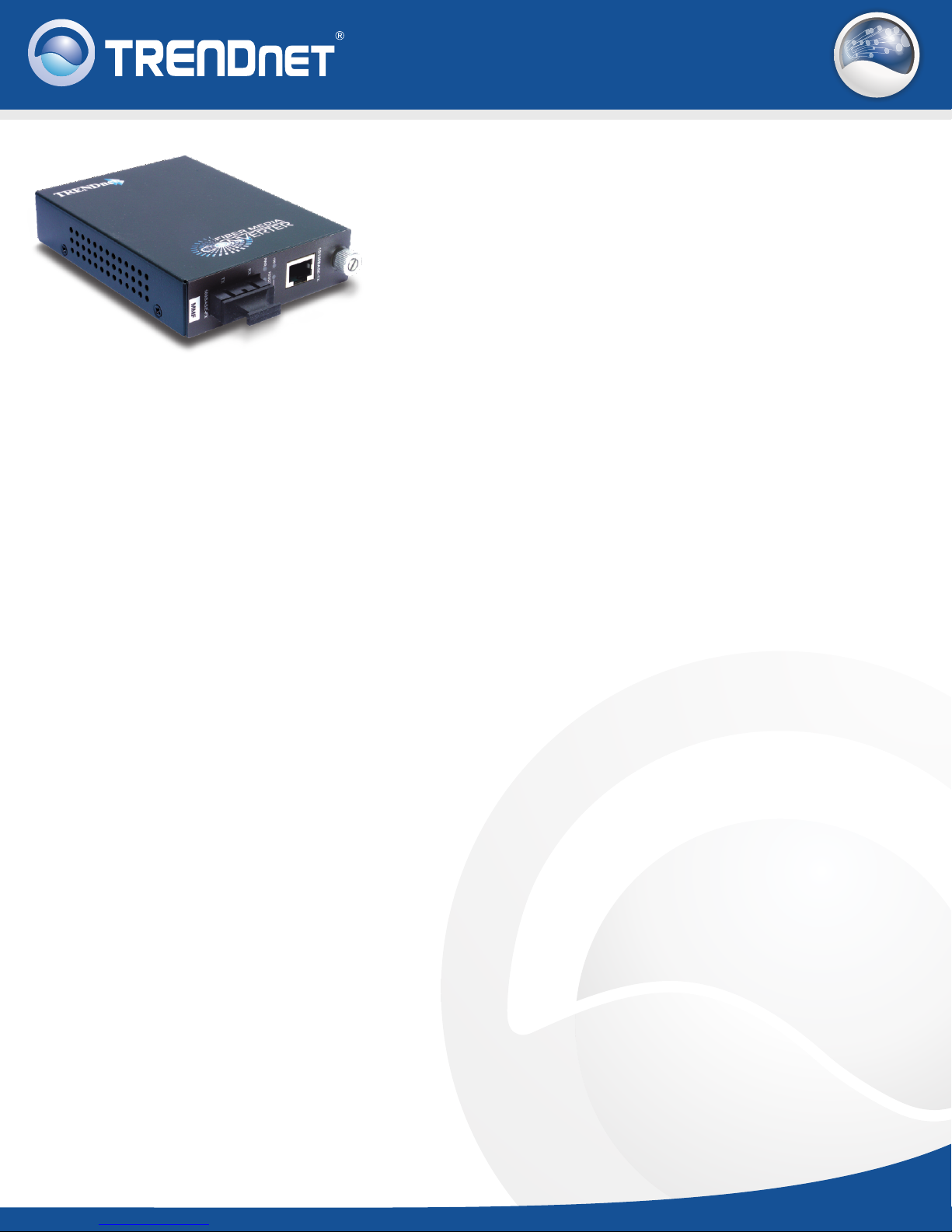

TFC-1000MSC

1000Base-T to1000Base-SX Multi-Mode

Fiber Converter with SC-Type Connector

TFC-1000MSC

rev: 07.16.2010

• Compliant with IEEE 1000Base-T and 1000Base-SX

• One 1000Base-T RJ-45 port

• One 1000Base-SX Port w/ SC-Type Connector

• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed

• Wall-Mountable

• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

• 3-year limited warranty

FEATURES

fiber

Supported Frame Size

Temperature

Network Media

Wavelength

Protocol

Ports

Power Adapter

Humidity

• IEEE 1000Base-TX and 1000Base-SX

• Power, Link/Activity, Full-Duplex, and Speed

• No limitation (Standard Ethernet and Jumbo Frame)

• 7.5VDC, 1.5A (7.2 watts max.)

• Operating: 0° ~ 40° C (32° ~ 104° F)

• Storage: 5% ~ 90% (non-condensing)

• 1000Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters.

• 1000Base-SX: Multi-Mode fiber optic cable 50/125 µm up to 550 meters. 62.5/125 µm up to 220 meters

• 850nm

• CSMA/CD

• Storage: -25° ~ 70° C (-13° ~ 158° F)

• 1 x 1000Base-T

• 1 x 1000Base-SX

• 1000Mbps

• Operating: 10% ~ 90%

Data Transfer Rate

Diagnostic LEDs

Standards

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

1000Base-T to1000Base-SX Multi-Mode Fiber Converter

with SC-Type Connector

TFC-1000MSC

RELATED PRODUCTS

TFC-1000MSC

TFC-1000S50

TFC-1000S20

TFC-1000S70

TFC-1600 16-Slot Chassis System for TFC series Fiber Converter

1000Base-T to1000Base-SX Multi-Mode Fiber

Converter with SC-Type Connector

1000Base-T to1000Base-LX Single-Mode Fiber

Converter (50Km) with SC-Type Connector

1000Base-T to1000Base-LX Single-Mode Fiber

Converter (20Km) with SC-Type Connector

1000Base-T to1000Base-LX Single-Mode Fiber

Converter (70Km) with SC-Type Connector

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

SPECIFICATIONS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
