To test a cable:
Connect the cable to the tester and to a
suitable Remote Unit as described above.
• Cable testing runs continuously (except
when in TOOLS/SAVE mode or if
voltage is detected). There is no need to
start or stop the cable test.
Cable test results are shown using the two
rows of numbers in the lower half of the
display. The top row of numbers refers
to the pins at the near end. The numbers
displayed, and S(Shield), depend on the
port in use…

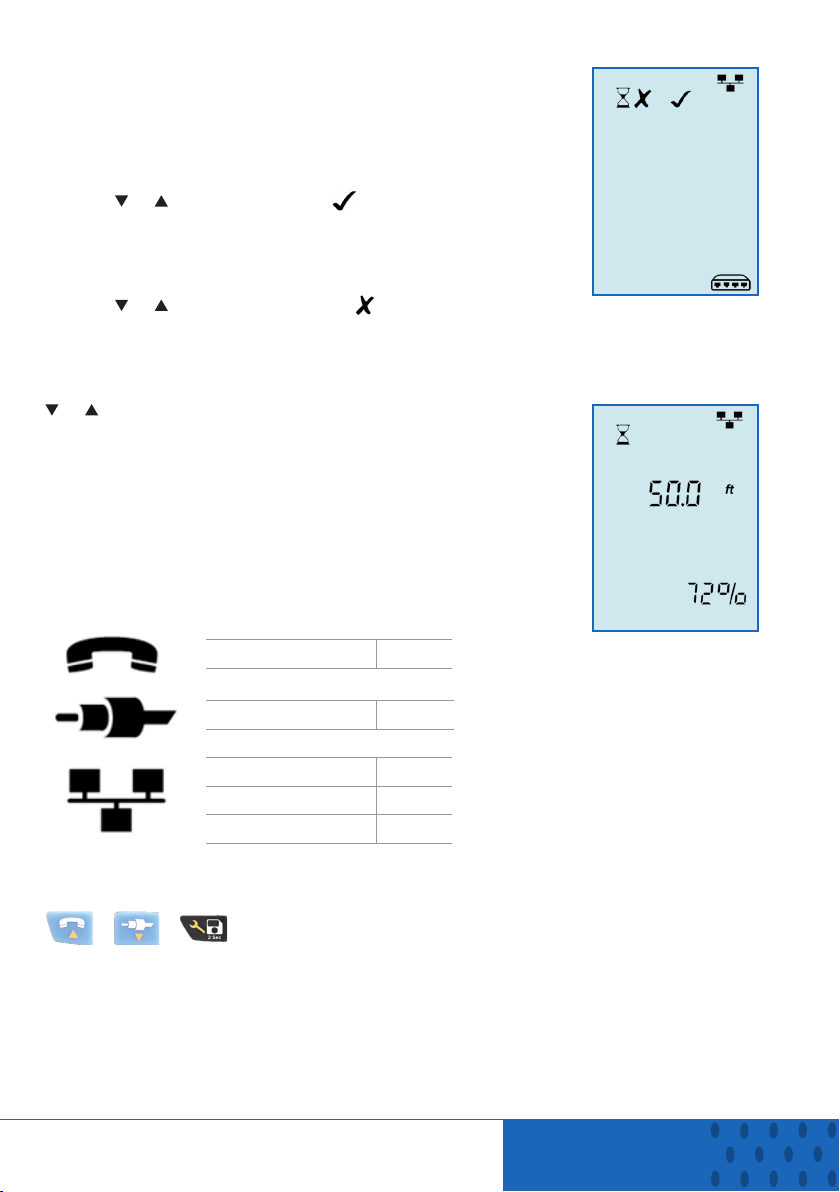

VOICE – Pins 1, 2, 3, 4, 5 and 6 are shown
VIDEO – S and Pin 1 are shown
DATA – Pins 1, 2, 3, 4, 5, 6, 7 and 8
are shown. S is shown if the shield is
connected.
The lower row of numbers refers to the
pins at the far end. The numbers displayed
show which pin at the far end is connected
to which pin at the near end. Open circuits
and short circuits are shown. Multiple
short circuits are shown in sequence.
Split Pair test:
!next to the Split Pair symbol is displayed
when the test is disabled.
• When the Split Pair test is enabled, split
pairs will cause the test to fail.
• When the Split Pair test is disabled, split
pairs will not cause the test to fail.
To disable / enable the Split Pair test:
Press and hold the network mode button
for 2 seconds to change the setting.
CABLE TESTING
Shows when
Test Passed
Shows that Pin 8
is open
Shows when Split Pair
test is disabled
Flashes when
Split Pair is
detected
Shows when a crossover
(uplink cable) is detected (does
not cause the test to fail)
Shows that
Pin 6 is connected to Pin 7
Shows when
Test Failed
Shows that Shield
and Pins 1, 2 and 3 are
correctly connected
Shows that
Pin 4 and Pin 5
are reversed
