Trane 4TTX5018-060 User manual

18-AC124D1-1A-EN

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES.

IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service informa-

tion pack upon completion of work.

Condensing Units

These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with

the installation. Should further information be desired or should particular problems arise which are not covered sufficiently for the

purchaser’s purposes, the matter should be referred to your installing dealer or local distributor.

The manufacturer recommends installing only approved matched indoor and outdoor systems. All of the manufacture’s split

systems are A.H.R.I. rated only with TXV/EEV indoor systems. Some of the benefits of installing approved matched indoor and

outdoor split systems are maximum efficiency, optimum performance and the best overall system reliability.

4TTX5018 – 060

Installation and Operation Manual

Table of Contents

Section 1. Safety..................................................................................... 2

Section 2. Unit Location Considerations ............................................. 3

Section 3. Unit Preparation.................................................................... 4

Section 4. Setting the Unit..................................................................... 5

Section 5. Refrigerant Line Considerations......................................... 5

Section 6. Refrigerant Line Routing ..................................................... 6

Section 7. Refrigerant Line Brazing...................................................... 7

Section 8. Refrigerant Line Leak Check............................................... 9

Section 9. Evacuation ............................................................................ 9

Section 10. Service Valves .................................................................. 10

Section 11. Electrical - Low Voltage ................................................... 10

Section 12. Electrical - High Voltage .................................................. 12

Section 13. Start Up.............................................................................. 12

Section 14. System Charge Adjustment............................................. 13

Section 15. Checkout Procedures ...................................................... 17

Section 16. Refrigeration Circuits........................................................18

Section 17. Wiring Diagrams................................................................20

Section 18. Pressure Curves................................................................24

2 18-AC124D1-1A-EN

Section 1. Safety

This information is intended for use by individuals

possessing adequate backgrounds of electrical and

mechanical experience. Any attempt to repair a central

air conditioning product may result in personal injury

and/or property damage. The manufacture or seller

cannot be responsible for the interpretation of this

information, nor can it assume any liability in connec-

tion with its use.

These units use R-410A refrigerant which operates

at 50 to 70% higher pressures than R-22. Use only

R-410A approved service equipment. Refrigerant cyl-

inders are painted a “Rose” color to indicate the type

of refrigerant and may contain a “dip” tube to allow

for charging of liquid refrigerant into the system. All

R-410A systems use a POE oil that readily absorbs

moisture from the atmosphere. To limit this “hygro-

scopic” action, the system should remain sealed

whenever possible. If a system has been open to the

atmosphere for more than 4 hours, the compressor oil

must be replaced. Never break a vacuum with air and

always change the driers when opening the system

for component replacement. For specific handling

concerns with R-410A and POE oil reference Retrofit

Bulletins SS-APG006-EN and APP-APG011-EN.

Extreme caution should be exercised when opening

the Liquid Line Service Valve. Turn counterclockwise

until the valve stem just touches the rolled edge. No

torque is required. Failure to follow this warning will

result in abrupt release of system charge and may

result in personal injury and /or property damage.

UNIT CONTAINS R-410A REFRIGERANT!

R-410A operating pressures exceed the limit of R-22.

Proper service equipment is required. Failure to use

proper service tools may result in equipment damage

or personal injury.

SERVICE

USE ONLY R-410A REFRIGERANT AND

APPROVED POE COMPRESSOR OIL.

LIVE ELECTRICAL COMPONENTS!

During installation, testing, servicing, and trouble-

shooting of this product, it may be necessary to work

with live electrical components. Failure to follow all

electrical safety precautions when exposed to live

electrical components could result in death or serious

injury.

The appliance is not to be used by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge,

unless they have been given supervision or

instruction.

Children should be supervised to ensure that they do

not play with the appliance.

If using existing refrigerant lines make certain that all

joints are brazed, not soldered.

CAUTION

Scroll compressor dome temperatures may be hot. Do

not touch the top of compressor; it may cause minor to

severe burning.

CAUTION

18-AC124D1-1A-EN 3

Section 2. Unit Location Considerations

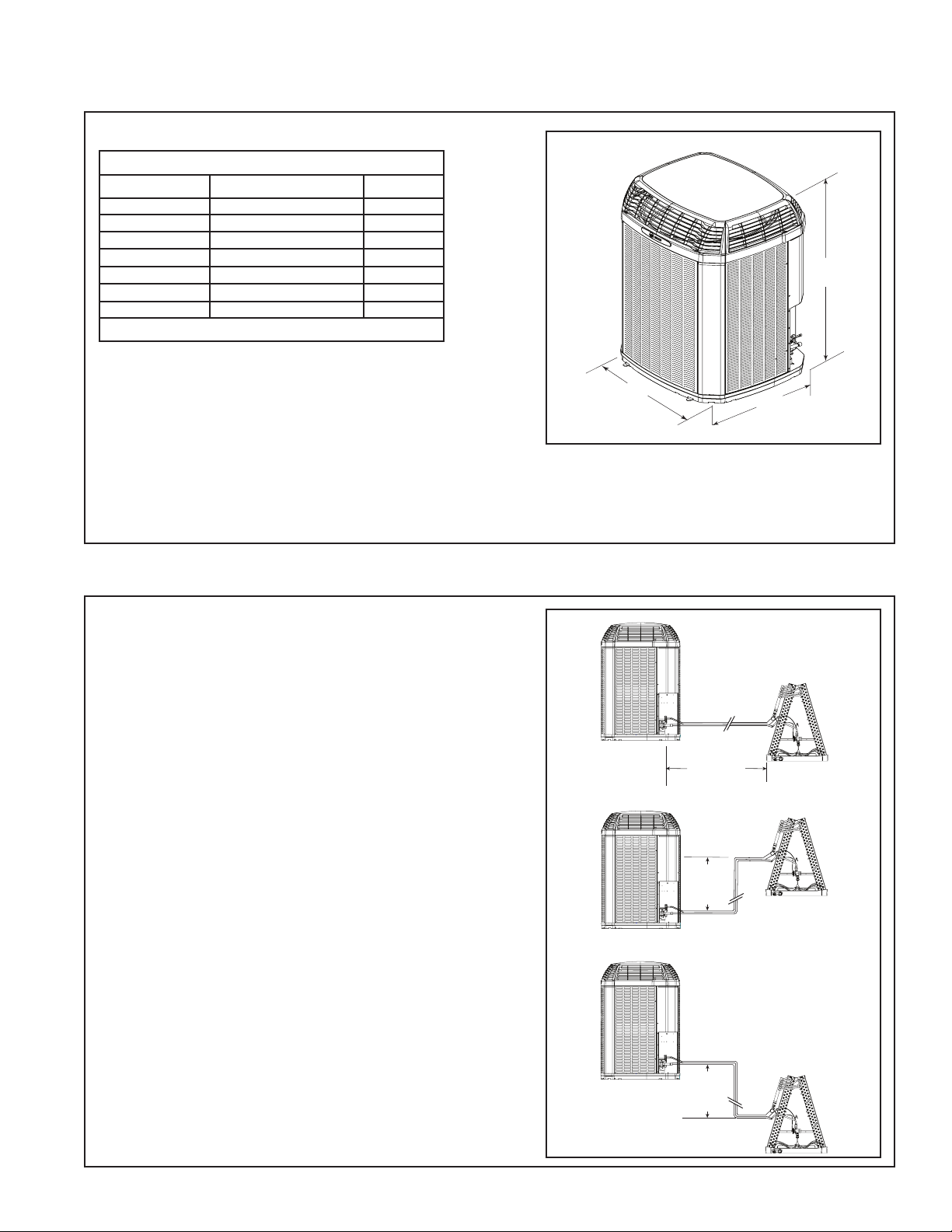

2.1 Unit Dimensions and Weight

2.2 Refrigerant Piping Limits

50’

Max

Vertical

Change

Standard

Line Set

150’ Max

TOTAL Line Length

50’

Max

Vertical

Change

Table 2.1

Unit Dimensions and Weight

Models H x D x W (in)

Weight* (lb)

4TTX5018N 35 x 30 x 33 172

4TTX5024N 35 x 30 x 33 173

4TTX5030N 42 x 30 x 33 195

4TTX5036N 44 x 34 x 37 221

4TTX5042N 52 x 34 x 37 277

4TTX5048N 52 x 34 x 37 281

4TTX5060N 52 x 34 x 37 286

* Weight values are estimated.

When mounting the outdoor unit on a roof, be

sure the roof will support the unit’s weight.

Properly selected isolation is recommended to

alleviate sound or vibration transmission to the

building structure.

Please refer to application bulletin for detailed

mounting information.

1. The maximum TOTAL length of refrigerant

lines from outdoor to indoor unit should

NOT exceed 150 feet (including lift).

2. The maximum vertical change should not

exceed 50 feet.

3. Service valve connection diameters are

shown in Table 5.1.

Note: For other line lengths, Refer to Refriger-

ant Piping Application Guide, SS-APG006-EN

or Refrigerant Piping Software Program, 32-

3312-03 (or latest revision).

4 18-AC124D1-1A-EN

STEP 2 - To remove the unit from the pallet,

remove tabs by cutting with a sharp tool.

Section 3. Unit Preparation

3.1 Prepare The Unit For Installation

STEP 1 - Check for damage and report prompt-

ly to the carrier any damage found to the unit.

Min. 12” to

Shrubbery

Avoid Install

Near Bedrooms

Min 5’ Unrestricted

Access Panel

Min 3’

Unrestricted

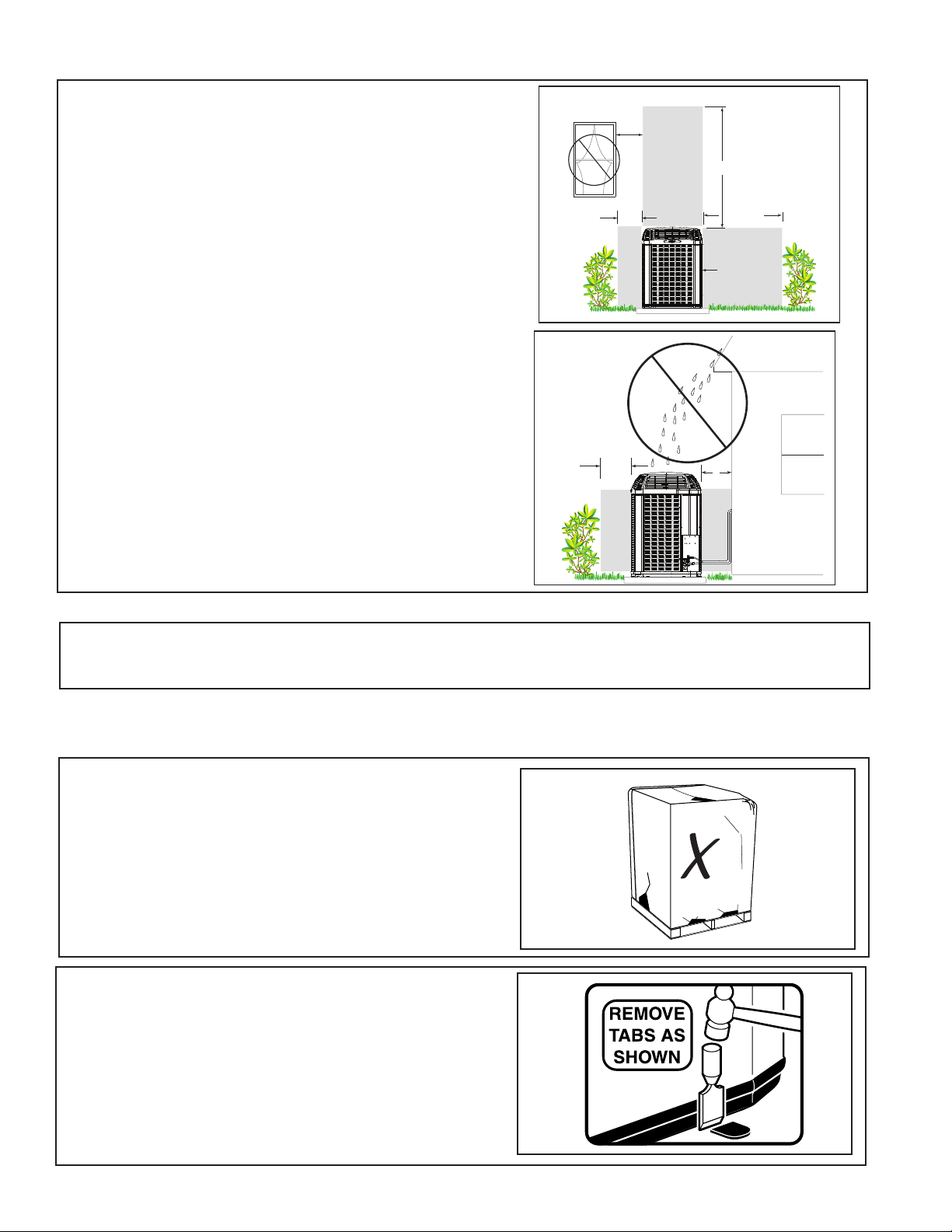

2.3 Suggested Locations for Best Reliability

Ensure the top discharge area is unrestricted for

at least five (5) feet above the unit.

Three (3) feet clearance must be provided in

front of the control box (access panels) and any

other side requiring service.

Do not locate close to bedrooms as operational

sounds may be objectionable.

Min. 12” to

Shrubber

yMin. 12”

to Wall

Position the outdoor unit a minimum of 12” from

any wall or surrounding shrubbery to ensure

adequate airflow.

Outdoor unit location must be far enough away

from any structure to prevent excess roof runoff

water from pouring directly on the unit.

2.4 Coastal Considerations

If installed within one mile of salt water, including seacoasts and inland waterways, models without factory sup-

plied Seacoast Salt Shields require the addition of BAYSEAC001 (Seacoast Kit) at installation time.

18-AC124D1-1A-EN 5

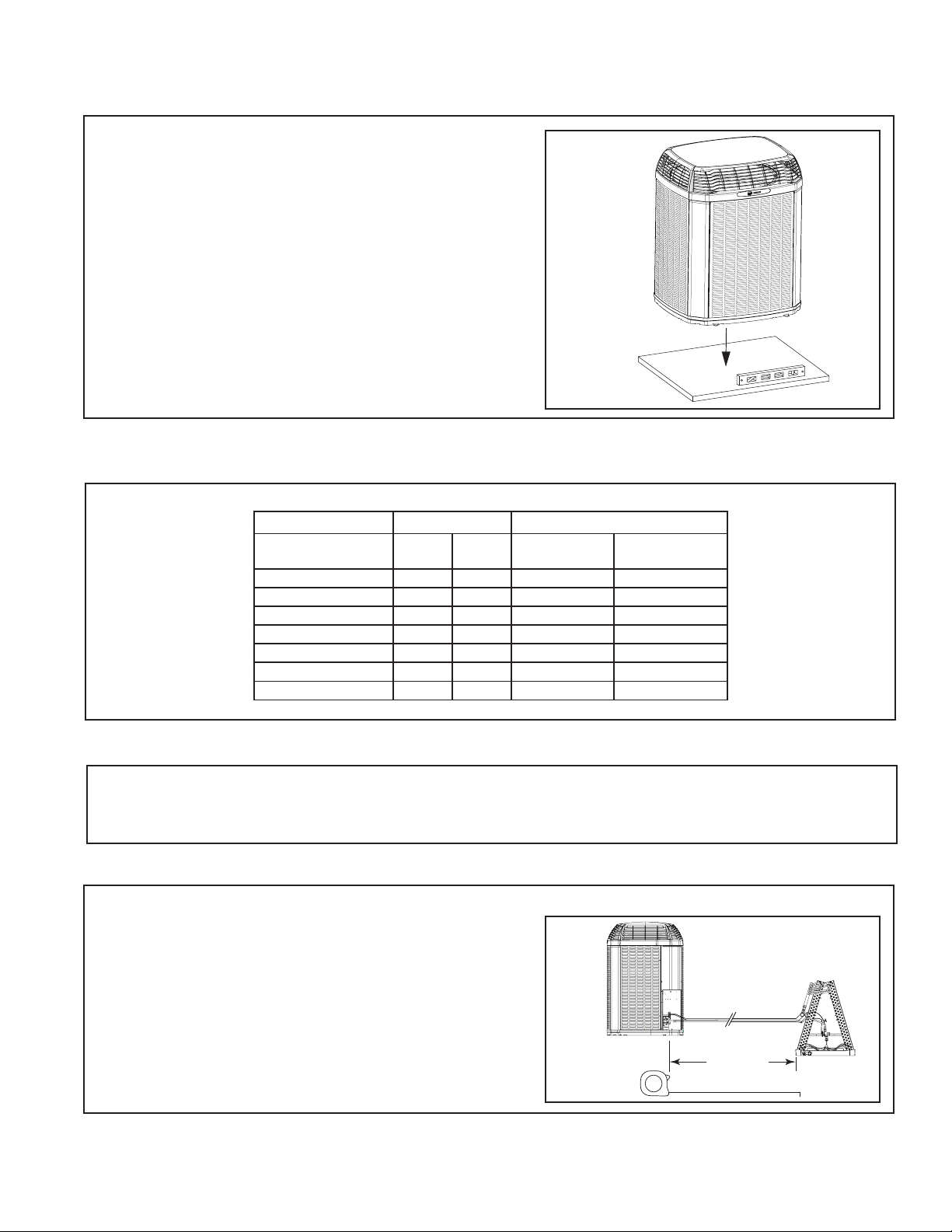

Section 4. Setting the Unit

4.1 Pad Installation

When installing the unit on a support pad, such

as a concrete slab, consider the following:

• The pad should be at least 1” larger than the

unit on all sides.

• The pad must be separate from any structure.

• The pad must be level.

• The pad should be high enough above grade

to allow for drainage.

• The pad location must comply with National,

State, and Local codes.

Section 5. Refrigerant Line Considerations

5.1 Refrigerant Line and Service Valve Connection Sizes

Table 5.1

Line Sizes Service Valve Connection Sizes

Model Vapor

Line Liquid

Line Vapor Line

Connection Liquid Line

Connection

4TTX5018N 3/4 3/8 3/4 3/8

4TTX5024N 3/4 3/8 3/4 3/8

4TTX5030N 3/4 3/8 3/4 3/8

4TTX5036N 7/8 3/8 3/4 3/8

4TTX5042N 7/8 3/8 7/8 3/8

4TTX5048N 7/8 3/8 7/8 3/8

4TTX5060N 1-1/8 3/8 7/8 3/8

5.2 Factory Charge

The outdoor condensing units are factory charged with the system charge required for the outdoor condensing

unit, ten (10) feet of tested connecting line, and the smallest rated indoor evaporative coil match. Always verify

proper system charge via subcooling (TXV/EEV) or superheat (fixed orifice) per the unit nameplate.

5.3 Required Refrigerant Line Length

Line Length

Determine required line length and lift. You will

need this later in STEP 2 of Section 14.

Total Line Length = __________ Ft.

Total Vertical Change (lift) = __________ Ft.

6 18-AC124D1-1A-EN

5.5 Reuse Existing Refrigerant Lines

For retrofit applications, where the existing

indoor evaporator coil and/or refrigerant lines

will be used, the following precautions should

be taken:

• Ensure that the indoor evaporator coil and

refrigerant lines are the correct size.

• Ensure that the refrigerant lines are free of

leaks, acid, and oil.

CAUTION

If using existing refrigerant lines make certain

that all joints are brazed, not soldered.

Section 6. Refrigerant Line Routing

6.1 Precautions

Important: Take precautions to prevent noise

within the building structure due to vibration

transmission from the refrigerant lines.

For Example:

• When the refrigerant lines have to be fastened to floor joists or other framing in a structure, use isolation type

hangers.

• Isolation hangers should also be used when refrigerant lines are run in stud spaces or enclosed ceilings.

• Where the refrigerant lines run through a wall or sill, they should be insulated and isolated.

• Isolate the lines from all ductwork.

• Minimize the number of 90º turns.

Comply with National, State, and Local Codes when

isolating line sets from joists, rafters, walls, or other

structural elements.

Isolation From Joist/Rafter

Side View

8 Feet Maximum

Secure Vapor line from joists using isolators every 8 ft. Secure

Liquid Line directly to Vapor line using tape, wire, or other appro-

priate method every 8 ft.

Joist/Rafter

Isolator

Line Set

8 Feet Maximum

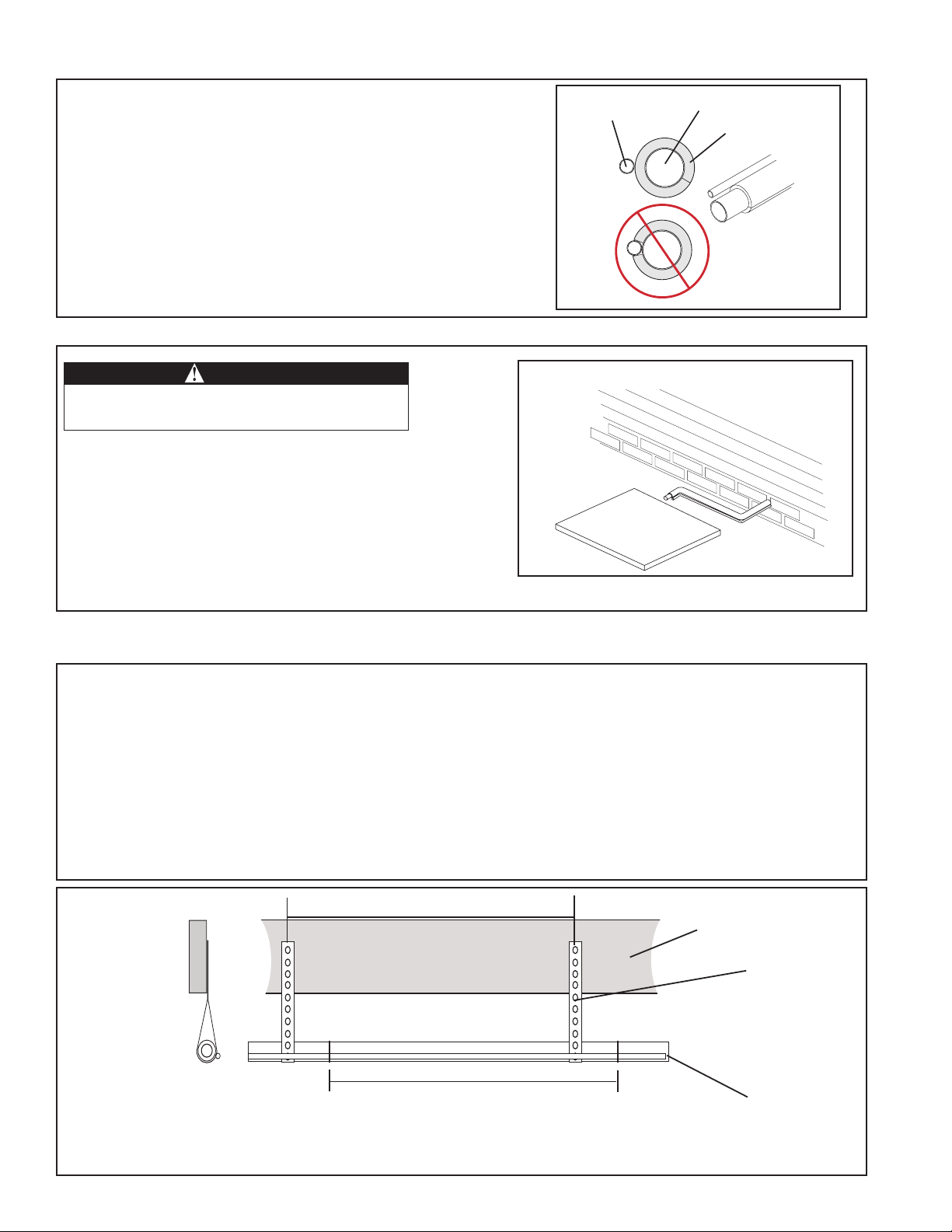

5.4 Refrigerant Line Insulation

Important: The Vapor Line must always be

insulated. DO NOT allow the Liquid Line and

Vapor Line to come in direct (metal to metal)

contact.

Vapor Line

Liquid Line

Insulation

18-AC124D1-1A-EN 7

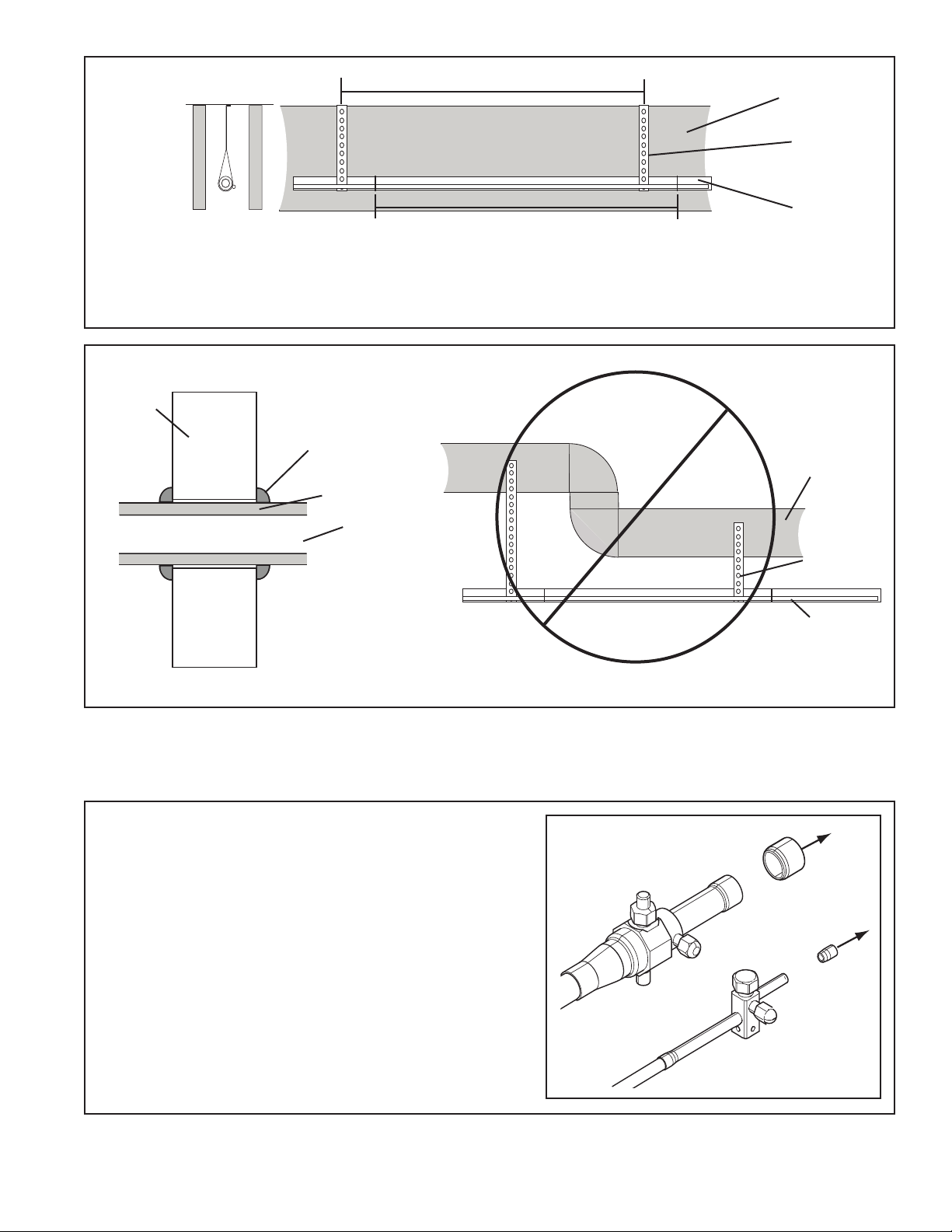

Isolation In Wall Spaces

Side View

Wall

Isolator

Line Set

8 Feet Maximum

Secure Vapor Line using isolators every 8 ft. Secure Liquid Line

directly to Vapor Line using tape, wire, or other appropriate

method every 8 ft.

8 Feet Maximum

Isolation Through Wall DO NOT hang line sets from ductwork

Sealant

Insulation

Vapor Line

Wall

Ductwork

Isolator

Line Set

Section 7. Refrigerant Line Brazing

7.1 Braze The Refrigerant Lines

STEP 1 - Remove caps or plugs. Use a debur-

ing tool to debur the pipe ends. Clean both

internal and external surfaces of the tubing

using an emery cloth.

8 18-AC124D1-1A-EN

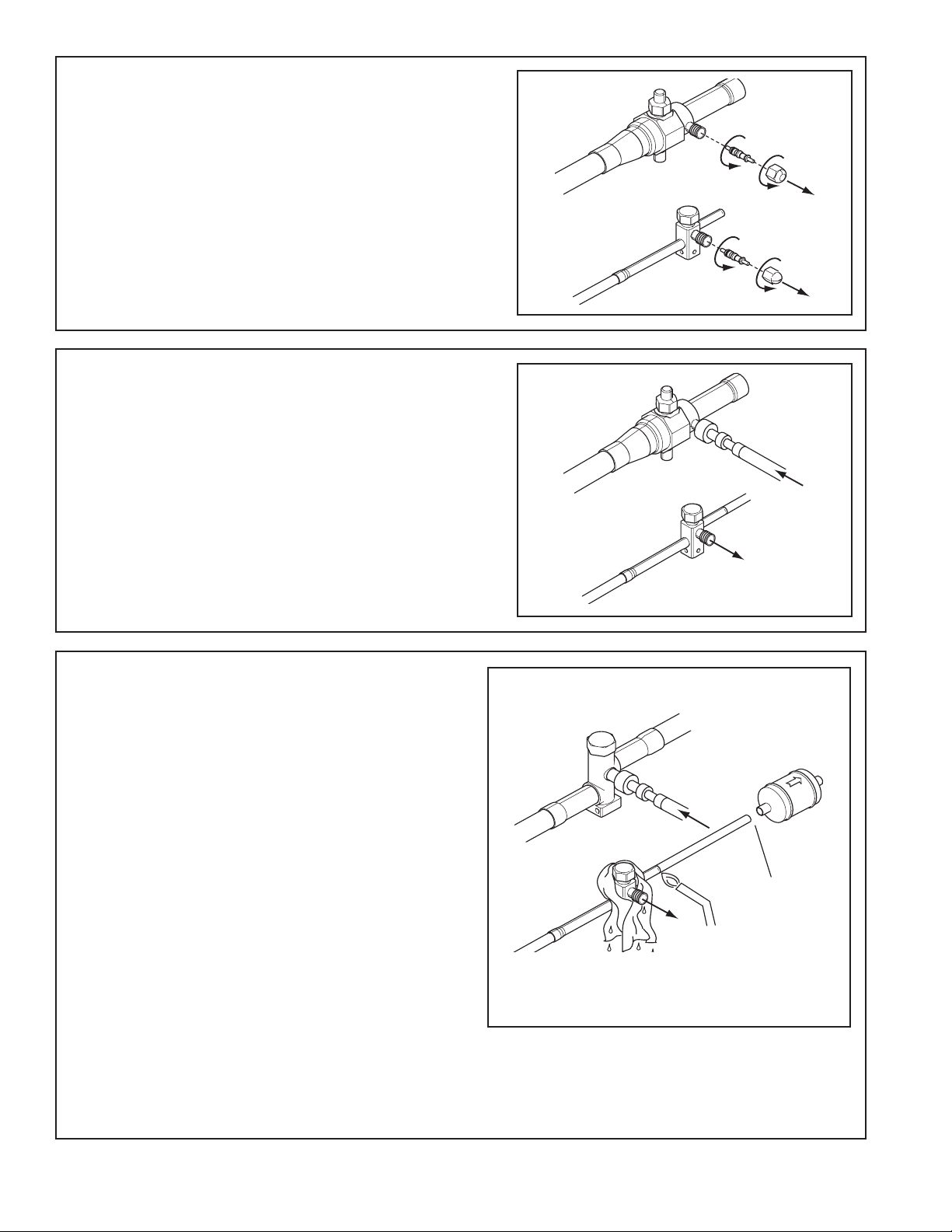

STEP 2 - Remove the pressure tap cap and

valve cores from both service valves.

STEP 3 - Purge the refrigerant lines and indoor

coil with dry nitrogen.

STEP 4 - Wrap a wet rag around the valve body

to avoid heat damage and continue the dry nitro-

gen purge.

Braze the refrigerant lines to the service valves.

For units shipped with a field-installed external

drier, check liquid line filter drier’s directional flow

arrow to confirm correct direction of refrigeration

flow (away from outdoor unit and toward evapo-

rator coil) as illustrated. Braze the filter drier to

the Liquid Line.

Continue the dry nitrogen purge. Do not remove

the wet rag until all brazing is completed.

Important: Remove the wet rag before stopping

the dry nitrogen purge.

Note: Install drier in Liquid Line.

NOTE:NOTE: Precautions should be taken to avoidPrecautions should be taken to avoid

heat damage to basepan during brazing. It isheat damage to basepan during brazing. It is

recommended to keep the flame directly off ofrecommended to keep the flame directly off of

the basepan.the basepan.

3-4” from valve

18-AC124D1-1A-EN 9

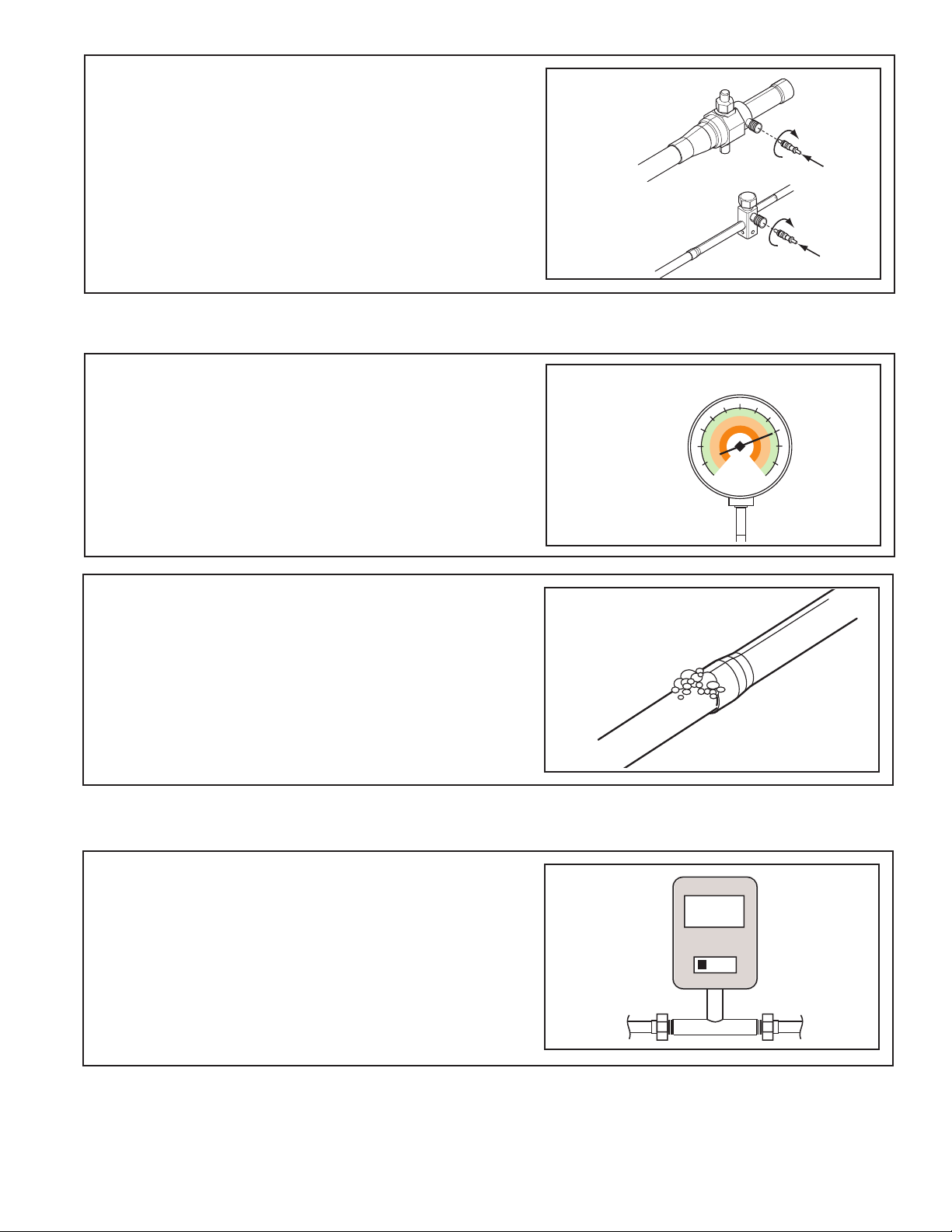

STEP 5 - Replace the pressure tap valve cores

after the service valves have cooled.

STEP 2 - Check for leaks by using a soapy solu-

tion or bubbles at each brazed location.

Remove nitrogren pressure and repair any leaks

before continuing.

Section 8. Refrigerant Line Leak Check

8.1 Check For Leaks

STEP 1 - Pressurize the refrigerant lines and

evaporator coil to 150 PSIG using dry nitrogen.

150 PSIG

Section 9. Evacuation

9.1 Evacuate the Refrigerant Lines and Indoor Coil

Important: Do not open the service valves until

the refrigerant lines and indoor coil leak check

and evacuation are complete.

STEP 1 - Evacuate until the micron gauge reads

no higher than 350 microns, then close off the

valve to the vacuum pump.

0350

Microns

ON OFF

10 18-AC124D1-1A-EN

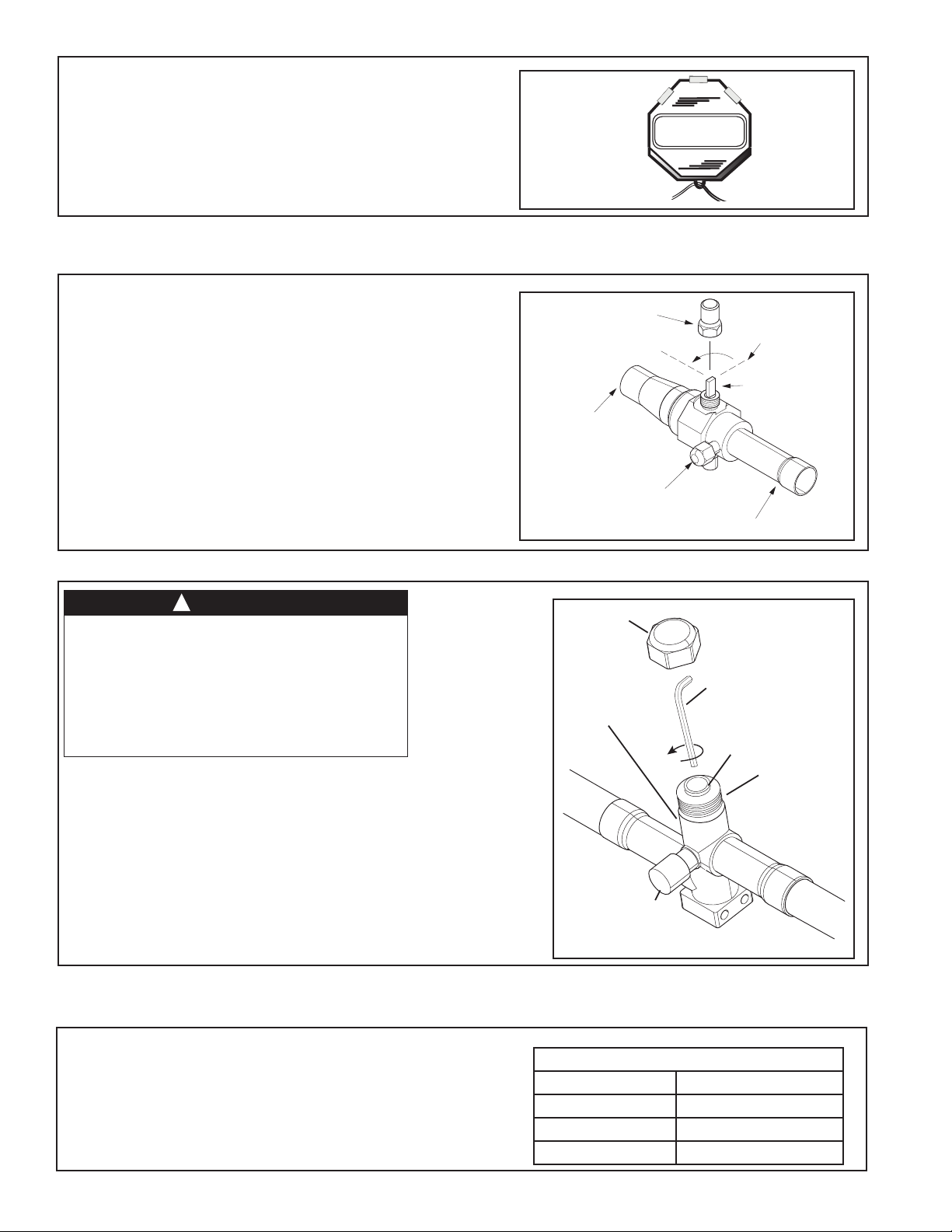

STEP 2 - Observe the micron gauge. Evacuation

is complete if the micron gauge does not rise

above 500 microns in one (1) minute.

Once evacuation is complete blank off the

vacuum pump and micron gauge, and close the

valves on the manifold gauge set.

1 MIN.

Section 10. Service Valves

10.1 Open the Gas Service Valve

CAP

1/4 TURN ONLY

COUNTERCLOCKWIS

FOR FULL OPEN

POSITION

VALVE STEM

GAS LINE CONNECTION

UNIT SIDE

OF VALVE

PRESSURE TAP PORT

Important: Leak check and evacuation must be

completed before opening the service valves.

NOTE: Do not vent refrigerant gases into the

atmosphere

STEP 1 - Remove valve stem cap.

STEP 2 - Using an adjustable wrench, turn valve

stem 1/4 turn counterclockwise to the fully open

position.

STEP 3 - Replace the valve stem cap to prevent

leaks. Tighten finger tight plus an additional 1/6

turn.

10.2 Open the Liquid Service Valve

Important: Leak check and evacuation must be

completed before opening the service valves.

STEP 1 - Remove service valve cap.

STEP 2 - Fully insert 3/16” hex wrench into the

stem and back out counterclockwise until valve

stem just touches the rolled edge (approximately

five (5) turns.)

STEP 3 - Replace the valve cap to prevent leaks.

Tighten finger tight plus an additional 1/6 turn.

Cap

Rolled Edge to

Captivate Stem

Hex Headed

Valve System

Service Port

3/16” Hex Wrench

Unit Side

of Service

Valve

Extreme caution should be exercised when

opening the Liquid Line Service Valve. Turn

counterclockwise until the valve stem just

touches the rolled edge. No torque is required.

Failure to follow this warning will result in abrupt

release of system charge and may result in

personal injury and /or property damage.

Section 11. Electrical - Low Voltage

11.1 Low Voltage Maximum Wire Length

Table 11.1 defines the maximum total length of

low voltage wiring from the outdoor unit, to the

indoor unit, and to the thermostat.

Table 11.1

24 VOLTS

WIRE SIZE MAX. WIRE LENGTH

18 AWG 150 Ft.

16 AWG 225 Ft.

14 AWG 300 Ft.

WARNING

This manual suits for next models

Table of contents

Other Trane Heat Pump manuals

Trane

Trane XR13 User manual

Trane

Trane Horizon OABE Installation and operating instructions

Trane

Trane FLEX HP HT Owner's manual

Trane

Trane Axiom GEHE006 Installation and operating instructions

Trane

Trane Variable Speed ComfortLink II 4TWV8024A1000B Assembly instructions

Trane

Trane XL14i User manual

Trane

Trane 4WCZ6036B3000A User manual

Trane

Trane Exergy S 180 User manual

Trane

Trane WCY024G1 Instruction manual

Trane

Trane RAUP 250 Owner's manual

Trane

Trane 2TWB0-UM-2 Installation instructions

Trane

Trane Axiom EXH Series Installation and operating instructions

Trane

Trane WCK024B1 Owner's manual

Trane

Trane Axiom EXHF006 Installation and operating instructions

Trane

Trane Exergy RE 210 User manual

Trane

Trane WCC030 Operation manual

Trane

Trane IC-IH 039 Owner's manual

Trane

Trane 4TTA4 User manual

Trane

Trane 4YCY4024 Assembly instructions

Trane

Trane WEATHERTRON 4TWX6 Assembly instructions

Trane

Trane A4HP4 User manual

Trane

Trane Thermo King SPECTRUM T-90 Series User manual

Trane

Trane CAUC-C20 Owner's manual

Trane

Trane A4AC4018A Assembly instructions

Popular Heat Pump manuals by other brands

MICROWELL

MICROWELL HP 1000 GREEN Installation and user manual

Sanyo

Sanyo SAP120FCH Service manual

Daikin

Daikin EHYHBH05AA Operation manual

Panasonic

Panasonic WH-SDF03E3E5 Design handbook

Bryant

Bryant 544B Specifications

Airxcel

Airxcel 45000 Series Installation, operation and maintenance instructions

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Service manual

Dimplex

Dimplex LI 16I-TUR Installation and operating instruction

Carrier

Carrier WSHP Open v3 Integration guide

TGM

TGM CTV14CN018A Technical manual

Carrier

Carrier 38MGQ Series installation instructions

Kokido

Kokido K2O K880BX/EU Owner's manual & installation guide

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Installation and service instructions

Carrier

Carrier 48EZN installation instructions

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Installation and service instructions for contractors

Ariston

Ariston NIMBUS user manual

Weishaupt

Weishaupt WWP L 7 Installation and operating instruction

GE Zoneline AZ85H09EAC datasheet
