Trane BAYECCK001 Assembly instructions

SSAAFFEETTYY WWAARRNNIINNGG

Only qualified personnel should install and service the equipment The installation, starting up, and servicing of heating, ventilating, and air-conditioning

equipment can be hazardous and requires specific knowledge and training Improperly installed, adjusted or altered equipment by an unqualified person

could result in death or serious injury When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that

are attached to the equipment

September 2021 1188--HHHH3366DD11--11AA--EENN

Extreme Coastal Conditions Kit

BBAAYYEECCCCKK000011

(For all beach front variable speed outdoor units)

NNOOTTEE:: “Graphics in this document are for representation

only. Actual model may differ in appearance.”

Installer’s Guide

SAFETY SECTION

IImmppoorrttaanntt — This document contains service

information This is customer property and is to remain

with this unit Please return to service information pack

upon completion of work

WWAARRNNIINNGG

HHAAZZAARRDDOOUUSS VVOOLLTTAAGGEE!!

FFaaiilluurree ttoo ffoollllooww tthhiiss WWaarrnniinngg ccoouulldd rreessuulltt iinn

pprrooppeerrttyy ddaammaaggee,, sseevveerree ppeerrssoonnaall iinnjjuurryy,, oorr

ddeeaatthh

DDiissccoonnnneecctt aallll eelleeccttrriicc ppoowweerr,, iinncclluuddiinngg rreemmoottee

ddiissccoonnnneeccttss bbeeffoorree sseerrvviicciinngg FFoollllooww pprrooppeerr

lloocckkoouutt//ttaaggoouutt pprroocceedduurreess ttoo eennssuurree tthhee ppoowweerr

ccaannnnoott bbee iinnaaddvveerrtteennttllyy eenneerrggiizzeedd

CCAAUUTTIIOONN

SSAAFFEETTYY HHAAZZAARRDD!!

FFaaiilluurree ttoo ffoollllooww tthhiiss CCaauuttiioonn ccoouulldd rreessuulltt iinn

ppeerrssoonnaall iinnjjuurryy

BBee ccaarreeffuull wwiitthh tthhee aaddhheessiivvee mmaatteerriiaall,, aass iitt iiss vveerryy

ssttrroonngg aanndd ccaann ccaauussee ddaammaaggee ttoo tthhee hhaannddss

WWAARRNNIINNGG

WWaarrnniinngg!!

TThhiiss pprroodduucctt ccaann eexxppoossee yyoouu ttoo cchheemmiiccaallss

iinncclluuddiinngg lleeaadd wwhhiicchh aarree kknnoowwnn ttoo tthhee SSttaattee ooff

CCaalliiffoorrnniiaa ttoo ccaauussee ccaanncceerr aanndd bbiirrtthh ddeeffeeccttss oorr

ootthheerr rreepprroodduuccttiivvee hhaarrmm

FFoorr mmoorree iinnffoorrmmaattiioonn ggoo ttoo wwwwww PP6655WWaarrnniinnggss ccaa

ggoovv

CCAAUUTTIIOONN

SSHHAARRPP EEDDGGEE HHAAZZAARRDD!!

FFaaiilluurree ttoo ffoollllooww tthhiiss CCaauuttiioonn ccoouulldd rreessuulltt iinn

pprrooppeerrttyy ddaammaaggee oorr ppeerrssoonnaall iinnjjuurryy

BBee ccaarreeffuull ooff sshhaarrpp eeddggeess oonn eeqquuiippmmeenntt oorr aannyy

ccuuttss mmaaddee oonn sshheeeett mmeettaall wwhhiillee iinnssttaalllliinngg oorr

sseerrvviicciinngg

18-HH36D1-1A-EN 3

General Data 4 Installation Instructions 5

Table of Contents

418-HH36D1-1A-EN

General Data

This kit will be installed in all of the ariable speed

outdoor units that are installed in coastal

en ironments. This kit will pre ent the ariable speed

dri es from corrosion due to excessi e salt deposits.

KKiitt CCoonntteennttss::

Top Foam

Qty. 1

Side Foam

Qty. 2

Bottom Foam

Qty. 1

Short Foam

Qty. 3

Grommet

Qty. 2

FFiieelldd SSuupppplliieedd TToooollss aanndd SSuupppplliieess::

• Silicone (for filling holes and gaps)

• 1/4” Socket and 5/16” Socket for drill

• Scissors (to adjust foam if needed)

• Duct Tape

IInnssppeeccttiioonn::

Check carefully for any shipping damage This must be

reported to and claims made against the transportation

company immediately Any missing parts should be

reported to your supplier at once and replaced with

authorized parts only

18-HH36D1-1A-EN 5

Installation Instructions

NNoottee:: For all installations, make sure the surface is

clean and clear of debris to make sure proper

adhesion.

FFooaamm IInnssttaallllaattiioonn oonnttoo tthhee CCoonnttrrooll BBooxx CCoovveerr

1 Disconnect the main power supply to the outdoor

unit and wait for 2 minutes before installation

2 Remove the control box cover from the unit See

Figure 1, p 5

Figure . Control Box Cover Removal

3 Place the control box cover on a stable surface with

the inside surface facing upwards

See Figure 2, p 5

Figure 2. Control Box Cover

4 Remove the adhesive backing from both the side

foams

5 Align and attach the side foams to each of the

longer side edges of the control box cover See

Figure 3, p 5

NNoottee:: If the co er is shorter, cut the foams to the

correct length.

6 Remove the adhesive backing from the bottom

foam

7 Attach the bottom foam onto the bottom flange of

the control box cover and between the side foams

See Figure 3, p 5

Figure 3. Install Side and Bottom Foams

Side Foam

Bottom Foam

FFooaamm IInnssttaallllaattiioonn oonn tthhee UUnniitt

1 Install Duct Tape

a Cut two (2) pieces of duct tape of length 1 ½"

and width ¾" respectively

b Attach one (1) piece of duct tape over the gap

near the copper tube entry See Figure 4, p 6

c Attach the other piece of duct tape over the two

(2) holes in the bottom plate See Figure 4, p 6

NNoottee:: If required, use silicone to fill the holes.

618-HH36D1-1A-EN

Figure 4. Duct Tape Installation

Duct Tape

2 Install Foam in the Control Box

a Remove the adhesive backing from two (2)

grommets

b Attach one (1) grommet onto the compressor

harness Make sure the split side of the

grommet is as closed as possible See

Figure 5, p 6

c Attach the other grommet onto the harness

grommet Make sure the split side of the

grommet is as closed as possible See

Figure 5, p 6

Figure 5. Grommets Installation

Grommet (x 2)

d Make sure the grommets are sealed properly

around the harnesses

e Locate three (3) short foam pieces from the kit

contents and remove the adhesive backing from

all the short foam pieces

f Attach two (2) short foam pieces each on the left

side and right side of the bottom plate to seal

the gaps See Figure 6, p 6

g Attach the other short foam piece onto the duct

tape and the grommet on the copper tube Make

sure the right side face of the short foam piece

is flush against the front face of the grommet

See Figure 6, p 6

Figure 6. Install Short Foams

Short

Foam

Short

Foam

Bottom

Plate

Duct

Tape

3 Apply Silicone

a Use silicone to seal gaps around the copper

tube and the plastic compressor grommets See

Figure 7, p 6

Figure 7. Apply Silicone

Silicone

IInnssttaallllaattiioonn IInnssttrruuccttiioonnss

18-HH36D1-1A-EN 7

b Use silicone to seal the gaps between the two

sheet metal parts and between the bottom plate

and rear wall See Figure 8, p 7

Figure 8. Silicone on Sheet Metal Parts

Silicone

c Seal the unused screw holes with silicone in the

control box See Figure 9, p 7

NNoottee:: The number of unused holes may ary

depends on the type of ariable speed

models used.

Figure 9. Silicone on Empty Screw Holes

Silicone

4 Install Foam to the Unit Top

a Remove the unit top See Figure 10, p 7

Figure 0. Unit Top Removal

Unit Top

b Remove the fan and fan shroud to gain access

to the bottom of the shroud Take the top foam

piece, remove the adhesive backing and attach

it onto the top of the existing foam piece on the

bottom of the shroud See Figure 11, p 7

Figure . Install Foam - Fan Shroud

Top Foam

Fan Shroud

IInnssttaallllaattiioonn IInnssttrruuccttiioonnss

818-HH36D1-1A-EN

c Re-install the fan shroud and unit top See

Figure 12, p 8

Figure 2. Fan Shroud and Unit Top Installation

Unit Top

RRee--IInnssttaallll CCoonnttrrooll CCoovveerr BBooxx

1 Once all previous steps are completed, remove the

bottom cover plate See Figure 13, p 8

Figure 3. Bottom Cover Plate Removal

Bottom

Cover Plate

2 Re-install the control box cover that was removed

earlier See Figure 14, p 8

Figure 4. Control Box Cover Installation

Control Box

Cover

a When installing the screws, be careful to not

strip the threads of the main unit If any

screws do strip, install a slightly larger screw

to ensure the control box cover is fastened

securely and the foam underneath is

compressed

b Make sure that the bottom flange of the

control box cover is below the bottom plate

of the control box

c Make sure that the bottom lip of the bottom

plate is compressed against the foam on the

control box cover to provide a tight seal

around the bottom of the control box cover

IInnssttaallllaattiioonn IInnssttrruuccttiioonnss

18-HH36D1-1A-EN 9

3 Re-install bottom cover plate See Figure 15, p 9

Figure 5. Bottom Cover Plate Installation

Bottom

Cover Plate

4 Connect the power to the unit

IInnssttaallllaattiioonn IInnssttrruuccttiioonnss

10 18-HH36D1-1A-EN

NNootteess

Table of contents

Other Trane Chiller manuals

Trane

Trane CITY RTSF Series User manual

Trane

Trane RTAF SE Series Owner's manual

Trane

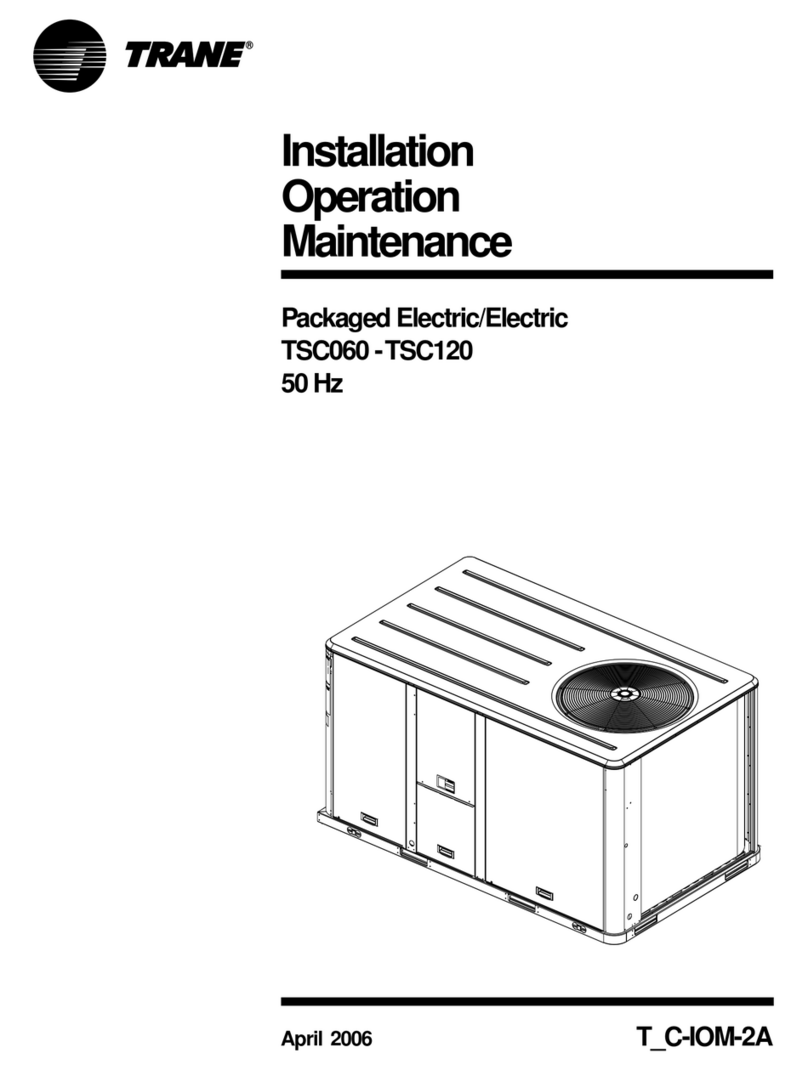

Trane Precedent TSC060 Owner's manual
