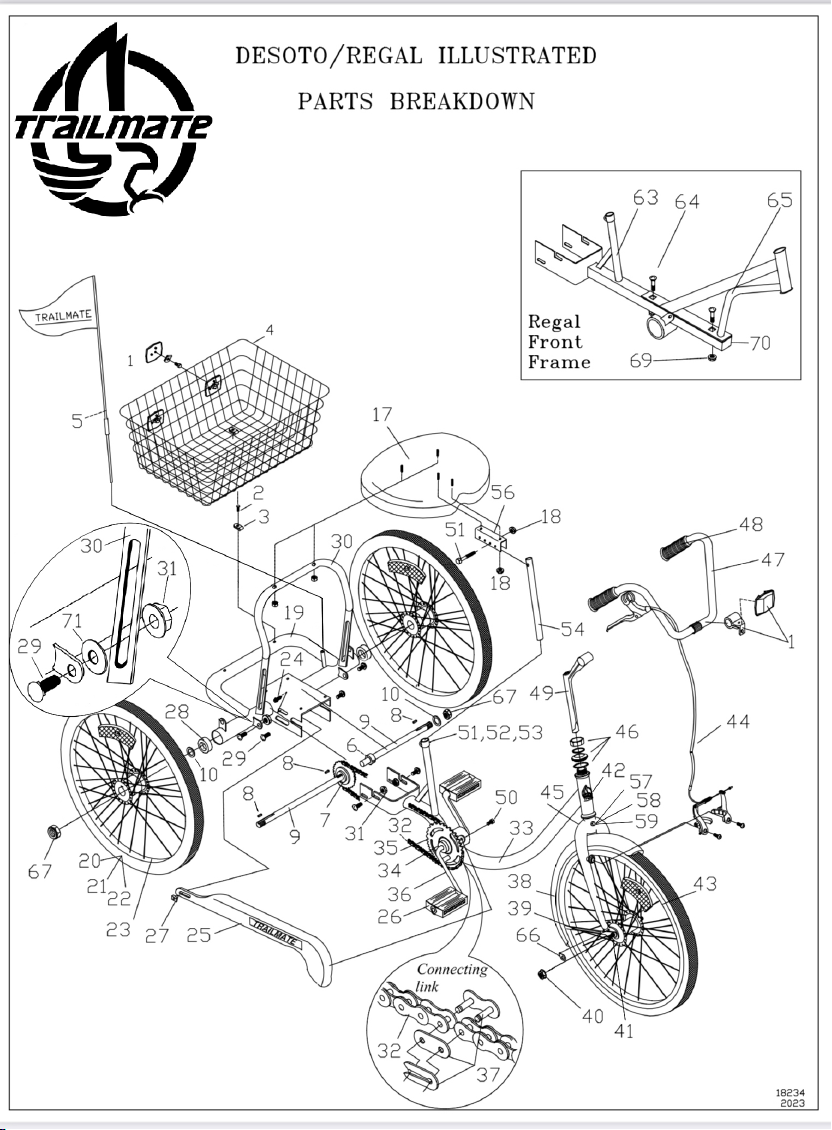

7. Chainguard
Place chainguard (25) over chain &
slide rear under top of transmission
box rear. Attach using screw & u-nut
on chainguard (24) & (27). Before
tightening line up hole in front
mounting bracket by removing &
re-installing screw (50). Tighten both
ends until chainguard is lined up. Turn
pedals to ensure chain does not rub
on chainguard. Adjust front & rear
alignment of chainguard if it does until
rubbing ceases.
8. Western Saddle Seat & Sissy Bar
Secure sissy bar (30) to the 2 studs
on bottom of the seat (17). Sissy bar
should be installed so the top curves
to the rear of the trike. Remove
hardware (55) & (18) from
seat-mounting bracket (56) & install
on the 2 remaining studs on bottom of
seat (17). Secure seat post (54) back
on to bracket (56) using any of the 4
sets of holes in the bracket
NOTE: These holes will determine the
distance sitting from the handlebar.
Attach sissy bar long slotted holes to
the 2 tabs welded to rear axle
housing. Install washers (71) in
between sissy bar & tabs then secure
with carriage bolts (29) and nuts (31)
DO NOT tighten at this time.
9. Handlebar
Slide handlebar (47) through clamp on
stem (49) with portion of long bolt to
rear. Install clear reflector & bracket
(1). Install stem (49) into fork (45) until
line marked on stem is not visible.
Align handlebar to fork as it faces
straight ahead & tighten bolt in stem
firmly. DO NOT overtighten as this
can damage fork tube. Check that
headset (46) is tight DO NOT
overtighten as this can damage fork
bearings. Fork should rotate freely
without binding. Slide hand brake
lever (44) onto right side of handlebar
& loosely tighten. Slide hand grips
(48) on handlebar until they bottom
out. A small amount of soapy water
placed inside can help make
installation easier.NEVER use oil or
other lubricants. Slide handbrake
lever lever against grip, adjust position
& secure tightly.
10. Cantilever Brake Installation
Insert “ball” end of cable into round
slot of brake lever. Slide open end of
cable through cable guide & cable
guide into cable guide holder. Slide
cable boot onto cable (open end first).
Feed brake cable wire through hole
on the lock bolt (cable clamp) &
snugly tighten clamp. Pull slack out of
cable so brake pad faces are within
⅛” of the wheel.
DESOTO CLASSIC & EZ ROLL REGAL
ASSEMBLY INSTRUCTIONS
