TPC H6005 User manual

TPC

H6000, 6005 & 6025 Handpiece Cleaning

and Lubrication System

User Manual

TPCAdvanced Technology

851 S. Lawson St.

City Of Industry CA 91748

www.tpcdental.com

REV. 1-1-13

TPC

Installation instruction

Place the H6000 in a location

where you have an air line.

Generally this location will be

located near your sterilization

area. You will also need an

electrical outlet, Connect your air

line and electrical.

Fill lubrication reservoir with the

supplied lubrication fluid. Make

sure not to over fill the reservoir

or spillage will occur. After

filling, be sure to tighten the oil

reservoir cap.

Place absorbent pads into place.

These pads will absorb any

excess lubrication that is

released in the chamber. The

pads need to be replaced every

tank cycle.

TPC

Operation Instructions

Open the door and attach up to 3

handpieces to the unit

•When attaching high speed

handpieces be sure to

tighten the handpiece

securely to the nut.

•When attaching straight

noise cone and contra

angles, make sure that the

latch attach is secure.

Notice the latch is not flush with

the stem of the E-type connector.

NOT CORRECT

Notice how all the latches are almost

flush with the connector.

Correct

TPC

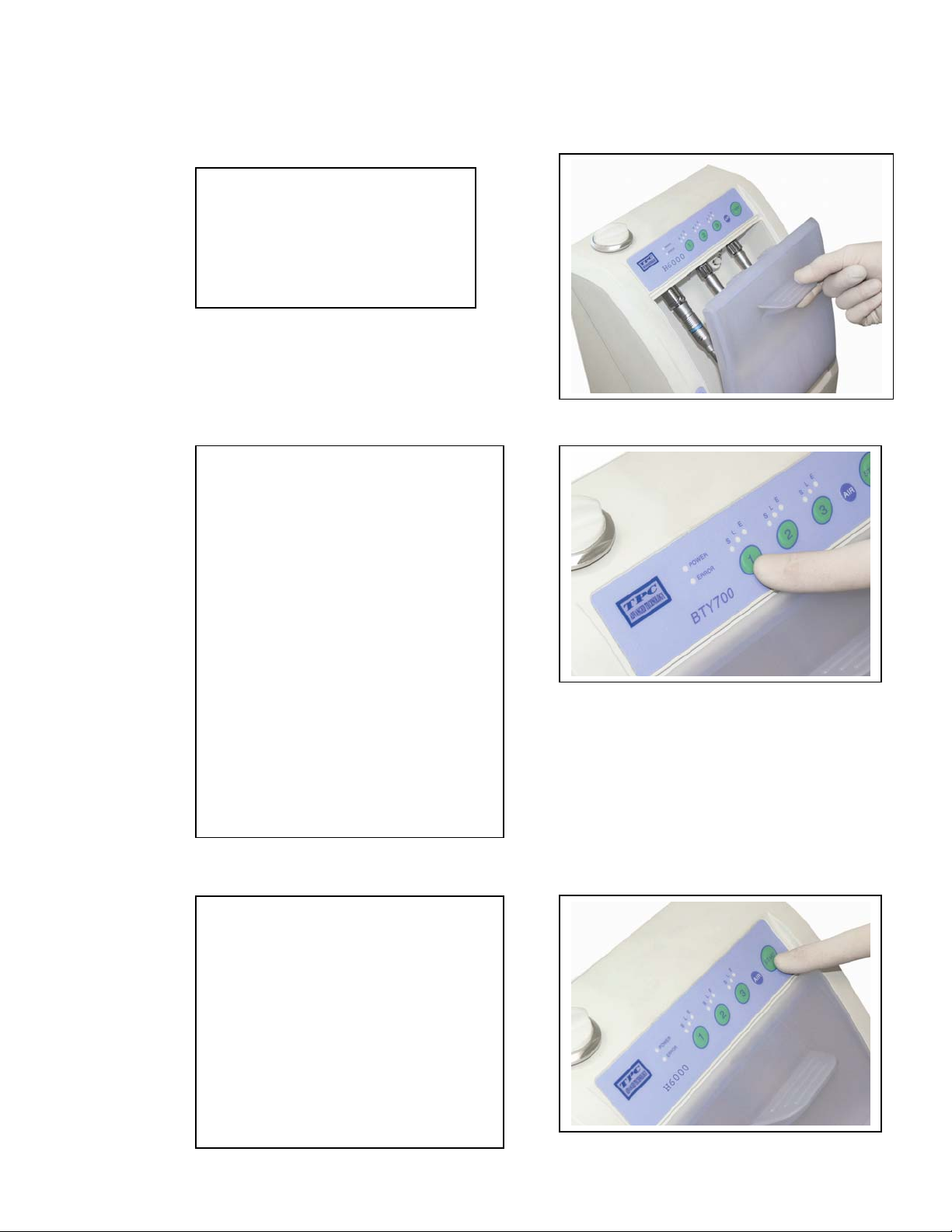

After attaching handpieces, close

the door. The unit will not operate

if the door is not properly closed.

Select the S (Short-35 second cycle),

L (Long-45 second cycle) or E (Extra

long-50 second cycle) for each

individual handpiece. If no light for

1,2 or 3 is illuminated the position is

turned off.

•SHORT CYCLE For high

speed handpieces

•LONG CYCLE For low

speed handpieces & air

motors

•EXTRA LONG CYCLE For

speed reduction handpieces

•NO LIGHT ILLUMINATED

Hand Piece position is in the

off position

Press the start button. In less than 3

minutes all handpieces are correctly

cleaned and lubricated. (3 minutes for

3 handpieces)

TPC

10.

Press the air button if you wish to

run a cycle of only air through your

handpieces. This process removes

any excess lubrication fluid from

the turbine

Remove your handpieces from the

unit. Lubrication and cleaning is

now complete. To remove the

handpiece turn the HP nut counter

clockwise to un-screw it.

For E-type attachments press the

button release to unlock and

remove the straight noise cone or

contra angle.

You may proceed to sterilization (if

necessary).

You may adjust the pressure in the

reservoir to adjust the amount of air

pressure that is supplied to the hand

piece. Pull the knob outward to

unlock it. Turn the knob counter

clockwise to lower the pressure.

Turn the knob clockwise to increase

the pressure. Reference the air

pressure gauge on the side of the

unit to verify the set pressure.

The silver knob located next to the

air pressure adjustment knob is

used to regulate the amount of oil

that is dispensed in a cycle. If you

wish to increase the amount of oil,

turn the valve counter clockwise. If

you wish to decrease the amount

turn the valve clockwise. This must

be adjusted prior to starting a cycle.

TPC

Overview of Controls

Lubrication reservoir

fill cap.

Lubrication chamber

level indicator.

Absorbent Door Strips

Re-order # 6135

Mist Filter

Re-order # H6130

Door, Keeps

lubrication in the

chamber when in

operation.

Error light will

illuminate when the

door is opened or there

is a malfunction in the

system

Start button: Starts the

cycle of the H6000

when pressed.

Door switch. When

the door is not closed

the unit will not

erate.

Three handpiece

locations.

Air button, only runs

air through the hand

pieces. No

lubrication is being

discharged.
