TP-Link TD-W8910G User manual

ADSL2/2+ MODEM WITH 54M WIRELESS ROUTER

3-IN-1 DEVICE

The TP-Link ADSL2/2+ Modem with 54M Wireless Router (TD-W8910G) is a 3-in-1 device that combines the function of a high-speed DSL modem,

eXtended Range™ wireless G access point, and 4-port Ethernet router. The TD-W8910G supports the latest ADSL2/2+ standards to provide higher

performance (up to 24Mbps downstream and 1Mbps upstream) and longer reach from your Internet Service Provider’s (ISP) Digital Subscriber Line

Access Multiplexer (DSLAM).

ACCESS HIGH-SPEED INTERNET

Unlike a dial-up Internet service, a DSL Internet connection is always on so that you do not have to wait to access the Web. This device also

supports TR-069, which automatically updates the firmware and other settings when they become available from your ISP.

CONNECT NETWORKING DEVICES – WIRED OR WIRELESS

With the TD-W8910G, you can create a wireless network to connect 802.11g/802.11b devices as well as a wired network to connect up to four

10/100 Ethernet devices. Share your high-speed DSL Internet connection, photos, music, videos, printers, and Network Attached Storage (NAS) with

multiple users. The TD-W8910G includes a built-in QoS engine that helps prioritize Internet traffic to enable smooth Internet phone calls (VoIP) and

lag-free online gaming. In addition, this device includes Dual Active Firewalls (built-in firewall and NAT) to help protect your network from potential

attacks from across the Internet. To prevent unauthorized wireless access into your network, the TD-W8910G supports the latest encryption including

WEP, WPA, and WPA2.

Whether it is for a home user who wants to share high-speed Internet access or for a small office that needs Internet access for conducting essential

business activities, the ADSL2/2+ Modem with 54M Wireless Router (TD-W8910G) is the ideal all-in-one broadband and wireless networking

solution.

WHAT THIS PRODUCT DOES

The TP-Link ADSL2/2+ Modem with 54M Wireless Router (TD-W8910G) combines the function of a high-speed DSL modem, eXtended Range™

wireless G access point, and 4-port router. With automatic scanning and detection of your DSL settings, the TD-W8910G quickly sets up your Internet

connection. Easily create a secure wireless network and share a high-speed Internet connection while allowing access to shared files, music, photos,

and printers with multiple computers.

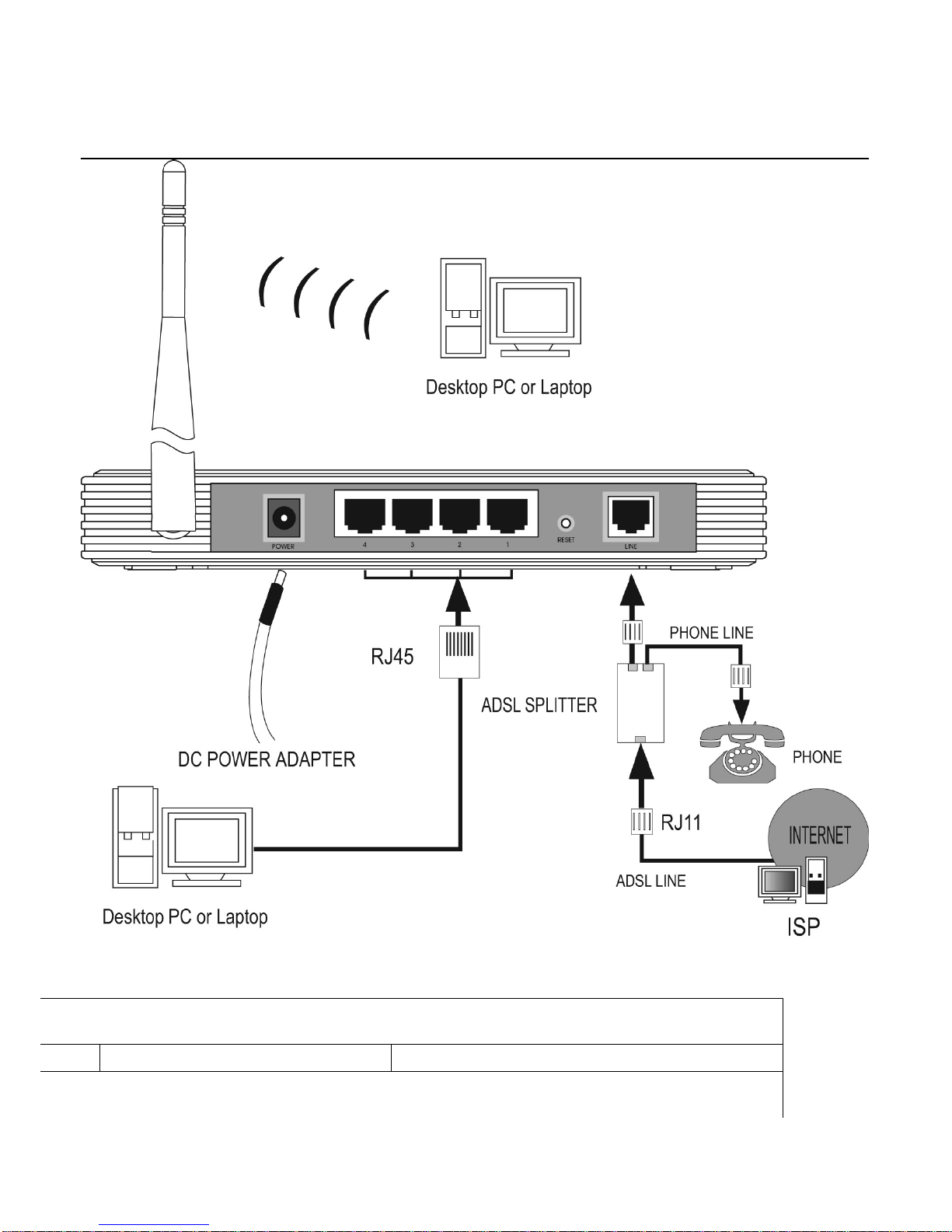

YOUR NETWORK SETUP

TECHNICAL SPECIFICATIONS

Specifications of TD-W8910G

subitem DESCRIPTION SPECIFICATIONS

PHYSICAL SPECIFICATIONS

1.1 WAN interface 1 RJ11 port

1.2 LAN interface 4 ethernet port, support 802.3,802.3u

1.3 Status indicators Power,System,ADSL,WLAN,LAN1~4

ELECTRICAL SPECIFICATIONS

2.1 Output voltage 12VDC, 1.0A

2.2 Power consumption 10W

ENVIRONMENT SPECIFICATIONS

3.1 Operating temperature 0°C~40°C

3.2 Storage temperature -40°C~70°C

3.3 Relative humidity 10% ~ 90%, non condensation

ADSL SPECIFICATIONS

4.1 Modulation T1.143 I2,G. 992.1 (G.dmt),G.992.2 (G.lite),G.992.3(G.dmt.bis),

G.992.5. Support Annex A/B/C/L

4.2 Data velocity Max downstream velocity 24Mbps(with ADSL2+ enabled), Max

upstream velocity 1Mbps

4.3 Transfering distance Max 6 kilometers

4.4 Negociation process for speed, bandwidth and latency, sinchronicity and ADSL

activation based on ITU-T G.994.1 (G.hs)

4.5 Interoperability

Interoperability with DSLAM equipment that uses G. 992.1

(G.DMT), G.992.2 (G.Lite), G.992.3(G.dmt.bis), G.992.5 and

G.994.1(G.hs)

ATM SPECIFICATIONS

5.1.1 ATM Forum UNI 3.1

5.1.2 ATM Adaptation Layer Type 5-AAL5

5.1.3 ATM Adaptation Layer Type 0-AAL0

5.1.4

Protocolos ATM

Multiprotocol encapsulation over ATM (RFC 1483)

(bridge&router modes)

5.2.1 Unspecified Bit Rate (UBR)

5.2.2 Constant Bit Rate (CBR)

5.2.3 Variable Bit Rate with real time(VBR-rt)

5.2.4

Service Clases of ATM

Variable Bit Rate without real time(VBR-nrt)

5.3 Virtual Circuits 8PVC

Switching SPECIFICATIONS

6.1 Qulity of Service(QOS) IP Type of service(ToS), 802.1p

6.2 IGMP IGMP snooping,IGMP multicast

MANAGEMENT SPECIFICATIONS

7.1.1 Backup settings

7.1.2 Update settings

7.1.3 restore factory default settings

7.1.4 LAN configuration

7.1.5 ADSL configuration

7.1.6 ATM parameters configuration

7.1.7 Access control

7.1.8 Remote administration configuration

7.1.9

Administrative tools

Autodiagnostics

7.2.1 LAN connectivity

7.2.2 CPE Sincronization

7.2.3 ATM conectivity

7.2.4 PPP conectivity

7.2.5 IP conectivity

7.2.6

Diagnostic Tools

PACKET Internetwork Groper (PING)

7.3 Access control Services, IP address, Password

7.4 IP aliasing local users can access the device through two IPs

7.5 Management Interface HTTP

7.6 Compatibility with management agents CPE WAN Management Protocol (TR69)

7.7 Remote administration Remotely administrable by HTTP

7.8 Software upgrade Administration and operation software (firmware) upgradable

locally by web

7.9 Authentication Auto,PAP,CHAP,MS-CHAP

7.10 Security management IP filterling, MAC filtering, Parental control

ROUTING SPECIFICATIONS

8.1.1 PPP over ATM (RFC 2364)

8.1.2 Protocolos PPP PPP over Ethernet (RFC 2516)

8.2.1 Clasical IP over ATM (RFC 1577/2225)

8.2.2 Routing Information Protocol- RIP Versión 1(RFC 1058)

8.2.3 Routing Information Protocol -RIP Versión 2 (RFC 1723)

8.2.4 Static routing

8.2.5 IP

8.2.6 TCP

8.2.7 UDP

8.2.8

Routing protocols

Address Resolution Protocol ARP (RFC 826)

8.3.1 Network Address Port Translation (NAPT)

8.3.2 Network Address Traslation (NAT)(RFC 3022)

8.3.3 Domain Name Server Proxy (DNS)

8.3.4 Dynamic Domain Name Server (DDNS)

8.3.5

Addressing

Dynamic Host Configuration Protocol DHCP- Server (RFC

2131).

8.4 NAT supporting UPnP,Virtual Server,Port Trigger,SIP (RFC 3261, 3262), H.323,

VPN passthrough

WIRELESS SPECIFICATIONS

9.1 Standards 802.11g, 802.11b

9.2 Frequency range 2.400-2.4835GHz

9.3 Wireless signal rates 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, & 1Mbps

9.4 Wireless operating range Indoor up to100m, Outdoor up to 300m

9.5.1 Differentially coherent Binary PSK(DBPSK)

9.5.2 Differential Quadrature Phase Shift Keying(DQPSK)

9.5.3 Orthogonal Frequency Division Multiplexing (OFDM)

9.5.4

Modulation technology

Complementary Code Keying (CCK)

9.6.1 Wired Equivalent Privacy(WEP), support 64/128/152 bit

9.6.2 Wi-Fi Protected Access(WPA), support WPA/WPA-PSK

WPA2/WPA2-PSK

9.3.3

Wireless security

MAC Filtering

9.7 Wireless transmit power 17dbm

9.8 Antenna type Omni directional, Detachable, Reverse SMA

9.6 Antenna power 3dbm

INTERNATIONAL STANDARDS

10.1.1 FCC part 15 class B

10.1.2 EN 300 328

10.1.3 EN 301 489

10.1.4 EN 55022

10.1.5

Emissions

EN55024

10.2 Security EN 60950

MINIMUM SYSTEM REQUIREMENTS

Subscription with DSL Internet Service Provider

Computer with a Network Interface Card

PACKAGE CONTENTS

One TD-W8910G 54M Wireless ADSL2+ Router

One DC power Adapter for TD-W8910G 54M Wireless ADSL2+ Router

Quick Installation Guide

One RJ45 cable

Two RJ11 cables

One ADSL splitter

One Resource CD for TD-W8910G 54M Wireless ADSL2+ Router, including:

zUser Guide

zOther Helpful Information

1. ADSL speeds may vary depending on your individual contract with or services offered by your Internet Service Provider (ISP) and the distance of the modem from the ISP’s DSLAM.

2. Latest software and documentation are available at http://www.tp-link.com.

3. All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, actual product appearance may differ than that depicted herein.
