Ceiling Mount Access Point

Installation Guide

Guía de Instalación

Guide d'installation

Guia de Instalação

CONTENTS

English..................................................................................................1

Español.................................................................................................7

Français..............................................................................................13

Português ...........................................................................................19

English

Note: The image may differ from the actual product.

Network Topology

A typical network topology for the EAP is shown below.

EAP Controller

A DHCP server (typically a router) is required to assign IP addresses to the EAPs

and clients in your local network. A computer running the EAP Controller software,

which can be in the same or different subnet with the EAPs, is used to centrally

manage the EAPs.

You can get the EAP Controller software from our website http://www.tp-link.com.

Hardware Installation

■Option1：

Ceiling Rail Mounting

Follow the steps below to install the EAP with the provided accessories:

1Position the Ceiling T-rail Clip and push the

movable part toward the rail base.

Controller

Host

Router Switch Clients

Ceiling T-rail Clip M3×6 Pan-head Screws (Qty.5)

Internet

EAP

English

2Use an M3×6 pan-head screw to secure the T-rail

Clip onto the ceiling rail.

3Attach the mounting bracket to the Ceiling T-rail

Clip using four M3x6 pan-head screws.

4Make the Ethernet Cable pass through the fixing

hole of the mounting bracket. Connect the cable

to the ETHERNET port and attach the EAP to the

bracket.

5Push the EAP along the direction of arrows until

it locks into place. Then adjust the cable to make

the exposed part hidden behind the EAP.

English

■Option2：

Ceiling Mounting

Follow the steps below to install the EAP with the provided accessories:

1Remove the ceiling tile.

2Place the mounting bracket in the center of

the ceiling tile. Mark the four positions of

the screw holes and a hole for the Ethernet

cable to feed through. Drill four 4mm holes

for the screws and a 10mm hole for the

Ethernet cable.

3Secure the mounting bracket to the ceiling

tile using four M3x30 pan-head screws,

washers and wing nuts.

Washers

(Qty.4)

M3×30 Pan-head Screws

(Qty.4)

Wing Nuts

(Qty.4)

Hole for Ethernet cable

English

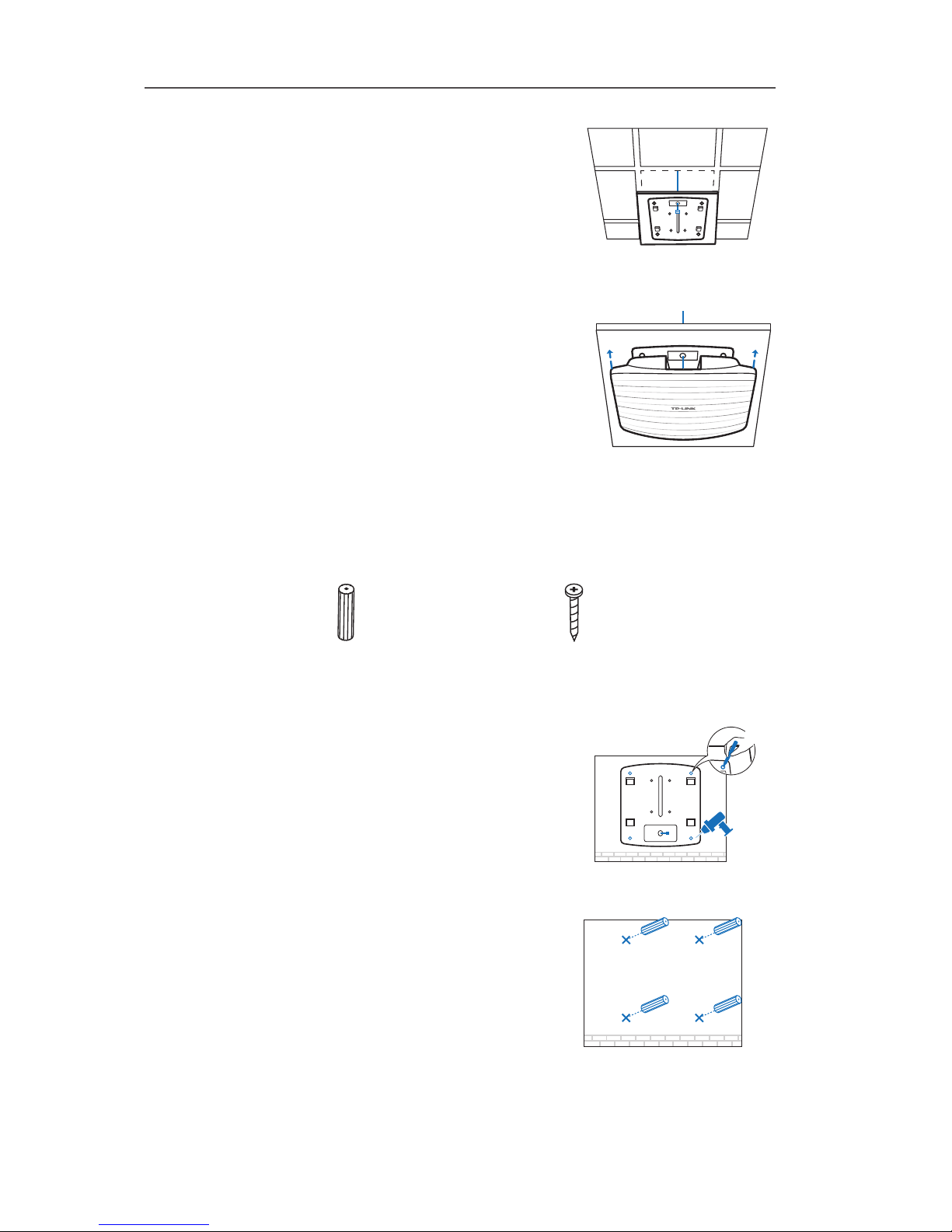

4Feed the Ethernet cable through the hole.

Then set the ceiling tile back into place.

5Connect the Ethernet cable to the

ETHERNET port and push the EAP along

the direction of arrows until it locks into place.

Then adjust the cable to make the exposed

part hidden behind the EAP.

■Option3：

Wall Mounting

Follow the steps below to install the EAP with the provided accessories:

Note: We do not recommend you to install the EAP with the Ethernet port upward.

1If your Ethernet cable feeds through the wall,

you can position the mounting bracket to make

the cable through the fixing hole. Mark the four

positions of the screw holes and then drill four

6mm holes.

2Insert the plastic wall anchors into the 6mm

holes.

M3×28 Plastic Wall Anchors

(Qty.4)

M3×20 Self-tapping Screws

(Qty.4)

English

3Secure the mounting bracket to the wall

by driving the self-tapping screws into the

anchors. Make sure that the shoulders of the

mounting bracket are on the outside.

4Connect the Ethernet cable to the ETHERNET

port on the EAP and attach the EAP to the

mounting bracket.

5Push the EAP along the direction of arrows

until it locks into place, and then adjust the

cable to make the exposed part hidden behind

t he E A P.

English

Power Supply

EAP can be powered via a PSE device (such as a PoE switch) or a power adapter.

■Via PoE Switch

Connect the Ethernet cable from the PoE switch to the ETHERNET port.

■Via Power Adapter

Plug one end of the provided power adapter into the POWER port of the EAP and

the other end to a standard electrical wall outlet.

Switch

PoE Switch

Español

Nota: La imagen puede diferir del producto actual.

Topología de la Red

Una topología de red típica para el EAP se muestra a continuación.

EAP Controller

Se requiere un servidor DHCP (típicamente un router) para asignar las direcciones

IP a los EAPs y a los clientes en su red local. Una computadora que ejecute el

software del Controlador EAP, la cual puede estar la misma o en diferente subred

de los EAPs, se usa para administrar de manera central los EAPs.

Puede obtener el software del Controlador del EAP desde nuestro sitio web

http://www.tp-link.com.

Instalación del Equipo

■Opción 1: Montaje sobre carriles en el techo

Seguir los pasos que se muestran a continuación para instalar el EAP con los

accesorios suministrados:

1Posicionar el sujeta-carril en T para techo y

empujar la parte movible hacia la base del carril.

Host del

Controlador

Router Switch Clientes

Sujeta-carril en T

para techo

Tornillos de cabeza plana M3×6

(Cantidad 5)

Internet

EAP

Español

2Usar un tornillo de cabeza plana M3×6 para fijar

el sujeta-carril en T sobre el carril del techo.

3Fijar el soporte de montaje al sujeta-carril en T

para techo usando cuatro tornillos de cabeza

plana M3x6.

4Hacer que el cable Ethernet pase a través

del orificio de fijación del soporte de montaje.

Conectar el cable de red al puerto ETHERNET y

fijar el EAP al soporte.

5Empujar el EAP a lo largo de la dirección de las

flechas hasta que quede fijo en su sitio. Después

ajustar el cable para ocultar la parte expuesta

detrás del EAP.
