TP-Link JetStream TL-SL5428E User manual

Quick Installation Guide

TL-SL5428E

24-port 10/100Mbps + 4-port Gigabit

L2 Managed Switch

Rev 1.0.0

Specifications are subject to change without notice. is a

registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands

and product names are trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means

or used to make any derivative such as translation, transformation, or

adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

http://www.tp-link.com

Technical Support

Tel: +86 755 26504400

E-mail: [email protected]

Monday to Friday 8:30 to 18:00 Beijing Time GMT+ 8

Package Contents

The following items should be found in your box:

¾One L2 Managed Switch

¾One Power Cord

¾One Console Cable

¾One Ground Cable

¾This Quick Installation Guide

¾Resource CD for the Switch, including:

•User Guide

•Other Helpful Information

¾Two mounting brackets and the fittings

Note:

Make sure that the package contains the above items. If any of the listed items

is damaged or missing, please contact with your distributor.

Preface

Thank you for purchasing the L2 Managed Switch! This Quick Installation

Guide provides the friendly step-by-step instructions for setting up the L2

Managed Switch.

1. How to use this Quick Installation Guide?

This Quick Installation Guide is structured as follows:

Chapter 1 Product Introduction

This chapter describes the External Components of the Switch.

Chapter 2 Installation

This chapter illustrates how to install the Switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the Switch.

Chapter 4 Login to the Switch

This chapter instructs you to log in to the web management page of the Switch.

FAQ

This chapter contains information to help you solve the issues.

Appendix A: Specifications

This appendix provides the Switch’s technical specifications.

2. Conventions

The Switch or TL-SL5428E mentioned in this Quick Installation Guide stands

for TL-SL5428E 24-port 10/100Mbps + 4-port Gigabit L2 Managed Switch

without any explanation.

Symbol Description

Note

Remind to take note. The note contains the helpful

information for a better use of the Switch.

Caution Remind to be careful. A caution indicates a

potential which may result in device damage.

CONTENTS

Chapter 1 Product Introduction ................................................................1

1.1 Product Overview............................................................................1

1.2 Front Panel......................................................................................1

1.3 Rear Panel ......................................................................................2

Chapter 2 Installation .................................................................................3

2.1 Precautions .....................................................................................3

2.2 Installation .......................................................................................3

2.2.1 Desktop Installation.................................................................4

2.2.2 Rack Installation .....................................................................4

2.3 Connect to Ground..........................................................................5

Chapter 3 Connection ................................................................................8

3.1 Ethernet Ports .................................................................................8

3.2 SFP Ports........................................................................................8

3.3 Console Port ...................................................................................9

3.4 Power On ...................................................................................... 10

Chapter 4 Login to the Switch................................................................. 11

4.1 Login ............................................................................................. 11

4.2 Configuration................................................................................. 11

FAQ ...............................................................................................................13

Appendix A: Specifications.........................................................................14

Chapter 1 Product Introduction

1.1 Product Overview

TP-LINK L2 Managed Switch provides both Web and Command Line

management interface. The Embedded Web Interface supports remote

configuration, monitoring and troubleshooting. The EIA-standardized

framework together with smart configuration capacity can provide flexible

solutions for different scale of networks.

The TL-SL5428E provides 24 10/100Mbps auto-negotiation RJ45 ports, 4

10/100/1000Mbps Auto-Negotiation RJ45 ports, 2 SFP (Small Form-Factor

Pluggable) module ports and 1 Console port. The SFP1 (SFP2) port and Port

27 (Port 28) are referred to as “combo” ports, which means they cannot be

used simultaneously.

Port Feature:

Combo Ports

10M/100M RJ45

Port

10M/100M/1000M

RJ45 Port RJ45 Port SFP port

Port 27 SFP 1

Port 1-24 Port 25-28

Port 28 SFP 2

1.2 Front Panel

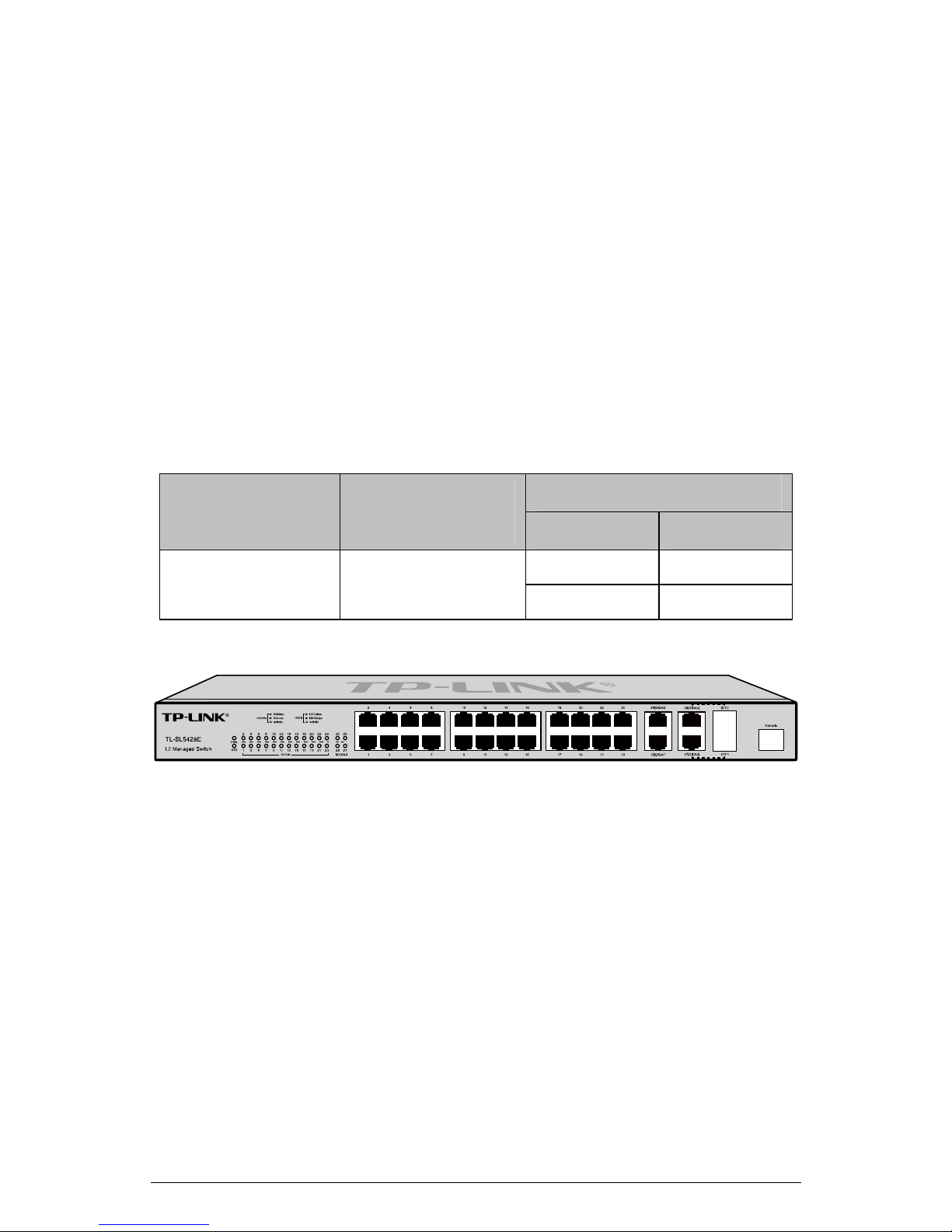

Figure 1-1 Front Panel

The following parts are located on the front panel of the Switch:

¾10/100Mbps Ports: Designed to connect to the device with a bandwidth of

10M or 100M. Each has a corresponding 10/100M LED.

¾10/100/1000Mbps Ports: Designed to connect to the device with a

bandwidth of 10M, 100M or 1000M. Each has a corresponding 1000M

LED.

¾SFP Ports: Designed to install the SFP module. SFP1 shares the same

LED with Port 27 and SFP shares the same LED with Port 28.

¾Console Port: Designed to connect with the serial port of a computer or

terminal for monitoring and configuring the Switch.

¾LEDs

Name Status Indication

On Power is on.

Flashing Power supply is abnormal.

PWR

Off Power is off or power supply is abnormal.

On The Switch is working abnormally.

Flashing The Switch is working normally.

SYS

Off The Switch is working abnormally.

On A device is linked to the corresponding port.

Flashing Data is being transmitted or received.

Green The linked device is running at 100Mbps.

10/100M

Yellow The linked device is running at 10Mbps.

On A device is linked to the corresponding port.

Flashing Data is being transmitted or received.

Green The linked device is running at 1000Mbps.

1000M

Yellow The linked device is running at 10/100Mbps.

1.3 Rear Panel

The rear panel of TL-SL5428E features a power socket and a Grounding

Terminal (marked with ).

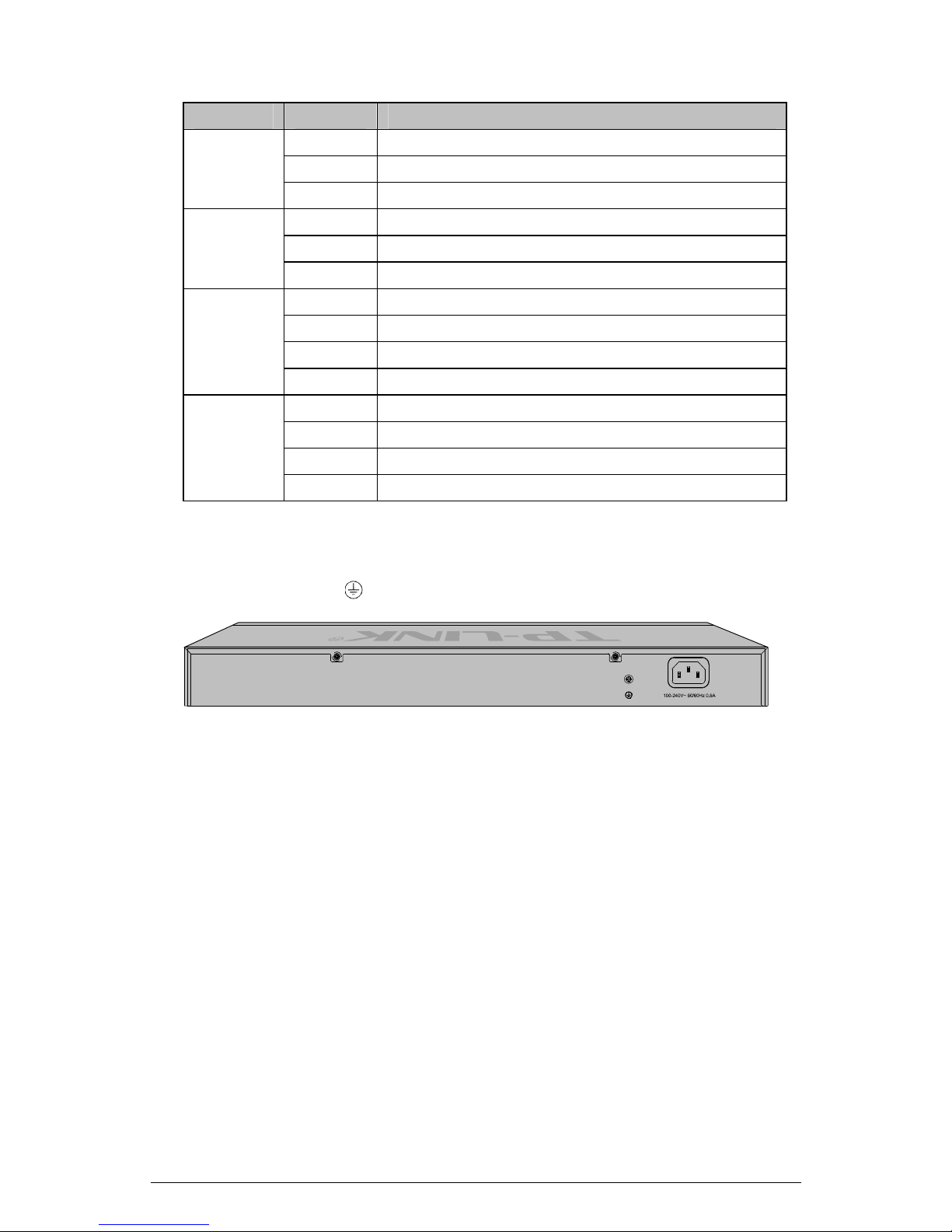

Figure 1-2 Rear Panel

¾Grounding Terminal: TL-SL5428E already comes with Lightning

Protection Mechanism. You can also ground the Switch through the PE

(Protecting Earth) cable of AC cord or with Ground Cable. For detail

information, please refer to section 2.3 Connect to Ground.

¾AC Power Socket: Connect the female connector of the power cord here,

and the male connector to the AC power outlet. Please make sure the

voltage of the power supply meets the requirement of the input voltage

(100-240V~ 50/60Hz 0.6A).

Chapter 2 Installation

2.1 Precautions

To ensure a long-term and stable performance of the Switch, please pay

attention to the following before the installation.

1) Safety Requirements

•Before cleaning the Switch, cut off the power supply. Do not clean it by

the waterish cloth, and never use any other liquid cleaning method.

•Take waterproof measures during storage, transportation and operation

of the equipment.

•Use only the power cord provided with the Switch.

•Make sure the voltage of the power supply meets the requirement of the

input voltage of the Switch.

•Do not push any objects into the openings of the Switch.

•Ensure the vent hole is well ventilated and unblocked.

•Do not open or remove the cover of the Switch.

2) Location Requirements

When you choose a location for the Switch, please follow these guidelines:

•Install the Switch on a flat and stable surface that can support the entire

weight of the Switch with all fittings.

•Locate the Switch far from strong electromagnetic field generators

(such as motors), vibration, dust, and direct exposure to sunlight.

•To ensure adequate air flow around the Switch. At least 10 cm (4 inches)

of space at the front and rear of the Switch is needed for ventilation.

•Make sure that the Switch will be accessible and that the cables can be

easily connected.

•Position the Switch away from water and moisture sources, be sure to

provide an acceptable temperature and humidity operating

environment.

2.2 Installation

This Switch can be either installed on the standard 19-inch mountable rack or

located on the desktop.

Caution:

Please unplug the power cord before installing or removing the Switch.

2.2.1 Desktop Installation

To install the Switch on the desktop, please follow the steps:

1) Set the Switch on a flat surface strong enough to support the entire weight

of the Switch with all fittings.

2) Remove the adhesive backing papers from the rubber feet.

3) Turnover the Switch and attach the supplied rubber feet to the recessed

areas on the bottom at each corner of the Switch.

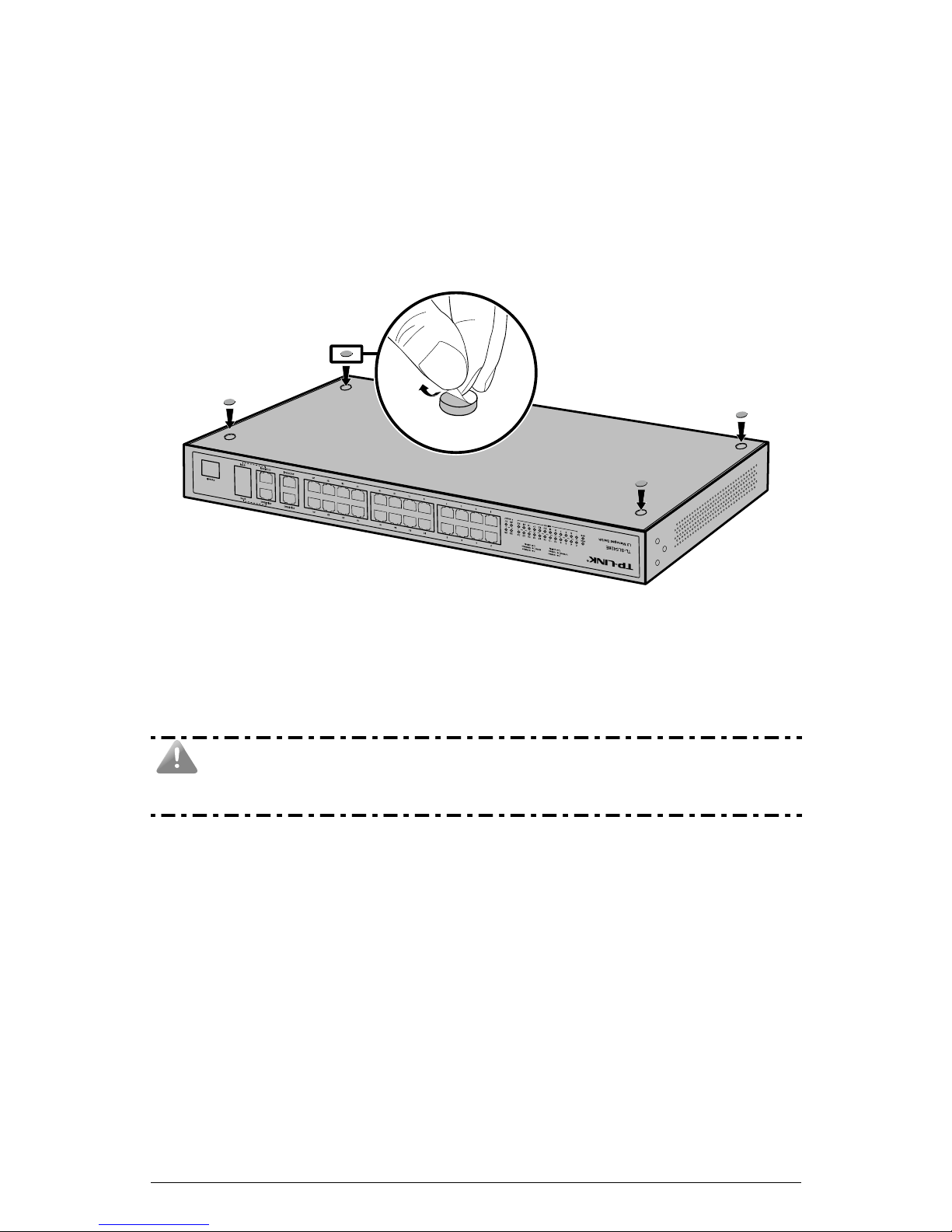

Figure 2-1 Attaching Rubber Feet

4) Upturn the Switch and connect it to the network devices while keep enough

ventilation space around.

5) Connect the Switch to power source with the provided power cord.

Caution:

Please avoid any heavy thing placed on the Switch.

2.2.2 Rack Installation

To install the Switch in an EIA standard-sized, 19-inch rack, follow the

instructions described below:

1) Secure the supplied rack-mounting brackets to each side of the Switch with

supplied screws, as illustrated in the following figure.

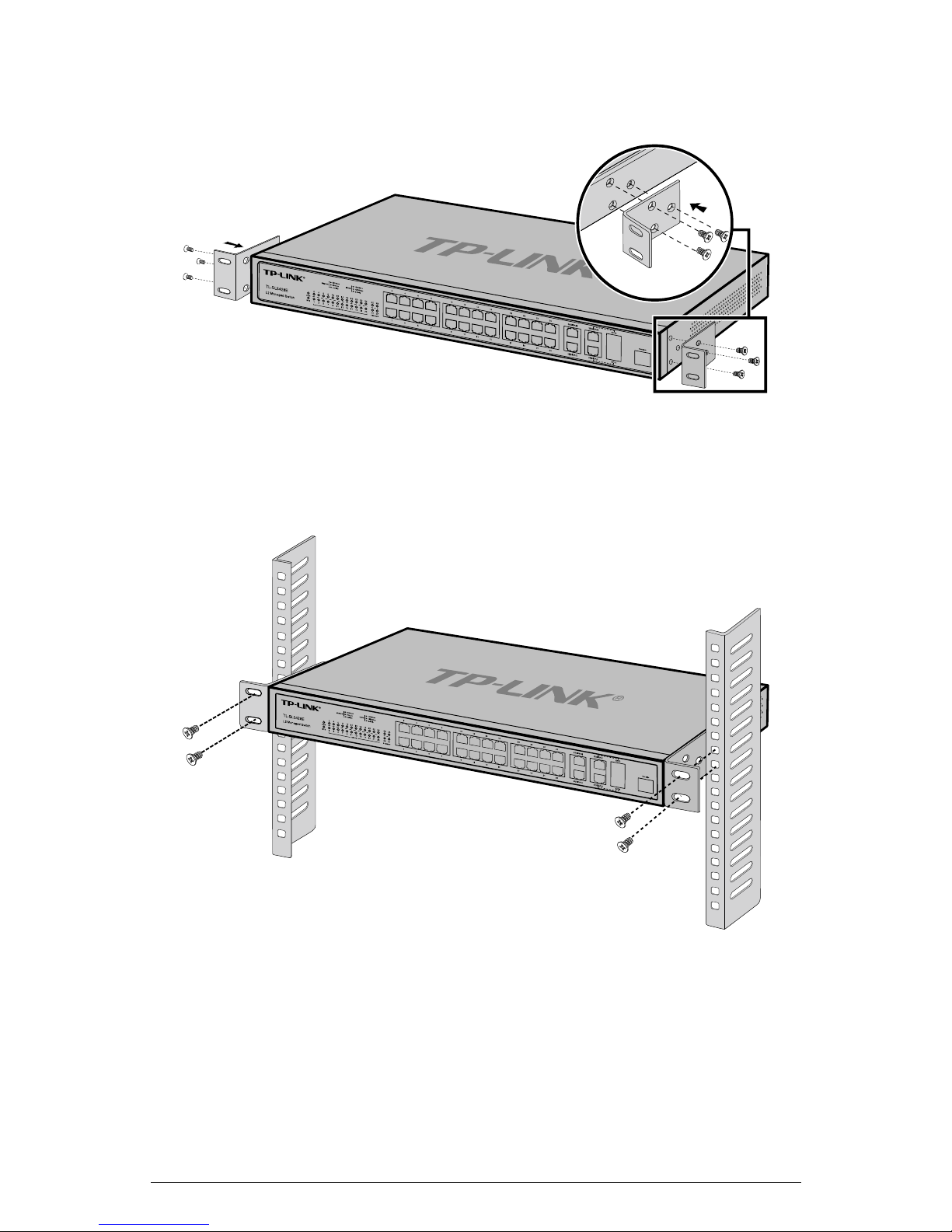

Figure 2-2 Attaching Brackets

2) After the brackets are attached to the Switch, use suitable screws (not

provided) to secure the brackets to the rack, as illustrated in the following

figure.

Figure 2-3 Mounting Switch

3) Connect the Switch to network devices.

4) Supply power to the Switch with the provided power cord.

2.3 Connect to Ground

Connecting the Switch to ground is to quickly release the lightning over-voltage

and over-current of the Switch, which is also a necessary measure to protect the
