TP-Link TD-W8950ND User manual

Please use only wired network connections to configure the Router.

Power down all of your network devices, including your computer(s) and the

Modem Router. If you currently use a modem, disconnect it now - the Modem

Router will replace your current modem.

Connect your computer to the

LAN port on the Modem Route

with an Ethernet cable.

Connect the splitter to the wall

ack using a telephone line, then

use the other telephone line to

directly connect it to the LINE port

of the Modem Router and the

MODEM port of the splitter, also

have the PHONE port of the

splitter connected to a telephone.

Note If no telephone is needed, please connect the LINE port of the Modem Route

to the wall jack using the telephone line directly.

Note

Power: Solid light

WLAN: Flashing

Power on all your network devices and then check to see if the LEDs of the

Router display normally as the diagram below describes.

Note If the LEDs display abnormally, please check to see if all the cable

connectors (power adapter, phone line and Ethernet cable) are well

connected to your device. With the phone line well connected, if the ADSL

LED turns off after flashing, please contact your ISP to ensure that you

internet connection is active.

Plug the provided Power Adapter

into the Power jack on the back of

the Modem Router and the other

end to a standard electrical wall

socket.

To configure the device, you can either run the setup CD-ROM (method one),

or run the Web based Quick Setup Wizard (method two). TP-LINK strongly

recommends that you run the setup CD-ROM.

Note

LAN: Flashing or solid light if

corresponding port is connected

ADSL: Flashing or solid light

The configuration has now been completed. Please skip to Step 3 “Testing the

Internet Connection”.

Insert the provided Resource

CD into your CD-ROM drive.

The Setup Wizard will

automatically pop up on

your computer’s screen.

Click START, and then follow

the step-by-step instructions

until you complete the

confi

uration

Please select your product

model and click Start Setu

Then a flash video will pop up and

show you how to connect you

devices. After that, the Easy Setup

Assistant will start.

Click OK

Click Quick Setup

The web management page will

dis

after a successful lo

in.

dialog box will prompt you fo

the User name and Password.

Enter the default values and

click OK.

User name: admin

Password: admin

Open your web browser and

type in 192.168.1.1 in the

address bar and press Enter

Note If the dialog box does not pop up, please refer to T3 in the Troubleshooting

guide. T2 will help you if you forget the password.

Enter the VPI and VCI

values given by your ISP

Internet Parameters Configuration

A. Configuration For PPPoE/PPPoA

This page will then display.

Bridging mode is not recommended because multiple computers are not

permitted to share Internet access in this mode.

Note

Note If you did not get the VPI, VCI and WAN Link Type information, please

contact your ISP for this information.

Click Next

Note

Choose the Connection Type

given by your ISP.

If PPPoE/PPPoA is selected,

please proceed to AǗ

If MER is selected, please skip

to BǗ

If IPoA is selected, please skip

to C;

If Bridging is selected, please

skip to WAN Setup -

Summar

Click Next

If you did not get the Connection Type information, please contact your ISP

for this information.

Click Next

After completing the above configuration, please proceed to Wireless

Configuration.

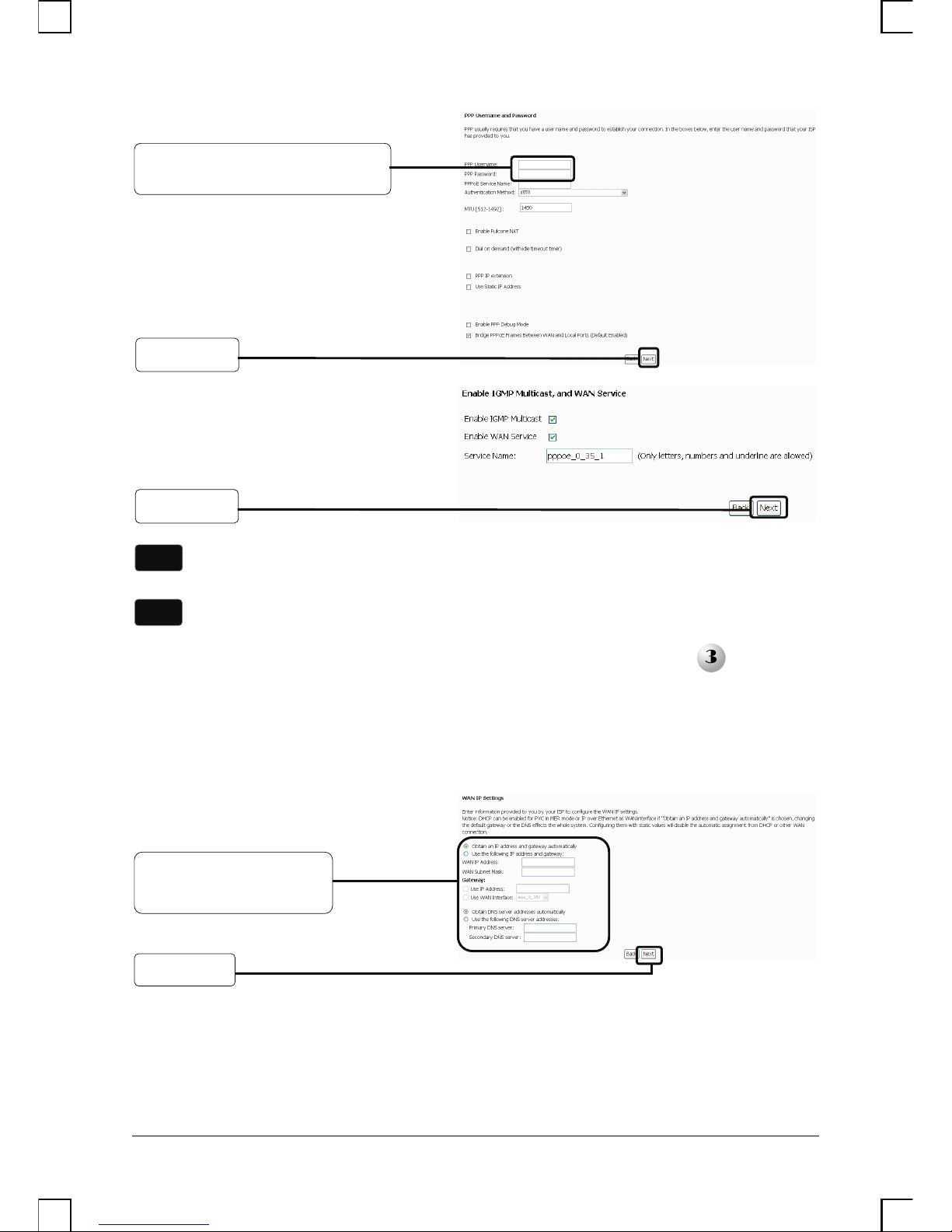

B. Configuration For MER

If you did not get the PPP Username or PPP Password, please contact you

ISP for this information.

Note

Note The configuration for PPPoA is similar to that of PPPoE.

This page will then display

Enter the Username and

Password given by your ISP.

Enter the parameters

provided by your ISP

Click Next

After completing the above configuration, please proceed to Wireless

Configuration.

C. Configuration For IPoA

After completing the above configuration, please proceed to Wireless

Configuration.

Click Next

If you did not get the IP Address,Subnet Mask and DNS addresses, please

contact your ISP for this information.

Note

Manually enter the IP

address, Subnet Mask,

default gateway and DNS

server addresses provided

by your ISP

D. Configuration For Bridge Mode

After completing the above configuration, please proceed to Wireless

Configuration.

Wireless Configuration

After completing the above configuration, please proceed to Quick Setup -

Finish.

The wireless security is Disabled by default. You are suggested to select a

Network Authentication for security settings.

Note

Click Next

Create a unique and easy to

remember name for your

wireless network. You can also

keep the default setting without

the device bein

affected

Click Next

WAN Setup – Summary

The basic settings for your Router are completed. Please open the web browser and

log on to the following websites:

http://www.tp-link.com

http://www.google.com

If the above websites can be accessed, it indicates that your Router has been

configured successfully and you can start to enjoy the Internet. If the websites

cannot be accessed, please refer to “T4. What can I do if I cannot access the

Internet?” in the Troubleshooting guide.

To continue, the following page

will be displayed (take PPPoE

for example).

For the advanced configurations，please refer to the User Guide on the

CD-ROM provided.

Note

The above configurations only need to be set once. If you want othe

computers in your LAN to access the Internet, please connect the desired

computer to the ADSL Router directly. If the additional computer can not

access the Internet, please set that computer referring to “T3. What can I do

if I cannot access the web-based configuration page?” in the

Troubleshooting guide.

Note

Click Save/Reboot

Now, your Modem Router has been configured and is rebooting. Please do not turn

off the Modem Router while it’s rebooting.

The information on this page will differ depending on the very connection type

you select in Internet Parameters Configuration.

Note

T1. How do I restore my Router’s configuration to its factory default settings?

T2. What can I do if I don’t know or forgot my password?

1) Restore the Router’s configuration to its factory default settings. If you don’t

know how to do that, please refer to section T1.

2) Use the default user name and password: admin, admin.

3) Try to configure your Router once again by following the instructions in the

previous steps of the QIG.

T3. What can I do if I cannot access the web-based configuration page?

1) Configure your computer’s IP Address

For Windows XP OS

Go to Start > Control Panel,

you will then see the

following page.

Click Network and Internet

Connections

Note Once the Router is reset, the current configuration settings will be lost and

you will need to re-configure the Router.

With the Router powered on, press

and hold the Reset button on the

rear panel for 8 to 10 seconds

before releasing it.

Press it for 8 to 10 seconds
