User Guide

Kasa Smart Light Strip, Multicolor

KL420L5

1910013078 REV1.0.0

Contents

About This Guide ···················································· 1

Introduction ······························································· 2

Set Up Your Smart Light Strip·························· 3

Install Your Smart Light Strip···························· 6

Main Device Control·············································· 8

Congure Your Smart Light Strip··················· 9

Create Scenes························································16

Schedule A Scene················································18

Auto-O Timer·······················································19

Reset Your Smart Light Strip··························20

Works with Kasa····················································21

Authentication························································22

About This Guide

This guide provides a brief introduction to Kasa Smart Light Strip and the Kasa Smart app, as well as regulatory information.

Features available in Kasa may vary by model and software version. Kasa availability may also vary by region. All images, steps, and descriptions in this

guide are only examples and may not reect your actual Kasa experience.

Conventions

In this guide, the following convention is used:

Convention Description

Teal Key information appears in teal, including management page text such as menus, items, buttons and so on.

Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.

Note Ignoring this type of note might result in a malfunction or damage to the device.

Support

• Specic product information can be found on the product page at https://www.tp-link.com/.

• A Technical Community is provided for you to discuss our products at https://community.tp-link.com/.

• Our Technical Support contact information can be found at the Help center of the Kasa Smart app and the Contact Technical Support page

at https://www.tp-link.com/support/.

• Videos about how to congure the Smart Light Strip features can be found on the Setup Videos page at https://www.tp-link.com/support/

setup-video/#smart-bulbs.

Introduction

The Smart Light Strip is part of the Kasa smart home family of products, including plugs, switches, cameras and more. You can simply download the

Kasa Smart app, connect to Wi-Fi and enjoy. No special hardware is needed. 16 color zones and millions of colors are available for you to pick from and

create your own scenes.

You can also control multiple smart home devices with the Kasa Smart app or use your voice for added convenience. With Kasa, your home is never

more than a few taps away.

• Multicolor - Oers endless lighting possibilities with 16 million colors and dimming capabilities.

• Voice Control - Control your Light Strip hands-free with Alexa or Google Assistant.

• Set Schedules - Run your Light Strip automatically to t any event with the Kasa Smart app.

• Flexible and Easy Install - The exibility to bend and cut* allows you to stick it or place it in the exact spot you desire.

*Once cut, it cannot be reattached. Prevent accidental shocks by removing its power and then cutting along the strip’s indicator lines.

• Group and Scenes - Combine your strip with other Kasa devices for seamless control with a single tap.

Set Up Your Smart Light Strip

Follow the steps below to set up your Light Strip via the Kasa Smart app.

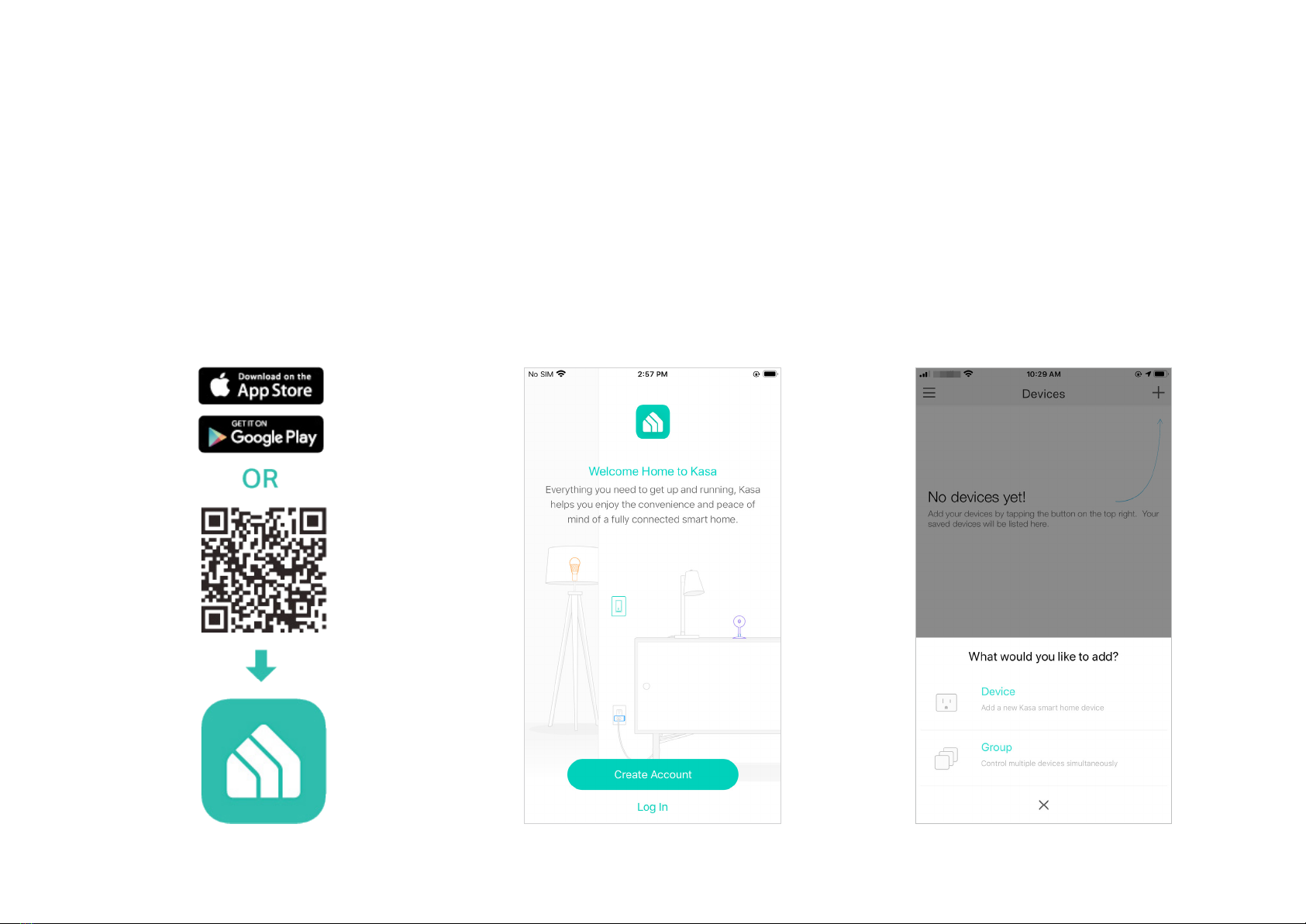

Step 1. Download Kasa Smart App

Go to Google Play or the App Store or scan

the QR code below to download and install the

Kasa Smart app.

Step 2. Log In to Kasa Smart App

Open the app and log in with your TP-Link ID. If

you don’t have a TP-Link ID, create one rst.

Step 3. Add Your Devices

Tap +, select Device and your model to add

your new Light Strip. Follow app instructions

to complete the setup.

Step 4. Connect All the Parts

Connect the Power Adapter, Controller and

the Light Strip before powering it up.

Note: When connecting the Light Strip to the Controller, make

sure the arrows point at each other.

Step 5. Power Up Light Strip

Plug in the power adapter and wait until the

Light Strip animates orange and green.

Note: Do not roll up when using. Spread out the Light Strip

before connect the power supply.

Step 6. Join Your Light Strip's Wi-Fi

Join your Light Strip's Wi-Fi to continue the

setup.

Step 7. Join Your Home's Wi-Fi

Select your home Wi-Fi to connect.

Step 8. Setup Complete

Now you can start using your Light Strip.

Install Your Smart Light Strip

After you have set up the Light Strip via the Kasa Smart app, you can cut it to length-t and attach it to any surface with the 3M adhesive.

To avoid damaging your Light Strip, please note the following Installation tips before installing the Light Strip.

≥90° LED

INSTALLATION

TIPS

Cut Only Along the Cutting Lines of Light Strip

You can custom tailor the length of your Light Strip with scissors.

Unplug the Light Strip and cut only along the cutting lines or your

Light Strip will no longer function.

Avoid Bending on LED Beads

The bend should be avoided just in the position of the LED

components, so as not to damage the product and aect the life of the

product.

Avoid Sharp Corners

Use gentle weeps when bending Light Strip around corners and avoid

creases as they may cause damage.

Avoid Sharp Turns

Carefully roll the Light Strip into a clover or use a gentle hill when

making 90° turns like those need behind a TV. Sharp bends can damage

your Light Strip.

Step 1. Choose Location

Choose a location that avoids static and eases away from

splashing water. Find a clean, dry and smooth surface, then

wipe o the dust.

Note: Choose a location that avoids static and stays away from water splashing.

Step 2. Remove Adhesive Tape

Unplug the Light Strip rst. Slowly peel away the 3M adhesive

backing and take it out bit by bit.

Note: Do not peel o the tape under the 3M adhesive backing.

Step 3. Stick Light Strip

Stick the light strip and press it down for 10-15 seconds.

Secure the controller with the adhesive pads. Do not move

it to other place after it is attached.

Step 4. Power Up Light Strip

Plug in the power adapter to power on your Light Strip.

INSTALL

LIGHT

STRIP

Main Device Control

After you successfully set up your Light Strip, you will see the Devices page on the Kasa Smart app. You can add new devices, control multiple devices

simultaneously in a group, congure account settings, and more.

Add a Group
