Toyotomi LC-44 User manual

LASER CLEAN

INSTRUCTION MANUAL

MODEL

LC-44

IMPORTANT

READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER.

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

CONTENTS

SPECIFICATIONS ……………………… 1

PART NAME……………………………… 1

OPERATION……………………………… 5

EMERGENCY MESSAGE ……………… 11

ROUTINE MAINTENANCE …………… 12

TROUBLESHOOTING ………………… 13

LONG TERM STORAGE ……………… 14

SPECIFICATIONS

MODEL LC-44

HEAT RATING

High 14,300 BTU / 4.2 kW

Low 3,800 BTU / 1.1 kW

FUEL TANK CAPACITY 7.6 lit.

BURNING TIME 19.0~ 69.0 hrs.

DIMENSIONS (W × D × H) 435 × 315 × 437 mm

WEIGHT 11.5 kg

VOLTAGE / FREQUENCY 230V AC, 50 Hz

ELECTRICAL CONSUMPTION

Igniter : 320 W

Continuous : 25 W

Removable fuel tank

Room

thermistor

Lid for removable tank

Handle

Air filter

Base plate

Louver

Front

panel Vent filter

Power

supply

cord

Operation panel

* Matching Room Size to HEAT RATING

• Because the “Heat Load” of an area to be

heated is influenced by so many factors, it is

impossible to specify a heater output to an

exact room size.

• If you use a heater too large for the area to be

heated, the temperature you desire will be

reached quickly. In such cases, to avoid

overheating the area, the heater must be

turned off frequently, or doors opened to other

areas of the house, or windows to the outside

opened to cool the area.

• If you use a heater too small for the area to be

heated, it will take much longer to reach the

desired temperature, in fact it may not be

reached at all depending on the outside

weather conditions.

PART NAME

BEFORE USING HEATER, FAMILIARIZE YOURSELF WITH THE FOLLOWING OPERATING

CONTROLS AND PART NAMES.

MAIN BODY

ON/OFF Lamp — flashing : Preheating mode

constant : Heater in operation

key-lock Indicator — constant : Childproof Lock is on.

Temperature Indicator — constant : The Digital Indicator shows Set temperature

and Room temperature.

Clock Indicator — constant : The Digital Indicator shows current time.

Timer Lamp — constant : Heater in operation in timer mode.

Save Indicator — constant : The operation is in Save mode operation.

Ventilation Indicator — flashing :

Oxygen level in room is insufficient. Heater

shuts off automatically.

Fuel Indicator — constant : Fuel tank empty. Only 10 minutes burning

time remaining. Digital indicator shows the

remaining burning time in minutes.

You can hear the alarm every 2 minutes.

flashing : Heater extinguished due to lack of fuel. (10

seconds alarm)

Altitude Indicator — constant : Altitude mode is on.

Adjustment Keys

Key-lock

Timer Key

Save Key Extension Key

ON/OFF

Key/Lamp

Altitude button

OPERATION PANEL

UNPACKING AND PLACEMENT

1. Take out heater from box carefully to avoid damage.

2. Remove all packing materials from heater.

3. Make sure all screws are tight and all parts intact.

NOTE:Save shipping carton and all packing materials for future storage of your heater.

4. When positioning your heater for use, keep it away from walls and all other materials as

illustrated below.

50cm

150 cm

50 cm

20 cm

150 cm

5. The floor should be firm and completely level. Reposition the heater, when it is not level.

NOTE:If your heater is not on a level surface, change its location. Do not attempt to prop

heater up with books or other objects.

FUELING

1. Open the fuel tank lid on the top of heater cabinet and lift out the

removable fuel tank. Turn the removable tank upside down and

remove the fuel tank cap.

2. Insert the straight tube of the manual siphon into the jerrycan;

insert the siphon’s flexible hose into the removable fuel tank

opening.

3. Turn the air vent knob on the top of the siphon clockwise to close

the vent. Start the flow of kerosene (paraffin) by squeezing the

bulb of the siphon vigorously six or seven times. Once flow

begins, it is no longer necessary to squeeze the bulb.

4. Check the removable tank fuel gauge while filling the tank. Stop

filling by loosening the switch button on top of the pump (turn

anti-clockwise), once the gauge indicates that the tank is full.

Never overfill the tank, especially not when the fuel is very cold

(fuel expands when it heats up).

NOTE:Be careful to avoid overfilling the tank, especially with

very cold kerosene (paraffin). Overflow might occur due

to expansion when the fuel warms up.

5. Remove the siphon carefully, allowing excess kerosene (paraffin)

to drain from the tube back into the jerrycan. Replace fuel tank

cap and tighten it securely. Be sure to wipe away any spilled

kerosene (paraffin) from tank and other heater parts.

6. After making sure fuel tank cap is tightly fastened, invert tank and

replace into heater body.

WARNING :Use only water-clear kerosene (paraffin).

Never use gasoline or other flammable

liquids.

ALWAYS extinguish heater before refill heater

fuel tank.

Fuel heater outside the living area.

empty full

GASOLINE

OPERATION

CAUTION :Always make sure that there is sufficient ventilation.

SET CLOCK

It is only possible to set the correct time, when the heater is

connected to the mains and not burning.

1. Use the Adjustment Keys (thour / smin.) to set the time.

2. To set the time, press “hour”and “min.”set

buttons. Individual motions will increase the

time by one unit; holding continuously will

raise either the “hour”or “min.”rapidly. After

approximately 10 seconds the blinking will

stop and the setting will be locked. 5 Minutes

after switching off the heater, the information

on the display will disappear and the heater will automatically switch into the stand-by

position.

IGNITION

1. Just press the key to ignite the heater. The

key will start blinking, indicating that the

ignition procedure has started. This will take a

short while.

2. After this time heater will automatically ignite

and Operation Lamp will cease its flashing. The Operation Lamp will remain alight so long

as heater is burning.

NOTE:If using your heater for the first time, or after long term storage, ignition may not

take place on the first try. Press the key again.

NOTE:Fuel pump may produce an audible operating noise at ignition. This is only

temporary.

1 2

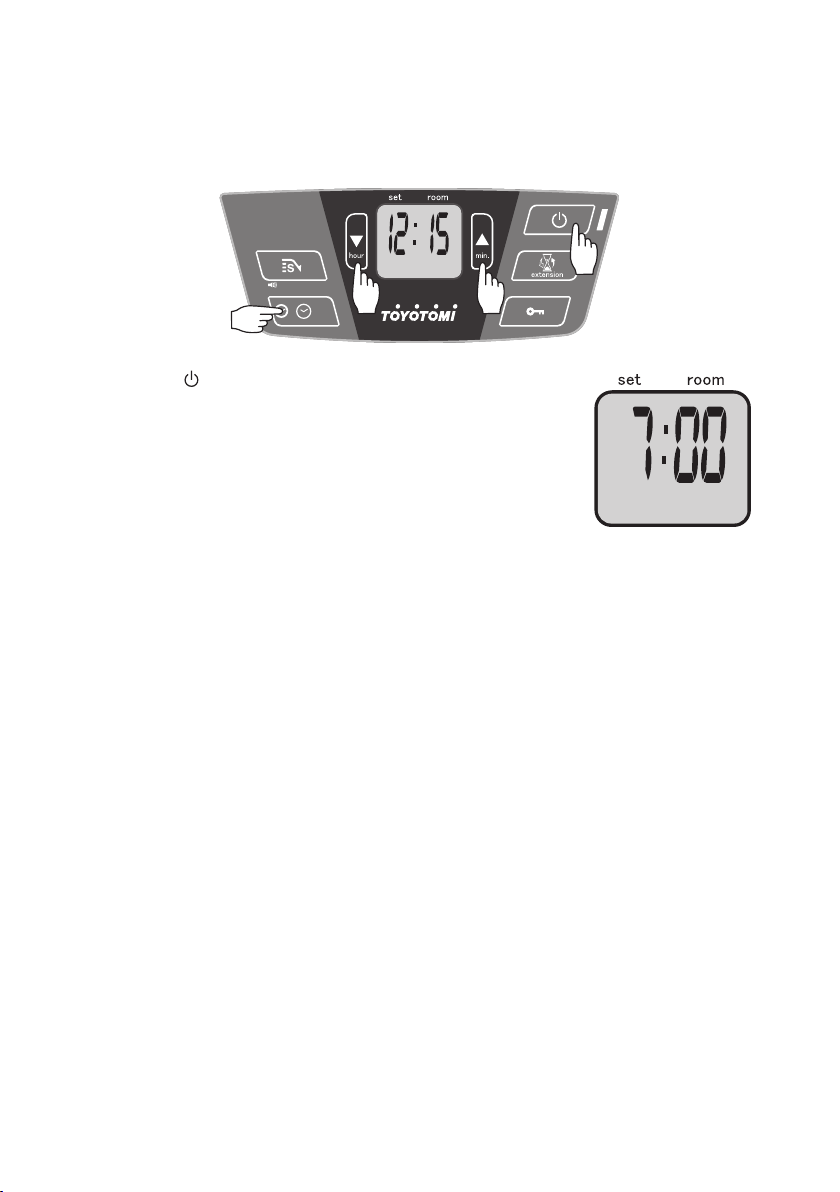

TIMER IGNITION

Your heater can be arranged to ignite automatcally at a chosen time by use of a pre-set

“

Timer”. This

“

Timer”can only be set after the clock setting has been completed.

1. Press the key and then the

“

Timer”key immediately after

that. The Timer Lamp will start blinking.

2. To set the

“

Timer”to the chosen igntion time, you should follow

the same procedure as given earlier for

“

Clock”time setting.

After approximately 10 seconds, the digital indicator will return

“

Clock”mode, displaying the present time.

3. Your heater will now automatically start up the pre-set time.

4. If you wish to start up the heater at the pre-set time again, repeat the same procedure 1.

mentioned above.

NOTE:The pre-set time will remain so long as the heater receives electrical power. In the

event of power failure or disconnection of heater for more than 10 minutes, timer

setting will be cancelled.

NOTE:If normal ignition was used to set the heater burning (i.e. the heater is burning but

the Timer Lamp on the Indicator panel is out), pressing the Timer key will extinguish

the heater, and the heater will be put into the “Timer”mode.

TEMPERATURE REGULATION

1. Use the Adjustment keys (thour/smin.) to adjust the

temperature.

2. Adjust the temperature using the key on the right (smin.) to set

the temperature to a higher setting and the key on the left

(thour) to lower the temperature.

3. Until the room temperature has reached the set temperature, the heater will burn at either

high or medium burning mode. When the room temperature reaches or slightly exceeds

the set temperature, the heater will automatically shift to maintain the desired

temperature.

NOTE:The standard setting of the heater is 20ºC. However, once the set temperature

has been changed the new setting will remain in effect unless changed.

NOTE:Room temperature measurements are taken directly behind the heater. These

measurements may not represent the true room temperature.

1 2

SAVE OPERATION

The “SAVE”function allows you to limit the temperature. When this

function is activated, the heater will automatically switch off, when

the room temperature exceeds the set temperarure by 3ºC.

Subsequently, when the room temperature has dropped again to

the set temperature, the heater will automatically switch on again.

Activate the “SAVE”setting by pressing the Save key. The Save

indicator will light up. Switch off the function by pressing the Save

key once again.

NOTE:Without the “SAVE”setting your heater will maintain the set temperature by

approximation as well, by adjusting its heating capacity. “SAVE”is an economy

setting, which you can use when, for instance, you are not present in the room or to

keep it frost-free.

CHILDPROOF LOCK

The childproof lock can be used to prevent children

accidentally changing the heater settings. When the

heater is burning and the childproof lock is on, the

heater can only be switched off. Other functions are

blocked then. If the heater has already been switched

off, the childproof lock also prevents accidental ignition of the heater.

Activate the childproof lock by pressing the Key-lock key and holding it down for more 3

seconds. The Key-lock indicator will light up indicating that the childproof lock has been

activated. Switch off the childproof lock by pressing the Key-lock key and holding it down

for more than 3 seconds once again.

VENTILATION INDICATOR

When the VENT indicator indicator starts blinking, this is a sign

that the room is not vented sufficiently. If you do not provide

additional ventilation, the heater will switch off automatically

after some time. If the indicator indicator continues blinking

after extra ventilation, please contact your dealer.

FUEL INDICATOR

When the Fuel Indicator lights up, it means that there is only fuel

left for 10 more minutes. The count-down of the remaining heating

time can be seen in the Digital indicator. Now you have two

options:

you remove the removable fuel tank and refill it outside the

living room or

you push the Extension key. By pushing this button, the

remaining heating time will extend to 90 minutes. The heater

will automatically switch back to its lowest position. In the display the number 90 will

appear, which will decline to 10. At the arrival of 10, you will hear an alarm signal every

two minutes, warning you to refill the removable tank. If you do not react, the heater will

extinguish by itself. The heater will also sound a warning signal, when it switches off. The

Fuel Indicator will blink, while four lines (--:--) are blinking in the Digital indicator. You can

stop this by pressing the key once more.

Once the heater has used up all its fuel and extinguished, it will take some time, after the

refill, before the heater is completely ready for use again.

AUTOMATIC CLEANING MODE

When the heater has been burning continuously for two hours at its highest setting, the

burner will automatically start an autoclean procedure. The display will show the

autocleaningcode running back to . The procedure takes 5 minutes, during

which the heater will burn at its lowest setting, while the burner autocleans. When the

burner is clean again, the heater will automatically switch back to the highest setting again.

TURNING OFF HEATER

While heater is burning, press power switch to

“OFF”position. This will extinguish heater and

ON/OFF Lamp on the indicator panel will go out.

The circulation fan motor will operate further, for

approximately 90 seconds to assist in cooling

down heater.

NEVER:Turn heater off by disconnecting the heater plug from the main elecrical supply.

DO NOT:Restart your heater for at least ten minutes.

AUTOMATIC DEACTIVATION

This heater is fitted with a safety system that ensures that it swiches

off automatically after 69 hours continuous operation. The following

will then appear in the display: . If desired, you can switch the

heater on again by pressing the key.

Table of contents

Other Toyotomi Heater manuals

Toyotomi

Toyotomi Oil Miser OM-22 User manual

Toyotomi

Toyotomi Double Clean 90 Troubleshooting guide

Toyotomi

Toyotomi Kerosun LC-3000 User manual

Toyotomi

Toyotomi 9078Q21 User manual

Toyotomi

Toyotomi FF-55T User manual

Toyotomi

Toyotomi KS-47B Troubleshooting guide

Toyotomi

Toyotomi zibro LC-30 User manual

Toyotomi

Toyotomi KS-27A Troubleshooting guide

Toyotomi

Toyotomi LC-40 User manual

Toyotomi

Toyotomi Omni 230 Type C User manual

Toyotomi

Toyotomi Zibro RS-240 User manual

Toyotomi

Toyotomi Laser 300 Owner's manual

Toyotomi

Toyotomi Laser Clean LC-S27 User manual

Toyotomi

Toyotomi zibro RS-30 User manual

Toyotomi

Toyotomi Zibro LC-32 User manual

Toyotomi

Toyotomi 4963505711078 User manual

Toyotomi

Toyotomi KERO-SUN RS-2200 User manual

Toyotomi

Toyotomi Laser Clean LC-32F User manual

Toyotomi

Toyotomi FF-V30 User manual

Toyotomi

Toyotomi Zibro LC-150 User manual

Toyotomi

Toyotomi Toyoset LC-3010 User manual

Toyotomi

Toyotomi zibro RS-G24 User manual

Toyotomi

Toyotomi LC-43 User manual

Toyotomi

Toyotomi Sunstream User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
