PORTABLE KEROSENE HEATER

OPERATION AND MAINTENANCE INSTRUCTIONS

MODEL KS-27A

CONTENTS

SAFETY TIPS ............................. 1 ASSEMBLY AND OPERATION .............. 6

FUEL GUIDE .............................. 3 CARE AND MAINTENANCE................. 10

OPERATING CONTROLS AND FEATURES ..... 4 REPLACEMENT OF PARTS ................. 11

SPECIFICATIONS .......................... 5 STORAGE ............................... 13

COMPONENT PARTS ...................... 5 TROUBLESHOOTING...................... 14

IMPORTANT

READ AND UNDERSTAND INSTRUCTIONS BEFORE USING HEATER.

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

MADEINJAPAN

KS-27A

TOYOTOMI

Congratulations; you are ready to begin enjoying the benefits of one of the most advanced kerosene

heaters ever made. TOYOTOMI, the leader in kerosene heater techonlogy, has tested and refined the KS-27A

to assure you of long-term safety and satisfaction. Please study the following instructions, use and care for

your heater carefully, and it will serve you well for many years.

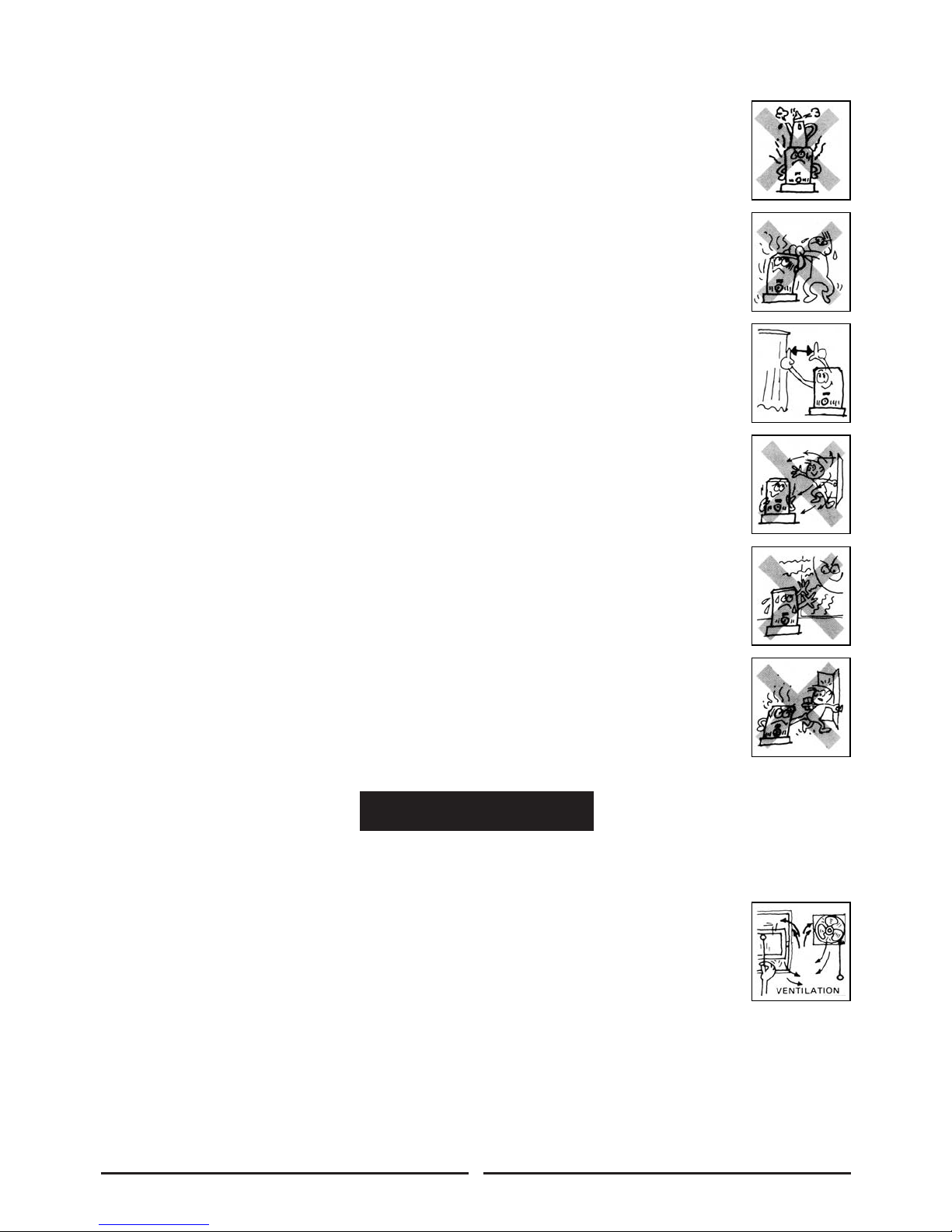

SAFETY TIPS

BEFORE OPERATING YOUR HEATER, PLEASE review these safety tips:

RISK OF EXPLOSION

1. Never use any fuel other than water-clear kerosene.

Never use gasoline. Use of gasoline can lead to uncontrollable flames resulting in

destructive fire. Even kerosene contaminated with small amounts of gasoline, or

similarly volatile materials, can be hazardous. Never use a can for kerosene that has

previously been used for gasoline, paint thinner, or solvents.

2. Never refill heater fuel tank when heater is operating or still hot. To do so may

cause a “flash back“ of flame to the fuel container, resulting in injury to yourself

and your property.

3. Never use heater in areas where flammable vapors or gases may be present.

Especially avoid use of heater where gasoline, naphtha, acetone or other volatile

solvents are in the air, or whose containers are open. Such vapors could be ignited

by the heater, resulting in fire and/or explosion.

4. Never fill heater fuel tank in living space. Fill heater tank outdoors. Never overfill

your heater. Always replace heater tank cap securely after refueling. Spillage of

kerosene produces strong odor which is hard to remove. Spillage on carpet can be

ignited if match or some other ignition source contacts it.

5. Never store or transport kerosene in other than a metal or plastic container that is (1)

acceptable for kerosene, (2) non-red in color, and (3) clearly marked, ”KEROSENE”.

Never store kerosene in the living space. Picking up a gasoline can by mistake when

fueling is a major cause of heater fires.

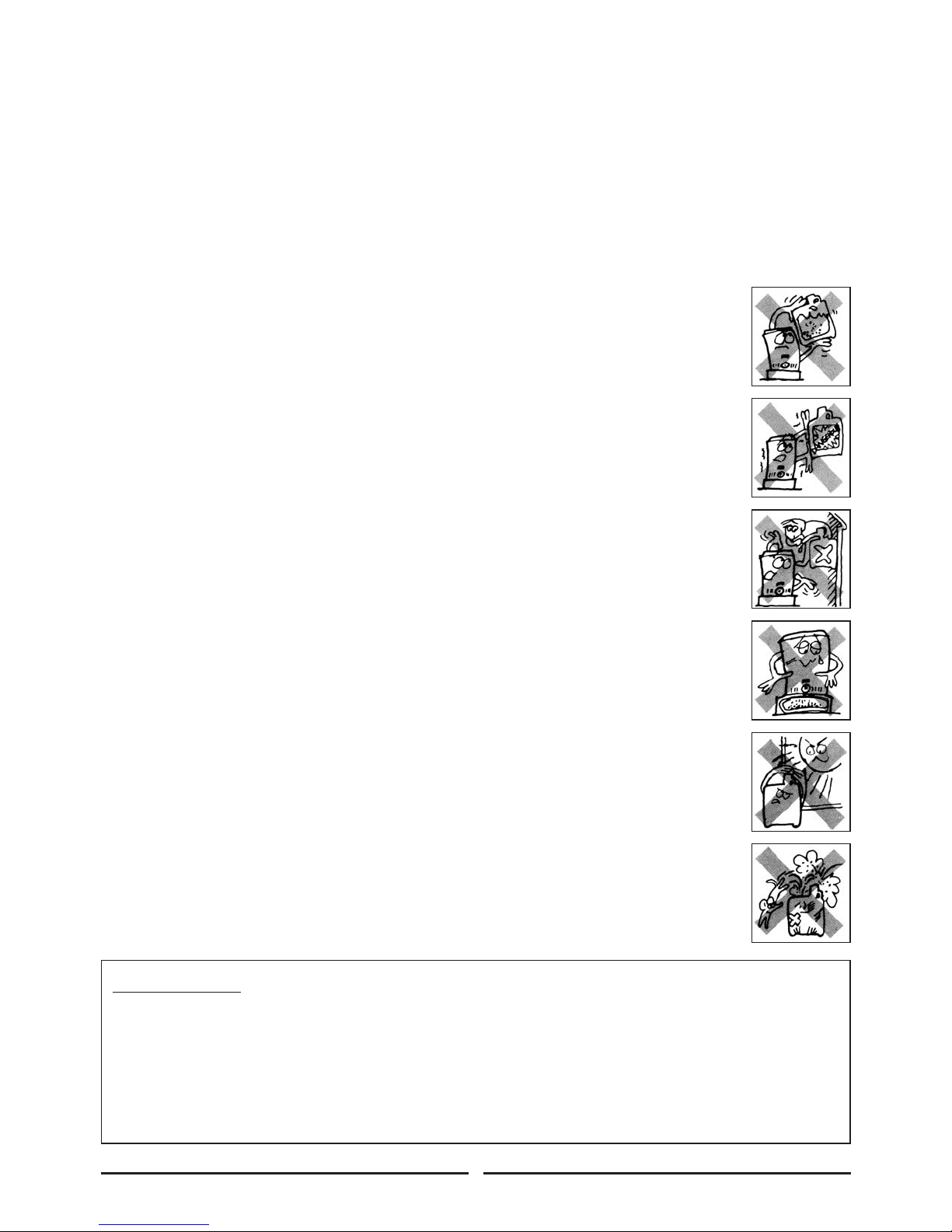

RlSK OF BURNS OR FIRE

1. Observe the heater carefully for 15-20 minutes after start-up. Problems of improper

adjustment of wick height or improperly seated heat chamber should become

evident during this warm up period.

NOTE: Carefully follow the instructions for lighting and adjusting the flame.

2. Due to high surface temperatures, keep away from children, furniture and clothing.

WARNING

3. Do not operate heater without protective guards completely attached.

4. Do not use heater to heat or boil water or as a cooking appliance. Do not place

cooking utensils, tea kettles or any other object on top of heater while in operation.

5. To avoid possible burns or fire, do not move, refuel or attempt to service your

heater while it is burning or still hot. If the heater is dropped while it is burning, fuel

spillage and flames outside the heater may occur.

6. Do not operate heater less than 90cm (3 feet) from walls, draperies, clothing, or

furniture. The operation of any heating appliance too close to such materials could

cause them to ignite, possibly resulting in a serious fire.

7. To avoid unstable burning, do not operate your heater in areas exposed to strong

drafts. Do not operate heater in high-traffic areas such as doorways or hallways

where it may be touched, jarred or tipped accidentally.

8. Do not operate heater in direct sunlight to avoid overheating, which may cause

abnormal flame behaivor. Do not allow room temperature to go above 30˚C. lf the

room temperature exceeds 30˚C the flame may increase, thereby producing smoke.

9. Before going out, or at bedtime, turn the heater off, making sure the wick is in its

lowest position (see Extinguishing the Flame on page 9) and flame is completely

extinguished.

RISK OF INDOOR AIR POLLUTlON

Use heater only in well-ventilated areas. People with breathing problems should

consult a physician before using the heater.

”In a house of typical construction, that is, one that is not of unusually tight

construction due to heavy insulation and tight seals against air infiltration, an

adequate supply of air for combustion and ventilation is provided through infiltration.

However, if the heater is used in a small room where less than 200 cubic feet (5.7m3)

of air space is provided for each 1000 Btu per hour of heater rating (considering the

maximum burner adjustment), the door(s) to adjacent room(s) should be kept open or

a window to the outside should be opened at least 25.4mm to guard against potential

buildup of indoor air pollution. Do not use the heater in a bathroom or any other small

room with the door closed.”

WARNING

FUEL GUIDE

The TOYOTOMI KS-27A is designed for use with high-quality kerosene only. Use of low-quality kerosene will

cause wick performance to drop, leading to ”Iow flame”and ”odor problem”conditions.

Purchase only kerosene in non-red cans reserved exclusively for kerosene and marked accordingly with the

word ”KEROSENE”. Always store your kerosene in a separate area from where you store gasoline for your

power equipment, to avoid accidental use of gasoline in your heater.

What to Buy...

ALWAYS: Crystal clear, colorless, high quality KEROSENE.

ALWAYS: Kerosene free of contaminants, water or cloudiness.

NEVER: Gasoline, alcohol, white gas, camp stove fuel or additives.

NEVER: Yellow or sour-smelling fuel.

How to Use lt...

ALWAYS: Fill heater away from living quarters when heater is cool; use siphon.

ALWAYS: Check wick frequently for tar build-up. (Rapid, heavy build-up may

indicate poor quality or deteriorated fuel.)

ALWAYS: Watch fuel gauge to avoid over-filling heater.

How to Store lt...

ALWAYS: ln a clean container, clearly marked KEROSENE.

ALWAYS: AWAY FROM direct sunlight, heat sources or extreme temperature

changes.

NEVER: ln a glass container, or one that has been used for other fuels.

NEVER: For longer than 6 months. (Begin each heating season with fresh

kerosene; discard at the end of the season.)

Why lt is lmportant...

Pure, clean kerosene is essential for safe and efficient heater operation. Poor quality

or contaminated kerosene can cause:

●Low flame

●Excess tar deposits on the wick

●Reduced wick life

●Odor, smoke

●Difficulty in igniting or extinguishing flame

Use of a highly volatile flammable fuel such as gasoline can produce uncontrollable

flames, creating a severe fire hazard.

CAUTlON

Flames observed emerging from the heater body are a clear indication that fuel is dangerously

contaminated with gasoline or other highly flammable material. If this occurs,

a. Never attempt to move the heater.

b. Call the Fire Department.

c. Use only a class ”B”fire extinguisher.

d. Never throw water directly on a burning heater.

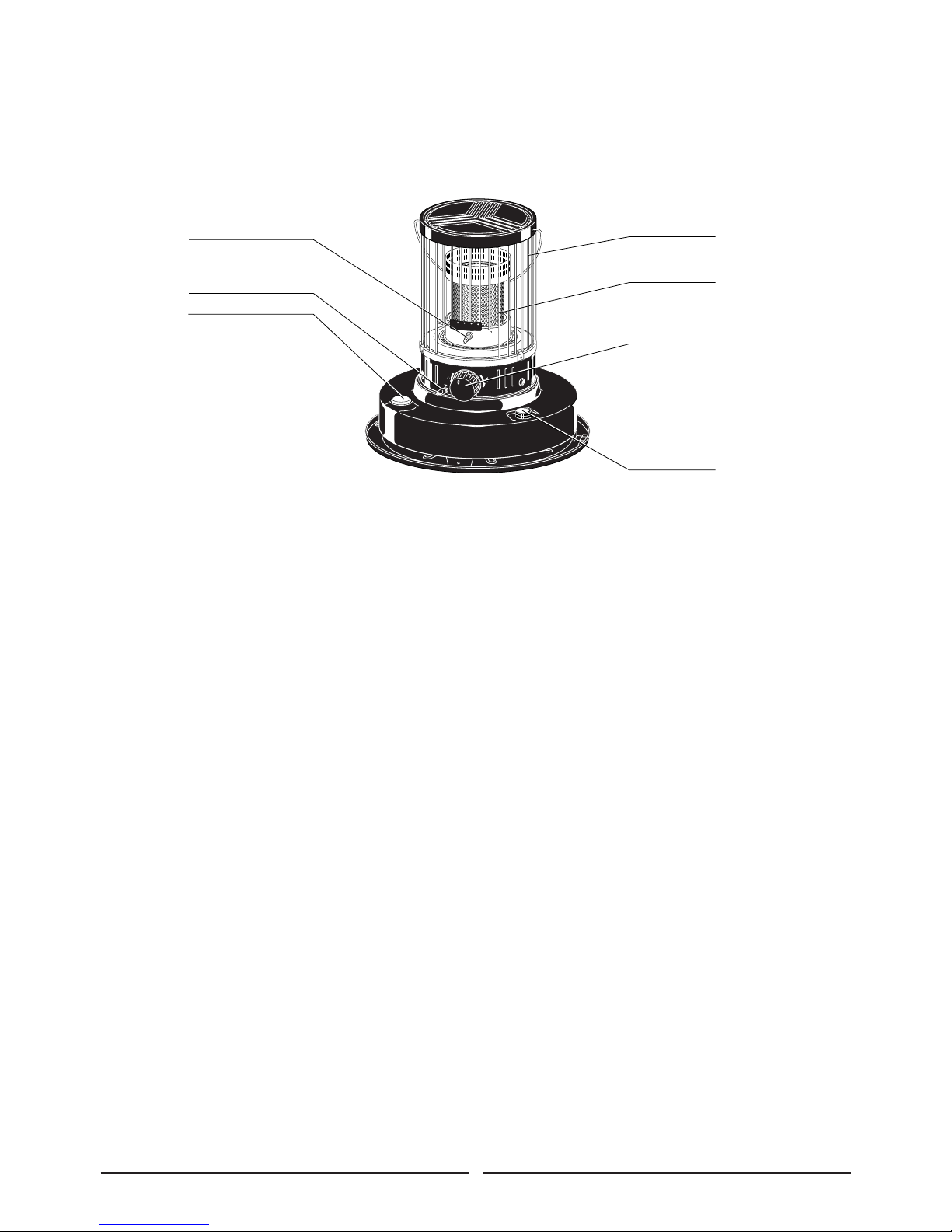

OPERATING CONTROLS

AND FEATURES

1. Heat Chamber: Permits adjustment of heat output without increasing unwanted combustion

materials or reducing combustion efficiency. This feature increases comfort and

convenience while maximizing fuel savings.

2. Safety Guard: Extensive grillework covers the hot surfaces of the heater, greatly reducing the

possibility of accidental contact burns.

3. Wick Adjuster Knob: Used to raise and lower wick for heat output adjustment. To extinguish flame

turn knob counterclockwise.

4. Fuel Tank Cap: Covers filling port of fuel tank.

NOTE: Wipe away any spilled kerosene from tank after filling.

5. Fuel Gauge: Indicates fuel level in tank.

NOTE: Never fill beyond black line.

6. Manual Shutoff: Used to rapidly retract wick and extinguish flame.

NOTE: To avoid odor and smoke, do not use routinely to turn heater off. This

manual shutoff is not effective when gasoline, gasoline-contaminated

kerosene, or other highly flammable fuels are used in the heater.

7. Heat Chamber Handle: Used to check and insure proper seating of the heat chamber after ignition.

lmproper seating of the heat chamber will cause erratic flame and smoke.

MADEINJAPAN

KS-27A

TOYOTOMI

7 Heat Chamber Handle

6 Manual Shutt-off Lever

2. Safety Guard

5 Fuel Gauge

1. Heat Chamber

3. Wick Adjuster Knob

4. Fuel Tank Cap

SPECIFlCATlONS

TOYOTOMI Portable Kerosene Heater Model KS-27A

Heat rating 2,470kcal/9,800BTU/h

Fuel tank capacity 5.9 lit

Burning time/tank* 21 Hours

Size(W x H x D) 440 x 440 x 470mm

Weight 7.7kg

* Depending on wick setting, condition and fuel quality.

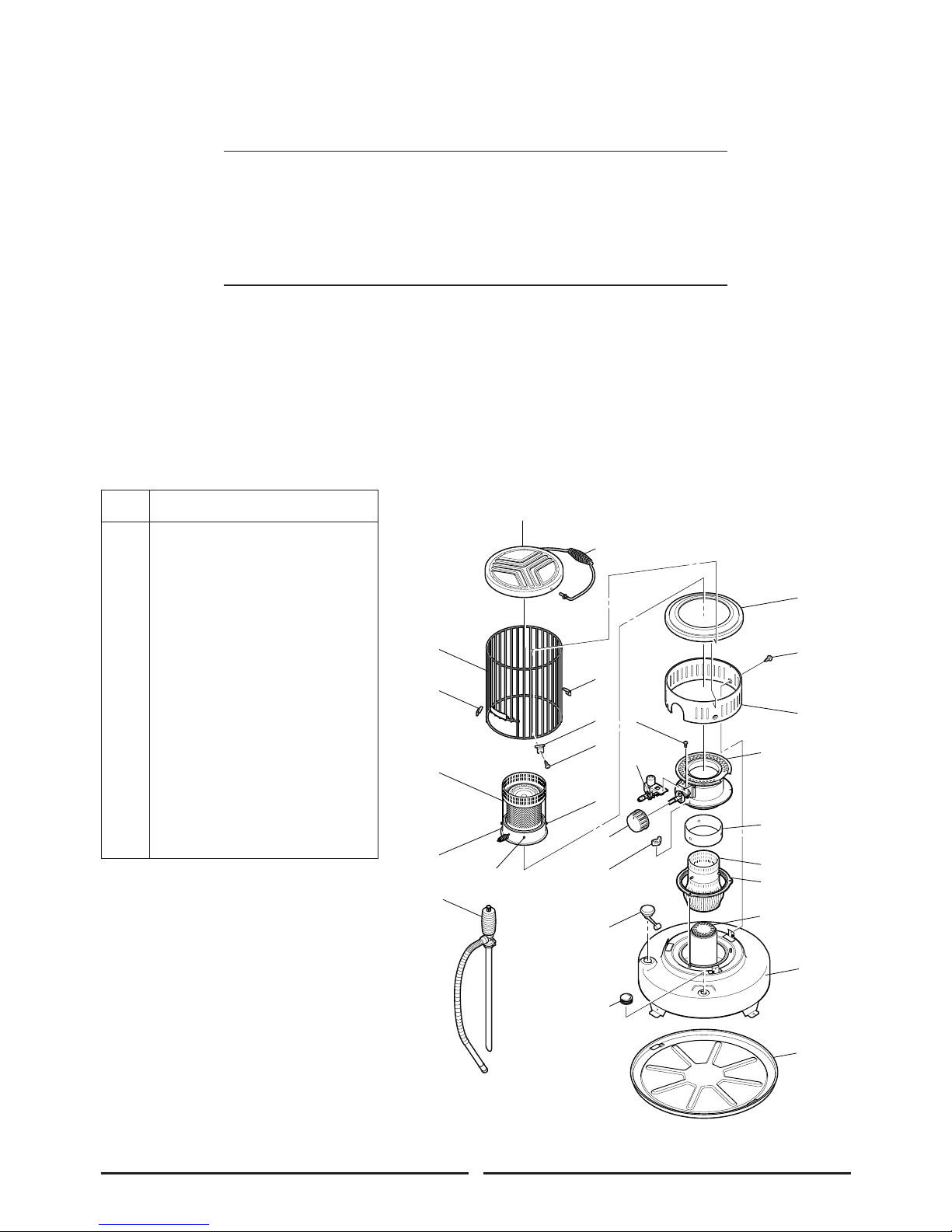

COMPONENT PARTS

REF# PART NAME

1. Guard assembly

2. Carrying handle

3. Top plale

4. Heat chamber assembly

5. Glass cylinder

6. Push ring

7. Cross pin

8. Guard retainer

9. Screw

10. Wick adjuster with pendulum assembly

11. Pendulum assembly

12. Wick adjuster knob

13. Screw 1A

14. Wing nut

15. Wick sleeve

16. Glass fiber wick

17. Rubber packing

18. Fuel tank assembly

19. Fuel gauge

20. Fuel tank cap

21. Primary air tube cover

22. Screw E

23. Reflector

24. Under Outer Cover

25. Drip tray

26. Manual fuel siphon

ASSEMBLY AND OPERATlON

lNSPECTlON AND ASSEMBLY

NOTE: Save the shipping carton and packing materials for future storage of your heater.

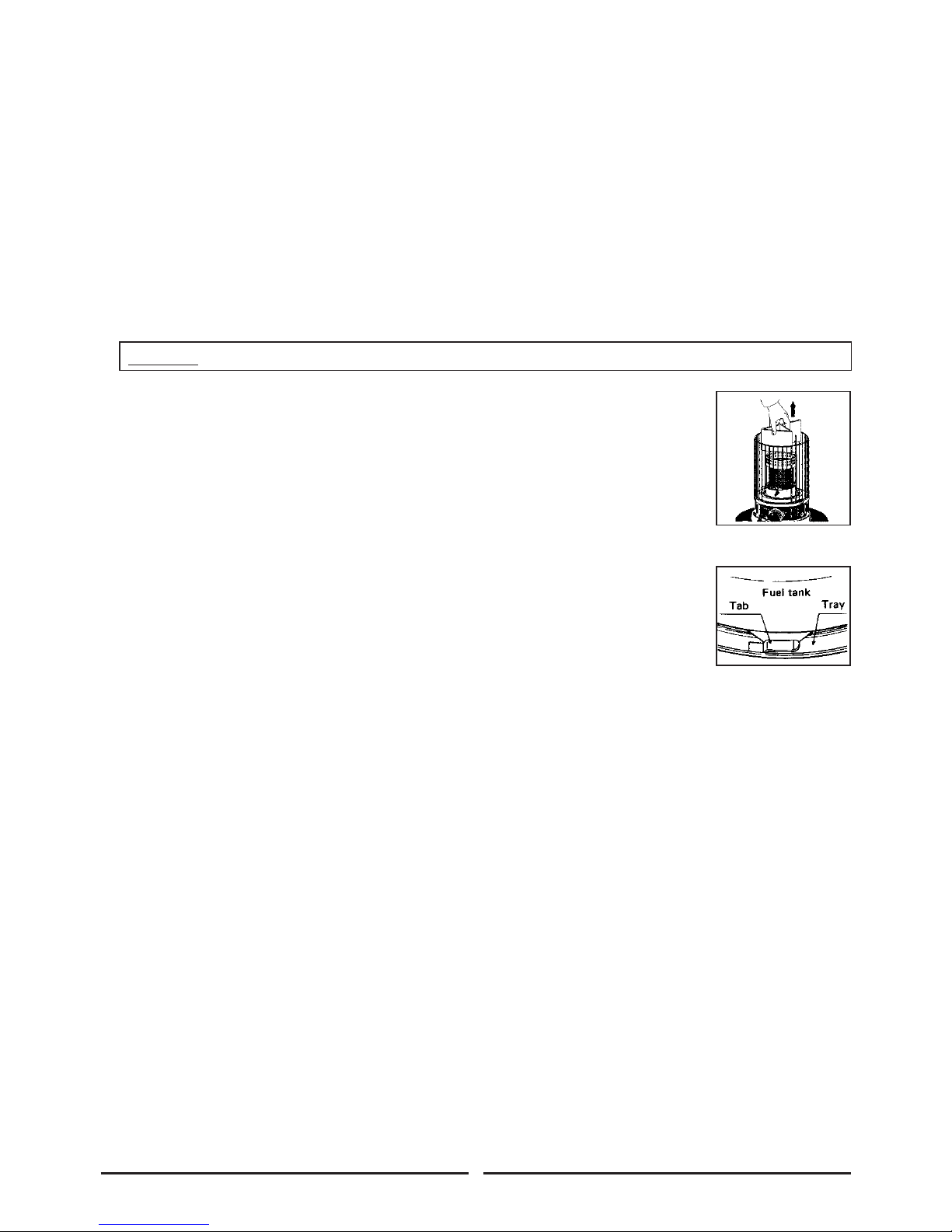

1. REMOVE PACKING MATERIALS

Remove all packing materials from your heater and install the guard as follows:

CAUTION: Risk of burns. Do not operate heater without guard completely attached.

a) Remove the carrying handle, top plate and packing materials.

b) Replace the top plate and carrying handle.

2. lNSTALL DRIP TRAY

NOTE: DO NOT operate your heater without the drip tray.

Place the drip tray on the floor.

●Place the heater on the drip tray.

●Turn the heater clockwise until the feet slide into their tabs.

3. CHECK SCREWS

Make sure that the three (3) screws around the guard above the fuel tank are tight.

FUELING

1. lnsert the straight tube of the manual fuel siphon into the kerosene container

Remove the fuel tank cap on the heater, and insert the siphon's flexible hose

into the fuel tank opening.

2. Turn the air vent knob on the top of the siphon clockwise to close the air vent.

3. To start the flow of kerosene, squeeze the bulb of the siphon vigorously six or

seven times. Once the flow begins, it is no longer necessary to squeeze the bulb.

To avoid overfilling the tank, watch the fuel gauge. As the indicator enters the red

zone, stop the flow by turning the air vent knob counterclockwise.

NOTE: Be especially careful to avoid overfilling the tank with very cold

kerosene; otherwise overflow might occur when the fuel warms up.

4. Remove the siphon carefully, allowing the excess kerosene to drain from the

tube back into container. Replace the fuel tank cap and tighten it securely. Be

sure to wipe away any spilled kerosene from tank or other heater parts.

CHECK BEFORE LIGHTING

1. LOCATE YOUR HEATER AWAY FROM WALLS AND AVOID DRAFTS

Allow at least three (3) feet of clearance between the heater and walls, curtains, shelving or other

combustible materials. Do not operate your heater in drafty areas or locations where opening doors may

create gusts of air. Drafts or strong air currents may make flame unstable and affect heater performance.

2. LEVEL THE HEATER

The heater should be operated on a firm, Ievel floor.

NOTE: lf your heater is not level, change Iocations. Do not attempt to prop it

up with books or other objects. An unlevel heater may burn with an

uneven flame.

WARNING: Use only water-clear Kerosene.

Never use gasoline or other flammable liquids.

ALWAYS extinguish heater before refill heater fuel tank.

Fuel heater outside the living area.

MADEINJAPANMADEINJAPAN

KS-27A

TOYOTOMI

LIGHTING

NOTE: When you first use your new heater, ignite it out of the living area of your house, either in a garage

or an outside area protected from strong drafts. Burn it for about 15 minutes to remove all of the

protective oil present on the burner parts. lf this 15 minute ”burn-in”is done inside, some

objectionable odor will be observed. This procedure is necessary ONLY THE FIRST TIME you ignite

your heater.

NOTE: lf you have fueled your heater for the first time, or if you are refueling it after it has been out of fuel

for a long time, you will need to wait about thirty (30) minutes for the wick to become fully saturated

before Iighting. Failure to allow enough time for the wick to become fully saturated may cause

permanent damage to the wick when it is lighted.

1. Turn the wick adjuster knob clockwise until it stops. This raises the wick to its

maximum height. As the wick rises within the heater, the wick adjuster knob

turns with some resistance and makes a sound like the winding of a clock.

Once the wick has reached its proper height, the automatic extinguisher is fully

engaged. The wick adjuster knob will now move freely left or right to adjust

the flame.

2. LIGHTING

Tilt the heat chamber and touch the match to the top of the wick. Do not allow

burned parts of the match to fall or remain on the wick.

3. Be sure that heat chamber is properly seated by moving the wire heat chamber

handle left and right.

NOTE: An improperly seated heat chamber can cause high flame, smoke, and

potential damage to the heater itself. Proper seating of the heat chamber

is essential for good performance. Do not leave the heater until you have

determined that the flame is burning normally, as described in the

following section.

MADEINJAPANMADEINJAPAN

KS-27A

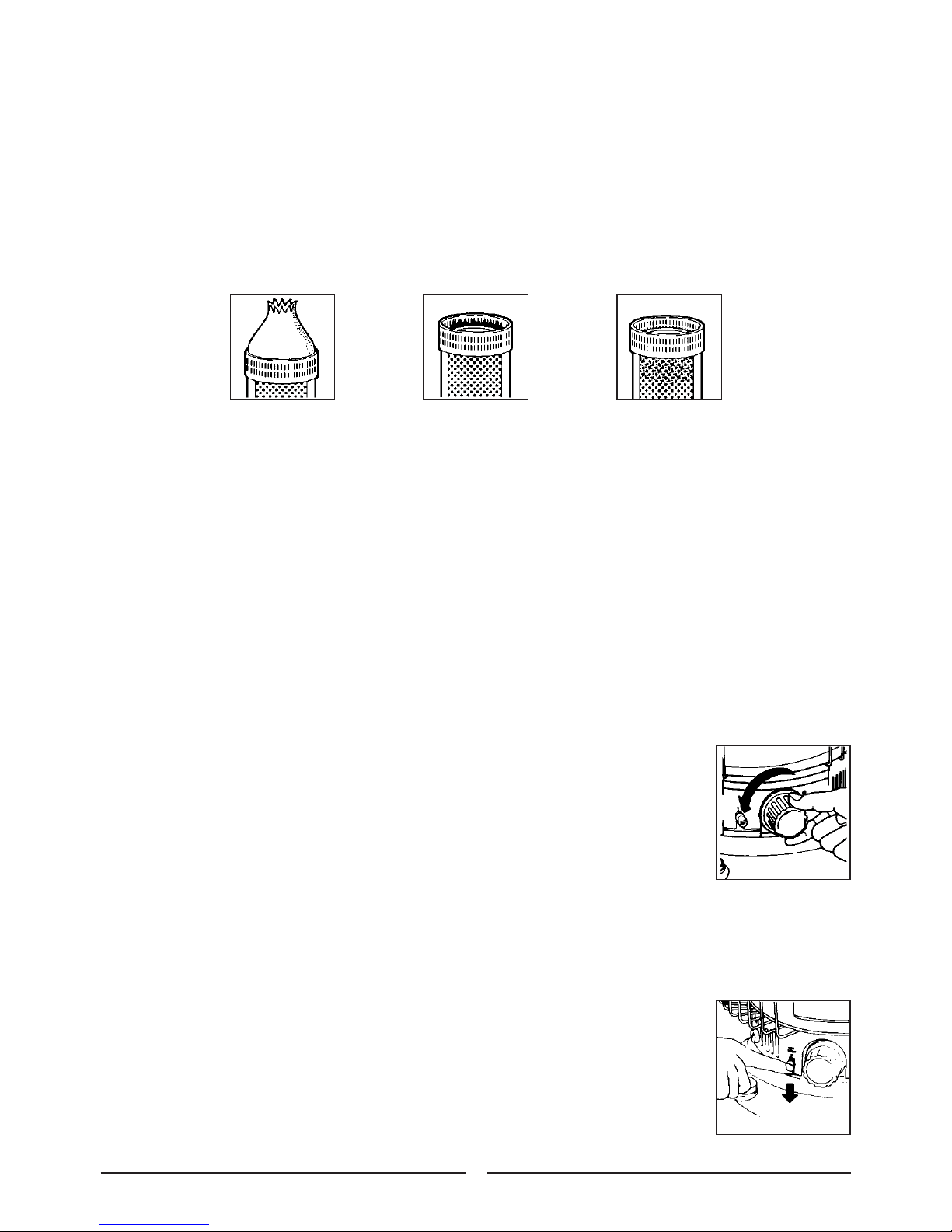

ADJUSTING THE FLAME

1. After lighting, wait for the heat chamber to reach operating temperature. This will take ten (10) minutes,

after which the flame will be visible through the glass cylinder.

2. CHECK THE FLAME LENGTH

After (5) minutes, the entire heat chamber should be glowing red.

lf necessary, raise or lower the wick by turning the wick adjuster knob to produce the proper flame condition.

NOTE: Do not operate your heater with wick set TOO LOW or TOO HIGH. Doing so will decrease

combustion efficiency and increase production of unwanted emissions. When operating heater, be

sure wick is high enough to keep the primary heat chamber heated to a uniform red glow from top

to bottom.

NOTE: AIways observe the heater closely for the first 15-20 minutes after it is lighted to be sure it is

properly adjusted.

EXTINGUISHING THE FLAME

1. Turn the wick adjuster knob counterclockwise until it stops. Within a few

moments, the flame will be completely extinguished and the heater will be off.

2. Make sure the flame is out completely.

3. Do not try to relight the heater for at least three (3) minutes after turning it off,

as this may cause smoke and odor.

MANUAL SHUTOFF

When quick shutoff is necessary, push the manual shutoff down.

NOTE: For routine turn-off, DO NOT use the "Manual Shutoff" or activate the

”Automatic Extinguisher”by jarring the heater. These methods may

cause unwanted odor, soot and smoke. Only the wick adjuster knob

should be used for normal shutoff.

BAD

TOO LOW

Produces odor

GOOD

CORRECT

Most efficient

combustion

BAD

TOO HIGH

Produces smoke

and soot

Other manuals for KS-27A

Table of contents

Other Toyotomi Heater manuals

Toyotomi

Toyotomi Zibro LC-140 User manual

Toyotomi

Toyotomi RS-W30 Manual

Toyotomi

Toyotomi Zibro RS-29 User manual

Toyotomi

Toyotomi zibro LC-300 User manual

Toyotomi

Toyotomi RC-41 Type A User manual

Toyotomi

Toyotomi RCA-2800 User manual

Toyotomi

Toyotomi HC-190 User manual

Toyotomi

Toyotomi Toyoset NS-2800 User manual

Toyotomi

Toyotomi Zibro LC-32 User manual

Toyotomi

Toyotomi Toyoset LC-3010 User manual

Toyotomi

Toyotomi Radiant 10 Type K User manual

Toyotomi

Toyotomi zibro RS-22 User manual

Toyotomi

Toyotomi zibro LC-132 User manual

Toyotomi

Toyotomi 4963505711078 User manual

Toyotomi

Toyotomi Omni 120 Type A Troubleshooting guide

Toyotomi

Toyotomi Radiant 101 Type D User manual

Toyotomi

Toyotomi Radiant 10 Type N User manual

Toyotomi

Toyotomi LC-33 User manual

Toyotomi

Toyotomi Radiant 40 Type C User manual

Toyotomi

Toyotomi Toyostove Laser 30 Owner's manual

Toyotomi

Toyotomi LC-43 User manual

Toyotomi

Toyotomi Double Clean 90 Troubleshooting guide

Toyotomi

Toyotomi Zibro LC-32 User manual

Toyotomi

Toyotomi Zibro LC-135 User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
