Toyota Supra 1997 User manual

WWW.MANUALS.WS

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1-1

Overview of instruments

and controls

Instrument panel overview

Instrument cluster overview

Indicator symbols on the

instrument panel

WWW.MANUALS.WS

Instrument panel overview

WWW.MANUALS.WS

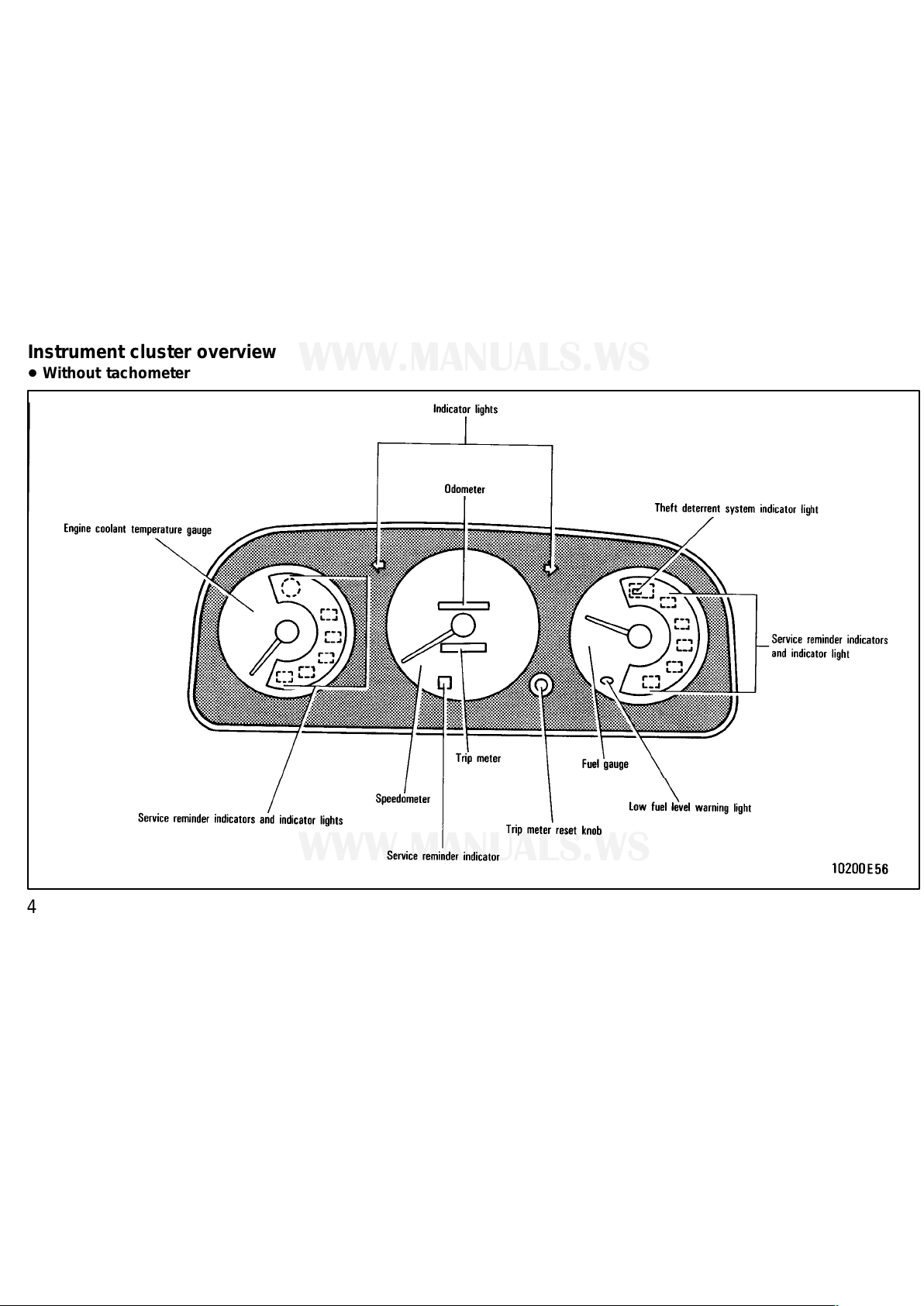

Instrument cluster overview

Without tachometer

WWW.MANUALS.WS

With tachometer

WWW.MANUALS.WS

Anti-lock brake system warning light*1

Brake system warning light *1

Seat belt reminder light*1

Discharge warning light*1

Low oil pressure warning light*1

Malfunction indicator lamp*1

Open door warning light*1

SRS airbag warning light*1

Turn signal indicator lights

Headlight high beam indicator light

Over-drive indicator light

Cruise control indicator light*2

Rear window defogger indicator

light.

*1: For details, see “Service reminder indicators and warning

buzzers” in Chapter 1-5.

*2: If this light flashes, see “Cruise control” in Chapter 1-6.

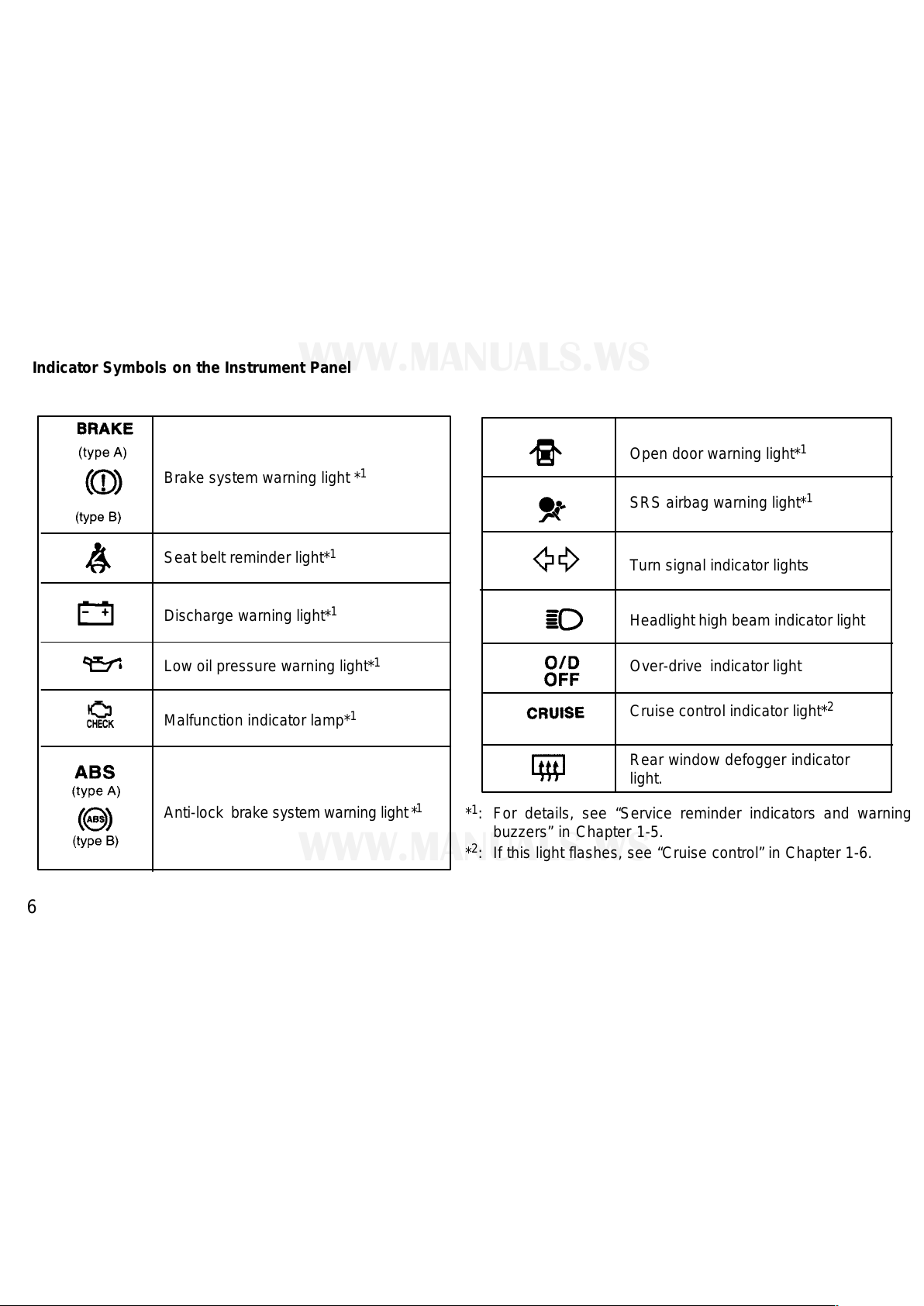

Indicator Symbols on the Instrument Panel

WWW.MANUALS.WS

Part 1 Keys

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1-2

Keys and Doors

Keys

Side doors

Power windows

Trunk lid

Back door

Hood

Theft deterrent system

Fuel tank cap

Electric sun roof

The master key works in every lock.

The subkey will not work in the trunk.

To protect things locked in the trunk when

you have your vehicle parked, leave the

subkey with the attendant.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you acci-

dentally lock your keys inside the vehicle.

Keep the key number plate in a safe

place such as your wallet, not in the

vehicle.

If you should lose your keys or if you need

additional keys, duplicates can be made

by a Toyota dealer using the key number.

You should also put a copy of the key

number with your important papers.

WWW.MANUALS.WS

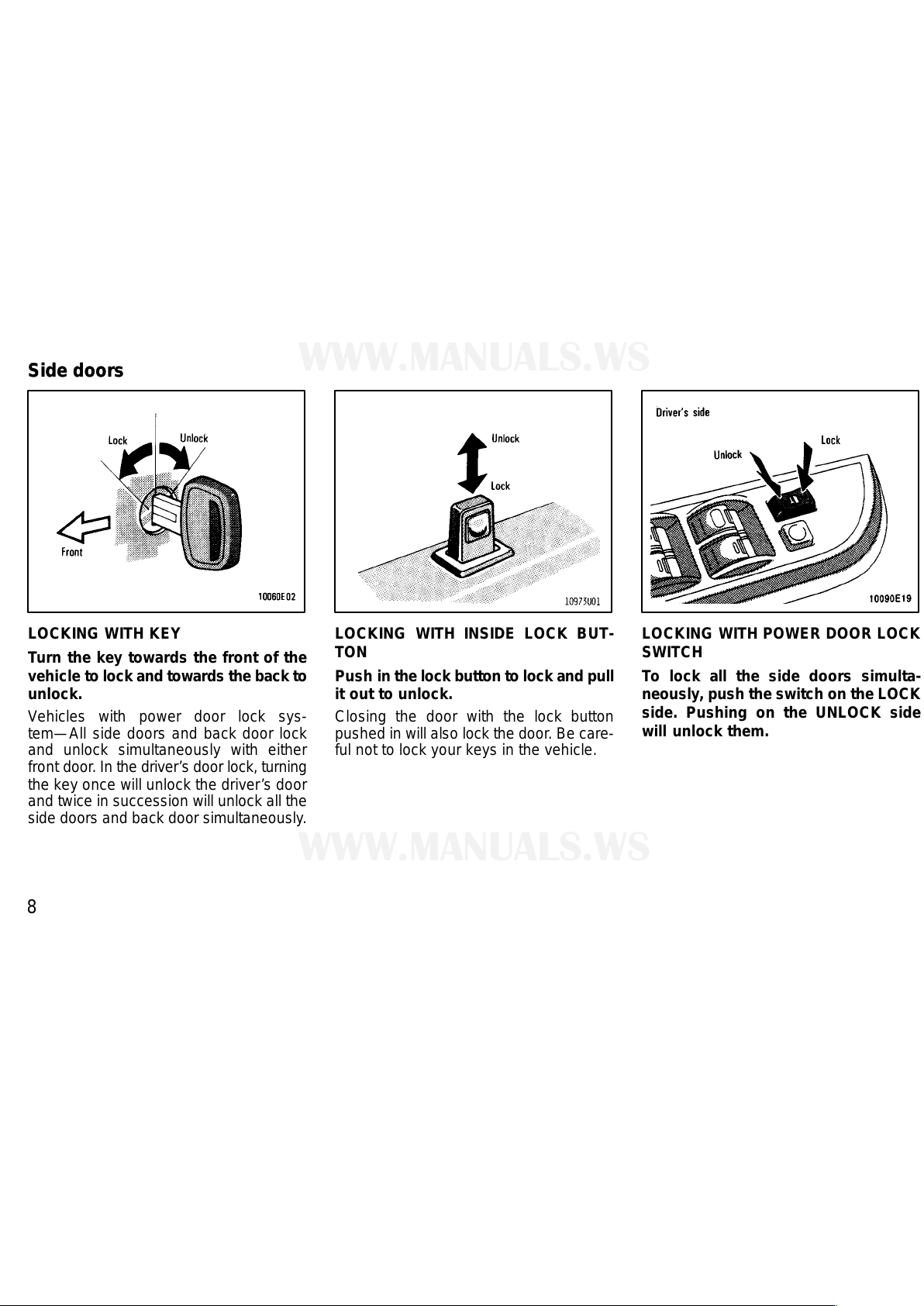

LOCKING WITH KEY

Turn the key towards the front of the

vehicle to lock and towards the back to

unlock.

Vehicles with power door lock sys-

tem—All side doors and back door lock

and unlock simultaneously with either

front door. In the driver’s door lock, turning

the key once will unlock the driver’s door

and twice in succession will unlock all the

side doors and back door simultaneously.

LOCKING WITH INSIDE LOCK BUT-

TON

Push in the lock button to lock and pull

it out to unlock.

Closing the door with the lock button

pushed in will also lock the door. Be care-

ful not to lock your keys in the vehicle.

LOCKING WITH POWER DOOR LOCK

SWITCH

To lock all the side doors simulta-

neously, push the switch on the LOCK

side. Pushing on the UNLOCK side

will unlock them.

Side doorsSide doors

WWW.MANUALS.WS

LOCKING WITH REAR DOOR CHILD-

PROTECTOR

Turn the lock knob to the “LOCK”

position as shown on the label.

This feature allows you to lock a rear door

so it can be opened from the outside only,

not from inside. We recommend using

this feature whenever small children are in

the vehicle.

CAUTION

Before driving, be sure that the

doors are closed and locked, espe-

cially when small children are in the

vehicle. Along with the proper use of

seat belts, locking the doors helps

prevent the driver and passengers

from being thrown out from the ve-

hicle during an accident. It also

helps prevent the doors from being

opened unintentionally.

Back door

WWW.MANUALS.WS

The windows can be operated with the

switch on each door.

The ignition key must be in the “ON” posi-

tion.

OPERATING THE DRIVER’S WINDOW

Use the switch on the driver’s door.

Normal operation: The window moves

as long as you hold the switch.

To open: Lightly push down the switch.

To close: Pull up the switch.

Automatic operation (to open only):

Push the switch completely down and

then release it. The window will fully open.

To stop the window partway, lightly pull the

switch up and then release it.

Power windows
