QUICK REFERENCE

GUIDE

MATRIX

2010

413259M1.qxd 1413259M1.qxd 1 1/13/09 8:33:31 PM1/13/09 8:33:31 PM

2010

Corolla Matrix

!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for

the Owner’s Manual located in your vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and

supplementary manuals so you will have a better understanding

of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,

U.S.A., Inc. wish you many years of satisfied driving in your

new Corolla Matrix.

This Quick Reference Guide is not a full description of

Corolla Matrix operations. Every Corolla Matrix owner should

review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

413259M2.qxd 1/13/09 8:20 PM Page CVR2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16

Air Conditioning/Heating 16

Audio 14-15

Auto lock functions28

Automatic Transmission 8

Auxiliary storage 17

Bottle holders 19

Clock 10

Cruise control 17

Cup holders 18

Door-Back 13

Door locks-Power 13

Light control-Instrument panel 16

Lights & turn signals 11

Moonroof 13

Parking brake 10

Power outlet-12V DC 19

Power outlet-115V AC 19

Seat adjustments-Front 9

Seat adjustments-Rear 9

Seats-Head restraints 9

Te l e p h o n e controls (Bluetooth®)18

Tilt and telescopic steering wheel 10

Windows-Power 12

Windshield wipers & washers 12

Doors-Child safety locks 20

Seatbelts 21

Seatbelts-Shoulder belt anchor 20

Spare tire & tools 21

Tire Pressure Monitoring (warning) System 20

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

1Visit your Toyota dealer for information on customizing this feature.

2 Programmable by customer. Refer to the Owner’s Manual for instructions and

more information.

INDEX

413259M2.qxd 1/13/09 8:23 PM Page 1

OVERVIEW

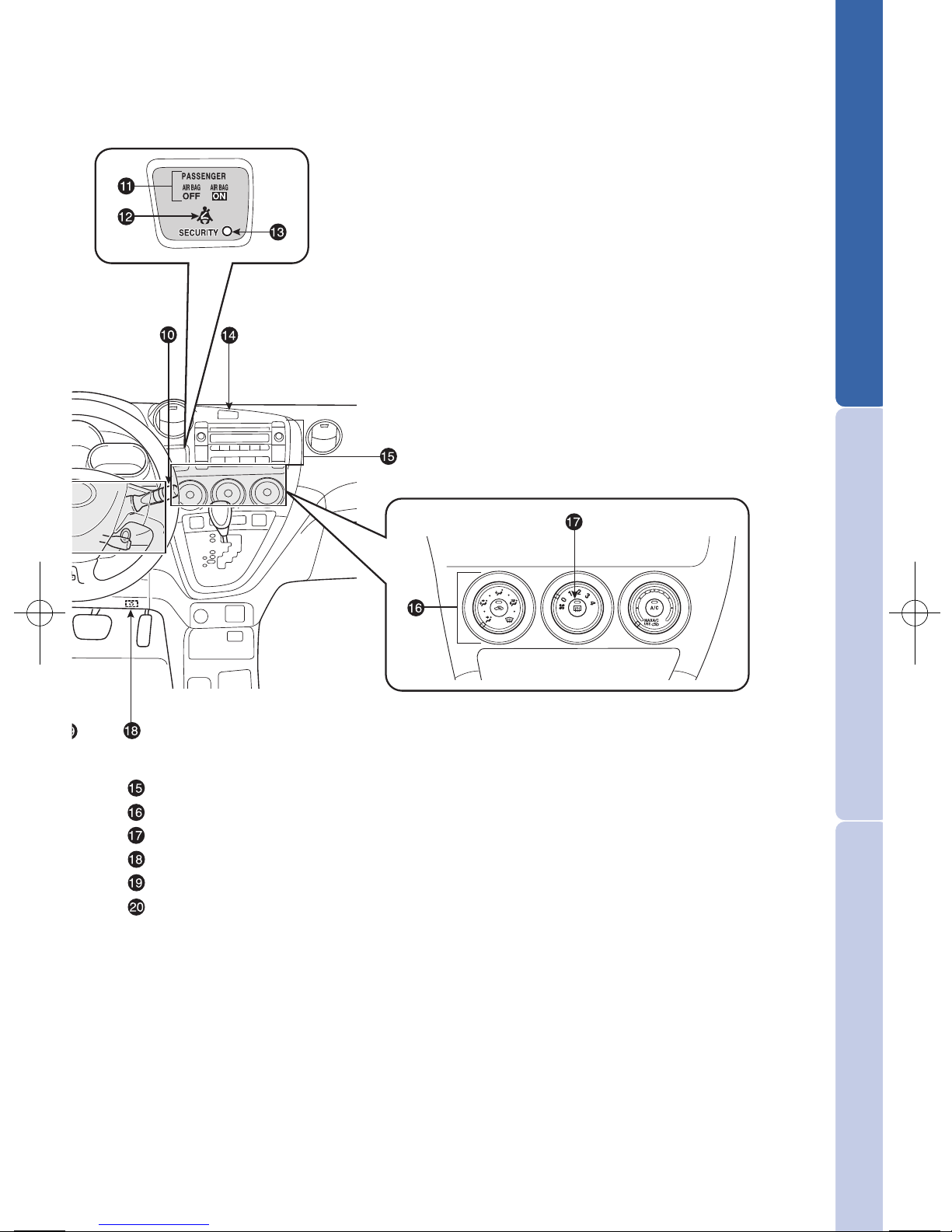

Instrument panel

Steering wheel audio controls1,2

Voice command button1

Telephone controls1

Ignition switch

Cruise control1

VSC/TRAC OFF switch

Auxiliary storage

Power outside rearview mirror control

Headlight, turn signal and front fog light1controls

Wiper and washer controls

“AIR BAG ON” and “AIR BAG OFF” indicator

Front passenger seatbelt reminder light

Engine immobilizer indicator

Emergency flasher button

Steering wheel controls

413259M2.qxd 1/13/09 8:23 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Audio system2

Air Conditioning controls

Outside rearview mirrors1/Rear window defogger button

Tire Pressure Monitoring (warning) System reset

Tilt and telescopic steering control

Hood lock release lever

1If equipped

2Vehicles with navigation system: for details, refer to the “Navigation

System Owner’s Manual.”

413259M2.qxd 1/13/09 8:23 PM Page 3

OVERVIEW

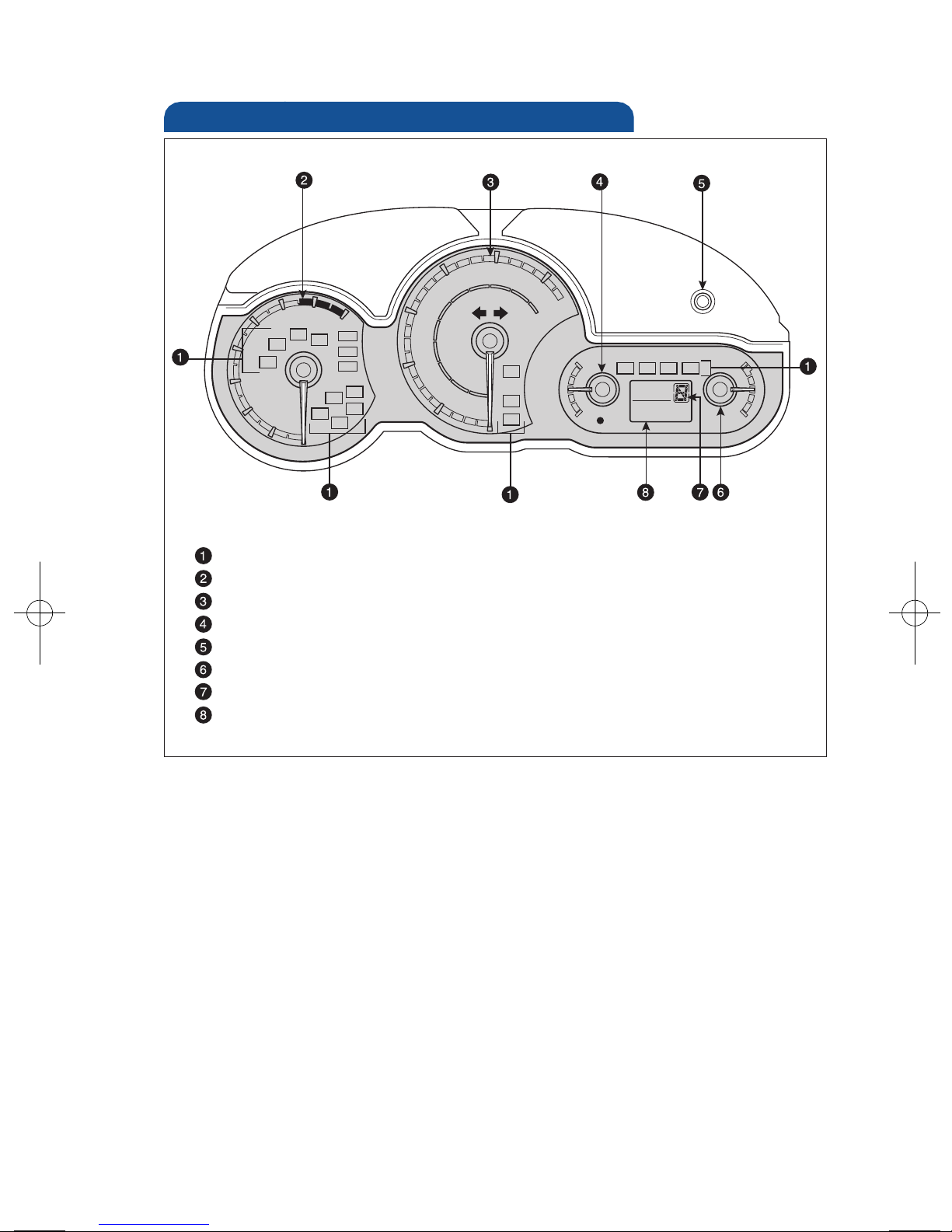

Instrument cluster

Service indicator and reminder

Tachometer

Speedometer

Fuel gauge

Trip meter reset/Instrument panel light control

Engine coolant temperature

Automatic Transmission shift range display (if equipped)

Odometer and two trip meters

413259M2.qxd 1/13/09 8:23 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

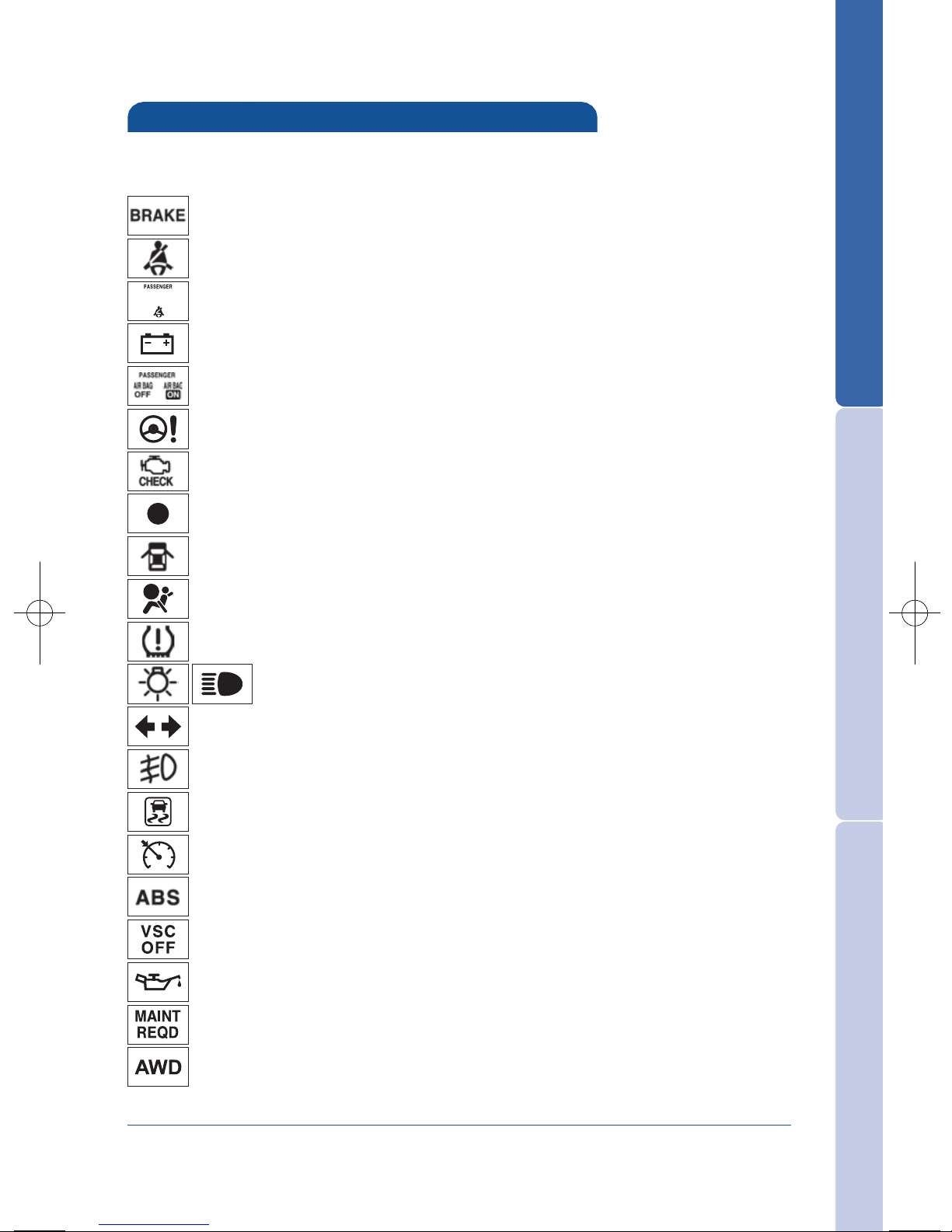

Indicator symbols

Charging system warning1

Brake system warning1

AIR BAG ON and AIR BAG OFF indicator1

Anti-lock Brake System warning1

Headlight low/high beam indicator

Turn signal indicator

Slip indicator1

Cruise control indicator

Low Tire Pressure Warning1

Open door warning

SRS Airbag warning1

Driver seatbelt reminder

(alarm will sound if speed is over 12 mph)

Front passenger seatbelt reminder

(alarm will sound if speed is over 12 mph)

Malfunction/Check Engine indicator1

Low fuel level warning

Fog light indicator

For details, refer to “Indicators and warning lights,” Section 2-2, 2010

Owner’s Manual.

Active torque control 4WD system warning1

Low engine oil pressure warning1

Vehicle Stability Control OFF indicator1

Engine oil replacement reminder1

Electric power steering warning1

1If indicator does not turn off within a few seconds of starting engine, there may

be a malfunction. Have vehicle inspected by your Toyota dealer.

413259M2.qxd 1/13/09 8:23 PM Page 5

OVERVIEW

Keyless entry (if equipped)

Push

Push ONCE: Driver door

TWICE: All doors

Locking operation Unlocking operation

Panic button

Push and hold

NOTE: If a door is not opened within

60 seconds of unlocking, all doors will

relock for safety.

Fuel tank door release and cap

NOTE: Tighten until one click is

heard. If the cap is not tightened

enough, Check Engine “ ”

indicator may illuminate.

Pull Tu r n

Store

413259M2.qxd 1/13/09 8:23 PM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

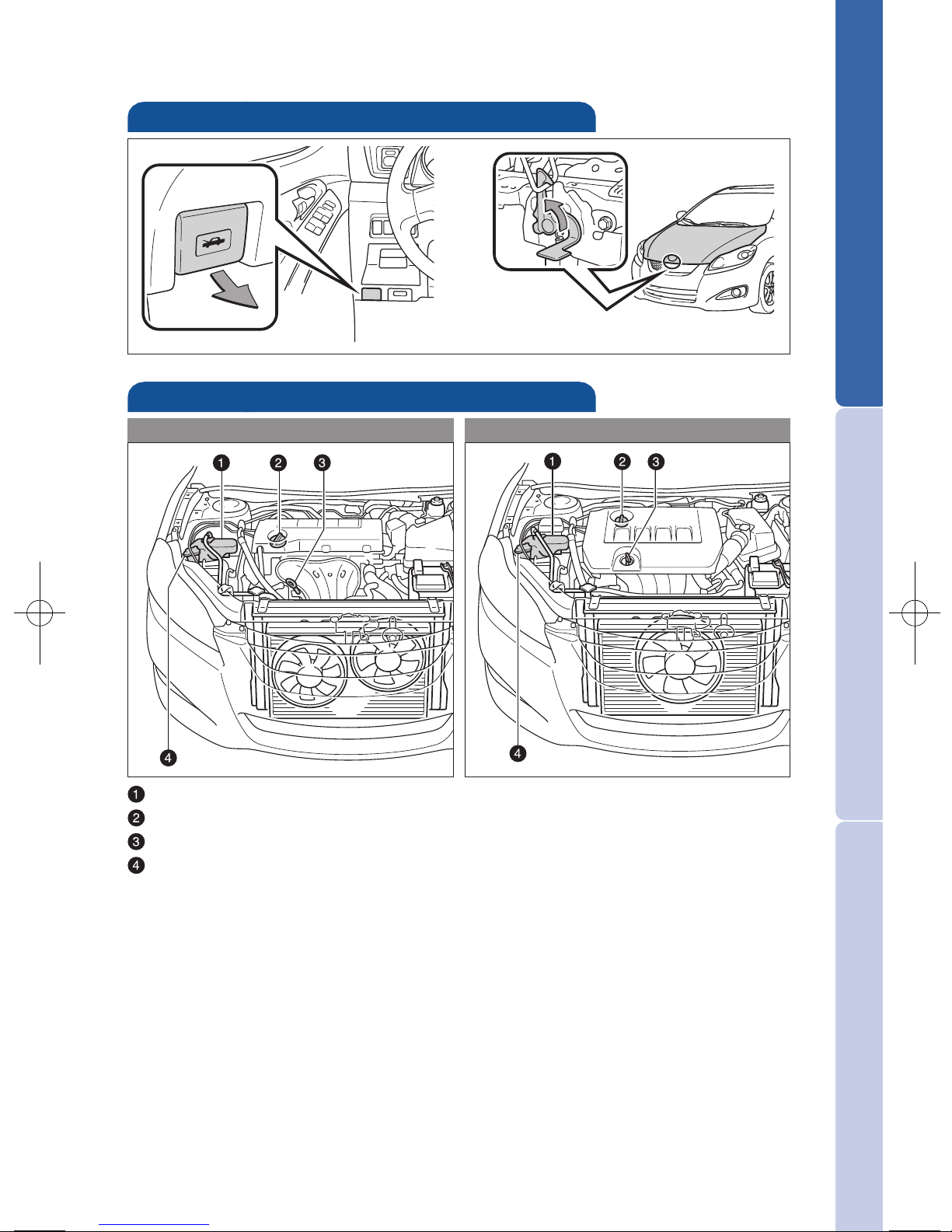

Hood release

Pull up latch

and raise hood

Pull

Engine coolant reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.

Please refer to the “Owner’s Warranty Information Booklet,”

“Scheduled Maintenance Guide” or “Owner’s Manual

Supplement.”

Engine maintenance

4 cylinder (2AZ-FE) engine

cylinder

(2ZR-FE) engine

413259M2.qxd 1/13/09 8:23 PM Page 7

FEATURES/OPERATIONS

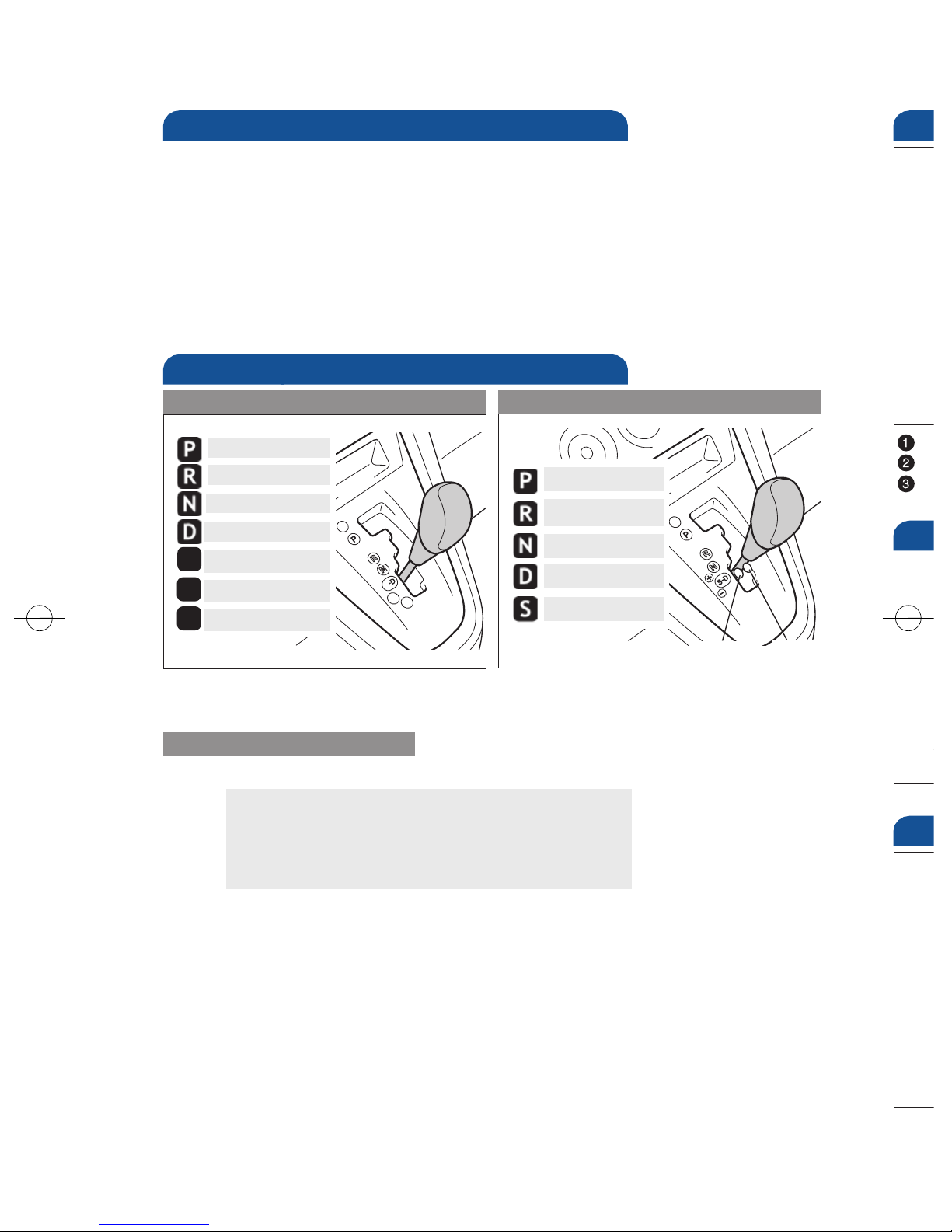

Automatic Transmission (if equipped)

* The ignition switch must be “ON” and the brake pedal depressed to shift

from Park.

Downshifting increases power going uphill, or provides engine braking

downhill. For best fuel economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Floor shift type:

+: Upshift (push and release)

-: Downshift (pull and release)

“S” (Sequential) mode

Shift the shift lever to “S” position from “D” position.

Standard type Multi-mode type

Park*

Reverse

Neutral

Drive

“S” mode

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

“S” “D”

Auto lock functions (if equipped)

Automatic door locks can be programmed to operate in three different

modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors unlock when shifting into Park.

-Doors unlock when the driver’s door is opened within 10 seconds after

setting the engine switch to “ACC” or “LOCK” position.

Refer to the Owner’s Manual for more details.

Fro

413259M2_r1.qxd:413259M2_r1 1/15/09 2:10 PM Page 8
