Toyota Avalon 2002 User manual

’02 AVALON U (L/O 0107)

i2002 MY AVALON_U (OM22493U)

Foreword

Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and

quality construction of each vehicle we build.

This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants

follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For

important information about this manual and your Toyota, read the following pages carefully.

When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete

satisfaction. He will provide quality maintenance and any other assistance you may require.

If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:

DU.S. OWNERS: Toyota Customer Assistance Center Tol l−free:1−800−331−4331

DCANADIAN OWNERS: Toyota Canada Customer Interaction Centre Tol l−free:1−888−TOYOTA−8 (1−888−869−6828)

Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.

All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of

continual product improvement, we reserve the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may

find some explanations for equipment not installed on your vehicle.

Motor Corporation.

’02 AVALON U (L/O 0107)

ii 2002 MY AVALON_U (OM22493U)

Important information about this manual

Safety and vehicle damage warnings

Throughout this manual, you will see safety and vehicle dam-

age warnings. You must follow these warnings carefully to

avoid possible injury or damage.

The types of warnings, what they look like, and how they are

used in this manual are explained as follows:

CAUTION

This is a warning against something which may cause

injury to people if the warning is ignored. You are

informed about what you must or must not do in

order to avoid or reduce the risk to yourself and other

people.

NOTICE

This is a warning against something which may cause

damage to the vehicle or its equipment if the warning

is ignored. You are informed about what you must or

must not do in order to avoid or reduce the risk of

damage to your vehicle and its equipment.

Safety symbol

When you see the safety symbol

shown above, it means: “Do not...”;

“Do not do this”; or “Do not let this

happen”.

’02 AVALON U (L/O 0107)

iii 2002 MY AVALON_U (OM22493U)

Important information about your Toyota

New vehicle warranty

Your new vehicle is covered by the following Toyota

limited warranties:

DNew vehicle warranty

DEmission control systems warranty

DOthers

For further information, please refer to the “Owner’s

Warranty Information Booklet” or “Owner’s Manual

Supplement”.

Your responsibility for

maintenance

It is the owner’s responsibility to make sure that the

specified maintenance is performed. Section 6 gives de-

tails of these maintenance requirements. Also included in

Section 6 is general maintenance. For scheduled mainte-

nance information, please refer to the “Scheduled Main-

tenance Guide” or “Owner’s Manual Supplement”.

Accessories, spare parts and

modification of your Toyota

A wide variety of non−genuine spare parts and accesso-

ries for Toyota vehicles are currently available in the

market. You should know that Toyota does not warrant

these products and is not responsible for their perfor-

mance, repair, or replacement, or for any damage they

may cause to, or adverse effect they may have on, your

Toyota vehicle.

This vehicle should not be modified with non−genuine

Toyota products. Modification with non−genuine Toyota

products could affect its performance, safety or durabili-

ty, and may even violate governmental regulations. In

addition, damage or performance problems resulting from

the modification may not be covered under warranty.

’02 AVALON U (L/O 0107)

iv 2002 MY AVALON_U (OM22493U)

Spark ignition system of

your Toyota

The spark ignition system in your Toyota meets all re-

quirements of the Canadian Interference−Causing Equip-

ment Standard.

Installation of a mobile

two−way radio system

As the installation of a mobile two−way radio system in

your vehicle could affect electronic systems such as

multiport fuel injection system/sequential multiport fuel

injection system, cruise control system, anti−lock brake

system, traction control system, vehicle skid control sys-

tem, SRS airbag system and front seat belt pretensioner

system, be sure to check with your Toyota dealer for

precautionary measures or special instructions regarding

installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in

your Toyota contain explosive chemicals. If the vehicle

is scrapped with the airbags and pretensioners left as

they are, this may cause an accident such as fire. Be

sure to have the systems of the SRS airbag and seat

belt pretensioner removed and disposed of by the quali-

fied service shop or by your Toyota dealer before you

dispose of your vehicle.

’02 AVALON U (L/O 0107)

2002 MY AVALON_U (OM22493U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 8. . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−1

’02 AVALON U (L/O 0107)

22002 MY AVALON_U (OM22493U)

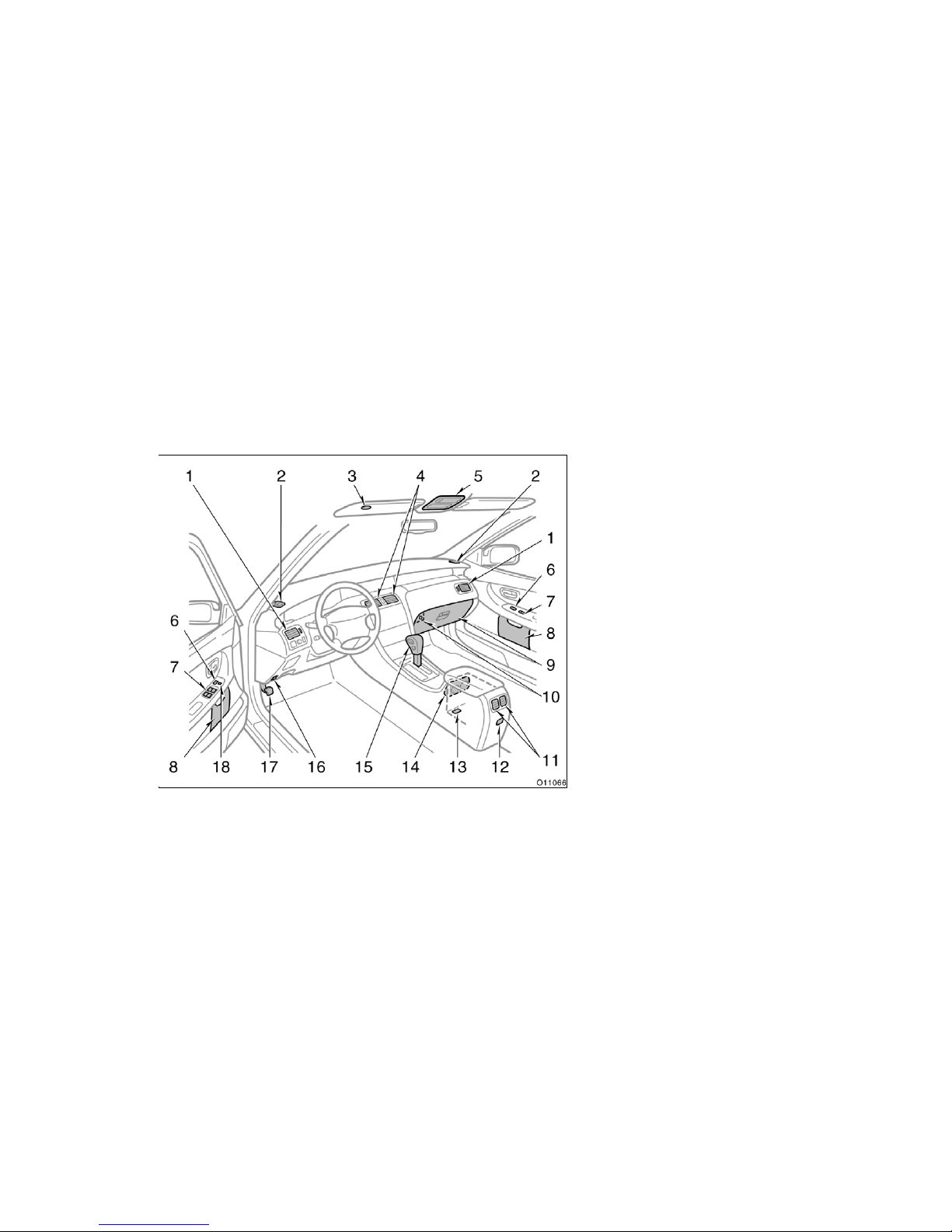

1. Side vents

2. Side defroster outlets

3. Garage door opener

4. Center vents

5. Electric moon roof switch and/or front

interior light, and front personal lights,

auxiliary box

6. Power door lock switches

7. Power window switches

8. Auxiliary boxes

9. Glove box

10. Trunk opener cancel switch

11. Rear console vents

12. Power outlet (115 VAC)

13. Power outlet (12 VDC)

14. Cup holder

15. Automatic transmission selector lever

16. Hood lock release lever

17. Parking brake pedal

18. Window lock switch

Instrument panel overview

"With bucket front seat

’02 AVALON U (L/O 0107)

2002 MY AVALON_U (OM22493U)

1. Power rear view mirror control switches

2. Headlight and turn signal switch and

front fog light switch

3. Wiper and washer switches

4. Emergency flasher switch

5. Car audio

6. Air conditioning controls

7. Rear window and outside rear view

mirror defoggers switch

8. Cigarette lighter and ashtray

9. Seat heater switches

10. Ignition switch

11. Power outlet main switch

12. Vehicle skid control system off switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Trunk lid lock release switch

16. Instrument panel light control knob

’02 AVALON U (L/O 0107)

42002 MY AVALON_U (OM22493U)

1. Side vents

2. Side defroster outlets

3. Automatic transmission selector lever

4. Garage door opener

5. Center vents

6. Electric moon roof switch and/or front

interior light, and front personal lights,

auxiliary box

7. Power door lock switches

8. Power window switches

9. Auxiliary boxes

10. Glove box

11. Cup holder

12. Trunk opener cancel switch

13. Hood lock release lever

14. Parking brake pedal

15. Window lock switch

"With bench type front seat

’02 AVALON U (L/O 0107)

2002 MY AVALON_U (OM22493U)

1. Power rear view mirror control switches

2. Headlight and turn signal switch and

front fog light switch

3. Wiper and washer switches

4. Emergency flasher switch

5. Car audio

6. Air conditioning controls

7. Rear window and outside rear view

mirror defoggers switch

8. Seat heater switches

9. Cigarette lighter and ashtray

10. Power outlet (115 VAC)

11. Power outlet (12 VDC)

12. Ignition switch

13. Power outlet main switch

14. Vehicle skid control system off switch

15. Cruise control switch

16. Tilt steering lock release lever

17. Trunk lid lock release switch

18. Instrument panel light control knob

’02 AVALON U (L/O 0107)

62002 MY AVALON_U (OM22493U)

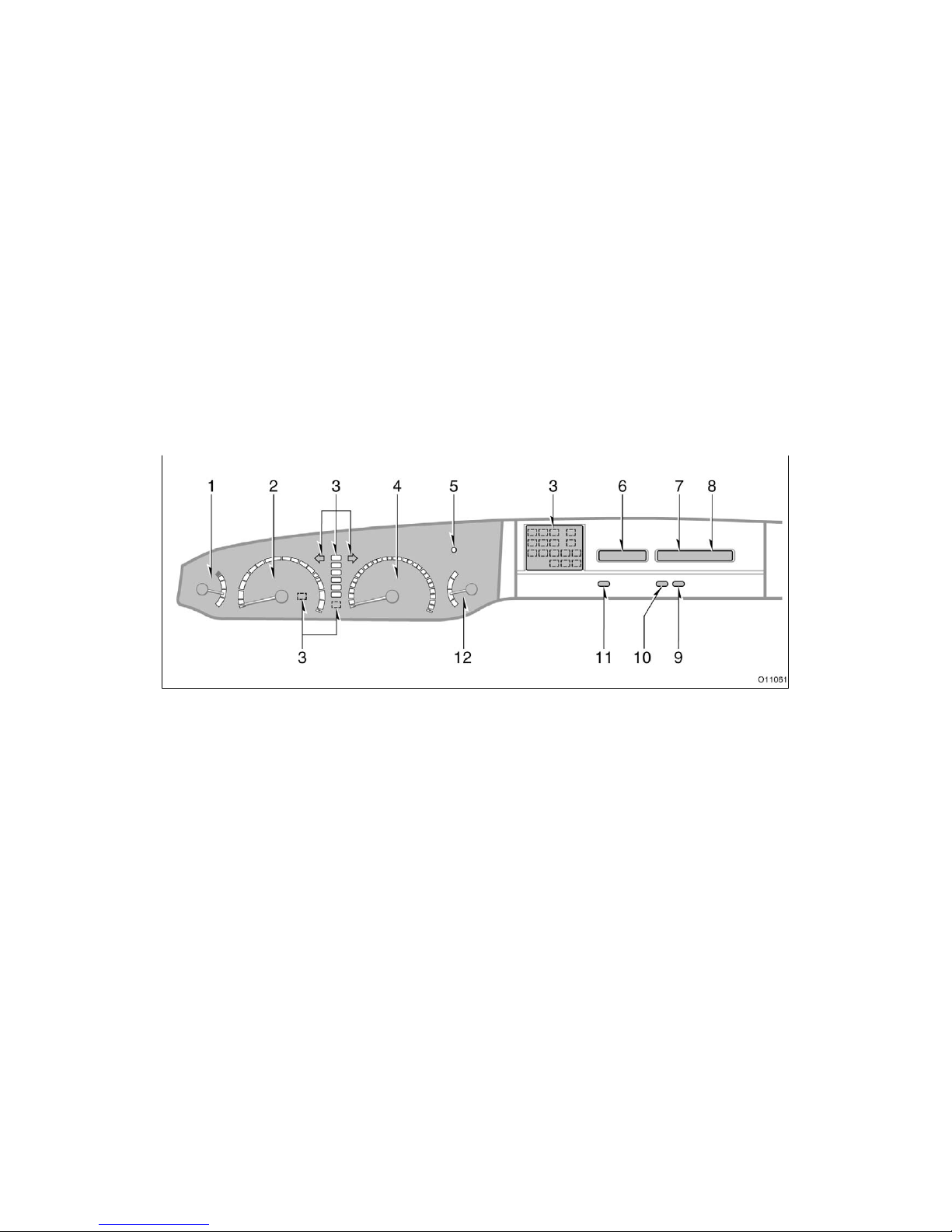

1. Engine coolant temperature gauge

2. Tachometer

3. Service reminder indicators and

indicator lights

4. Speedometer

5. Theft deterrent system/Engine

immobiliser system indicator light

6. Odometer and two trip meters

7. Clock

8. Outside temperature gauge

9. “ADJ” button∗

10. “MODE” button∗

11. “ODO/TRIP” button

12. Fuel gauge

∗: This button is used to adjust the clock. For details, see “Clock” in Section 1−9.

Instrument cluster overview

"Typ e A
