OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−1

’04 MATRIX_U (L/O 0307)

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

1. Rear view mirror remote control levers

2. Side defroster outlets

3. Side vents

4. Instrument cluster

5. Center vents

6. Personal lights

7. Electric moon roof switches and

personal light

8. Power door lock switches

9. Power window switches

10. Glove box

11. Portable ashtray

12. Cup holders

13. Power outlet (12 VDC)

14. Parking brake lever

15. Auxiliary boxes

16. Automatic transmission selector lever

or manual transmission gear shift lever

17. Hood lock release lever

18. Window lock switch

Instrument panel overview

’04 MATRIX_U (L/O 0307)

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

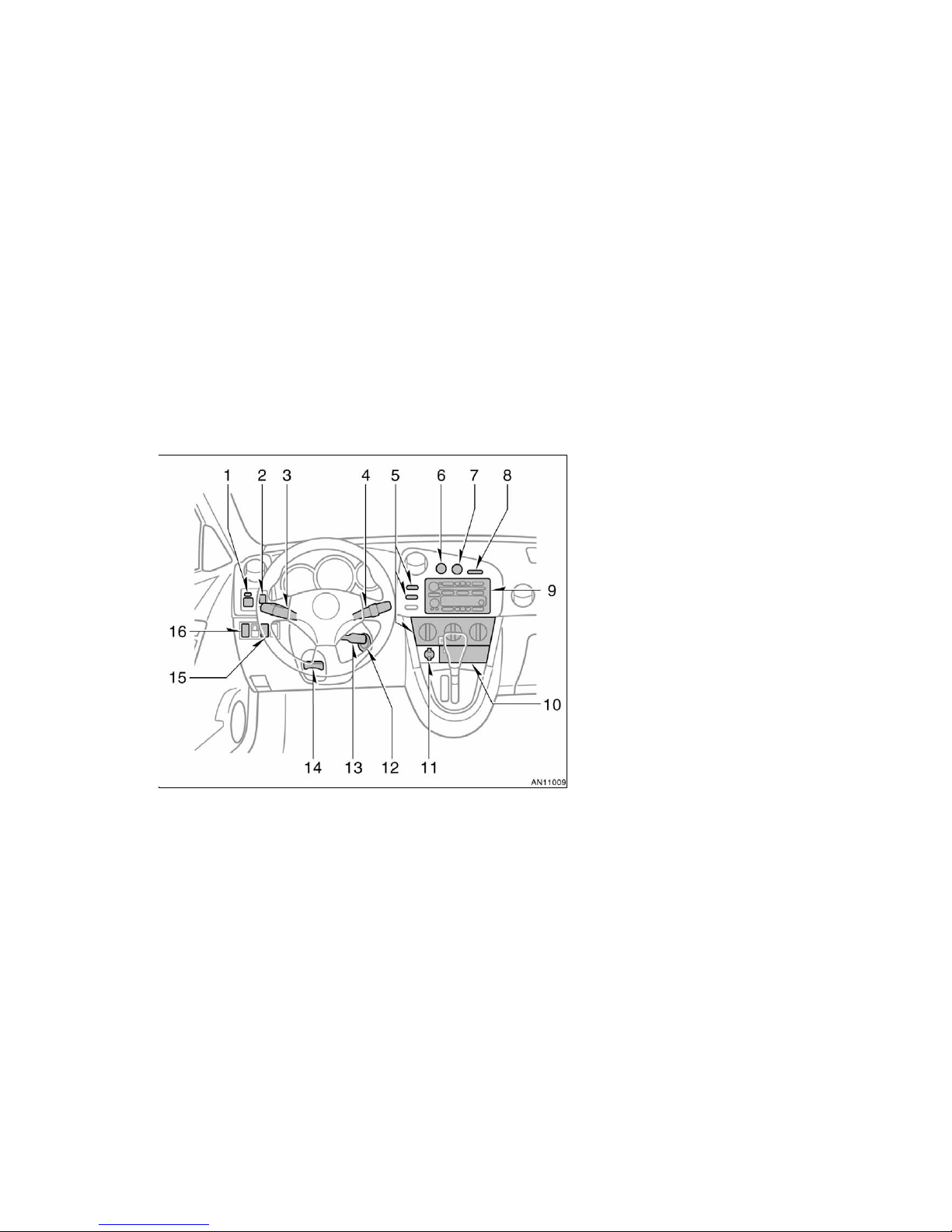

1. Power rear view mirror control switches

2. Interior/instrument panel light control

dial

3. Headlight, turn signal and front fog

light switches

4. Wiper and washer switches

5. Air conditioning controls

6. Emergency flasher switch

7. Rear window defogger switch

8. Front passenger’s seat belt reminder

light

9. Car audio

10. Auxiliary box or power outlet (115 VAC)

11. Power outlet (12 VDC) or cigarette

lighter

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Toyota vehicle intrusion protection

system indicator light

16. Glass hatch opener switch

’04 MATRIX_U (L/O 0307)

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer, two trip meters and outside

temperature display

Instrument cluster overview

’04 MATRIX_U (L/O 0307)

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

Headlight high beam indicator light

SRS warning light∗1

Driver’s seat belt reminder light∗1Open door warning light∗1

Anti−lock brake system warning light∗1

Low windshield washer fluid level warning light

∗1, ∗3

Front passenger’s seat belt reminder light∗1

Headlight low beam indicator light

Tail light indicator light

Indicator symbols on the instrument panel

’04 MATRIX_U (L/O 0307)

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 91 in Section 1−6.

∗2: If this light flashes, see “Cruise control” on page 105 in

Section 1−7.

∗3: This symbol equipped only on vehicles sold in Canada.

Cruise control indicator light∗2

Overdrive−off indicator light

Turn signal indicator lights

’04 MATRIX_U (L/O 0307)

153

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Other equipment

Clock 154. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cigarette lighter and portable ashtray 154. . . . . . . . . . . . . . . . . . . . . . . . .

Power outlets (12 VDC) 155. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power outlet (115 VAC) 156. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Compass 157. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glove box 161. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary box 161. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear console box 162. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cup holders 164. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seatback tables 164. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage storage boxes 165. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tie−down hooks and tire tie−down belts 166. . . . . . . . . . . . . . . . . . . . . . .

Luggage deck rails 167. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage cover 168. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Floor mat 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−10

’04 MATRIX_U (L/O 0307)

154

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

Type A

Type B

The digital clock indicates the time

when the key is in the “ACC” or “ON”

position. Even when the ignition switch

is off, you can turn on the clock dis-

play for a few seconds by pushing the

“RCL” button.

Type A—To set the time, push and hold

the “HR” or “MIN” button until the “:”

starts flashing. Then set the time by push-

ing the “HR” (hour) and the “MIN” (minute)

buttons. If the time is before 12 noon,

“AM” appears on the display when the

time being set.

Type B—To set the time, push and hold

the “H” or “M” button until the “:” starts

flashing. Then set the time by pushing the

“H” (hour) and the “M” (minute) buttons.

When the time is being set, “AM” or “PM”

appears on the display.

RDS CLOCK UPDATE FUNCTION

You can update the clock with RDS

(Radio Data System) data. Push and hold

the “HR” and “MIN” (type A) or “H” and

“M” (type B) buttons at least 2 seconds

while receiving an RDS station. “TIME

UPDATED” will appear on the display with

a beep and the clock will be updated. If

setting could not be completed

successfully, “NO UPDATED” will appear

on the display.

CIGARETTE LIGHTER

To use the cigarette lighter, press it in.

After it finishes heating up, it automati-

cally pops out ready for use.

If the engine is not running, the key must

be in the “ACC” position.

Do not hold the cigarette lighter pressed

in.

Use a Toyota genuine cigarette lighter or

equivalent for replacement.

Clock

Cigarette lighter and portable

ashtray

’04 MATRIX_U (L/O 0307)

155

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

PORTABLE ASHTRAY

The ashtray can be removed and used

outside the vehicle. To use the ashtray,

open the lid.

When finished with your cigarette, thor-

oughly extinguish it in the ashtray to pre-

vent other cigarette butts from catching

fire. After using the ashtray, push it back

in completely.

To remove the ashtray, pull it out from the

front cup holder.

CAUTION

To reduce the chance of injury in

case of an accident or sudden stop

while driving, always completely close

the ashtray after use.

Instrument panel

Rear console box

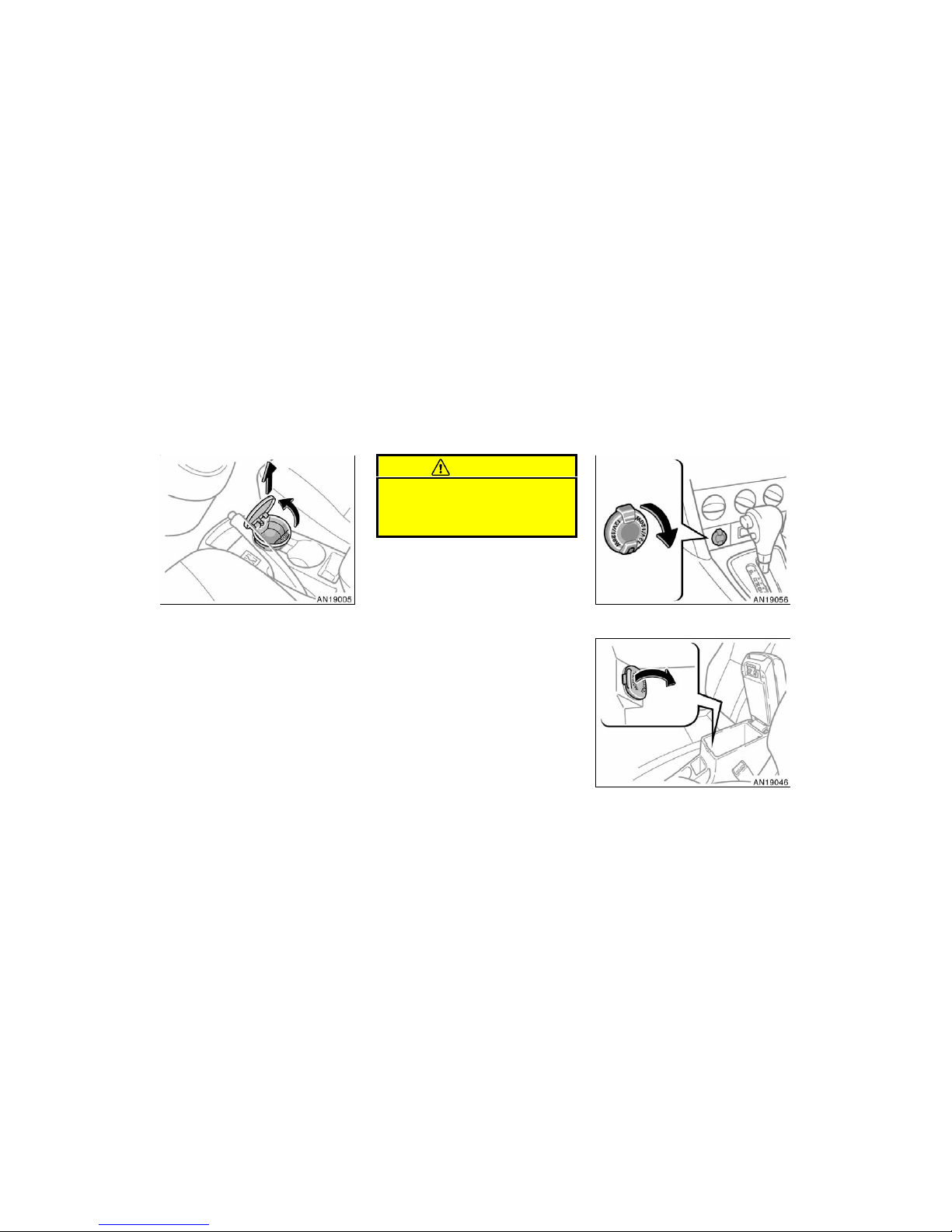

Power outlets (12 VDC)

’04 MATRIX_U (L/O 0307)

156

2004 MATRIX from Oct. ’03 Prod. (OM12861U)

The power outlets are designed for

power supply for car accessories.

The key must be in the “ACC” or “ON”

position for the power outlets to be used.

NOTICE

zTo prevent the fuse from being

blown, do not use the electricity

over the total vehicle capacity of 12

V/120W (instrument panel and rear

console box outlets together).

zTo prevent the battery from being

discharged, do not use the power

outlets longer than necessary when

the engine is not running.

zClose the power outlet lids when

the power outlets are not in use.

Inserting a foreign object other than

the appropriate plug that fits the

outlet, or allowing any liquid into

the outlet may cause electrical fail-

ure or short circuits.

This power outlet is designed for use

as a power supply for electric ap-

pliances in the vehicle.

The key must be in the “ON” position for

the power outlet to be used.

The maximum capacity for this power out-

let is 115 VAC/100W. If you attempt to

use an appliance that requires more than

115 VAC or 100W, the protection circuit

will activate and cut the power supply.

The power supply will restart automatically

when you use an appliance that operates

within the 115 VAC/100W limits.

To use the power outlet, push the main

switch on the instrument panel.

An indicator light will illuminate to indicate

that the power outlet is ready for use.

Push the main switch once again to turn

the power outlet off. When the power out-

let is not in use, make sure that the main

switch is turned off.

NOTICE

zTo prevent the battery from being

discharged, do not use the power

outlet longer than necessary when

the engine is not running.

Power outlet (115 VAC)
