OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 9. . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−1

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

1. Side defroster outlets

2. Instrument cluster

3. Center vents

4. Electric moon roof switch and personal

lights

5. Garage door opener

6. Auxiliary boxes

7. Side vents

8. Power door lock switches

9. Power window switches

10. Glove box

11. Automatic transmission selector lever

12. Rear ashtray

13. Input terminal adapter

14. Power outlets

15. Cup holder

16. Container

17. Front ashtray

18. Audio remote control switches

19. Hood lock release lever

20. Parking brake pedal

21. Window lock switch

Instrument panel overview

"Vehicles with rear seat entertainment system (view A)

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

1. Side defroster outlets

2. Instrument cluster

3. Center vents

4. Electric moon roof switch and personal

lights

5. Garage door opener

6. Auxiliary boxes

7. Side vents

8. Power door lock switches

9. Power window switches

10. Glove box

11. Automatic transmission selector lever

12. Rear ashtray

13. Cup holder

14. Container

15. Power outlet

16. Front ashtray

17. Audio remote control switches

18. Hood lock release lever

19. Parking brake pedal

20. Window lock switch

"Vehicles without rear seat entertainment system (view A)

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Front passenger’s seat belt reminder

light

6. Rear window and outside rear view

mirror defogger and windshield wiper

de−icer switch

7. Air conditioning controls

8. Car audio

9. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

10. Snow mode button

11. Seat heater switches

12. Cigarette lighter

13. “TRAC OFF” switch

(two−wheel drive models)

14. Cruise control switch

15. Ignition switch

16. Tilt steering lock release lever

17. Tire pressure warning system reset

switch

"Vehicles with manual air conditioning controls (view B)

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

18. Power outlet (115 VAC) main switch

19. Rear heater main switch

20. Theft deterrent system/engine

immobilizer system indicator light

21. Power rear view mirror control switches

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Front passenger’s seat belt reminder

light

6. Air conditioning controls and

multi−information display

7. Rear window and outside rear view

mirror defogger and windshield wiper

de−icer switch

8. Car audio

9. “AIRBAG ON” and “AIRBAG OFF”

indicator lights

10. Snow mode button

11. Seat heater switches

12. Cigarette lighter

13. “TRAC OFF” switch

(two−wheel drive models)

14. Cruise control switch

15. Ignition switch

16. Tilt steering lock release lever

17. Tire pressure warning system reset

switch

"Vehicles with automatic air conditioning controls (view B)

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

18. Power outlet (115 VAC) main switch

19. Rear heater main switch

20. Theft deterrent system/engine

immobilizer system indicator light

21. Power rear view mirror control switches

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

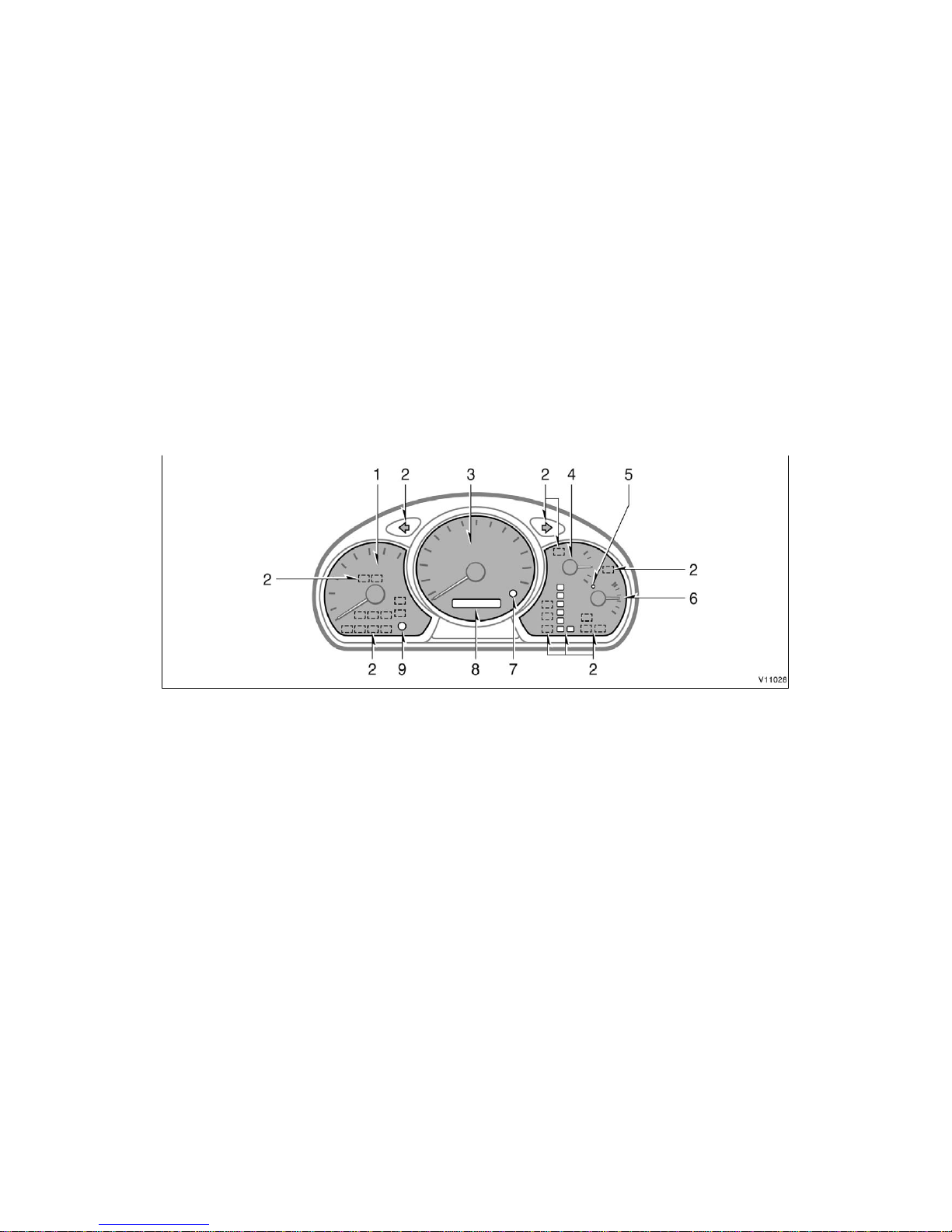

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer and two trip meters

9. Instrument panel light control knob

Instrument cluster overview

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

SRS warning light∗1

Driver’s seat belt reminder light∗1Open door warning light∗1

Automatic transmission fluid temperature

warning light∗1

Low windshield washer fluid level warning

light∗1

Vehicle stability control system warning light∗1

Anti−lock brake system warning light∗1

Front passenger’s seat belt reminder light∗1

Low tire pressure warning light∗1

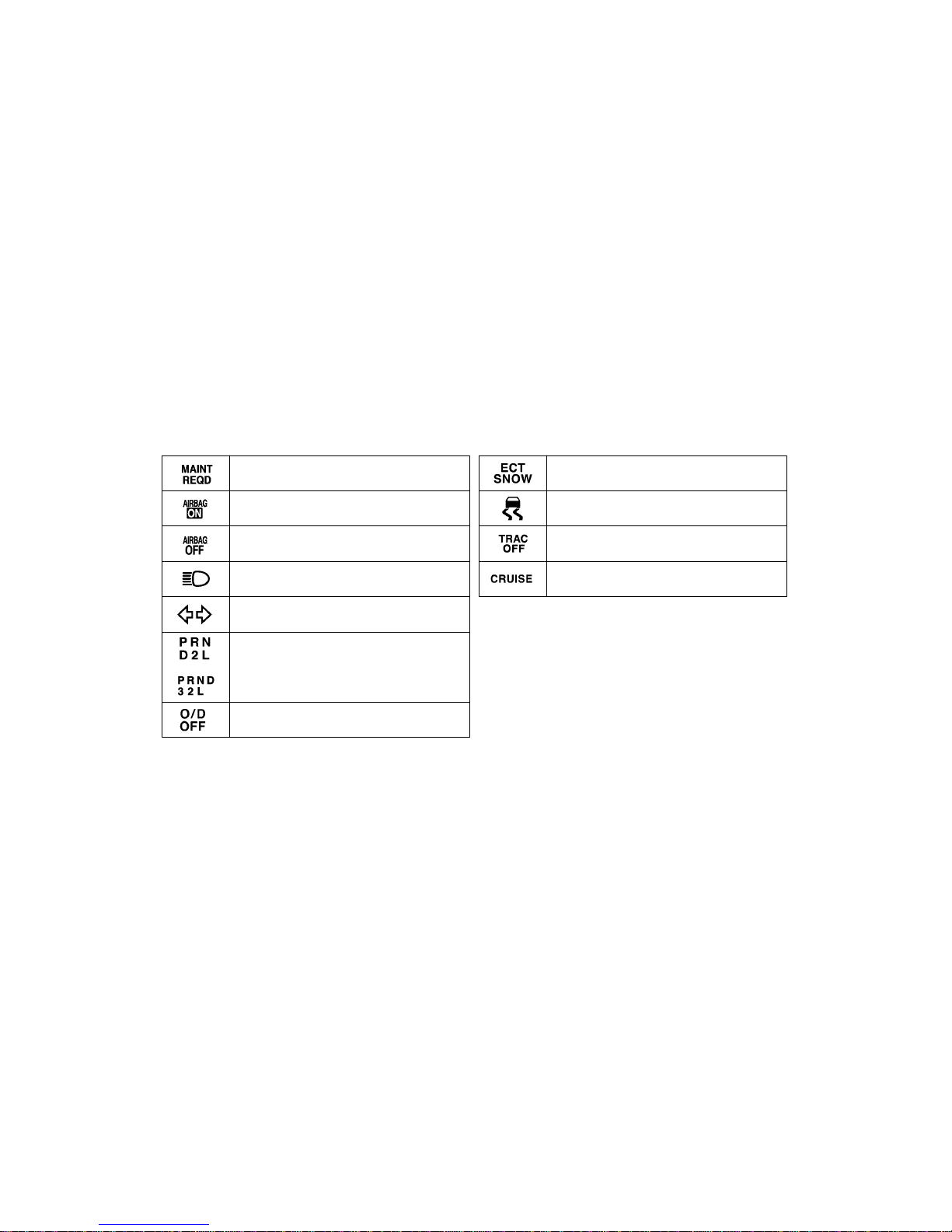

Indicator symbols on the instrument panel

’04 HIGHLANDER_U (L/O 0308)

2004 HIGHLANDER from Aug. ’03 Prod. (OM48478U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 129 in Section 1−6.

∗2: If this light flashes, see “Cruise control” on page 159 in

Section 1−7.

Cruise control indicator light∗2

Overdrive−off indicator light

Slip indicator light

Turn signal indicator lights

Automatic transmission indicator lights

Snow mode indicator light

Traction control system off indicator light

Headlight high beam indicator light

Engine oil replacement reminder light∗1

(for vehicles sold in U.S.A.)

“AIRBAG ON” indicator light

“AIRBAG OFF” indicator light
