Part 1

OPERATION OF

INSTRUMENTS

AND CONTROLS—

Chapter 1-1

Overview of instruments

and controls

Instrument panel overview

Instrument cluster overview

Indicator symbols on the

instrument panel

WWW.MANUALS.WS

1. Side vent

2. Instrument cluster

3. Center vents

4. Rear view mirror remote control lever

5. Glovebox

6. Power door lock switch

7. Power window switches

8. Parking brake lever

9. Automatic transmission selctor lever

or manual transmission gear shift

lever

10. Hood lock release lever

Instrument panel overview

WWW.MANUALS.WS

1. Instrument panel light control knob

2. Headlight and turn signal switch

3. Wiper and washer switches

4. Emergency flasher switch

5. Clock

6. Air conditioning controls

7. Car audio

8. Cigarette lighter

9. Ashtray

10. Cup holders

11. Rear window defogger switch

12. Ignition switch

WWW.MANUALS.WS

1. Engine coolant temperature gauge

2. Fuel gauge

3. Service reminder indicators or

indicator lights

4. Odometer

5. Speedmeter

6. Tachometer

7. Trip meter reset knob

8. Trip meter

Instrument cluster overview

Without tachometer

WWW.MANUALS.WS

1. Fuel gauge

2. Service reminder indicators or

indicator lights

3. Odometer

4. Speedometer

5. Engine coolant temperature gauge

6. Theft deterrent system indicator light

7. Trip meter reset knob

8. Trip meter

Without tachometer

WWW.MANUALS.WS

Indicator symbols on the instrument panel

Anti-lock brake system warning light *Brake system warning light *

Seat belt reminder light*

Discharge warning light*

Low oil pressure warning light*

Malfunction indicator light*

Open door warning light*

SRS airbag warning light*

Turn signal indicator lights

Headlight high beam indicator light

Over-drive indicator light

The indicators marked with * are service reminder indicators.

For details, see “Service reminder indicators and warning

buzzer” in Chapter 1-5.

WWW.MANUALS.WS

Part 1 Keys

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1-2

Keys and Doors

Keys

Side doors

Power windows

Trunk lid

Hood

Theft deterrent system

Fuel tank cap

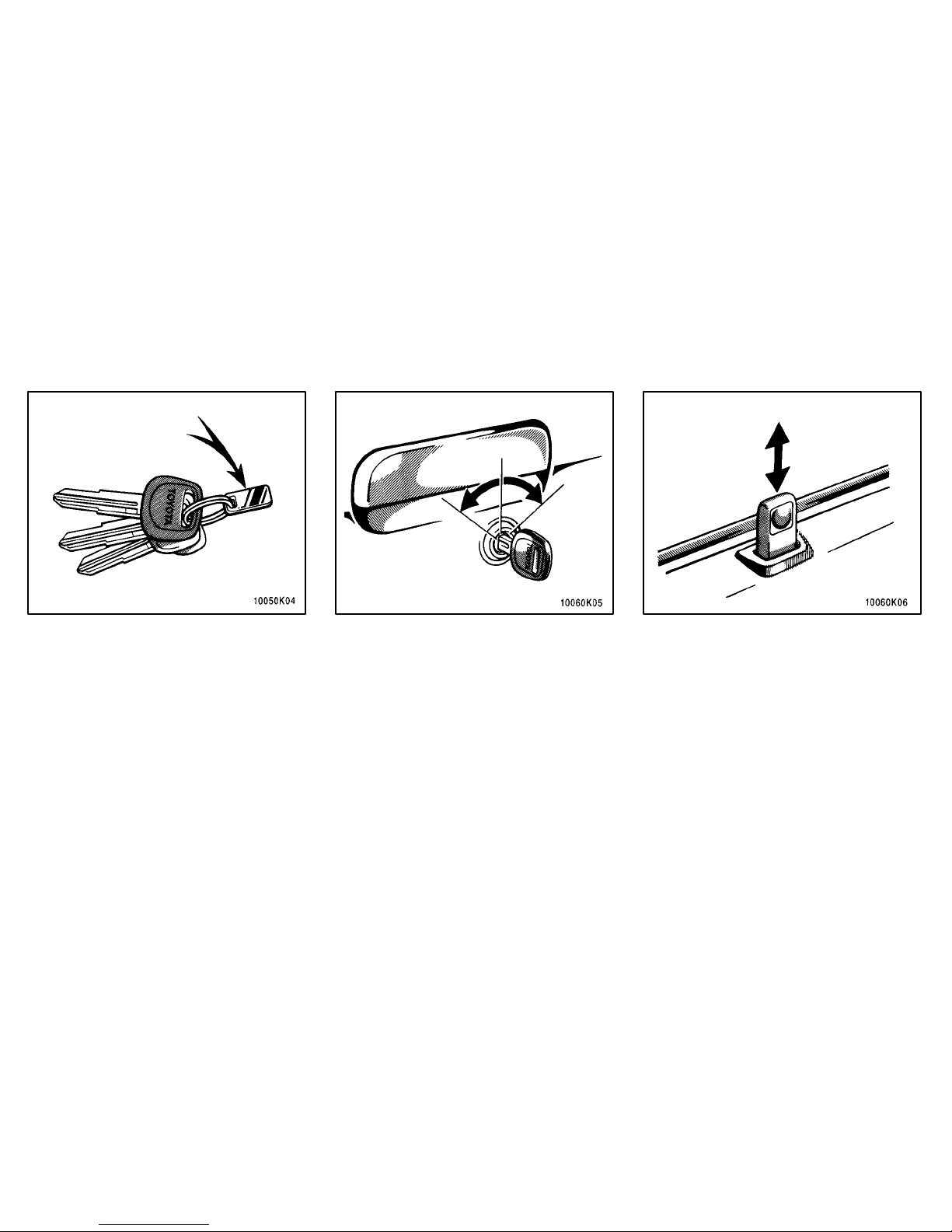

KEY PLATE

Type A—

Your vehicle is supplied with two

kinds of key.

1. Master key—This key works in every

lock.

2. Subkey—This key will not work in the

trunk.

To protect things locked in the trunk when

you have your vehicle parked, leave the

subkey with the attendant.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you acci-

dentally lock your keys inside the vehicle.

Type B—

This key works in every lock.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare key in case you accidentally

lock your key inside the vehicle.

WWW.MANUALS.WS

KEY NUMBER PLATE

Your key number is shown on the

plate. Keep the plate in a safe place

such as your wallet, not in the vehicle.

If you should lose your keys or if you need

additional keys, duplicates can be made

by a Toyota dealer using the key number.

You should also put a copy of the key

number with your importane papers.

LOCKING AND UNLOCKING WITH

KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

Vehicles with power door lock sys-

tem—All the doors lock and unlock simu-

taneously with either front door. In the

driver’s door lock, turning the key once will

unlock the driver’s door and twice in suc-

cession will unlock all the doors simulta-

neously.

LOCKING AND UNLOCKING WITH IN-

SIDE LOCK BUTTON

Move the lock button.

To lock: Push the button downward.

To unlock: Pull the button upward.

Closing the door with the lock button

pushed in will also lock the door. Be care-

ful not to lock your keys in the vehicle.

Side doors

WWW.MANUALS.WS

Driver’s side

Passenger’s side

LOCKING AND UNLOCKING WITH

POWER DOOR LOCK SWITCH

Push the switch.

To lock: Push the switch on the front side.

To unlock: Push the switch on the rear

side.

All the doors lock or unlock simultaneous-

ly.

REAR DOOR CHILD-PROTECTORS

Move the lock lever to the “LOCK”

position as shown on the label.

This feature allows you to lock a rear door

so it can be opened from the outside only,

not from inside. We recommend using this

feature whenever small children are in the

vehicle.

WWW.MANUALS.WS

CAUTION

Before driving, be sure that the

doors are closed and locked, espe-

cially when small children are in the

vehicle. Along with the proper use of

seat belts, locking the doors helps

prevent the driver and passengers

from being thrown out from the ve-

hicle during an accident. It also

helps prevent the doors from being

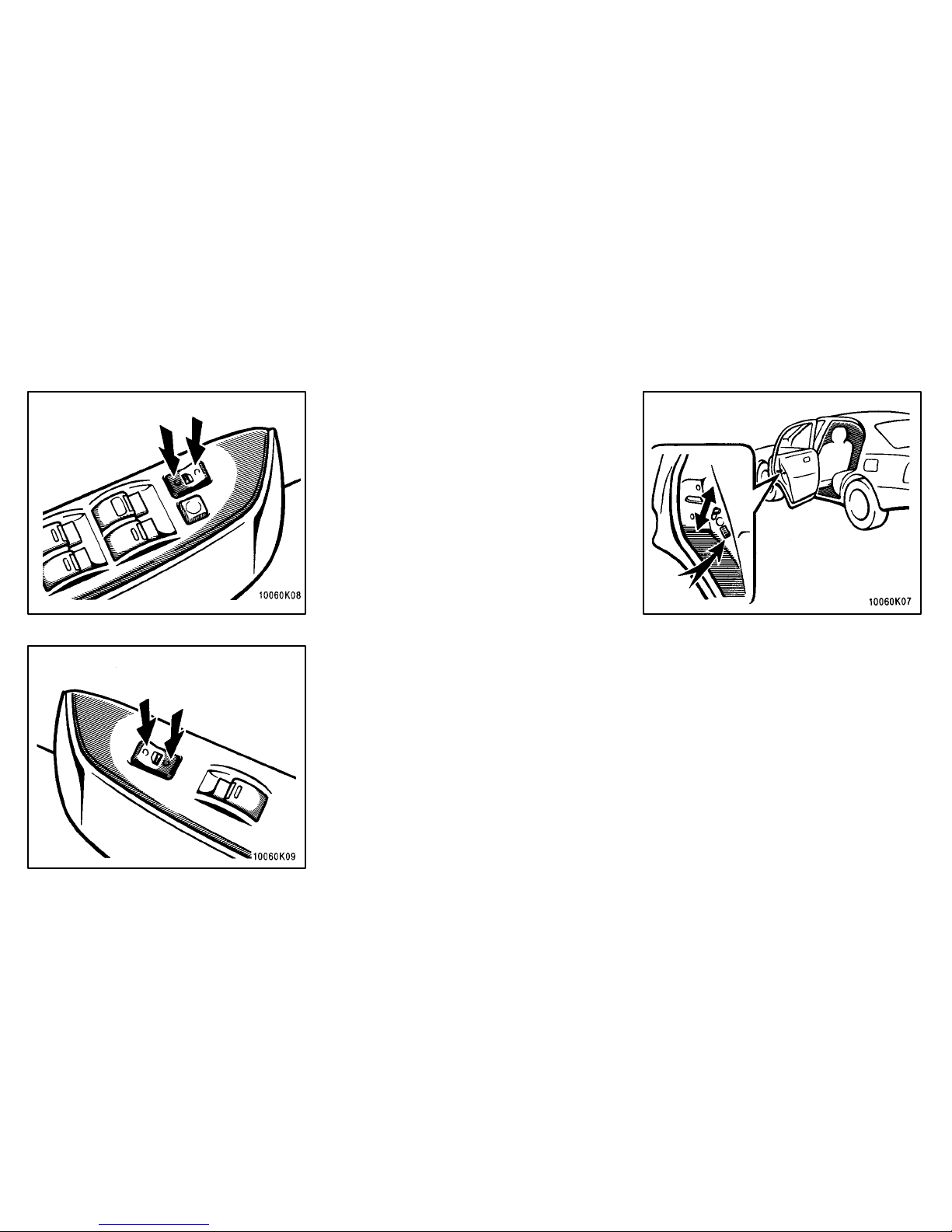

opened unintentionally. The windows can be operated with the

switch on each door.

The ignition key must be in the “ON” posi-

tion.

OPERATING THE DRIVER’S WINDOW

Use the switch on the driver’s door.

Normal operation: The window moves

as long as you hold the switch.

To open: Lightly push down the switch.

To close: Pull up the switch.

Automatic operation (to open only):

Push the switch completely down and

then release it. The window will fully open.

To stop the window partway, lightly pull the

switch up and then release it.

Power windows
