Touchboards PCM-MS2 User manual

LISTED

E176225

Universal flat-panel mount

I N S T A L L A T I O N M A N U A L

3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888

www.mounts.com

www.touchboards.com 205 Westwood Ave.Long Branch, NJ 07740 1-866-942-6273 [email protected]

- 2 -

- Assembly drawing - Securing the bottom wall plate

- Fine tune tilt adjustments - Securin

the top plate

- Flat panel list - Securing the flat panel to the wall mount

- Parts list - Lateral shift adjustment

- Checking thread depth

- Finding the center of the flat panel

- Positioning the mounting brackets

- Securing the mounting brackets

- Finding the wood stud behind the wall structure

- Marking the bottom plate mounting points

Contents

WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and

tools for the installation procedure to prevent personal injury.

The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions, before

beginning installation. The installation instructions should be read, understood and followed to prevent personal in

or propert

dama

Keep these installation instructions in an easily accessible location for future reference.

Indicates that the power plug is to be disconnected from

the power outlet.

Safety precautions must be taken at all times.

Contact Premier Mounts for an

uestions

Warning and caution in general

Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in flat panel cracking or

falling from the wall causing damage and injury.

Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure to do so may

result in damage to the flat panel and could cause a risk of fire.

At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling

the flat panel.

The wall structure should be capable of supporting a max weight of 160 Lbs., the weight of the flat panel. More than 160 Lbs the wall must

be reinforced. Proper installation procedure by qualified personnel as outlined in the installations instructions must be adhered to. Failure to

do so could result in serious personal injury.

A secured structure wooden stud wall must always support the weight or load of the flat panel. Always confirm the center of the wood

stud before beginning the installation.

Mounting structure recommended wood studs, solid-flat concrete. Use a min dia of 5/16” x 2 ¼” lg concrete wedge anchor

(commercially available). or a min dia of 5/16” x 3” lg wood screws.

- 3 -

16.000

(406.4)

28.000

(171.2)

16.000

(406.4)

16.000

(406.4)

16.000

(406.4)

24.290

(616.97)

12.000

(304.8)

19.000

(482.6)

20.500

(520.7)

21.000

(533.4)

5.000

(127)

5.000

(127)

10.500

(266.7)

1.245

(31.75) A

2.331

(59.21)

Description

. Wall plates

B. Mounting brackets

C. Griplate™

D. Mounting hardware

E. M6 x 30 (mm) Phillip screws

F. Wood stud

G. 5/16” x 3” Lag screws and flat washers

H. Safety knobs

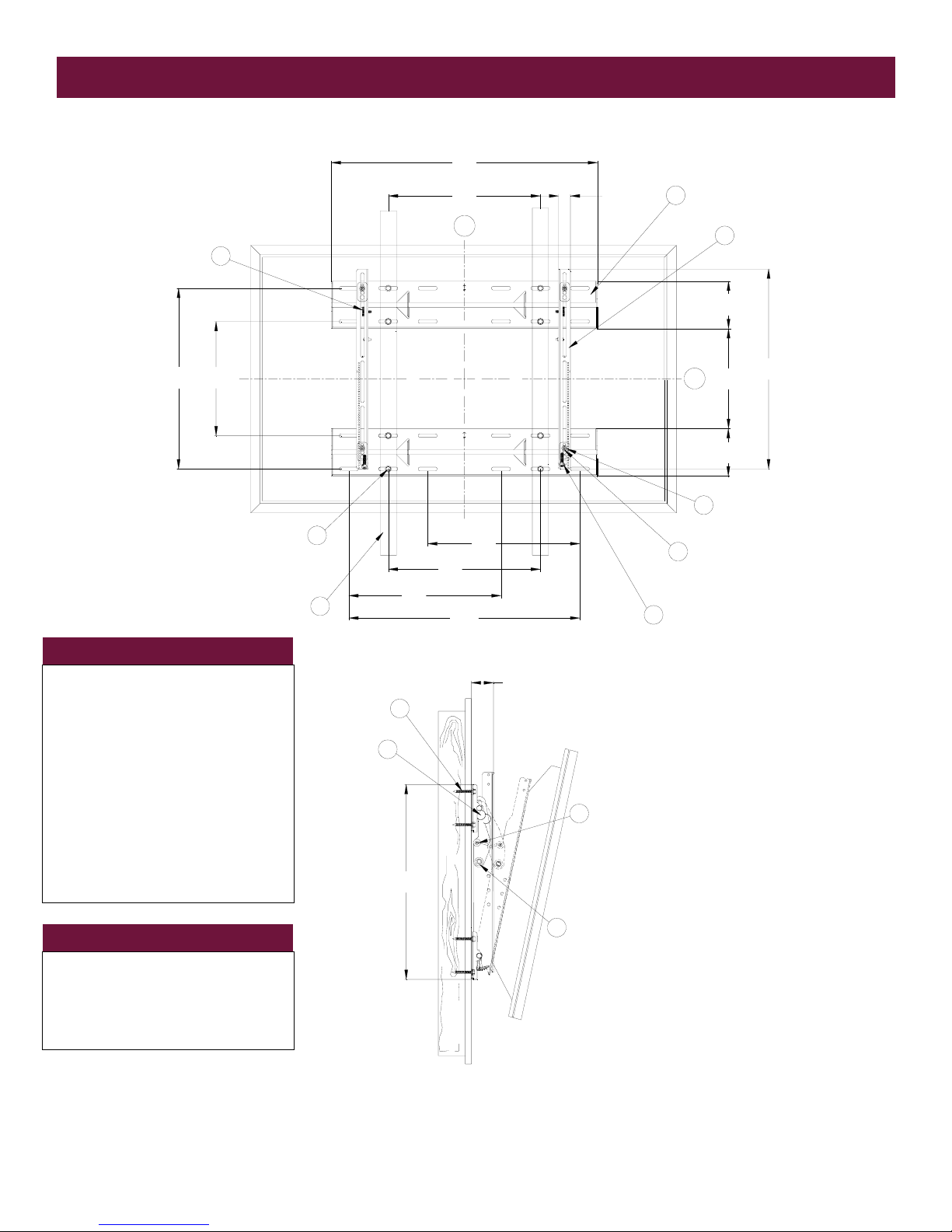

Assembly drawing

Dimensions are in Inches and

(

)

Fine tune tilt adjustments

1. M5 Phillips screws for fine tension

2. M8 Hex nut coarse tension

NOTE: The 8 (mm) hex nut is for your coarse

tension adjustment and the 5 (mm) screws are for

your fine tension adjustment.

- 4 -

Flat panel list

Hitachi

EIKI

Electrograph

Gateway

32HDT20,CMP307XJ,CMP307XU,32HDT20

CMP401HDU, CMP402HDE, CMP402HDU,

CMP4120HDU,CMP4121,CMP4121HDU,CMP4201U,

CMP4202U, 42HDW10,42HDT20, 42HDT50, 42HDT55

M6 x 12

CMP5000WXU, CMP5003WXU, 50HDT50, 50HDT55:

M8 X 20

PLD32: M5 x 20 - ¼” nylon space

s (small)

PLD42XU: M5 x 20 - ¼” nylon spacers (small)

DTS42W: M8 x 30 – ¼” nylon spacers (large)

DTS4230: M8 x 30 – ½” nylon spacers - sleeves

DTS42DD, DTS42GBDD, DTS42GB: M6 x 20

GTWP42M102: M8 x 20, M8 x 35 – ¼” nylon spacers

(large)

GATEWAY 42: M8 x 30 – ¼” nylon spacers

GATEWAY 46: M6 x 20

GATEWAY 50: M8 x 30 – ¼” nylon spacers

Acer

PDP7859: M6 x 20

Akai

CTA42AR7A, PDP4247, PDP4290, PDP4294,

PDP5090, HPT500AN: M8 x 25 – ½” nylon spacers -

sleeves

Albatron

PWV46AC: M6 x 20

Barco

Cineversum 50: M8 x 20

Akira

EPM420, SV4201: M5 x 16

BenQ

PDP7843E: M6 x 20 – ¼” nylon space

s (small)

PDP46W1: M6 X 12

Cornea

MP4200, MP4204: M5 x 16

Dream Vision

Revolution One, Revolution Five: M4 x 16

Eizo

5420T: M8 x 30

Dukane

P37: M6 x 12

P42: M6 x 12

P50: M8 x 20

Dwin

HD50: M8 x 30 – ½” nylon spacers - sleeves

Faroudja

FPP42HD10, FPP50HD10: M4 X 16

Fujitsu

4211, 4212, 4221, 4222, 4208, 4209, 4213, 4214, 4229,

4241 4242, 4233: M5 x 16

5001, 5002, 5003, 5004, P50XHA10, P50XCA11UH,

P50XHA30WS: M8 x 25 – flat washers

PDS6101, PDS6001, PDS6002: M8 x 30 – ½” Nylon

spacers - sleeves

Helios

4200: M8 x 20

Idex

PDM4260: M4 x 16

Ikegami

PTM4202: M5 x 20

Integra

PLA50V1: M4 X 16

JVC

GDV4200PZW, 4210, GDV4210PZWGA, 4211,

GMP420UG, GMV42UG, JVP042WV74, PD42WV74,

PD42WX84: M5 x 16

GDV500PZU, GDV501U, 502U: M8 X 30 – ½” nylon

spacers – sleeves

LG Electronics

Flatron MU40PA10B, MU40PA15B: M5 x 20- ¼” nylon

spacers

Flatron MN42PZ10, MN42PZ11, MU42PZ10,

MU42PZ11B, MU42PZ15B: M5 x 20

MU50PZ41, MU50PZ90: M5 x 20

Flatron MU60PZ10, MU60PZ11B, MU60PZ12B,

MU60PZ90V: M8 x 25

Luce

PDTV4220A: M5 x 25 – ½” nylon spacers

Marantz

PD4280D, PD4282D, PD4290D, PD4292D,

PD4293: M4 x 20

PD4298HD: M6 X 20

PD501OD, PD5020, PD5040:

Max

4600, 4600T: M6 x 20

5000: M8 x 30- ½” nylon spacers - sleeves

NOTE: If your flat panel display is not listed, go to (page 8) to determine the thread pitch for your flat panel.

- 5 -

SONY

Sanyo

VIEWSONIC

Sampo

PFM42B1,PFM42B2: M6 x 20 - 5/16” flat washers

PFM-42V1,PFM-42V2: M6 x 25 – 9/16” nylon spacers

PFM50C1: M6 x 20 - 5/16” flat washers

KE-42XBR900: M6 x 20 - 5/16” flat washers

KE50XBR900: M6 x 20 - 5/16” flat washers

KE42XS910: M6 x 20 - 5/16” flat washers

KDE61XBR950: M6 x 20 - 5/16” flat washers

PDP421A: M5 x 20 - ¼” nylon spacer (small)

PDP42H1NA: M5 x 20 - ¼” nylon spacer (small)

VPW420: M8 x 30 – ½” nylon space

s- sleeves

VPW425: M8 x 30 – ¼” nylon spacers (large)

VPW450HD: M8 x 30 – ¼” nylon spacers (large)

VPW500: M8 X 20

VPW505: M8 x 30 – ¼” nylon spacers (large)

PME42S6: M8 x 30 – ¼” nylon spacers (large)

PME42F61: M8 x 20, M8 x 35 – ¼” nylon spacers

(large)

PME50X6: M8 x 30 – ¼” nylon spacers (large)

Mitsubishi

PD5010HD, PD5030: M4 x 16

Monivision

PWV46AC, PD46W00: M6 x 20

NEC

4200W, 4210W, M4A,MP2, PX42M3A, 42PD1W, PD2

M5A,M5G, 42MP1, 42PD1, PX42VM1A, PX42VP1A,

PX42VP2A, 42MP3, 42PD3, PX42VP3A, 42MP4,

42VP4A, 42MX2: M4 X 16, 5000W, PX50M5A, 50PD1,

PX50VP1A, PX50MX1A, 50MP1, 50MP2, 50PD2,

50VP2, 50MP3,

50XM3: M4 X 16

Norcent

46WGA850: M6 x 12

Orion

PM4202: M5 x 16

Panasonic

TC42P1, PT42PD3P, PT42PD1P, TC42P1F, PT37P1,

TH42PWD3, TH37PWD4UZ, PT37PD4, TH37PW5EX,

TH37PA20UP, TH42PD4UY, TH42PWD4EX, PT42P1,

42PD2, TH42PWD3U, TH42PHD5U, PT42PD3P,

PT42PD4, PT42PHD4P, TH42PWD5UY, TH42PW5UZ,

TH42PWD6UY, TH42PA20UP, TH42PL20E,

TH42PAX20, TH50PHD3U, PT50PD3P, PT50PHD4P,

TH50PHD3E, TH50PHW3, TH50PD4, TH50PHD5UY,

TH50PHD6UY, TH50PL20E, TH50TX20UP:

M8 X 30 – ½” Nylon spacers – sleeves

TH42PX20U, TH50PX20U: M8 X 70 – 1-1/2” Nylon

spacers

Philips

42FD9934, 42FD9952, 42FD9954, 42PH9555,

42FD9935: M5 x 25 ½” Nylon spacers

BDS4611: M6 x 20

50FD9934/17S: M4 X 16

Pioneer

PDPV401, V402, PDP4330HD, PDP433HDE,

PDP433CMX, PDP433PU, PDP4300, PDP4340HD,

PRO800HD, PRO800HDI, PRO910HD, PDP4310,

PDP501X, V502MX, V502X, PDP503MX, V505,

PDP505HD, PRO1000HD, PDP503CMX, PDP5030HD,

PDP503HDE, PDP5031HD, PDP5040HD,

PRO1000HDI,PRO1110HD: M8 X 20

Planar

42N: M4 x 16

50P: M8 x 20

Princeton Graphics

R3.4FTW,

R4.6PDP: M6 x 20

Rainbow

Spectrum 3750: M6 x 20

RCA

PR42300, PHD42600, PHD50300, PHD50400: M4 X 16

PHD50500: M8 X 20

Revox

E1042: M6 x 20

E1050: M8 x 20

Runco

PL42C, CW42: M4 X 16

PL42CXPL50CX: M8 X 30, ½” Nylon spacers –

sleeves

E1050, PL50C, PL50HDX, CW50MC: M8 X 20

Samsung

PPM42S2, PPM42S3, SPL4225K, SPN4235, SPN4239:

SPK4215M, PK42P2S: M8 x 25 – ½” nylon spacers

PPM50H2, HPL5025K: M8 x 30 – ½” Nylon spacers -

sleeves

PPM50H3, HPN5039: M8 x 25 – ½” nylon spacers

Sharp

PZ42H2U, PZ43HV2U, PD50U, PZ50HV2U: M8 X 20

Tatung

P46T: M6 x 20

Toshiba

42HP82: M4 X 16

PD42W, PD42W1: M8 X 30 – ½ ” nylon spacers

(large) - sleeves

50HP81: M8 X 30 – ½” nylon spacers (large) - sleeves

50HP82: M4 X 16

SVA

HD4208TIII: M6 x 20 - ¼” nylon spacers

Tredex

TXP4600: M6 x 20

V-Inc

Vizio P1, Vizio P4: M6 x 12

Vidikron

VPW420: M8 X 30, ½” Nylon spacers (large) - sleeves

Yamaha

PDM1: M8 x 30 – ½” nylon spacers - sleeves

Zenith

DPDP40W, P40V22,DPDP40V, P40V24: M5 x 20 – ¼”

nylon spacers (small)

P42W22, P42W22B, P42W24P, P42W34P: P40V24:

M5 x 20 – ¼” nylon spacers (small)

P50W26, P50W28, P50W38: M5 x 16

NOTE: If your flat panel display is not

listed, go to (page 8) to determine the

thread pitch for your flat panel.

- 6 -

M4 x 25

M5 x 20

M5 x 50

M8 x 20

M6 x 30

(Qty 6)

(Qty 4)

(Qty 6)

(Qty 4)

(Qty 2)

M4 x 16 (Qty 8)

(Qty 8)

M5 x 12

M5 x 16 (Qty 6)

M5 x 25 (Qty 4)

M6 x 12 (Qty 8)

M8 x 25 (Qty 6)

M8 x 30 (Qty 6)

M8 x 35 (Qty 4)

M6 x 20 (Qty 6)

M8 x 70 (Qty 4)

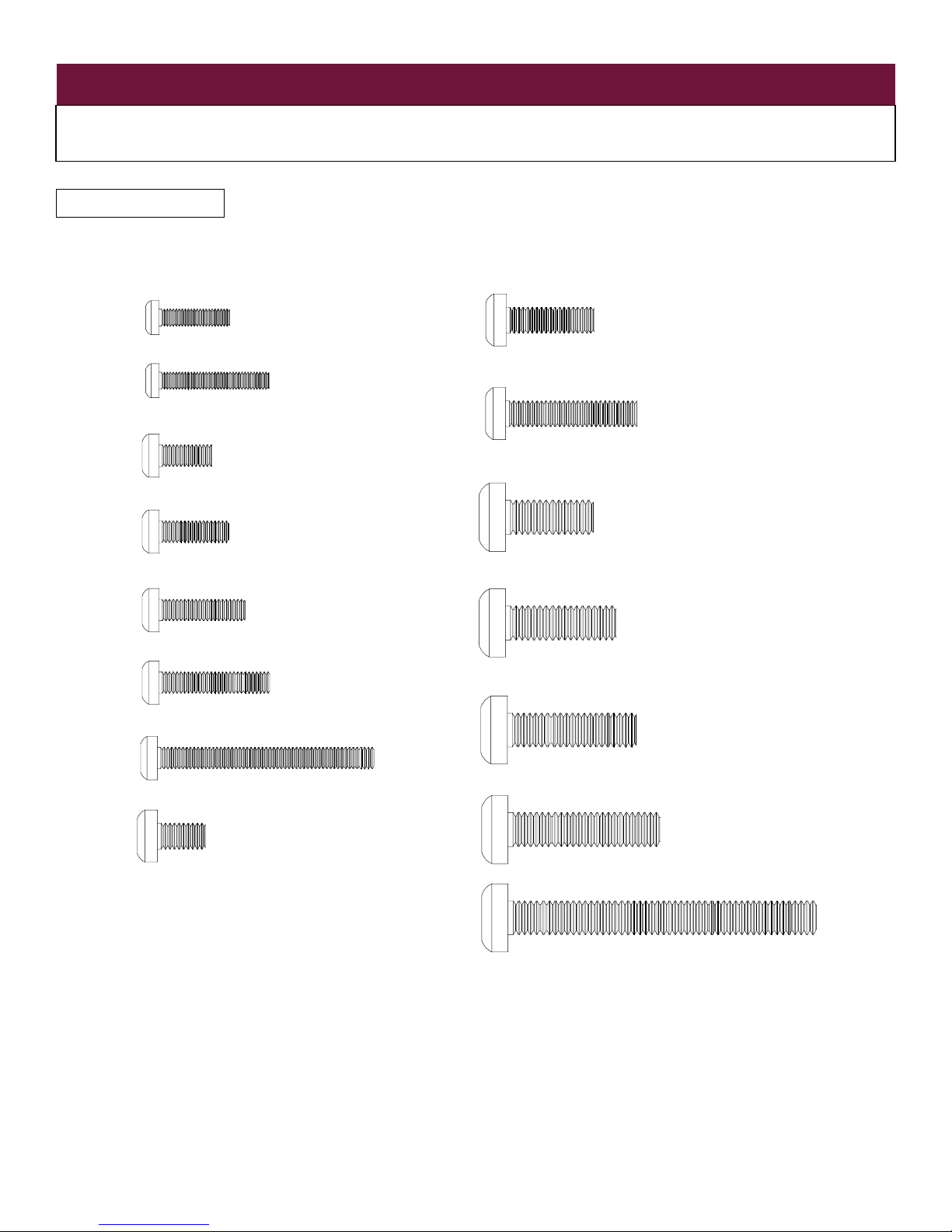

Parts list

NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing before

beginning installation. If there are parts missing stop the installation and contact Premier Mounts.

Actual screw size

- 7 -

1/4" Nylon spacers

5/16" Flat washers

(metal)

1" Nylon spacers

1/4" Nylon spacers

9/16" Nylon spacers

(large)

(small)

1/2" Nylon spacers

(large) Nylon sleeves

(Qty 6)

(Qty 12)

(Qty 6)

(Qty 4)

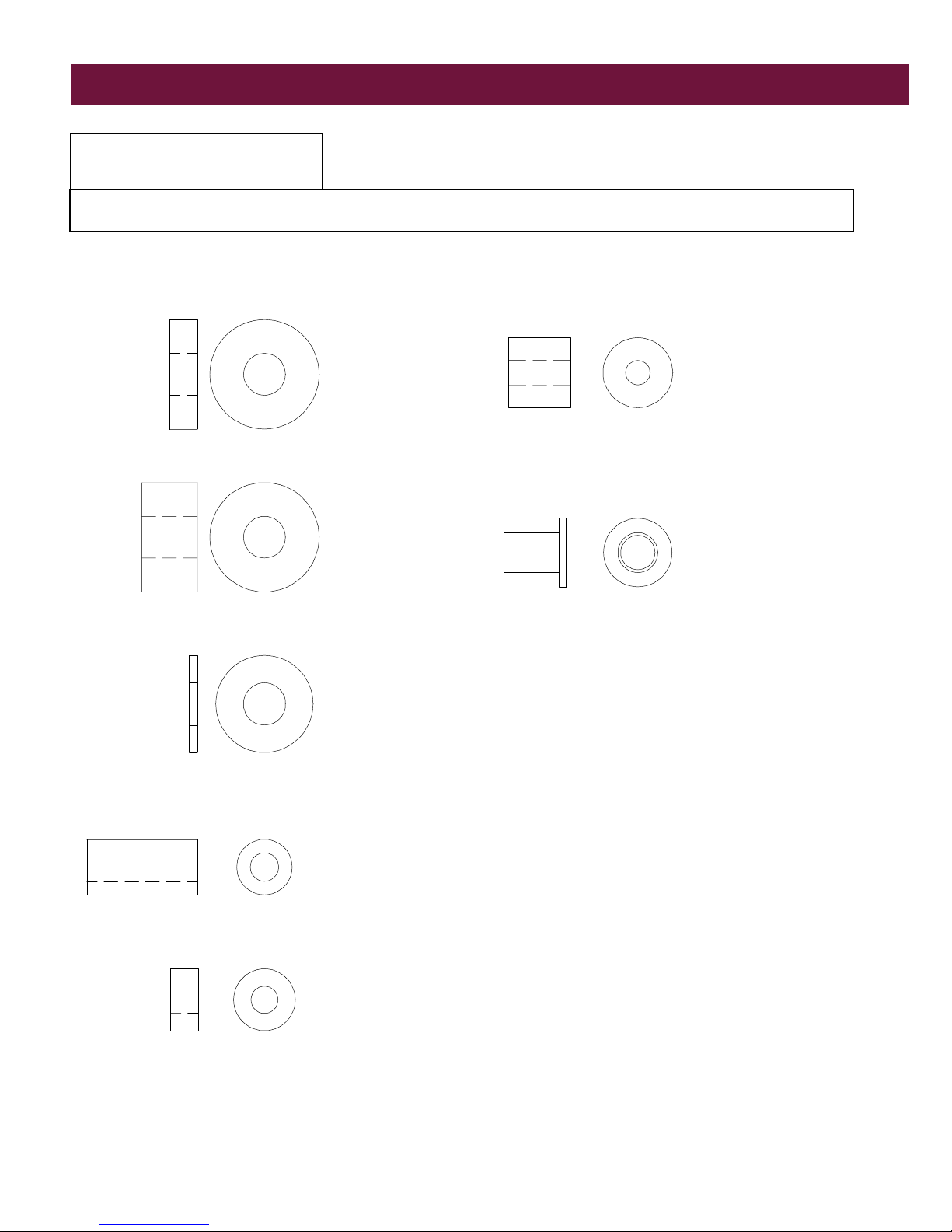

Nylon spacers and flat washers

actual size

Parts list (con’t)

NOTE: The nylon spacers may be staked to achieve proper spacing.

- 8 -

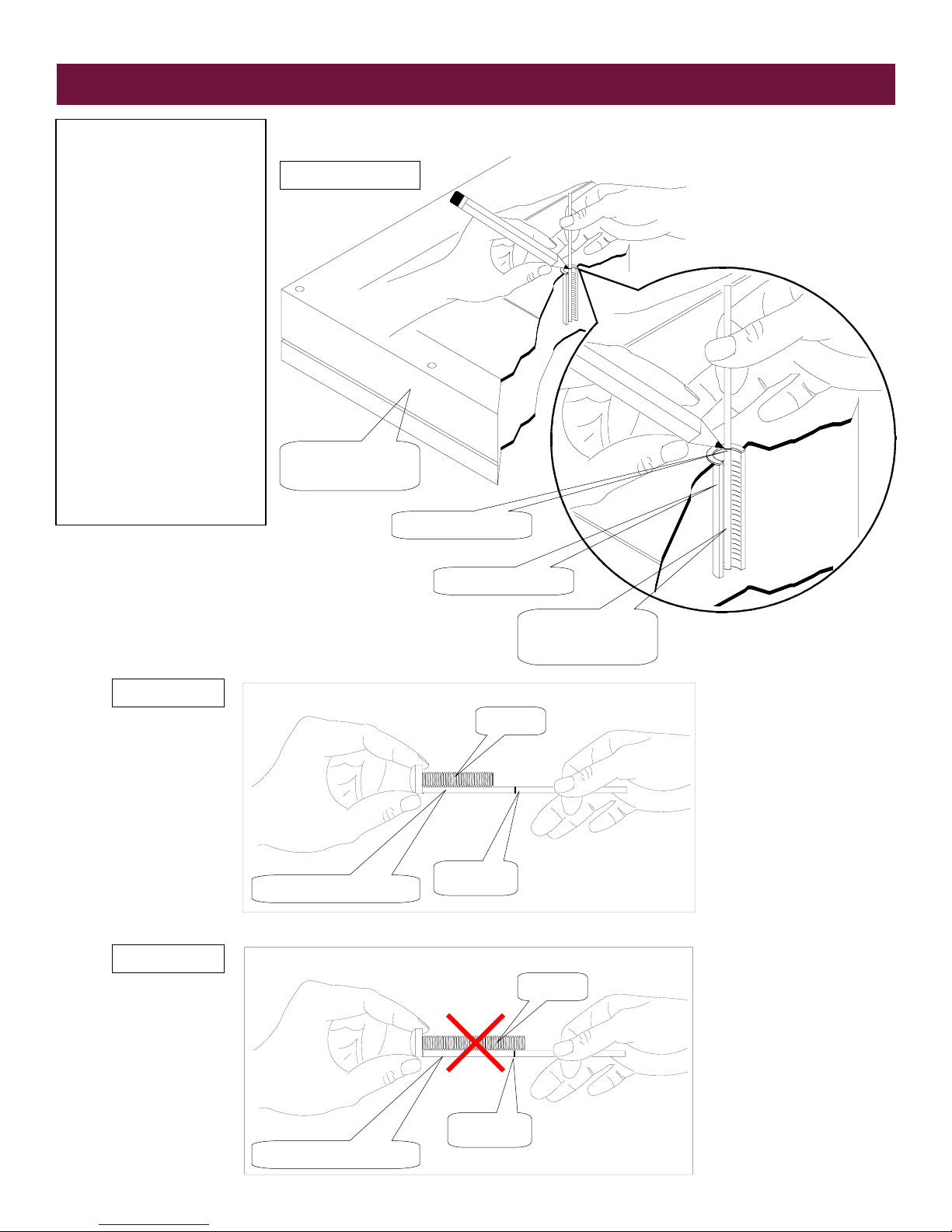

Checking the thread depth on your flat panel

Inverted flat panel

display

Thread insert

Thread depth

indicator

Figure 2

Figure 3

Figure 1

Markin

the de

1. Insert the thread depth

indicator (supplied) through

the thread inserts found on

the back of the flat panel to

make sure the inserts

measure the same full depth

and mark it.

(see figure 1)

2. Locate the correct diameter

screw for the thread insert.

Compare your marking to the

screws (supplied). If your

selected screw is longer than

the marking on the thread

depth indicator DO NOT USE

this screw.

The screw length must not

bypass the marking. Select

another screw size

(see figure 2 and 3). Until you

find one that comes closest to

your mark without going past.

Marking

Screw

Marking

Screw

Thread de

th indicator

Thread de

th indicator

- 9 -

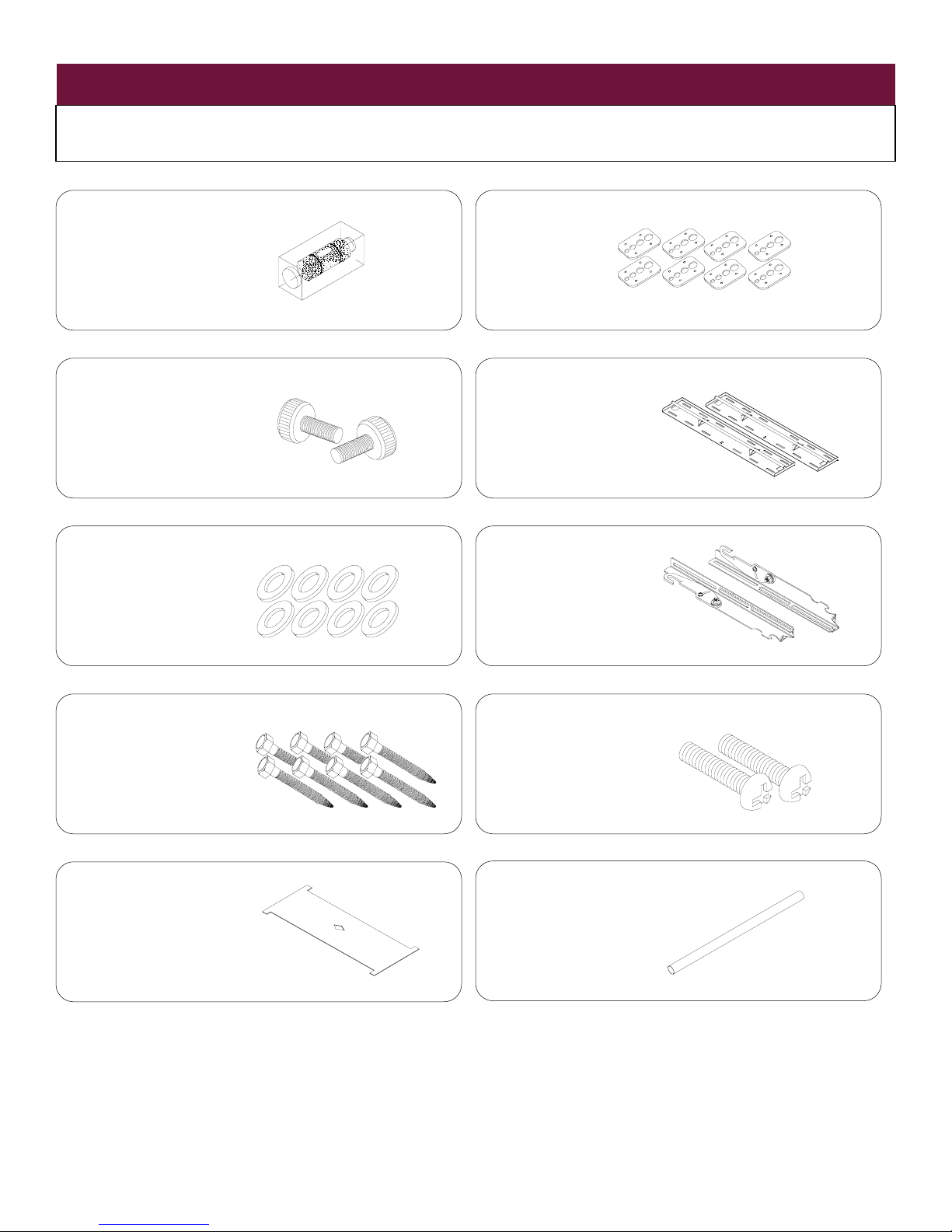

Parts list (con’t)

Level (1)

M6 x 12 Safety knobs (2)

5/16" flat washers (8)

5/16" x 3" Lag bolts (8)

(used on wood studs only)

Template (1)

Griplates™ (8)

Wall plates (2)

Mounting brackets

(left & right)

M6 x 30 Lateral shift

locking screws (2)

All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing before beginning installation. If there

are parts missing stop the installation and contact Premier Mounts.

Thread depth

indicator (1)

- 10 -

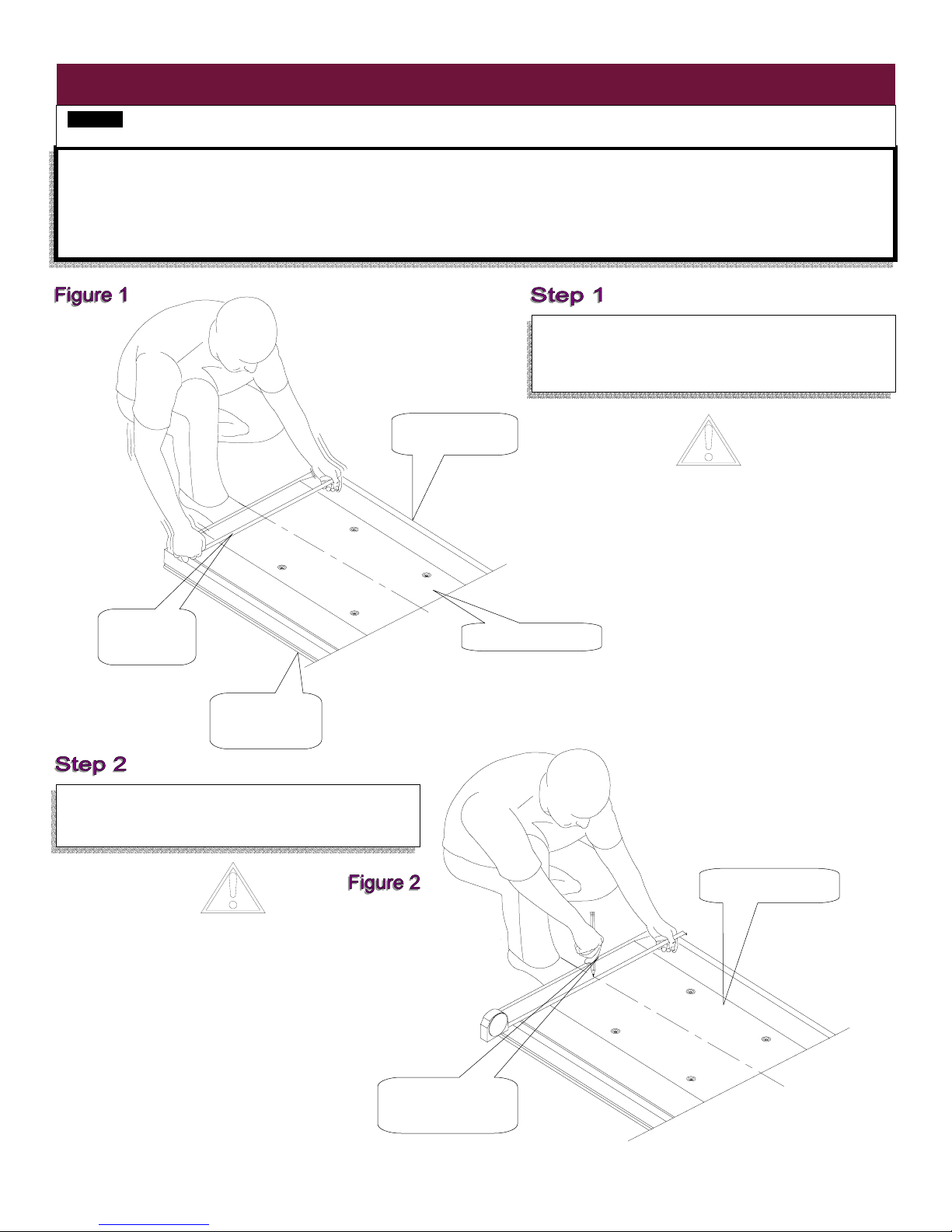

Finding center of the plasma TV

Once the flat panel is inverted, use a measuring tape to

find the center of your flat panel measuring from outside to

outside of the chassis. See figure 1.

Using a pencil lightly mark the center of your flat panel.

See figure 2.

Inverted flat

anel

Top of flat panel

Bottom of flat

panel

Mark the center of

the flat panel

Measuring

tape

Inverted flat panel

WARNING!

INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC.

FAILURE TO DO SO WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY PROTECTION

TO THE GLASS. THE FLAT PANEL IS HEAVY AND FRAGILE. AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR

INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL.

WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could

result in serious

ersonal in

and

ossible dama

e to the flat

anel.

Table of contents

Other Touchboards TV Mount manuals

Touchboards

Touchboards PFDM2 User manual

Popular TV Mount manuals by other brands

Ergotron

Ergotron Neo Flex Cantilever UHD user guide

StarTech.com

StarTech.com FPCEILBTB user manual

VonHaus

VonHaus 05/038 instruction manual

Techlink

Techlink ECHO TV manual

Sandstrom

Sandstrom SSTVMC12X instruction manual

Sony

Sony SU-WL700 Additional information for Using

ICW

ICW SCACC18 installation instructions

LG WM-L640V owner's manual

Gembird

Gembird WM-65ST-01 user manual

ERARD

ERARD FiTUP XXL 035320 quick start guide

PEERLESS

PEERLESS PLCK-1 Installation and assembly

Kanto

Kanto RCF180 user manual

GEM

GEM GEM GP001 instructions

Gladiator Joe

Gladiator Joe GJ0A0053 quick start guide

Vivotek

Vivotek AM-105 installation guide

Vivo

Vivo VESA STAND-VAD1B instruction manual

AmazonBasics

AmazonBasics B07QG3LMG4 manual

Secura

Secura QLF210 instruction manual
