TOSHIBA

Color Television

OWNER'S MANUAL

CF19H22

Dear Customer

Congratulations! You have purchased one of the

finest Color TV's on the market!

This manual will help you use the many exciting and

useful features to make your "IV viewing more enjoy-

able than ever before.

Before operating your TV set, please read all these

safety and operating instructions completely and

then retain for future reference.

Customer's Record

You will find the model number and serial number on

the back of your "IV set.

Record these numbers in the spaces provided below,

Refer tothem whenever you call upon your TOSHIBA

dealer regarding this product.

Model Number

Serial Number

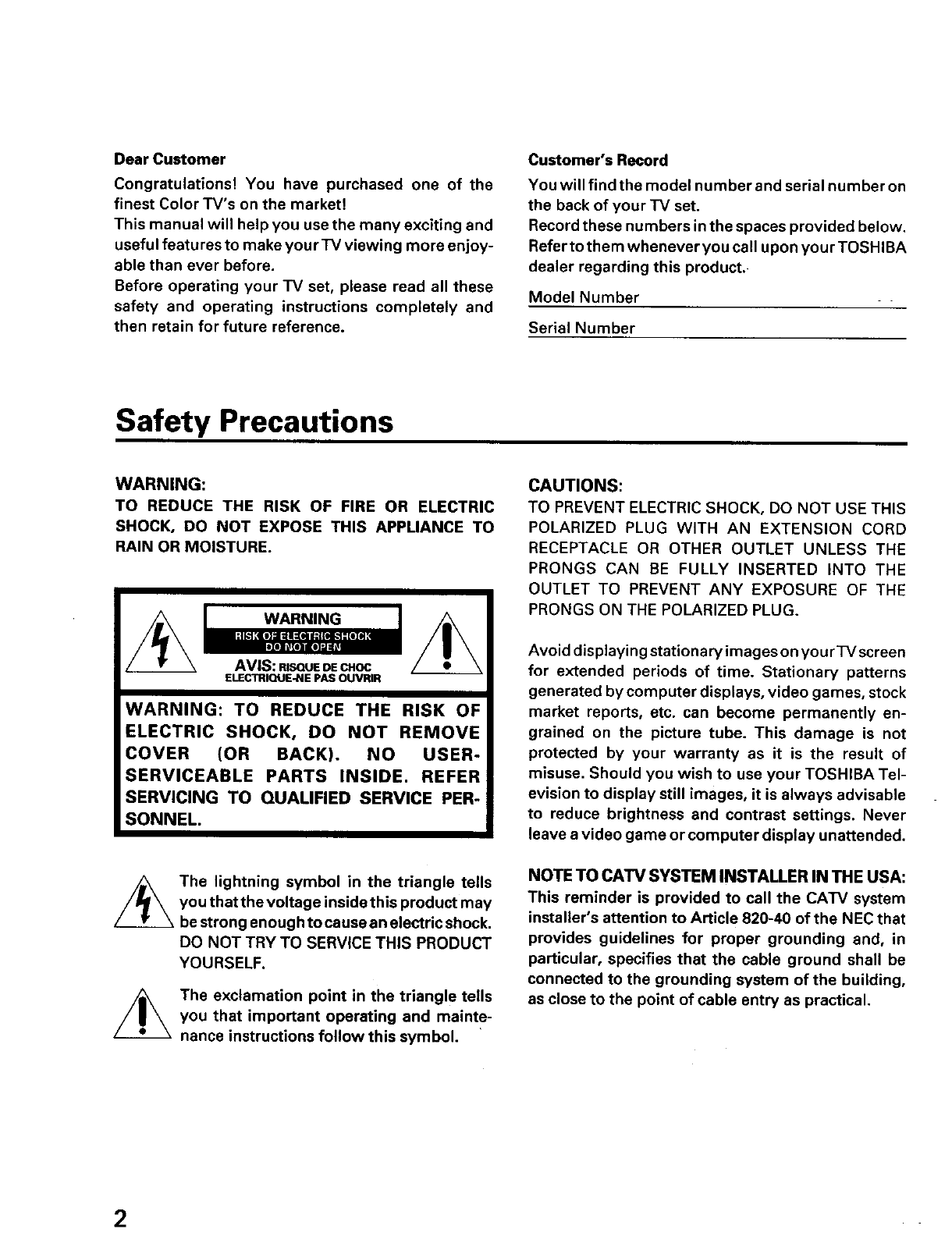

Safety Precautions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

WARNING

AVIS: RISQUE DE CHOC

ELEC'mlQUE-NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

The lightning symbol in the triangle tells

you thatthe voltage inside this product may

be strong enough to cause an electric shock.

DO NOT TRY TO SERVICE THIS PRODUCT

YOURSELF.

The exclamation point in the triangle tells

you that important operating and mainte-

nance instructions follow this symbol.

CAUTIONS:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS

POLARIZED PLUG WITH AN EXTENSION CORD

RECEPTACLE OR OTHER OUTLET UNLESS THE

PRONGS CAN BE FULLY INSERTED INTO THE

OUTLET TO PREVENT ANY EXPOSURE OF THE

PRONGS ON THE POLARIZED PLUG.

Avoid displaying stationaryimages on your TV screen

for extended periods of time. Stationary patterns

generated by computer displays, video games, stock

market reports, etc. can become permanently en-

grained on the picture tube. This damage is not

protected by your warranty as it is the result of

misuse. Should you wish to use your TOSHIBA Tel-

evision to display still images, it is always advisable

to reduce brightness and contrast settings. Never

leave a video game or computer display unattended.

NOTE TO CATV SYSTEM INSTALLER IN THE USA:

This reminder is provided to call the CATV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building,

as close to the point of cable entry as practical.

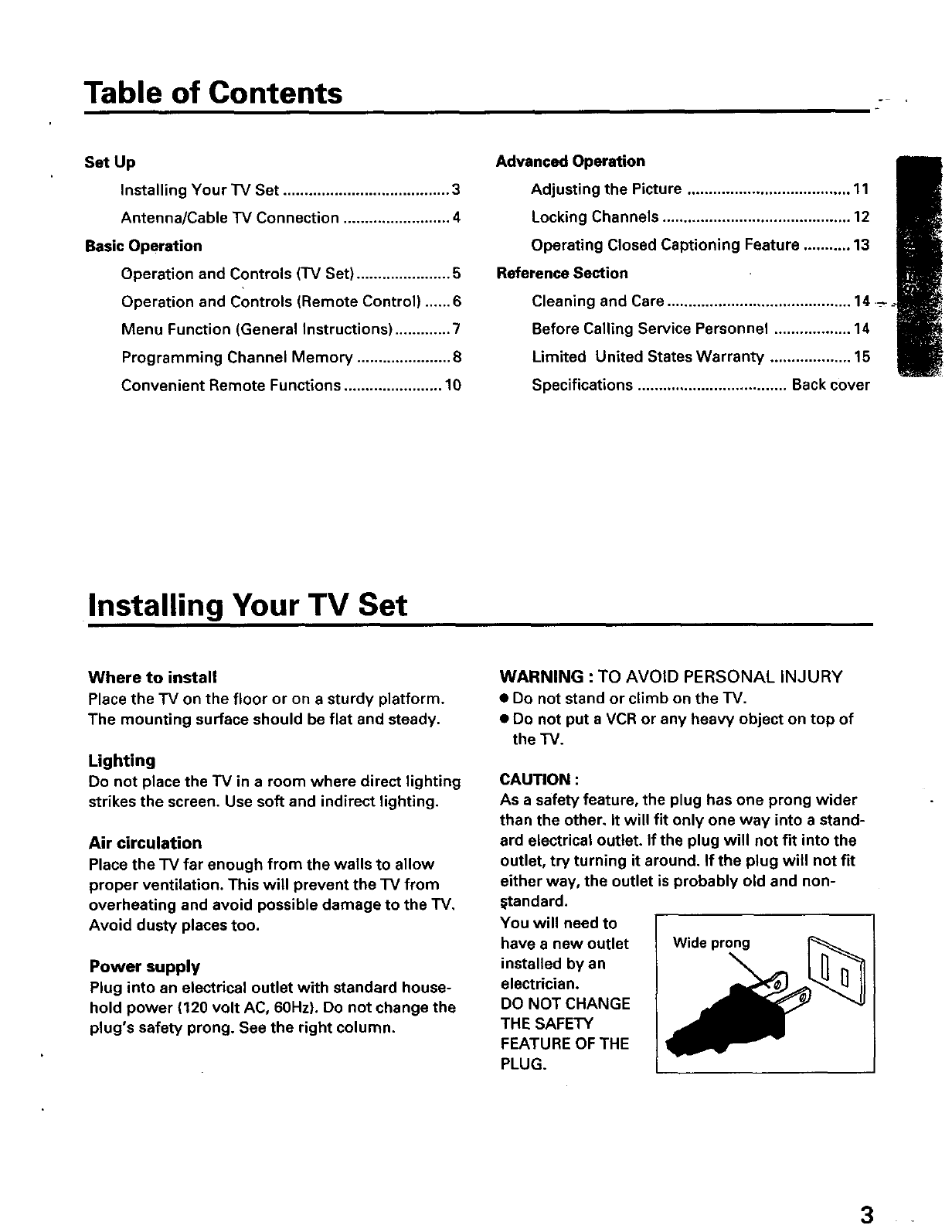

Table of Contents

Set Up

Installing Your "IV Set ....................................... 3

Antenna/Cable "IV Connection ......................... 4

Basic Operation

Operation and Controls (TV Set) ...................... 5

Operation and Controls (Remote Control) ...... 6

Menu Function (General Instructions) ............. 7

Programming Channel Memory ...................... 8

Convenient Remote Functions ....................... 10

Advanced Operation

Adjusting the Picture ...................................... 11

Locking Channels ............................................ 12

Operating Closed Captioning Feature ........... 13

Reference Section

Cleaning and Care ........................................... 14 _--

Before Calling Service Personnel .................. 14

Limited United States Warranty ................... 15

Specifications ................................... Back cover

Installing Your TV Set

Where to install

Place the TV on the floor or on a sturdy platform.

The mounting surface should be flat and steady.

Lighting

Do not place the TV in a room where direct lighting

strikes the screen. Use soft and indirect lighting.

Air circulation

Place the TV far enough from the walls to allow

proper ventilation. This will prevent the TV from

overheating and avoid possible damage to the TV,

Avoid dusty places too.

Power supply

Plug into an electrical outlet with standard house-

hold power (120 volt AC, 60Hz). Do not change the

plug's safety prong. See the right column.

WARNING : TO AVOID PERSONAL INJURY

• Do not stand or climb on the TV.

•Do not put a VCR or any heavy object on top of

the TV.

CAUTION :

As a safety feature, the plug has one prong wider

than the other, It will fit only one way into a stand-

ard electrical outlet. If the plug will not fit into the

outlet, try turning it around. If the plug will not fit

either way, the outlet is probably old and non-

_tandard.

You will need to

have a new outlet Wide prong

installed by an

electrician.

DO NOT CHANGE

THE SAFETY

FEATURE OF THE

PLUG.

Antenna/Cable TV Connection

You can use either an indoor or outdoor antenna to receive VHF and/or UHF channels.

Channels 2 - 13 are VHF channels, and channels 14 - 69 are UHF channels.

We recommend using an outdoor antenna for better picture quality.

You can receive Cable "IV by connecting a cable supplied by your local cable company.

F-type connector

(Not supplied)

{ 75ohmcoaxiale

or cuHFIFe 300_ohmCt_vRin.lea d cable--_

oR _

UHF __j (Not supplied)

Back of TV

• Follow this diagram if your cable company requires •Follow this diagram if you use a VCR.

you to connect a cable box.

Incoming Incoming

Cable Cable

Cable box Back of TV

When selecting channels in the cable box, first tune your

"rv to the output channels of the cable box (usually 3 or

4).

VCR Back of TV

To watch video tapes, tune your TV to the output

channel of the VCR (usually 3 or 4), then begin viewing

the video tape.

Operation and Controls (TV Set)

Front view

--Remote ;ensor

You can choose from three different languages (ENG-

LISH, FRENCH, and SPANISH) for the on-screen displays

(adjustment menus and messages).

1 Press MENU (then ADV •

or V) repeatedly until

"LANGUAGE" in the Set up

menu is displayed in

purple.

TV!CABLE: TVVCABLE

CH F_OGRA_,

ADD/ERASE ABO_ERAS_

CN LC_3K: 00 0

LANGUAGE: _ENGLISH FAENC_

SPANISH

TO S£LECT ITEM pUSH AOV

TO CONTR.. PUSH - +

2Press <1(<) orl_ (>) until

your desired language is

displayed in purple. If you

select "FRENCH" for

example, the display

language changes to

French.

TV_CABLE TV_CABLE

PROGRN_E CAN

_,r,EFF _J _ EFF

IANGU€ ANGLAIS'FRANCAIS

ESPAGNOL

APPUYEZ ADV POUR ITEM

APPUYEZ - + POUR REGLAGE /

First- Time Operation

Turn on TV and place channels in memory.

See page 8.

(_) POWER button

Press to turn on the TV.

Press again to turn off the TV.

_) CHANNEL •/• buttons

Press • to select next higher channel.

Press • to select next lower channel.

_) VOLUME Y/k buttons (Dual function with _))

Press •to increase the volume.

Press •to decrease the volume.

VOLL_ME

-I

(_) MENU button

Refer to the "Menu Function" on page 7.

(_ </> buttons

Refer to the "Menu Function" on page 7.

I+

When this function is activated, your TV will

automatically display a variety of its on-screen menus

and special features.

This function is provided for demonstration purpose

only.

Press MENU (then ADV •

or •) repeatedly until

"DEMO" in the Option

menu is displayed in

purple.

Press 4(<) orl_ (>) to select

"START".

OFF TIMER 0 M_N

DEMO: •START STOP

CCAPTION: • O1 C2 TI T2 OFF

TO SELECT ITEM PUSH ADV

TO C(_NTROLPUSH - *

The on-screen demonstration will

start after about 6 seconds.

To stop the demonstration

Press RECALL on the Remote or select =STOP" in the

menu,

Auto-Power-Off feature

Ifa vacant channelistuned in or a TV broadcast hasfinished

for the day, the TV automatically turns off after about 15

minutes. This feature does not operate in the VIDEO mode.

Last Mode Memory feature

If the power is cut off while you are watching the TV and

then later restored, the TV will turn back on automati-

cally by the Last Mode Memory feature. To ensure that

the power does not turn on, when you are away from

home for e long time, unplug the power cord from the

wall outlet. 5

Operation and Controls (Remote Control)

This Remote Control allows you to control the functions of your TV set from 16 feet (5m) away. Before attempting to

•u,..n

operate the Remote Control, install the batterms according to Instalhng and replacing batter es below.

For specific use of each control, consult the corresponding page numbers in brackets•

100

POWER button

Press to turn on the TV.

Press again to turn off the "IV.

CHANNEL _buttons

Press • to select next higher channel.

Press •to select next lower channel.

Channel Number buttons

To select channel 4, press "4" (or press "0% "4").

To select channel 38, press "3", "8".

To select channel 125, press "100", "2", "5" in

sequence.

VOLUME _ buttons

Press • to increase the volume.

Press • to decrease the volume.

(_) RECALL button

Press to display the channel number on the screen.

(_) Menu function buttons [7]

(_ TV/VIDEO button [10]

(_) MUTE button [10|

®RTN button [10]

1Place the Remote Control with the face down, and

remove the battery cover as shown.

.0".

2Place the two "AA" size batteries, matching the +and

- signs on each battery to the + and - signs of the

battery compartment.

3Replace the battery cover until the lock snaps.

CAUTIONS:

• Do not throw your batteries into a fire. Dispose of your

batteries in a designated disposal area.

•Do not combine used old batteries with new ones.

•Do not mix battery types.

Notes:

•If your Remote Control does not always adjust the set

as you wish, you probably need to replace the batter-

ies.

The life expectancy of the battery is about one year.

•Remove dead batteries immediately to prevent battery

acid from leaking into the battery compartment.

•If you do not intend to use the Remote Control for a

long period, remove the batteries.

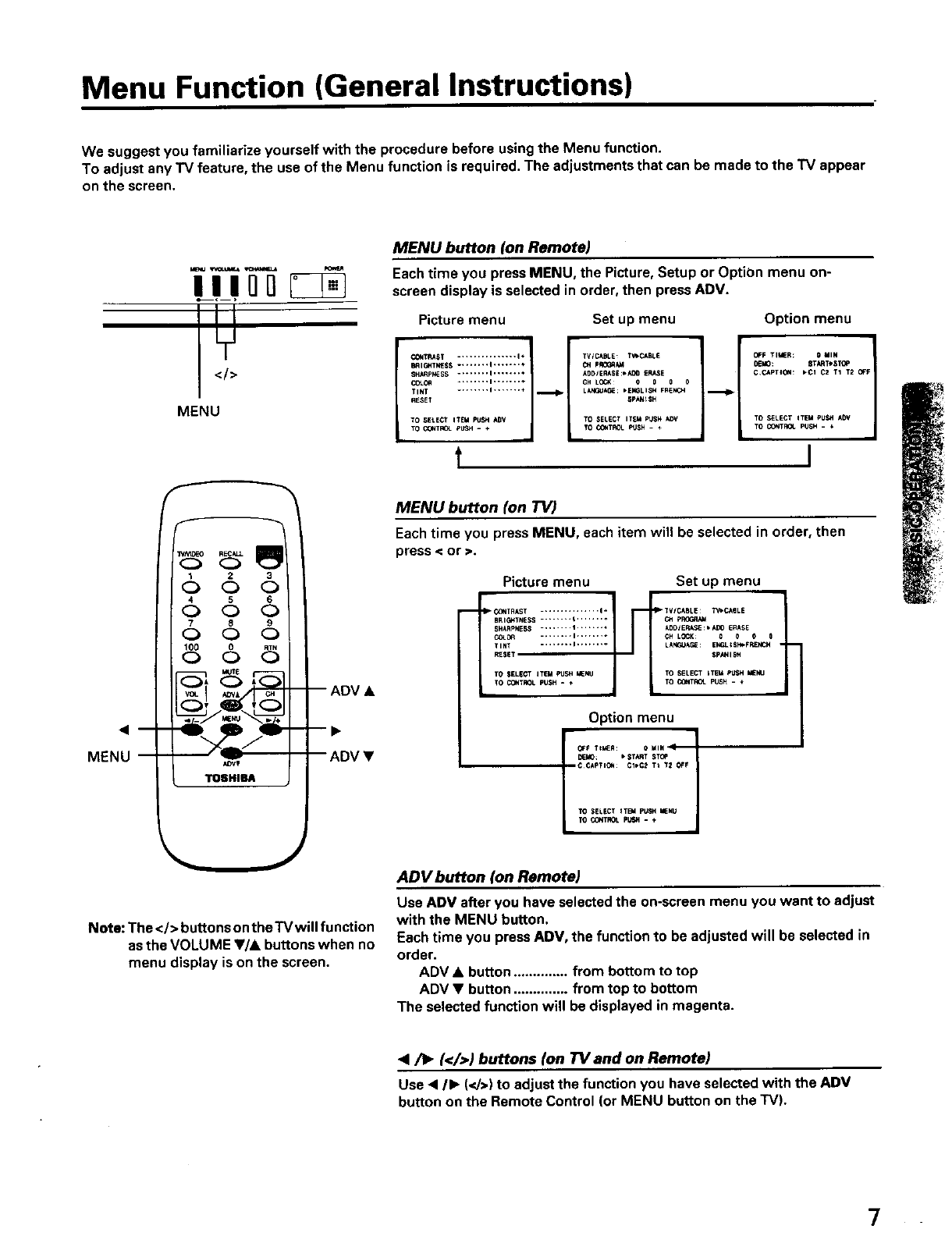

Menu Function (General Instructions)

We suggest you familiarize yourself with the procedure before using the Menu function.

To adjust any TV feature, the use of the Menu function is required. The adjustments that can be made to the "IV appear

on the screen.

MENU button (on Remote)

i'_=i'_ _Each time you press MENU, the Picture, Setup or Option menu on-

screen display is selected in order, then press ADV.

_,tI_$T ............... I* TV/CABLE T_CABLE 0EM0: STkqT,STOP

BR16_dTNE$$ ........ I....... ÷ _t pP,_ C.CAPTION: _.CI C2 T1 T2 OFF

_IHlUlp_ SS ........ i....... * ADOJERASE:, _i_ ERiE

TINT ........ I....... + _ L_*tC4JIGE: ,E_II_LISH FR_NOt _

RESET SPANISH

MENU TO SELECT ITEM pLP_HADV TO SELECT ITEI4 PUSH ADV TO SELECT ITEM PU_ A_'

TO OONT_X pUS_ - + TO O_TROL FUSH - _TO CONTRC_ PUSH - ÷

MENU --

Note: The <1> buttons onthe TV will function

as the VOLUME •/& buttons when no

menu display is on the screen.

MENU button (on TV)

Each time you press MENU, each item will be selected in order, then

press < or >.

Picture menu Set up menu

SHARP,tE 5 $ ........ I....... • _1ERA._ :b A_ ERN_E

{_INI ........ I........ _ LOCK: 0 0 0 0

TO SELECT ITEM PUSH MENU TO SELECT ITEk; _MENU

Option menu

_MO: • $T_.gT $TI_

TO SELECT ITEM pUSH ME_¢_/

TO O_lT_Ot pI/_t . +

ADV button (on Remote)

Use ADV after you have selected the on-screen menu you want to adjust

with the MENU button.

Each time you press ADV, the function to be adjusted will be selected in

order.

ADV • button .............. from bottom to top

ADV •button .............. from top to bottom

The selected function will be displayed in magenta.

<1/_ (</>) buttons (on TV and on Remote)

Use •/1_ (</>) to adjust the function you have selected with the ADV

button on the Remote Control (or MENU button on the TV).

Programming Channel Memory

The channel memory is the list of TV channel numbers your "IV will stop on when you press the CHANNEL • or •button.

First, use the W/CABLE and CH PROGRAM functions to preset all active channels in your area.

If necessary, arrange the preset channels with the ADD/ERASE functions so that you can tune into only desired channels.

Lt!

CHANNEL •/•

1Press POWER to turn on the'IV.

2Press MENU (then ADV •or V) repeatedly

until "W/CABLE" in the Set up menu is

displayed in purple.

TVICABLE: "TV CABLE

CH PROGRAM

ADD'ERASEbADD ERASE

CH LOCK: 0 0 0 D

LANGUAGE: ,ENGLISH FRENCH

SPANISH

TO SELECT ITEM PUSH ADV

TO CONTROL PUSH - +

ADV •

Channel

Number

ADV •

CHANNEL

3Press "<(<) or • (>) until the mode that

corresponds to your TV signal system is

displayed in purple.

"rv: IV broadcasts signals.

(VHF channels 2 through 13 and

UHF channels 14 through 69)

CABLE: Cable "IV signals.

(Cable channels 1 through 125)

TVC&BLE _TV CABLE

OH _ROGRAM

AODERASE bADD ERASE

CH LOCK 0_0

LANGUAGE _ENGLISH FRENC._

SPANISH

TO SELECT ITEM PUSH ADV

TO CONTROL PUSH -+

1Press MENU (then ADV •or •) repeatedly

until "CH PROGRAM" in the Set up menu

is displayed in purple.

r_TViCABLE :VTV CABLE

CH PROGRAM

ADDERAEE:_AOO ERASE

CH LOC_ 0 0 O

LANGUAGE: bENGLISH FRENCH

SPANISH

TO SELECT ITSI4 PUSH ADV

_TOCONTROL PUSH - ÷

2Press < (<) or • (>) to start channel

programming. The "IV will automatically

cycle through all the "IV or CABLE chan-

nels depending on the mode selected, and

store active channels in the channel

memory.

3 When channel programming is complete,

you will see the message at the right.

CH PROGRAM TV

CCMPLETED

TV 4

4Press CHANNEL •or • to make sure the channel programming has

been done properly.

After performing the CH PROGRAM function, you can add or erase

specific channels.

1Select the channel you want to erase

using the CHANNEL •or •button, or

select the channel you want to add using

the Channel Number buttons.

2Press MENU (then ADV •or T) repeat-

edly until "ADD/ERASE" in the Set up

menu is displayed in purple.

3Press • (<) or •(>):

To erase the channel

Press the button until "ERASE" is

displayed in purple indicating that the

channel has been erased from the

memory.

TViCABLE; _TV CABLE

¢H PROGRAM

ADO/ERASE: ,ADD ERASE

CH LOCK: 0 0O O

LANGUAGE: ,ENGLISH FRENCH

8FANIBH

TO SELECT ITEM PUSH ADV

TO CONTROL PUSH - ÷

TVCABLE" ,TV CABLE

CH PRIAM

AOOERASE: ADO_ERASE

CH LO_K: 0 0_

LANGUAGE¸ ,ENGLISM FRENCH

SPANI_M

TO SELECT ITEM PUSH ADV

TO CONTROL PUSH - ÷

To add the channel

Press the button until "ADD" is displayed

in purple indicating that the channel has

been memorized.

TV_CAgLE: ,TV CABLE

CH PROGRAM

ADD!ERASE:,AO0 ERASE

CH LOCK: 000 0

LANGUAGE: ,ENGLISH FRENCH

SPANISH

TO SELECT ITEM PUSH AOV

TO 03NTROL PUSN - +

4 Repeat steps 1 to 3 for other channels.

You have now completed the channel programming.

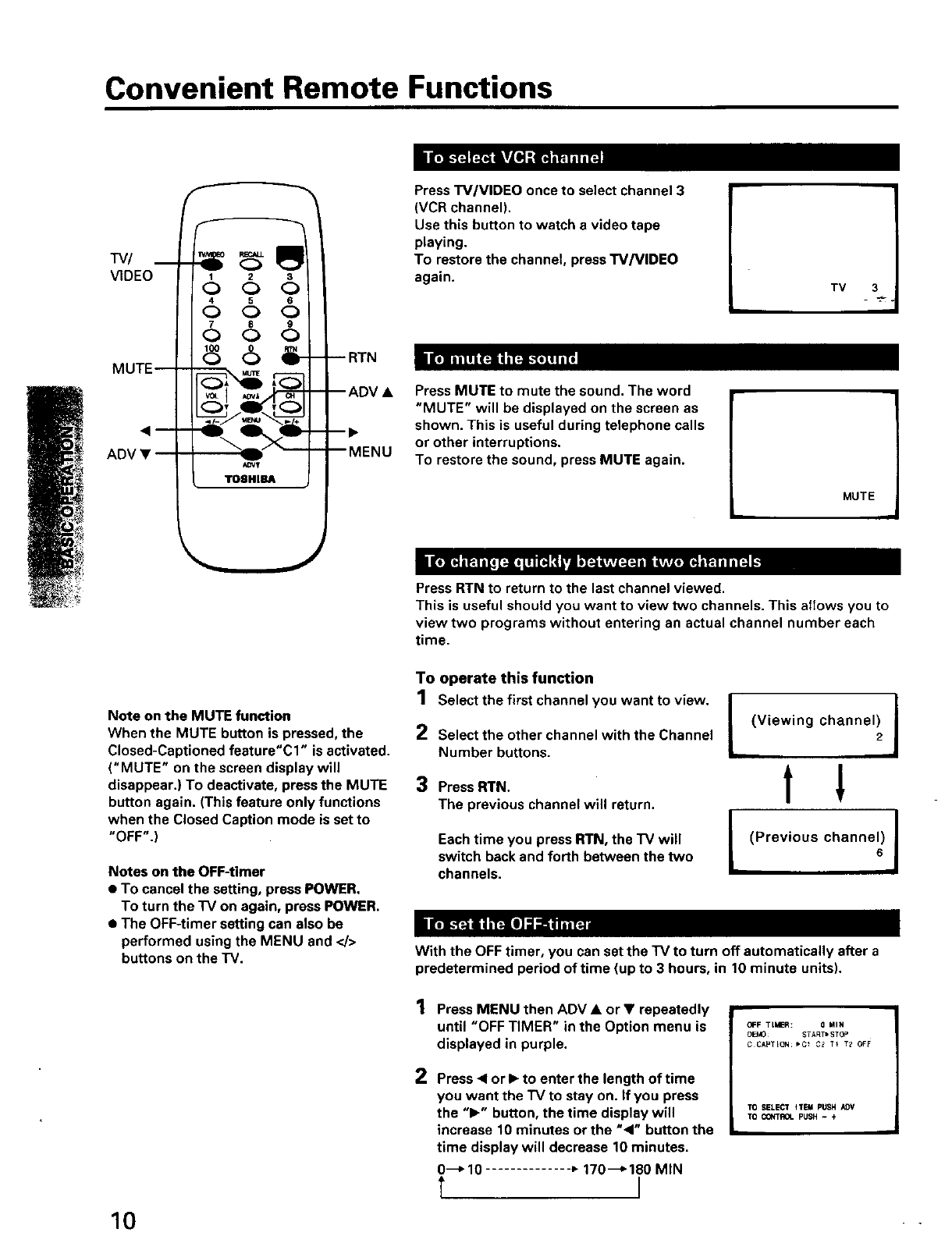

Convenient Remote Functions

Iv/

VIDEO

MUTE--

ADV•

123

AOV_

LTOSHIBA

-- RTN

-- ADV •

--MENU

Press .IV/VIDEO once to select channel 3

(VCR channel).

Use this button to watch a video tape

playing.

To restore the channel, press .IV/VIDEO

again. TV 3

Press MUTE to mute the sound. The word

"MUTE" will be displayed on the screen as

shown. This is useful during telephone calls

or other interruptions.

To restore the sound, press MUTE again.

MUTE

Press RTN to return to the last channel viewed.

This is useful should you want to view two channels. This allows you to

view two programs without entering an actual channel number each

time.

Note on the MUTE function

When the MUTE button is pressed, the

Closed-Captioned feature'C1" is activated.

("MUTE" on the screen display will

disappear.) To deactivate, press the MUTE

button again. (This feature only functions

when the Closed Caption mode is set to

"OFF".)

Notes on the OFF-timer

• To cancel the setting, press POWER.

To turn the "IV on again, press POWER.

• The OFF-timer setting can also be

performed using the MENU and </>

buttons on the TV.

To operate this function

1Select the first channel you want to view.

(Viewing channel)

2Select the other channel with the Channel 2

Number buttons. _,

3Press RTN. l

The previous channel will return.

Each time you press RTN, the "IV will

switch back and forth between the two

channels.

(Previous channel)6j

With the OFF timer, you can set the TV to turn off automatically after a

predetermined period of time (up to 3 hours, in 10 minute units).

1Press MENU then ADV •or • repeatedly

until "OFF TIMER" in the Option menu is

displayed in purple.

2 Press •or •to enter the length of time

you want the 1'4 to stay on. if you press

the "•" button, the time display will

increase 10 minutes or the "<1" button the

time display will decrease 10 minutes.

0---10 *170--_180MIN

OFF TIMER: 0MIN

OEM3 STARTISTOP

CCAPTLON,C! _2 Tt T2 OFF

TO SELECT ITEM PUSH ADV

TO C_fTAOL pUSH -+

Other manuals for CF19H22

Table of contents

Other Toshiba TV manuals

Toshiba

Toshiba 43LL3A63DB User manual

Toshiba

Toshiba 24AF43 User manual

Toshiba

Toshiba 21ARF45 User manual

Toshiba

Toshiba CZ27T31 User manual

Toshiba

Toshiba 50A60 Quick start guide

Toshiba

Toshiba 43CSR6UR User manual

Toshiba

Toshiba 21CSZ2R1 User manual

Toshiba

Toshiba 49L1753DB User manual

Toshiba

Toshiba 43L3863DBT User manual

Toshiba

Toshiba 14AR21 User manual

Toshiba

Toshiba 40WH08G User manual

Toshiba

Toshiba CX36F67 User manual

Toshiba

Toshiba CN27E90 User manual

Toshiba

Toshiba TAC0362 User manual

Toshiba

Toshiba Regza XV55 Series User manual

Toshiba

Toshiba 26EL834RB User manual

Toshiba

Toshiba 20A45C User manual

Toshiba

Toshiba 34HFX84 User manual

Toshiba

Toshiba 28ZH46 Series User manual

Toshiba

Toshiba ColorStream 27A62 User manual

Toshiba

Toshiba 40L1333B User manual

Toshiba

Toshiba 55U7763DB User manual

Toshiba

Toshiba 55U7763DAT User manual

Toshiba

Toshiba 29V24E1 User manual

Popular TV manuals by other brands

Philips

Philips Colour Television Service manual

Philips

Philips 42PF9630A/37 user manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Philips

Philips Matchline 21CE7551 operating instructions

Panasonic

Panasonic Genus TX-G10 operating instructions

Philips

Philips 25PT4523-16 manual

Sony

Sony XBR-100Z9D reference guide

Philips

Philips PR0930X3 owner's manual

Philips

Philips Brilliance 231P4QPY user manual

Samsung

Samsung 55S9 B Series Quick setup guide

Philips

Philips 32HF9385D Käyttöopas

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Philips

Philips 32PFH5300 Service manual

Sylvania

Sylvania 6427FB owner's manual

Sanyo

Sanyo CE19LD90N-B instruction manual
