Toshiba 32A3000P User manual
LCD Color Television
32A3000P
Ver. 2.00
Стр
.
1
из
1
21.04.2015
file://D:\Documents and Settings\ dmin\
Рабочий стол
\toshiba_32a3000p
-
01\32 300
...
ADJUSTMENT
Service Mode

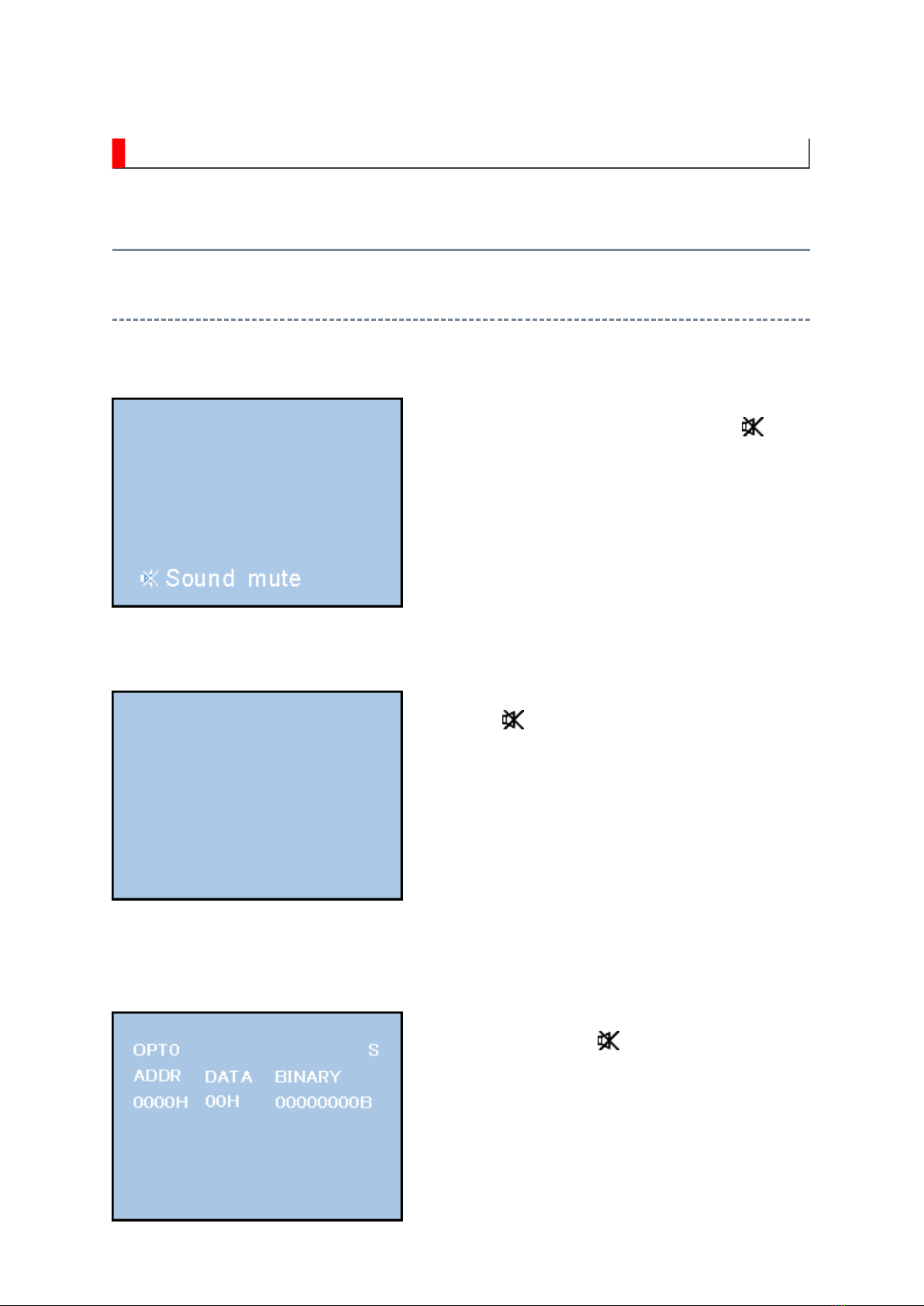

Entering to Service Mode
1. Set VOLUME to minimum and press
button once on remote control.
↓
↓↓
↓
2. Press button again and hold button down.
↓
↓↓
↓
Service Mode display
3. hile holding the button, press MENU
button on TV set.
Стр
.
1
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\toshiba_32a3000p
-
01\32A300
...
Displaying the Adjustment Menu
Press MENU button on TV.
Key Function in the Service Mode
The following key entry during display of adjustment menu provides special functions.
Service Mode
Press ↑
↑↑
↑ ↓
↓↓
↓ Press
Adjustment Mode
AUTION: Never try to perform initialization unless you have changed the
memory I .
button (on remote control)
Стр
.
2
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
Selecting the Adjusting Item
Every pressing of CH button in the service mode changes the adjustment items in the
order of table below. ( button for reverse order)
SETTING & ADJUSTING DATA
[ SERVI E MODE ]
ADJUSTING ITEMS AND DATA IN THE SERVI E MODE:
Note:
The image system data of RCUT-BDRV is different by each image format.
The PAL value is indicated in the table.
Never adjust H.POS and V.POS except PAL/ IDE mode.
Test signal selection
Selection of the adjustment items CH (on T or remote control)
Change of the data value olume +/- (on T or remote control)
Adjustment menu mode ON/OFF MENU button (on T )
Initialization of the memory (QA02) CALL + CH button on T
Reset the count of operating
protect circuit to "00" CALL + CH button on T
Turn off I2C bus communication CALL + olume + button on T
"RCUT" selection 1 button
"GCUT" selection 2 button
"BCUT" selection 3 button
"CNTX" selection 4 button
"COLC" selection 5 button
"U TT" selection 6 button
Automatic A/D Adjustment
(PC, Component, Composite (PAL, NTSC)) 7 button
Self diagnostic display ON/OFF 9 button
Стр
.
3
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
Item Name of adjustment
RCUT R CUT OFF
GCUT G CUT OFF
BCUT B CUT OFF
RDR R DRI E
GDR G DRI E
BDR B DRI E
BRTC BRIGHTNESS CENTER
COLC COLOR CENTER
U TT BASE BAND TINT
CNTX CONTRAST MAX
OLUX MAX OLUME LIMITED
PLLW0 PLL WAIT TIME
PLLW1 PLL WAIT TIME
PLLW2 PLL WAIT TIME
PLLW3 PLL WAIT TIME
PLLW4 PLL WAIT TIME
PLLW5 PLL WAIT TIME
OPT1 T SET OPTION 1
OPT2 T SET OPTION 2
OPT3 T SET OPTION 3
OPT4 T SET OPTION 4 (PANEL OPT DATA FOR ENDOR)
OPT5 T SET OPTION 5 (PANEL OPT DATA FOR SIZE)
OPT6 T SET OPTION 6 (HOTEL MODE)
OPT7 T SET OPTION 7 (HOTEL MODE)
OPT8 T SET OPTION 8 (HOTEL MODE)
T OP T SET OPTION
ID MODEL ID
BDWID BORDER WIDTH FOR EXACT SCAN
BDHIT BORDER HEIGHT FOR EXACT SCAN
FPLG MASK_ENABLE (SD/HD)
Стр
.
4
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
Factory preset data will be loaded after setting Model ID data.
(Refer to Initialization of Memory Data of QA02 and setting data of signal board.)
Adjusting the Data
Pressing of VOLUME +/- button will change the value of data in the range from 00H to
FFH. The variable range depends on the adjusting item.
I2 Bus Off
Turn off I2C communication between IC700 and IC400.
1) Press and hold the CALL button on the remote control, then press the Volume
+ button on the TV.
2) Display "BUS Off" OSD.
3) I2C communication turned off.
Note:
To return Bus on status, press and hold the CALL button on the remote control, then press
the Volume + button on the TV again. TV will be turned off and automatically turned
on, then status will be Bus On.
Setting TVOP
Enter to service mode and select menu of TVOP by pressing P or P during display of
adjustment menu. After selecting TVOP, press + or - to set I2C check function to
disable or enable as below.
FPLG2 Channel LOGO ector Clip SW (SD)
FPLG3 Channel LOGO ector Clip SW (HD)
TVOP FUN TION DES RIPTION 1 0 (Normal)
D5 (bit5) I2C check between IC700 and IC400. (WDT) Disable Enable
Стр
.
5
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
Setting Panel Option Data
Panel option data is subject to OP4 and OP5.
Enter to service mode and select menu of OPT4 or OPT5 by pressing P or P during
display of adjustment menu. After selecting OPT4 or OPT5, press + or - to set OPT4
or OPT5 value as table below.
Panel option data
OP4
Ex. OPT4 value 0x05 indicates that panel vendor is AUO AMVA.
OP5
Series Model name Panel vendor OPT4 value OPT5 value
A3000 EU Digital/Ready 26A3030D/A3000P LPL 0x01 0x03
IPS 0x07 0x03
32A3030D/A3000P LPL 0x01 0x05
IPS 0x07 0x05
37A3030D/A3000P LPL 0x01 0x06
IPS 0x07 0x06
42A3030D/A3000P LPL 0x01 0x07
OPT4
D7
(bit7)
D6
(bit6)
D5
(bit5)
D4
(bit4)
D3
(bit3)
D2
(bit2)
D1
(bit1)
D0
(bit0)
Panel vendor LPL - - - - 0 0 0 1
SHP - - - - 0 0 1 0
CMO - - - - 0 0 1 1
AUO PM A - - - - 0 1 0 0
AUO AM A - - - - 0 1 0 1
SAMSUNG - - - - 0 1 1 0
IPS - - - - 0 1 1 1
Стр
.
6
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
Ex. OPT5 value 0x05 indicates that panel size is 32.
onvert from Bit (Binary) to Hex
The table for converting from bit (D7-D0) to hex (0x**).
OPT5
D7
(bit7)
D6
(bit6)
D5
(bit5)
D4
(bit4)
D3
(bit3)
D2
(bit2)
D1
(bit1)
D0
(bit0)
Size 32 - - - - 0 1 0 1
37 - - - - 0 1 1 0
42 - - - - 0 1 1 1
BIT (Binary)
High nibble D7 D6 D5 D4
Low nibble D3 D2 D1 D0
HEX 00 0 0 0
10 0 0 1
20 0 10
30 0 1 1
4010 0
50101
601 1 0
70111
8 1 000
9 1 0 0 1
A 1 010
B 1 01 1
1 1 0 0
D 1 1 01
E 1 1 1 0
F 1 1 1 1
Стр
.
7
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
E.g. If Bit D7-0 = 0101 1010, Hex data is 0x5A.
Exit from Service Mode
Pressing PO ER button to turn off the TV once.
Initialization of Memory Data of QA02 and Setting Data of Signal Unit
After replacing QA02 or signal board, the following initialization is required.
1) Enter the service mode.
2) Select menu of ID by pressing P or P during display of adjustment menu in the
service mode.
3) Change ID data into MODEL ID to initialize by pressing + or -., refer to table
below.
4) Press and hold the CALL button on the remote control, then press the CHANNEL
button on the TV.
5) Initialization progress dialog including model name and panel vendor is shown.
Progress status is " RITING".
6) Progress status is changed "OK" and power cycle (automatically). Then QA02
initialization has been completed.
7) Enter the service mode and select version check mode. Confirm if model name and
model id set is correct. If not, repeat steps 1) to 6).
AUTION: Never attempt to initialize the data unless QA02 has been
replaced.
Whenever using new signal board to the set, setting the Model ID data
according to Panel option data.
Стр
.
8
из
21
ADJUSTMENT [LCD Color Television] ASIA_EU
21.04.2015
file://D:\Documents and Settings\Admin\
Рабочий стол
\
toshiba_32a3000p
-
01\32A300
...
Note:
In case initialization by setting wrong MODEL ID is done, there is a possibility of
abnormal display.
8) Set I2C check function of TVOP to enable.
9) Check the picture carefully. If necessary, adjust any adjustment item above.
Perform "Auto tune" on the owner's manual.
MODEL ID (HEX) Model name Panel vendor
0x01 26A3000P LPL
0x02 26A3000P IPS
0x03 32A3000P LPL
0x04 32A3000P IPS
0x05 37A3000P LPL
0x06 37A3000P IPS
0x07 42A3000P LPL
0x08 26A3030D LPL
0x09 26A3030D IPS
0x10 32A3030D LPL
0x11 32A3030D IPS
0x12 37A3030D LPL
0x13 37A3030D IPS
0x14 42A3030D LPL
0x15
0x16
0x17
0x18
0x19
0x20
0x21
0x22
0x23
0x24
0x25
