– SUMMARY –

28ZD26P is the same as 32ZD26P except for the parts tabled on back of this sheet.

Use this service manual together with the original service manual of 32ZD26P (File No. 030-

200206).

FILE NO. 033-200221

SERVICE MANUAL

COLOUR TELEVISION

ZD26 Chassis

28ZD26P

PUBLISHED IN JAPAN, Jul., 2002 So

Location

No. Part No. Description

REPLACEMENT PARTS LIST DIFFERENCES

TOSHIBA CORPORATION

1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

Location

No. Part No. Description

A201S 23530375 Front Cover

A223 23035412 Screw, BTB4X12SZN

A231 23445632 Button, Power

A242 23428087 Door

A401 23530271 Back Cover

A701 23064879 Carton

A702 23946384 Packing, Bottom

A703 23946385 Packing, Top

C314 24793101 EL, 100?F, ±20%, 10V

C315 24212102 CD, 1000pF, ±10%

C430 24820222 PF, 0.0022?F, 630V

C444 24503197 CF92T3Q622HA

C447 24820123 PF, 0.012?F, 630V

C491 24503190 CF92T2G124JA

C492 24503190 CF92T2G124JA

C4490 24503282 CF92T2G164JA

C4491 24503251 CF92T2G184JA

G306 24366562 CF, 5600 ohm

L441 23233035 Coil, Linearity, TLN2199AT

L901 23200489 Coil, Degaussing, TSB-2397CM

Q301 23905610 IC, LA7846N

Q304 23314794 Transistor, 2PC1815Y

R211 24366473 CF, 47k ohm

R227 24366333 CF, 33k ohm

R305 24323688 MF, 0.68 ohm, 2W

R311 24366911 CF, 910 ohm

R313 24366132 CF, 1300 ohm

R317 24366102 CF, 1k ohm

R321 24552392 OMF, 3900 ohm, 1/2W

R324 24366681 CF, 680 ohm

R325 24366103 CF, 10k ohm

R328 24366102 CF, 1k ohm

R336 24383221 OMF, 220 ohm, 2W

R353 24366471 CF, 470 ohm

R460 24366103 CF, 10k ohm

R461 23183966 TAS WIRE R60

R920 24000945 FR, 1.8 ohm, 2W

RA71X 24366683 CF, 68k ohm

RA72X 24366223 CF, 22k ohm

RA73X 24366103 CF, 10k ohm

RA76X 24366103 CF, 10k ohm

S801X 23344416 Switch, Power

SA01X 23145430 Switch, Push, 1C1P

SA02X 23145430 Switch, Push, 1C1P

SA03X 23145430 Switch, Push, 1C1P

SA04X 23145430 Switch, Push, 1C1P

SA05X 23145430 Switch, Push, 1C1P

T461 23236766 Transformer, Flyback,

TFB4188AH

T461B 23501175 Cable, Forcus

T461C 23501176 Cable, Forcus

*U901 23787341 CRT-D Board, PD0491C

*U902 23787342 SIGNAL Board, PD0492D

*U903A 23787343 POWER Board, PD0493D-1

*U903B 23787719 CONT-2 Board, PD0493D-2

*U903C 23787718 INDICATOR Board, PD0493D-3

*U904 23787344 DEF Board, PD0494D

V901 23312994 Picture Tube, W66QDE991X81

V901A 23903145 Socket, CRT

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

FILE NO. 030-200206

SERVICE MANUAL

COLOUR TELEVISION

ZD26 Chassis

32ZD26P

PUBLISHED IN JAPAN Mar. 2002 So

– 2 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

TABLE OF CONTENTS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10

CIRCUIT CHECK .................................................................................................................................................... 12

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ................................................................................................................................... 14

CHASSIS AND CABINET REPLACEMENT PARTS LIST ......................................................................................16

PC BOARDS BOTTOM VIEW................................................................................................................................. 29

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 37

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 40

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

CIRCUIT DIAGRAM

–3 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION”AND “PRODUCT SAFETY NOTICE”INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazard-

ous X-RAY RADIATION. To avoid such hazards, the high

voltage must not be above the specified limit. The nominal

value of the high voltage of this receiver is (A) kV at zero

beam current (minimum brightness) under a (C) V AC power

source.The high voltage must not, under any circumstances,

exceed (B) kV.

Refer to table-1 for high voltage (A), (B) & AC voltage (C).

(See SETTING & ADJUSTING DATA on page 13)

Each time a receiver requires servicing, the high voltage

should be checked following the HIGH VOLTAGE CHECK

procedure in this manual. It is recommended that the read-

ing of the high voltage be recorded as a part of the service

record. It is important to use an accurate and reliable high

voltage meter.

2. The only source of X-RAY RADIATION in this TV receiver

is the picture tube. For continued X-RAY RADIATION pro-

tection, the replacement tube must be exactly the same

type tube as specified in the parts list.

3. Some part in this receiver have special safety-related char-

acteristics for X-RAY RADIATION protection. For contin-

ued safety, parts replacement should be undertaken only

after referring to the PRODUCT SAFETY NOTICE below.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following

are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is

performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube

is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube

away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; non-

metallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are

often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using

replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety char-

acteristics are identified in this manual and its supplements; electrical components having such features are identified by

the international hazard symbols on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement

parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray

radiation or other hazards.

–4 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION”AND “PRODUCT SAFETY NOTICE”ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to

the position depend on a kind of tube.

*There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

GLASS CLOTH

TAPES

DEFLECTION

YOKE

TEMPORARY

MOUNTING

RUBBER WEDGE

ADHESIVE

DEFLECTION

YOKE

PURITY/

CONVERGENCE

MAGNET ASS'Y

29.1mm(28", 29")

25mm(25")

19mm(19", 20", 21")

14mm(13", 14")

Figure 1.

COLOR PURITY ADJUSTMENT

NOTE : Before attempting any purity adjustments, the receiver

should be operated for at least fifteen minutes.

1. Demagnetize the picture tube and cabinet using a degauss-

ing coil.

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the

yoke backward or forward to provide vertical green belt

(zone) in the picture screen.

5. Remove the Rubber Wedges.

6. Rotate and spread the tabs of the purity magnet (See fig-

ure 2.) around the neck of the picture tube until the green

belt is in the center of the screen. At the same time, enter

the raster vertically.

7. Slowly move the yoke forward or backward until a uniform

green screen is obtained. Tighten the clamp screw of the

yoke temporarily.

8. Check the purity of the red and blue raster.

–5 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the

receiver should be operated for at least fifteen min-

utes.

■CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test sig-

nals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the an-

gle between them (See figure 2.) and superimpose red

and blue vertical lines in the center area of the picture

screen.

4. Turn the both tabs at the same time keeping the angle

constant to superimpose red and blue horizontal lines at

the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/

blue line and green one. Adjusting the angle affects the

vertical lines and rotating both magnets affects the hori-

zontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green

and blue movement, because 4-Pole Magnets and 6-Pole

Magnets have mutual interaction and make dot movement

complex.

■CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to

allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not

remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better

convergence in circumference. (See figure 3.) Push the

mounted wedge into the space between picture tube and

the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover

paper to stick.

5. Tilt front of the yoke right or left to obtain better conver-

gence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either

upper space. Remove cover paper and stick the wedge

on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in an-

other upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence.

Tighten the screw firmly to fix the yoke and check the yoke

is firm.

9. Stick three adhesive tapes on wedges as shown in figure

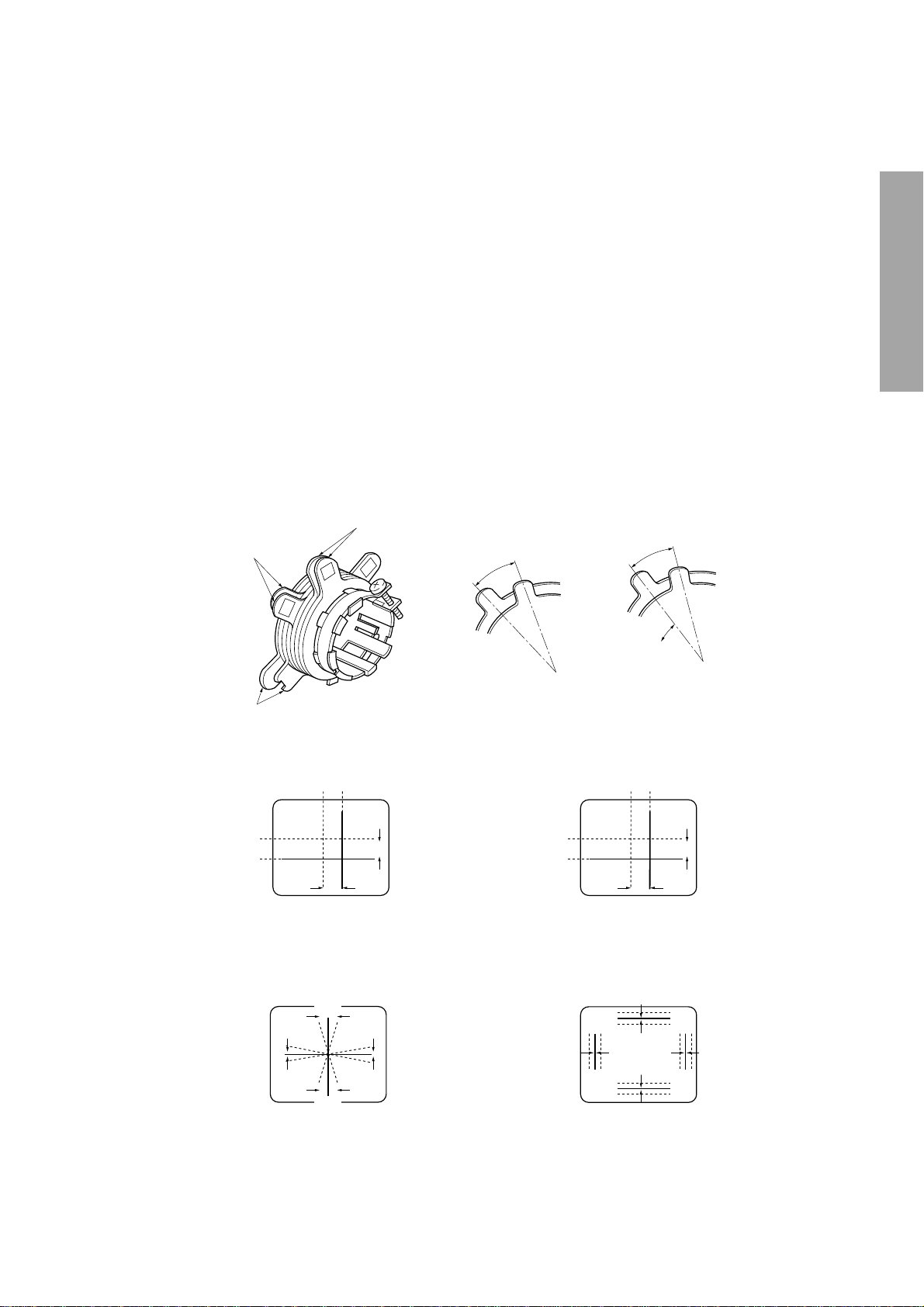

Figure 2.

BLU RED

BLU

RED

RED/BLU GRN

RED/BLU

GRN

BGR

RGB

BGR

RGB

4-POLE MAGNETS MOVEMENT

INCLINE THE YOKE UP (OR DOWN)

6-POLE MAGNETS MOVEMENT

Center Convergence by Convergence Magnets

Circumference Convergence by DEF Yoke

INCLINE THE YOKE RIGHT (OR LEFT)

Figure 3. Dot Movement Pattern

4-POLE

MAGNETS

PURITY

MAGNETS

6-POLE

MAGNETS

ADJUST THE ANGLE

(VERTICAL LINES) FIXED

ROTATE TWO TABS

AT THE SAME TIME

(HORIZONTAL LINES)

CONVERGENCE MAGNET ASSEMBLY ADJUSTMENT OF MAGNETS

–6 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

SERVICE MODE

1. ENTERING TO SERVICE MODE

(Service mode display)

Item

Data

Mute or

3) While pressing the obutton,

press MENU button on TV set.

2) Press obutton again to

keep pressing.

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

A single horizontal line ON/OFF: INFO button (on Remote) or abutton (on TV)

Test signal selection : abutton (on Remote)

Selection of the adjustment items : Channel s/t(on TV or Remote)

Change of the data value : Volume ;+/–(on TV or Remote)

Adjustment menu mode ON/OFF : MENU button (on TV)

Initialization of the memory (QA02) : CALL + Channel button on TV (s)

Reset the count of operating protect

circuit to “00”: CALL + Channel button on TV (t)

“RCUT”selection : 1 button

“GCUT”selection : 2 button

“BCUT”selection : 3 button

“CNTX”(or “SCNT”) selection : 4 button

“COLC”selection : 5 button

“TNTC”selection : 6 button

Self diagnostic display ON/OFF : 9 button

1) Press obutton once on

Remote Control.

Adjustment mode

Item

Data

Service mode

Press

ITEM

DATA

Color thickness correction

note: Displayed differently as shown below, de-

pending on the setting of the receiving color

system.

COLP (PAL)

COLC (NTSC)

COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

–7 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL sbutton in the service mode changes the adjustment items in the order of table-2.

(tbutton for reverse order)

Refer to table-2 for preset data of adjustment mode.

(See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME ;+/–button will change the value of data in the range from 00H to FFH. The variable

range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

■INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL sbutton on the TV. The initialization of QA02 has

been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Auto search Memory”on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of abutton on the Remote Control changes the built-in test patterns on screen as described below

in SERVICE MODE.

Signals Picture

•Red raster

•Green raster

•Blue raster

•All White

•Black cross-hatch

* The signals marked with are not usable to display in the Test signal for some model.

Signal off NTSC signals (5 patterns)

PAL signals (5 patterns)

–8 –

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

8. SELF DIAGNOSTIC FUNCTION

1) Press “9”button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

23******

POWER : 00

BUS LINE : OK

BUS CONT : OK

BLOCK :

UV V1 V2 V3

QV01

Part number of microcomputer (QA01)

Operation number of protecting circuit ----“00”is nor-

mal.

When indication is other than “00”, overcurrent apts to

flow, and circuit parts may possibly be damaged.

BUS LINE CHECK ----“OK”is normal.

“SDA1-GND”------------- SDA-GND short circuit.

“SCL1-GND”-------------- SCL-GND short circuit.

“SCL1-SDA1”------------- SCL-SDA short circuit.

BUS CONT ----“OK”is normal.

When indication shows “Q uuu NG”, the device with

the number may possibly be damaged.

BLOCK

UV : TV reception mode

V1 : VIDEO 1 input mode (a1)

V2 : VIDEO 2 input mode (a2)

V3 : VIDEO 3 input mode (a3)

Indicated color of mode now selected : Green and Red

Indicated color of other modes : White

Green : Normal

Red : The microcomputer operates to provide judgement

of no video signal. The red color is still indicated

though the signal is input, failure may exist in input

signal line including QV01.

QV01 : In case of indication green ---Normal

In case of indication red with input signal----

Failure may exist in output line including QV01.

NOTE: Component which controls character display on

screen is ICF01 (TELETEXT IC.). If this display

function fails to operate due to damage in ICF01,

self diagnosis procedure is as follows.

(1) In case that power indicator is blinking with

interval of 0.5 seconds; it means protecting

circuit (Current limiter) is operating, and cir-

cuit components may possibly be damaged.

Check related components.

(2) In case that power indicator is blinking with

interval of 1 second; Protecting circuit does

not operate, but a part of Bus line does not

operate normally. Check Bus line.











* The items marked with are not usable to display in the SELF DIAGNOSTIC FUCTION for some model.

This manual suits for next models

Table of contents

Other Toshiba TV manuals

Toshiba

Toshiba 20AS25 User manual

Toshiba

Toshiba TheaterWide 30HFX84 User manual

Toshiba

Toshiba 43VS9UA Quick start guide

Toshiba

Toshiba 43 QG5E Series User manual

Toshiba

Toshiba 47TL515U Assembly instructions

Toshiba

Toshiba 42WL863B User manual

Toshiba

Toshiba 32ZP48P User manual

Toshiba

Toshiba 27A41C User manual

Toshiba

Toshiba Regza 37HL17 User manual

Toshiba

Toshiba 21V53 User manual

Toshiba

Toshiba 19A24 User manual

Toshiba

Toshiba 34HF84 Quick start guide

Toshiba

Toshiba Easy Body Rider User manual

Toshiba

Toshiba Z3030 Series User manual

Toshiba

Toshiba 49L3753DB User manual

Toshiba

Toshiba 50L5200U Assembly instructions

Toshiba

Toshiba 22AV733F User manual

Toshiba

Toshiba 29VH14P User manual

Toshiba

Toshiba 20A1VX User manual

Toshiba

Toshiba 20A42 User manual

Toshiba

Toshiba 43 QF5D Series User manual

Toshiba

Toshiba 27AF45 User manual

Toshiba

Toshiba 36HF73 User manual

Toshiba

Toshiba 40HL933B User manual

Popular TV manuals by other brands

Philips

Philips Colour Television Service manual

Philips

Philips 42PF9630A/37 user manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Philips

Philips Matchline 21CE7551 operating instructions

Panasonic

Panasonic Genus TX-G10 operating instructions

Philips

Philips 25PT4523-16 manual

Sony

Sony XBR-100Z9D reference guide

Philips

Philips PR0930X3 owner's manual

Philips

Philips Brilliance 231P4QPY user manual

Samsung

Samsung 55S9 B Series Quick setup guide

Philips

Philips 32HF9385D Käyttöopas

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Philips

Philips 32PFH5300 Service manual

Sylvania

Sylvania 6427FB owner's manual

Sanyo

Sanyo CE19LD90N-B instruction manual
