Toshiba TDP-P4 User manual

TDP-P4

Digital Projector

USER’S GUIDE

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1

Compatibility 1

Unpacking the Projector 1

Usage Guidelines 3

If You Need Assistance 3

Setting up the Projector 5

Connecting a Computer 7

Connecting a Video Player 8

Powering up the Projector and Adjusting the Image 9

Turning Off the Projector 9

Using the Projector 11

Basic Image Adjustment 11

Adjusting the Projector 11

Using the Remote Control 12

Using the Keypad and Remote Buttons 14

Using the On-Screen Menus 16

Display Menu 17

Image Menu for Computer Sources 19

Image Menu for Video Sources 21

Control Menu 22

Advanced Menu 23

Language Menu 24

Status Menu 25

Maintenance & Troubleshooting 27

Cleaning the Lens 27

Replacing the Projection Lamp 27

Replacing the Batteries in the Remote Control 31

Using the Security Lock 31

Troubleshooting 32

Ta b l e o f C o n t e n t s

Appendix 35

Specifications 35

Accessories 36

Portable and Laptop Activation Chart 38

Using Video Mirroring with a PowerBook Computer 43

Projected Image Size 44

Index 45

iii

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE

using your new projector. Failure to comply with safety instruc-

tions may result in fire, electrical shock, or personal injury and

may damage or impair protection provided by equipment. Please

save all safety instructions.

Safety Definitions:

•Warning: Statements identify conditions or practices that

could result in personal injury.

•Caution: Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention: For information about usage of a feature, please

refer to the User’s Guide.

Warning: Hot surface. Do not touch.

An arrow pointing to the lamp door on the projector.

Safety Terms:

•Warning: Don’t look directly into the lens when the projector is

turned on.

•Warning: To replace the lamp, turn the projector off

and unplug the power cord. To avoid burns, wait 30 min-

utes before opening the lamp access grill. Follow all instruc-

tions provided in this User’s Guide.

•Warning: Please use the power cord provided.

•Warning: Refer all service to qualified service personnel. Ser-

vicing your own projector will void the warranty. See the fol-

lowing page for the customer service contact information.

•Caution: Don’t block ventilation openings.

Safety Instructions

•Caution: Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•Caution: Don’t place the projector on a hot surface or in direct

sunlight.

•Caution: Do not drop the projector. Transport the projector in a

vendor-approved case; refer to your Toshiba dealer or

projectors.toshiba.com for more information.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering

that may block the vents. In the unlikely event of the bulb ruptur-

ing, thoroughly clean the area in front of the projector and dis-

card any edible items placed in that area.

Customer Service

Please contact your Toshiba dealer for details.

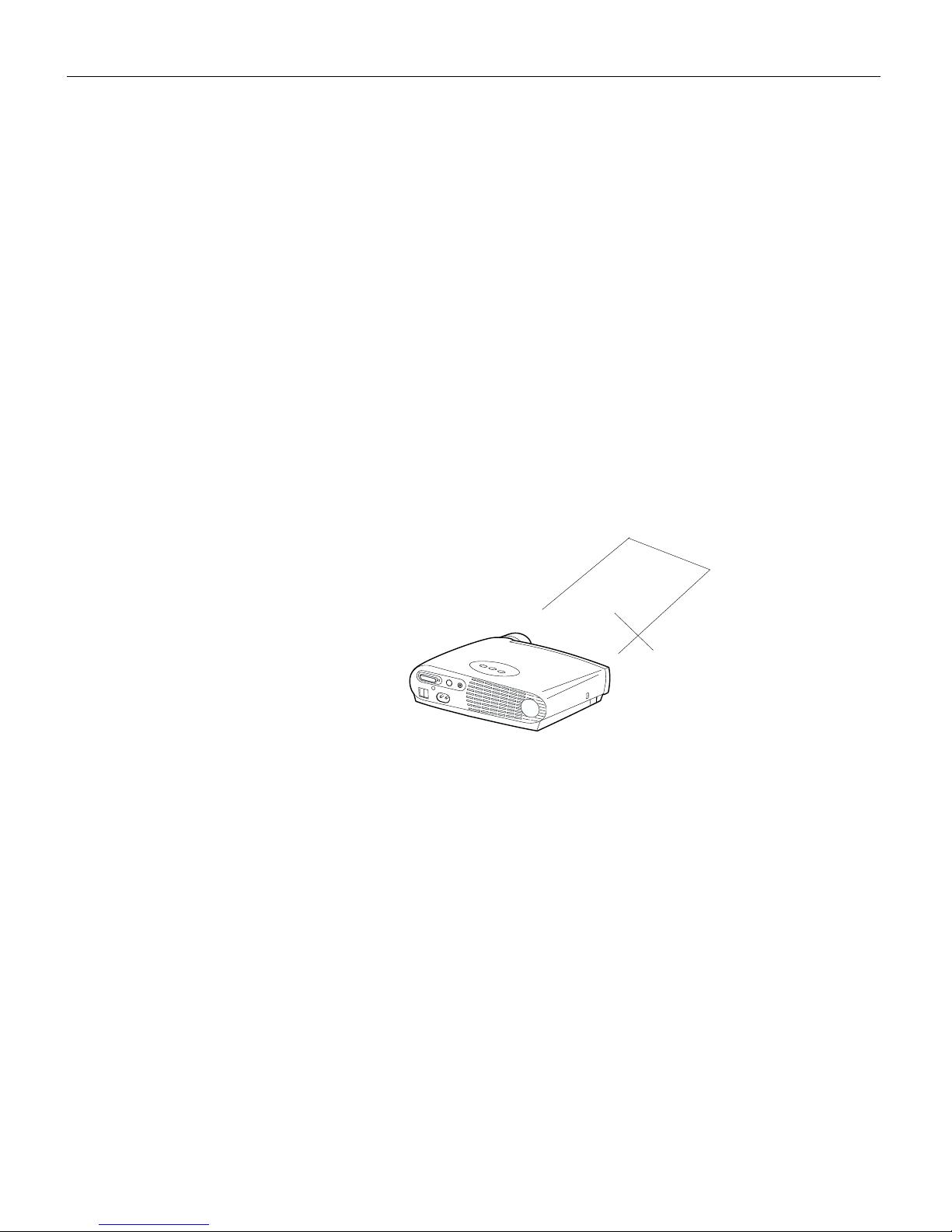

Do not place objects in

this area in front of the projector

2ft(.6m)

INTRODUCTION

The Toshiba TDP-P4 digital projector is specifically designed for

the mobile presenter. It generates crisp, clear images using Digital

Light Processing™ (DLP) technology, and features an

M1-DA type DVI connector for easy, built-in digital/analog and

USB connectivity. It is easy to connect, easy to use, easy to trans-

port, and easy to maintain.

Image Resolution

NOTE: The projector automati-

cally expands 640x480 and

800x600 images to 1024x768.

You can display these images at

their native resolutions using the

Resize option in the Image menu.

See page 19 for more information.

The XGA resolution of the TDP-P4’s projected image is 1024x768.

The projector is compatible with screen resolutions up to

1280x1024. If your computer’s screen resolution is higher than

1280x1024, reset it to a lower resolution before you connect the

projector.

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

•IBM-compatible computers, including laptops, up to 1280x1024

resolution.

•Apple®Macintosh®and PowerBook®computers up to

1280x1024 resolution.

NOTE: The projector is compati-

ble with 1080i and 720P HDTV

formats.

•Most standard VCRs, DVD players, HDTV sources, camcord-

ers and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your Toshiba dealer imme-

diately if anything is missing.

If you are experienced in setting up presentation systems, use the

Quick Start card that was included in the shipping box. For com-

plete details on connecting and operating the projector, refer to

this User’s Guide.

Introduction

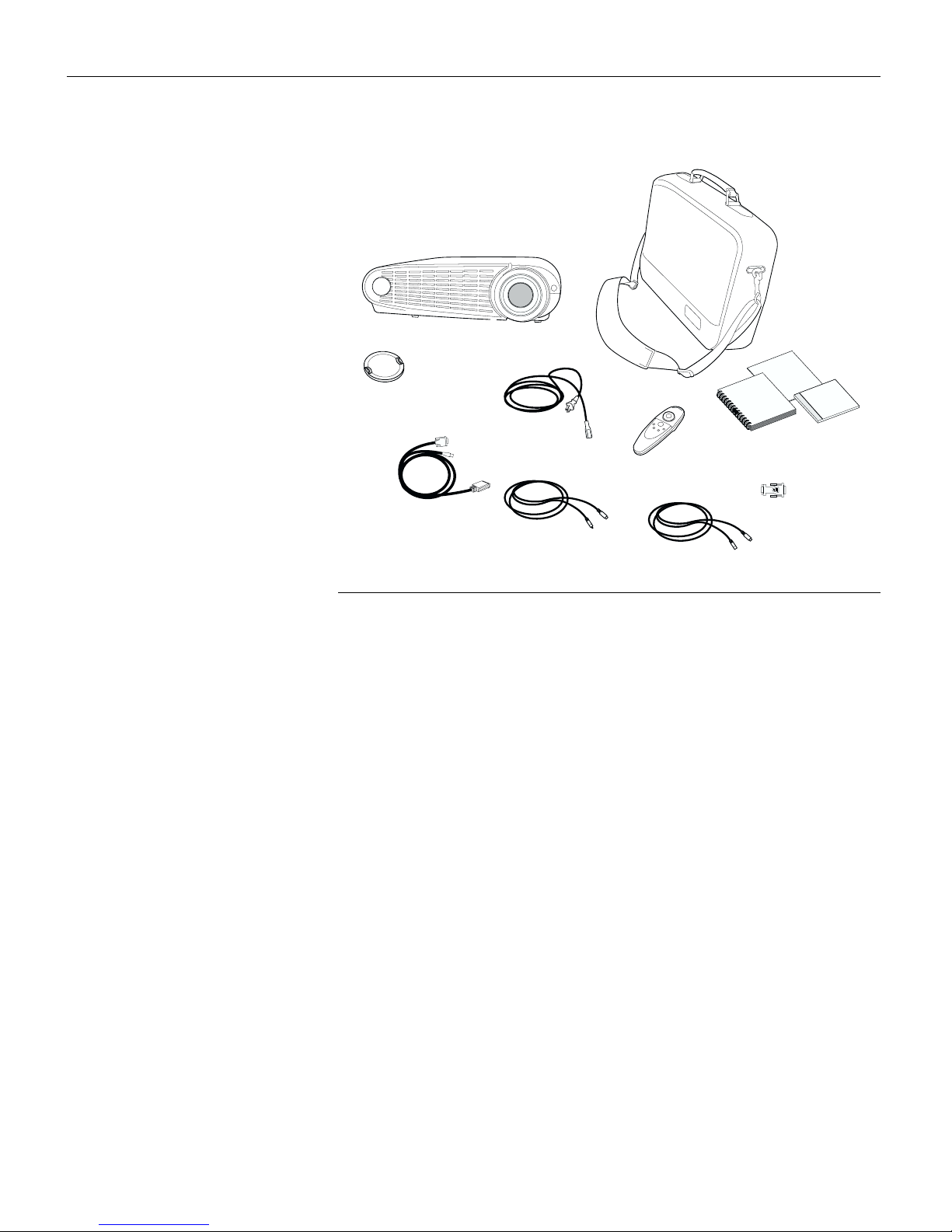

FIGURE 1

Shipping box contents

1. TDP-P4 digital projector +

lens cap

5. Remote control

2. Soft carry case 6. Analog computer cable

3. User’s Guide, Quick Start

card, and CD

7. Composite video cable

4. Power cord 8. S-video cable

9. Macintosh adapter

FIGURE 2

Side view of projector

Usage Guidelines

•Do not look directly into the projection lens when the projector

is turned on. The bright light may harm your eyes.

•Do not block the grills on the projector. Restricting the air flow

can cause it to overheat and turn off. If this happens, you must

wait a minute before attempting to turn it back on.

•Handle the projector as you would any product with glass

components. Be especially careful not to drop it.

•Avoid leaving the projector in direct sunlight or extreme cold

for extended periods of time. If this happens, allow it to reach

room temperature before use.

•Transport the projector in a vendor-approved hard or soft case.

Part numbers for these cases are listed on page 37.

If You Need Assistance

The first place to look for help is in this manual. Be sure to check

the guidelines in “Troubleshooting” on page 32.

Please contact your Toshiba dealer for details.

security lock

power

cord

connector

power

switch

keypad

zoom ring focus ring

computer and video

connectors

SETTING UP THE PROJECTOR

1Place the projector on a flat surface.

•The projector must be within 10 feet (3 m) of your power

source and within 6 feet (1.8 m) of your computer.

•If you want to project from behind a translucent screen, set

up the projector behind your screen. See “Rear Projection”

on page 23 to reverse the image.

2Position the projector the desired distance from the screen.

•If the image is too big or too small, use the zoom ring to

adjust the size or move the projector forward or backward.

Figure 3 shows three projected image sizes. For more infor-

mation about image size, see “Projected Image Size” on

page 44.

FIGURE 3

Projected image size at minimum zoom

3Make sure the projector and the computer are turned off.

3.0ft.

11.8ft.

7.1ft.

5 ft.12 ft.

20 ft.

Setting up the Projector

NOTE: Before you continue,

make sure the projector and all

other equipment is turned off. If

you’re connecting a computer,

make sure the distance between it

and the projector is 6 feet or less.

FIGURE 4

Connector panel

FIGURE 5

Computer cable

NOTE: If you are connecting an

older Macintosh computer that

does not have a 15-pin connector,

use the Mac adaptor between the

computer and the projector.

video

power switch

computer

power cord

to computer video

to projector

to computer

to USB mouse
